Bunn Premia 61000.0000 Installation & Operating Manual

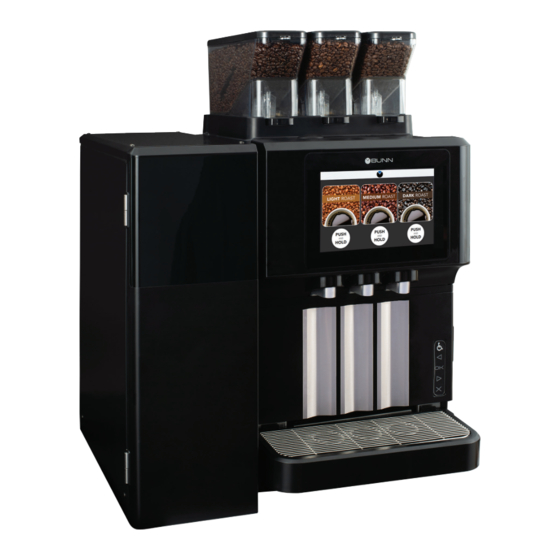

Bean-to-batch medium to high volume brewer
Hide thumbs Also See for BUNN Premia 61000.0000:
Table of Contents

Advertisement

Quick Links

Download this manual

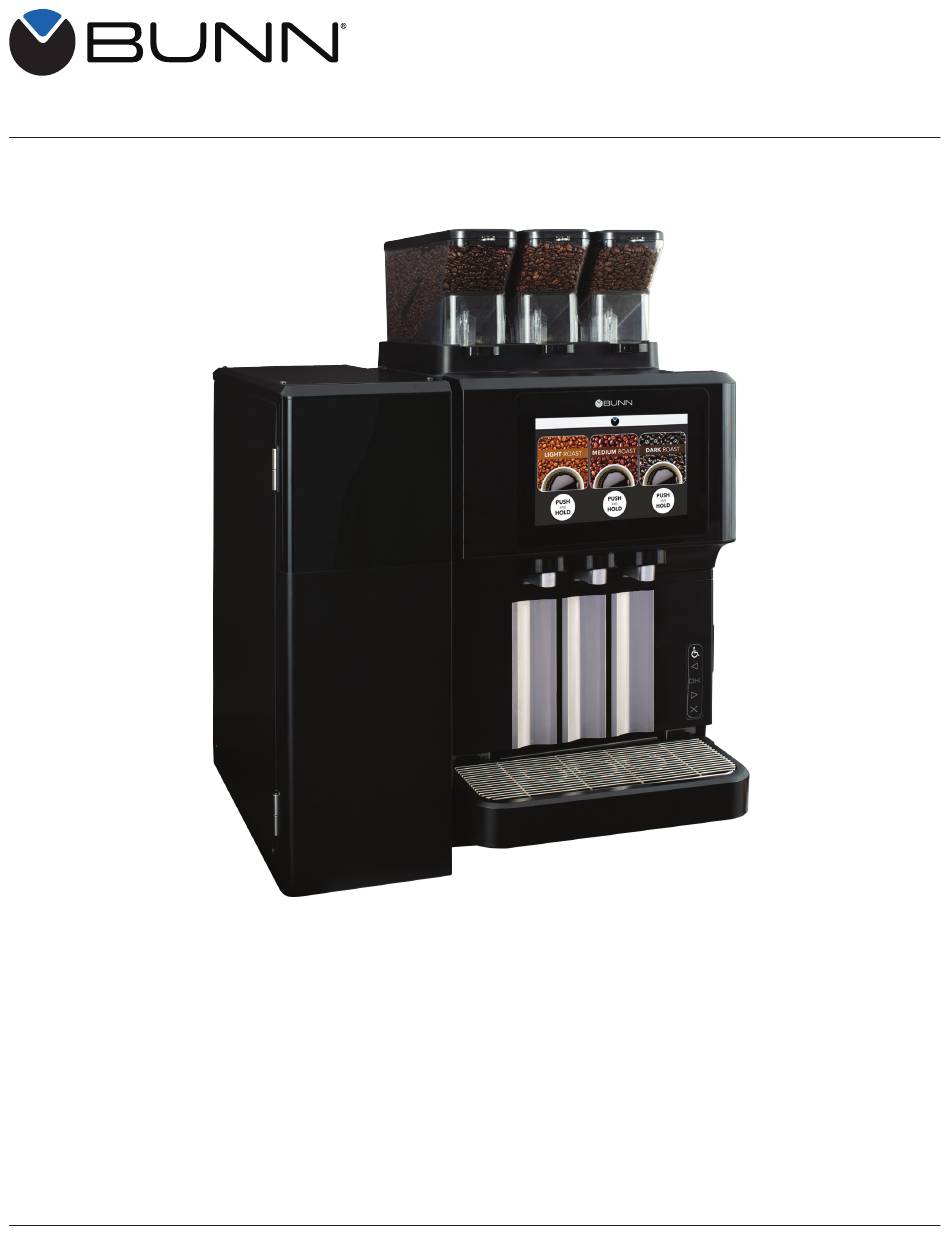

Premia
Coffee Brewer
™
Bean-to-Batch Medium to High Volume Brewer
INSTALLATION & OPERATING GUIDE
For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.
Bunn-O-Matic Corporation
Post Office Box 3227, Springfield, Illinois 62708-3227
Phone (217) 529-6601 | Fax (217) 529-6644
www.bunn.com
58819.0000 A 10/23 © 2023 Bunn-O-Matic Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BUNN Premia 61000.0000 and is the answer not in the manual?

Questions and answers

Related Manuals for Bunn BUNN Premia 61000.0000

Summary of Contents for Bunn BUNN Premia 61000.0000

  • Page 1 Premia Coffee Brewer ™ Bean-to-Batch Medium to High Volume Brewer INSTALLATION & OPERATING GUIDE For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070. Bunn-O-Matic Corporation Post Office Box 3227, Springfield, Illinois 62708-3227 Phone (217) 529-6601 | Fax (217) 529-6644 www.bunn.com 58819.0000 A 10/23 © 2023 Bunn-O-Matic Corporation...

  • Page 2: Warranty

    BUNN’S SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

  • Page 3: Table Of Contents

    CONTENTS WARRANTY ................................2 USER NOTICES ..............................4 WARNINGS ................................4 NORTH AMERICA REQUIREMENTS ........................5 SITE REQUIREMENTS Plumbing ................................. 6 Water Treatment .............................. 6 Counter ................................6 Electrical (Hookup and Configuration) ......................6 INITIAL SETUP Electrical Configuration ............................. 7 Optional Field Wiring ............................

  • Page 4: User Notices

    Disconnect power before servicing. READ THE ENTIRE OPERATING MANUAL BEFORE USING THIS PRODUCT 37881.0000 00986.0000M 10/14 ©1994 Bunn-O-Matic Corporation 00824.0002 00986.0000 As directed in the International Plumbing Code of the International Code Council and the Food Code Manual of the Food and Drug Administration (FDA),...

  • Page 5: North America Requirements

    NORTH AMERICAN REQUIREMENTS • This appliance must be installed in locations where it can be overseen by trained personnel. • For proper operation, this appliance must be installed where the temperature is between 41°F to 95°F (5°C to 35°C). • Appliance shall not be tilted more than 10° for safe operation. •...

  • Page 6: Site Requirements

    90 psi (0.620 MPa) to reduce it to 50 psi (0.345 MPa). NOTE: Bunn-O-Matic recommends 3 ⁄8” copper tubing for installations of less than 25 feet and 3 ⁄8” for more than 25 feet from the 1 ⁄2” water supply line. A tight coil of copper tubing in the water line will facilitate moving the brewer to clean the counter top.

  • Page 7: Initial Setup

    INITIAL SETUP Electrical Configuration • 208/240VAC circuit (voltage range +5/-10%) • Dedicated 30-amp circuit: cord cap, receptacle, and breaker • Machine is supplied with a power cord (PN 46908.0002) AWG 10/3 30A/250V with Plug L1, L2, G. NOTE: (N) no neutral wire/conductor used. •...

  • Page 8: Optional Field Wiring

    INITIAL SETUP Optional Field Wiring In the event the current location has an 1PH, 3 Wire plus Ground, 30 Amp electrical receptacle, the machine power cord/plug (PN 46908.0002) will need to be removed and replaced with a power cord and plug to match the current location receptacle configuration. Electrical Configuration •...

  • Page 9: Plumbing Connection

    INITIAL SETUP Plumbing Hook Up As directed in the International Plumbing Code of the International Code Council and the Food Code Manual of the Food and Drug Administration (FDA), this equipment must be installed with adequate backflow prevention to comply with federal, state and local codes. For models installed outside the U.S.A., you must comply with the applicable Plumbing /Sanitation Code for your area.

  • Page 10: Drain And Wast Bin Setup

    INITIAL SETUP Drain and Waste Bin Setup The waste bin and drain line will require cutting a hole through the counter before the machine can be installed. Refer to the diagram below for cut-out placement and measurements. The drain hoses connect to the barb fittings located between the power cord and water inlet fitting.
  • Page 11 INITIAL SETUP Waste Bin Setup (cont) grounds Use a waste bucket to collect used coffee grounds. chute 1. Locate the compartment for the waste bucket. 2. Loosen the two thumb screws to free the bracket. 3. While pushing the bucket up against the back wall of the compartment, slide the bracket waste bin forward against the bucket and tighten the two...

  • Page 12: Bean Hoppers

    INITIAL SETUP Bean Hoppers 1. Prior to installing the bean hoppers, visually verify that there is no debris or obstruction blocking the bean chutes or bean detection sensors. Chutes Image 3. Install the bean hoppers in any order. NOTE: Each hopper holds approximately 3.7 lbs (1.68 kg).
  • Page 13 INITIAL SETUP Filling Bean Hoppers If bean hoppers are already locked in place, go to Step 3. 1. Place an empty hopper in opening on top of machine. Left Center Right 2. When placed, push gate handle back. 3. Remove lid(s). 4.

  • Page 14: Power Switch

    INITIAL SETUP 1. With the water supply line connected to the unit, turn the water on & check for leaks. 2. Open Lower door. 3. Connect the unit to the power source (plug it in). 4. Turn the unit on by setting the power switch to the ON position.

  • Page 15: Cabinet Reservoirs

    Press and Hold 1. Once the initialization sequence is complete, the User Interface screen will appear. At the homescreen, press and hold the BUNN Logo for a few seconds until Service Access menu appears on the screen. 2. Once Service Access appears on the screen, Select Unlock Cabinet Door.

  • Page 16: Ethernet Connection

    INITIAL SETUP Cabinet Reservoirs (cont) 3. Locate the swing arm above the reservoirs and use the handle to position it downwards over the servers as shown. 4. Close the cabinet door. Ethernet Cable Connection 5. Route the blue ethernet cable from the machine to the ethernet hub located inside the knee wall.

  • Page 17: Bunnlink Activation

    NOTE: BUNNlink Models Only. Purchase is required if not pre-installed on machine. ® If you experience any issues with activation; contact BUNN Tech Services at (800) 286-6070 or email: bunnlink@bunn.com 1. Scan the QR Code located on the machine. 2. a. Once the QR code is scanned on a smart *If this is a kit install, scan the QR Code decal phone or tablet, this screen will appear.

  • Page 18: Wi-Fi

    BUNNLINK ACTIVATION LTE Activation (continued) NOTE: Activation of the board can take up to fifteen 5. Select the BUNNlink tab from Machine minutes as stated on the activation page. The board Settings to verify: is completely activated once the LED on the board - The gateway has been connected changes color from blue to green.

  • Page 19: Bunnlink Product Registration

    BUNNLINK ACTIVATION WI-FI Activation (continued) 7. Scan the QR Code provided 8. Enter or select the correct 6. a. Access Machine Settings in the packaging. network name and password b. Scroll down to the for that specific network. BUNNlink tab NOTE: If no networks are c.

  • Page 20: Product And Recipe Setup

    If you have a USB stick with custom files; follow these steps. If not, go to Product Setup on page 16. 1. Touch and hold the BUNN logo for a few seconds until SERVICE ACCESS appears on the display. 2. Select the ADVANCED SETUP icon.
  • Page 21 PRODUCT AND RECIPE SETUP 5. Press the IMPORT tab. 6. Open the Lower Door and Insert USB Stick. 7. Select new Configuration file. 8. Press Start button. 9. Screen will show progress of file import. NOTE: Do not remove USB Stick while files are copying.
  • Page 22 PRODUCT AND RECIPE SETUP 10. When the import is completed, the OK button can be selected and the USB Stick can be safely removed. 11. Press Reboot button to complete import. NOTE: This will restart the machine’s operating system. 12. The machine will update with your custom Configuration files.

  • Page 23: Grinder Calibration

    PRODUCT AND RECIPE SETUP Grinder Calibration 1. Touch and hold the BUNN logo for a few seconds until SERVICE ACCESS appears on the display. 2. Select the ADVANCED icon. 3. Next, enter the passcode 6601. * * * * 4. Touch the RECIPES icon.
  • Page 24 PRODUCT AND RECIPE SETUP Grinder Calibration (continued) 5. Next, touch the PRODUCTS tab. 6. Choose a product to edit. NOTE: We will use the “Regular” as an example. 7. Select the GRINDER CALIBRATION button. 8. Choose a hopper from the tabs. The default is the left hopper.
  • Page 25 PRODUCT AND RECIPE SETUP Grinder Calibration (continued) 10. Follow on-screen prompts. 11. TARE (zero) empty receiving container on a digital weigh scale. a. Select Tare with empty container on scale. b. Select grams as unit of measurement. It’s time to Calibrate the grinder. 12.
  • Page 26 PRODUCT AND RECIPE SETUP Grinder Calibration (continued) 14. Allow time for the grind to finish. Once the grind is finished, take the container and place it on the digital scale. 15. Weigh cup. 16. Then, press the 1st Field to log the weight of the coffee in the cup.
  • Page 27 PRODUCT AND RECIPE SETUP Grinder Calibration (continued) 20. a. Press APPLY TO LEFT button to automatically input average. b. Manually press on the AVERAGE COFFEE WEIGHT field to fill in this amount. 21. The INPUT screen will appear. Type Average Weight. 22.

  • Page 28: Bean Hopper Assignment

    PRODUCT AND RECIPE SETUP Bean Hoppers Assignment 1. Touch and hold the BUNN logo for a few seconds until SERVICE ACCESS appears on the display. 2. Select the ADVANCED SETUP icon. 3. Next, enter the passcode 6601. * * * *...
  • Page 29 PRODUCT AND RECIPE SETUP Bean Hoppers Setup (continued) 1. Select the BEAN HOPPERS tab to assign which Product goes in which hopper. 2. Press the ENABLE box to select which hopper to use. 3. After enabling a Hopper, you can use the UP and DOWN Arrows to select an icon for the Product in that hopper.

  • Page 30: Editing Coffee Recipes

    PRODUCT AND RECIPE SETUP Editing Coffee Recipes You can make changes to Recipes for the sizes enabled. 1. Access the ADVANCED SETUP MENU (see page 23). 2. Next, enter the passcode 6601. 3. Touch the RECIPES icon. 4. Press the COFFEE tab to start. Example: Each size with a green box is enabled.
  • Page 31 PRODUCT AND RECIPE SETUP Editing Coffee Recipes (cont) 4. You can also adjust the hold time and hold temperature for the recipe. 5. Press OK if changes are made. 6. Press the Schedules Tab. 5. Press the Schedules Tab. 6. The Schedules Tab allows you to adjust hold volume for different times of each day.
  • Page 32 PRODUCT AND RECIPE SETUP Filling Reservoirs You can check the status of each reservoir using the Service Access screen. 1. Touch and hold the BUNN logo for a few seconds until SERVICE ACCESS appears on the display. 2. Select the RESERVOIRS icon.

  • Page 33: Customer Interface

    OPERATION Customer Interface The first screen to appear is the CUSTOMER INTERFACE screen, also known as the Home Screen. 1. After placing a cup under the dispense nozzle, available drinks are dispensed by pushing and holding the onscreen button below the beverage of choice.

  • Page 34: Care And Cleaning

    CARE AND CLEANING Care and Cleaning Accessing Care and Cleaning 1. Touch and hold the BUNN logo for a few seconds until SERVICE ACCESS appears on the display. 2. Select the CARE AND CLEANING icon. Before Starting • Do not use any abrasive materials.

  • Page 35: Interior And Exterior Surfaces

    CARE AND CLEANING Brewer Cleaning 1. Select the BREWER tab. Follow the onscreen instructions to prepare for cleaning. 2. Select NEXT. 3. Open Lower Door and raise the Upper Door. 4. Use Brush to sweep loose grounds from Brewing Chamber into Grounds Chute. NOTE: Upper Door can be opened and Swiper handle can be pulled approximately 3/4”...
  • Page 36 CARE AND CLEANING Brewer Cleaning (contined) 11. Take the cart back to a 3-basin sink. Wash both Drip Tray and Swiper. NOTE: Wash both top and bottom of the Swiper assembly. 12. Install Swiper. 13. Select NEXT. 14. Place Cleaning Tablet in the drop tube. Ensure the tablet is completely pushed through the rubber seal.
  • Page 37 CARE AND CLEANING Reservoir Cleaning 1. Select the RESERVOIRS tab. Follow the onscreen instructions to prepare for cleaning. 2. Select START. NOTE: Cleaning takes approximately 45 minutes. NOTE: The prompt for Reservoir and Cabinet cleaning occurs only once per week** 3.
  • Page 38 CARE AND CLEANING Reservoir Cleaning (contined) 9. Remove the Cleaning Shield. 10. Select Continue. NOTE: Do not take reservoirs to the sink. Do not submerge them in water. 11. Open the Reservoir Cabinet Door and raise the swing arm. Remove all three reservoirs and place them on the cart.
  • Page 39 CARE AND CLEANING Reservoir Cleaning (continued) 18. Replace all three Reservoirs, gently pushing down on each to ensure there is no gap between the bottom of each reservoir and the lower basin. NOTE: Blue LEDs will illuminate when the reservoir is properly seated. 19.
  • Page 40 ACTIVE NOTICES 1. Touch and hold the BUNN logo for a few seconds until SERVICE ACCESS appears on the display. 2. From the SERVICE ACCESS screen, press the ACTIVE NOTICES icon. 3. The screen will display by Name & Description, any faults that have occurred, give probable causes, and a solution to clear the fault.

  • Page 41: Troubleshooting & Alerts

    TROUBLESHOOTING & ALERTS This occurs when a probe is giving a different reading when compared to the neigh- Reservoir Level Detect: boring probes above and below it. Example: The 22.5 oz probe believes there is liquid present, but the 9oz and the 28oz probe show reservoir as empty.
