White Rodgers 36G22 Installation Instructions

Operator: Save these instructions for future use!
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE
INSTALLING OR OPERATING THIS CONTROL COULD CAUSE PERSONAL INJURY
AND/OR PROPERTY DAMAGE.
The 36G/J22, 36G/J23, 36G/J24 and 36G/J52 combination
gas valves are designed for direct spark ignition (DSI) and
hot surface ignition (HSI) system applications. These valves
are equipped with redundant and main solenoid valves that
control gas fl ow to the main burners, a pressure regulator
and a two-position on/off switch for regulation and electrical
shut-off of the solenoid valves. The 36G/J23, 36G/J24 and
36G/J52 are also equipped with a slow-opening pressure
regulator for softer lighting characteristics.
Type of Gas: Natural gas
LP gas (use conversion kit)
Pressure Regulator Setting:
Nat. Gas - 2.5 to 5.0" W.C.
LP Gas - 7.0 to 12.0"W.C.
Ambient Temperature: -40° to 175°F
Pressure Rating: 14" W.C. (1/2 PSI) max.
Voltage: 24 VAC
Frequency: 50/60 Hz
Current: .360 amps
CONTENTS
Description ........................................................ 1
Specifi cations .................................................... 1
Precautions ....................................................... 2
Installation ......................................................... 3
System Wiring
Adjustment ........................................................ 4
Pressure Regulator Adjustment
Lighting Instructions ........................................... 5
Notes ................................................................... 6

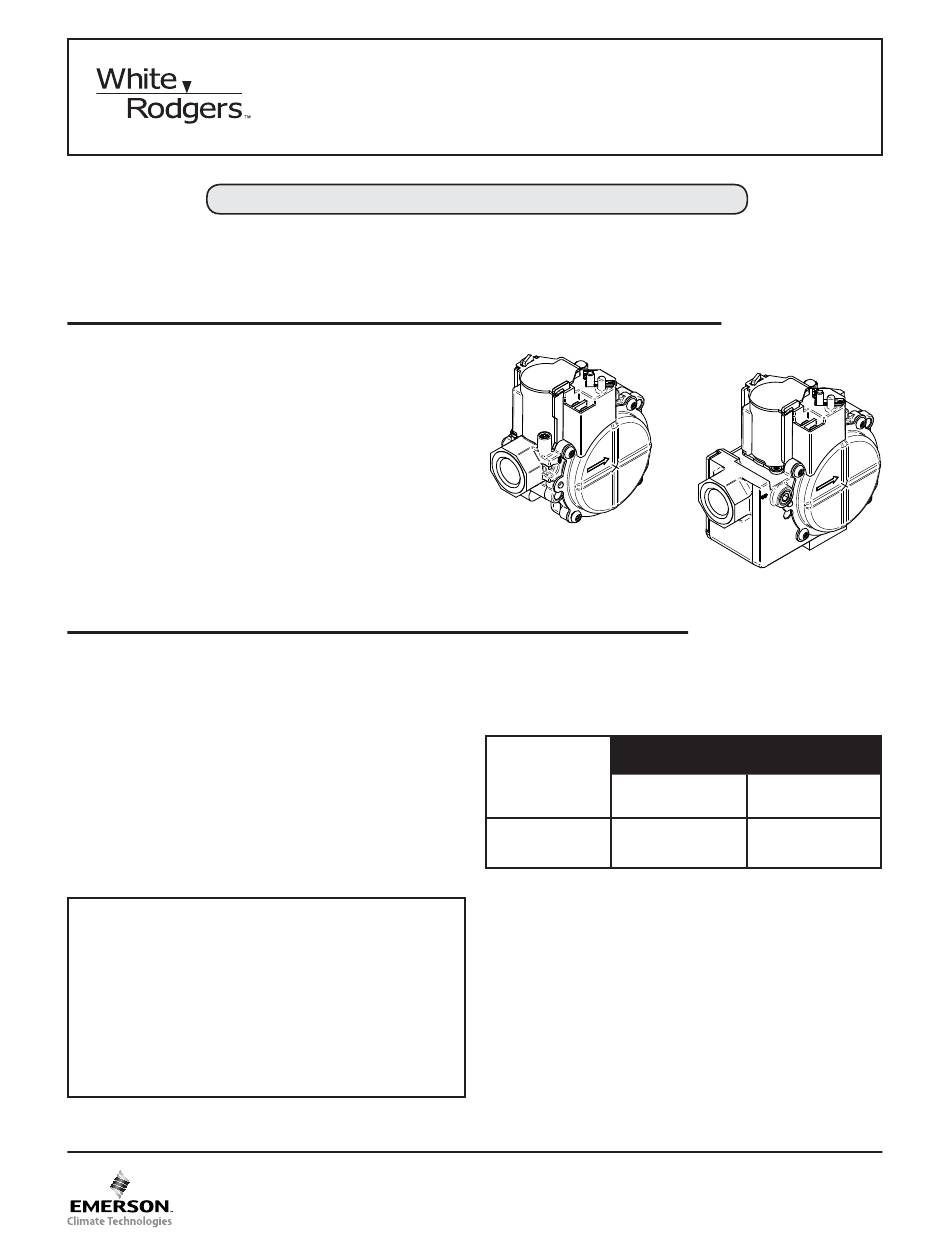

36G22, 36G23, 36G24 & 36G52
36J22, 36J23, 36J24 & 36J52
DSI and HSI Single Stage Combination Gas Valve
INSTALLATION INSTRUCTIONS
36G
Mounting Positions:
Multipoise - Control may be mounted in any position.
Pipe Sizes
Available
(inches)
" x " NPT
1/2 1/2
any combination
Parts and Accessories:
F92-0656 - LP to Natural Gas Conversion Kit for use
on Single Stage 36C, D, E, F, G, H, J valves. Regulation
range 2.5" to 5.0" W.C.
F92-0659 - Natural to Regulated LP Gas conversion
Kit for use on Single Stage 36C, D, E, F, G, H, J valves.
Regulation range 7.0" to 12.0" W.C.
F92-1003 - Adapter Kit for the 36G Gas Valves. Kit in-
cludes: Connector (5/16" to 1/4" hose barb), tube (5/16"
O.D.) and Hex Wrench (3/32").
www.white-rodgers.com
www.emersonclimate.com

DESCRIPTION

SPECIFICATIONS
PIPE SIZES/CAPACITIES
Capacity (BTU/hr) at
1" pressure drop across valve
AGA Std. Nat. Gas
(1,000 BTU/cu. ft.) (2,500 BTU/cu. ft.)
140,000
PART NO. 37-6159G
Replaces 37-6159F
36J
LP Gas
226,800
