WHITE-RODGERS
Operator: Save these instructions for future use!
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE
INSTALLING OR OPERATING THIS CONTROL COULD CAUSE PERSONAL INJURY
AND/OR PROPERTY DAMAGE.

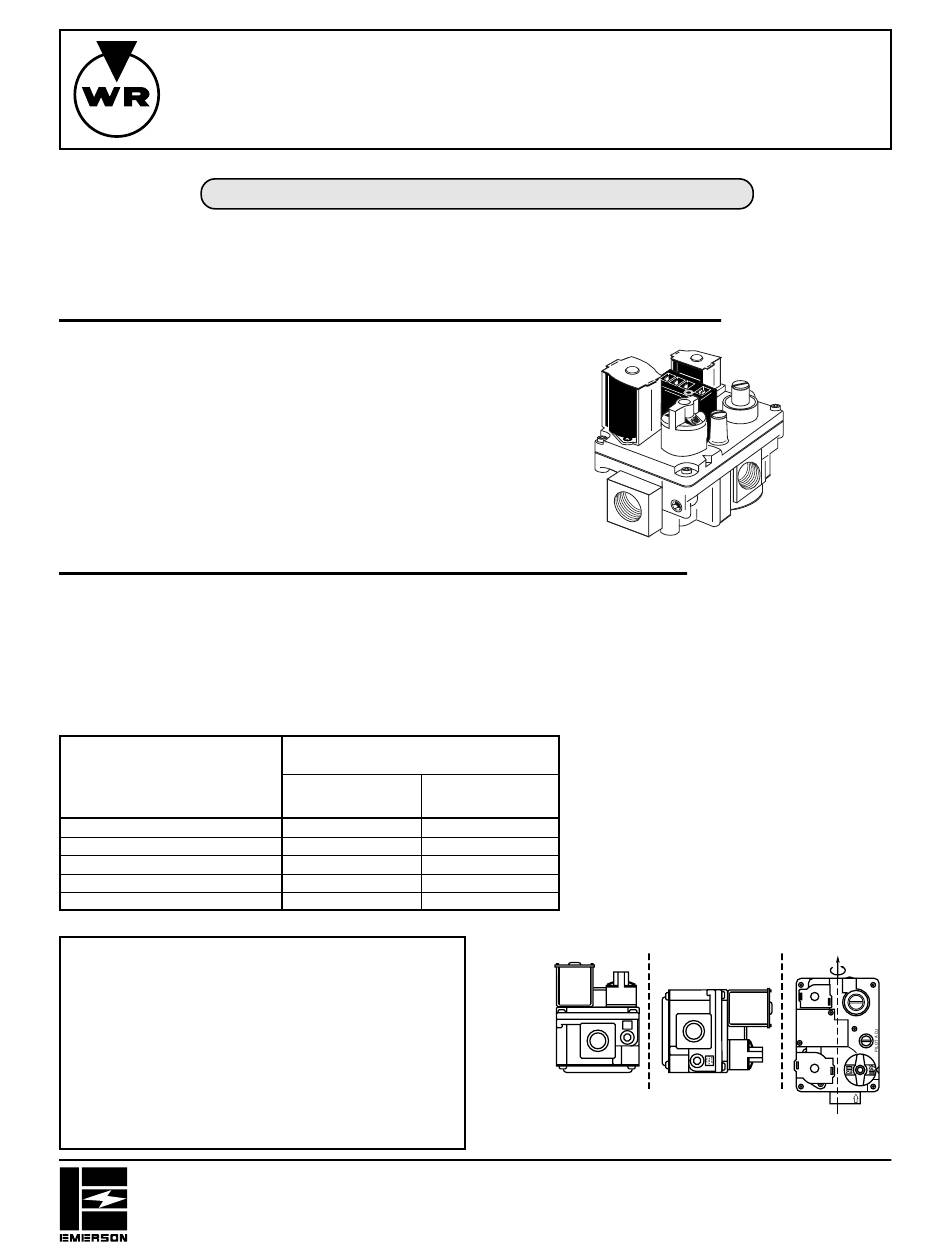

The 36E93-304 combination gas valve is designed for
intermittent ignition system applications. The valve is
equipped with a redundant solenoid valve that controls
gas flow to the pilot and main burners, a main valve that
controls gas flow to the main burner, a pressure regulator
to maintain a constant outlet pressure, and a two-position
gas cock knob for manual gas shut-off.
Type of Gas: Natural gas
LP gas (use conversion kit)
Pressure Regulator Setting:
Nat. Gas – 2.5 to 5.0" W.C.
LP Gas –
7.0 to 12.0" W.C.
PIPE SIZES/CAPACITIES
Pipe Sizes Available
(inches)
3
3
⁄
" x
⁄
" NPT any combination
8
8
3
⁄
" x
3
⁄
" NPT straight through
8
4
1
3
⁄
" x
⁄
" NPT any combination
2
8
1
1
⁄
" x
⁄
" NPT any combination
2
2
1
3
⁄
" x
⁄
" NPT straight through
2
4
CONTENTS
Description ......................................................... 1
Specifications ..................................................... 1
Precautions ........................................................ 2
Installation .......................................................... 3
Adjustment ......................................................... 5
WHITE-RODGERS DIVISION
EMERSON ELECTRIC CO.
9797 REAVIS ROAD
ST. LOUIS, MISSOURI 63123-5398
Capacity (BTU/hr) at
1" pressure drop across valve
AGA Std. Nat. Gas
LP Gas
(1,000 BTU/cu. ft.)
(2,500 BTU/cu. ft.)
75,000
121,500
75,000
121,500
100,000
162,000
140,000
226,800
140,000
226,800
Printed in U.S.A.
36E93-304
Delay-Opening Combination Gas Valve
INSTALLATION INSTRUCTIONS
Ambient Temperature:
-40° to 175°F
Pressure Rating: 14" W.C. (
Voltage:
24 VAC
Frequency:
50/60 Hz
MOUNTING POSITIONS:
Upright, or 0° to 90° from upright
UPRIGHT
INLET
PRESS
TAP
Figure 1. Gas valve mounting positions
DESCRIPTION
SPECIFICATIONS
1
⁄
PSI) max.
2
INLET BOSS
LEFT OR RIGHT
UP OR DOWN
360°
PART NO. 37-5291C
Replaces 37-5291B
9615
