White Rodgers 36E22-214 Installation Instructions Manual

WHITE-RODGERS
Operator: Save these instructions for future use!
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE
INSTALLING OR OPERATING THIS CONTROL COULD CAUSE PERSONAL INJURY
AND/OR PROPERTY DAMAGE.

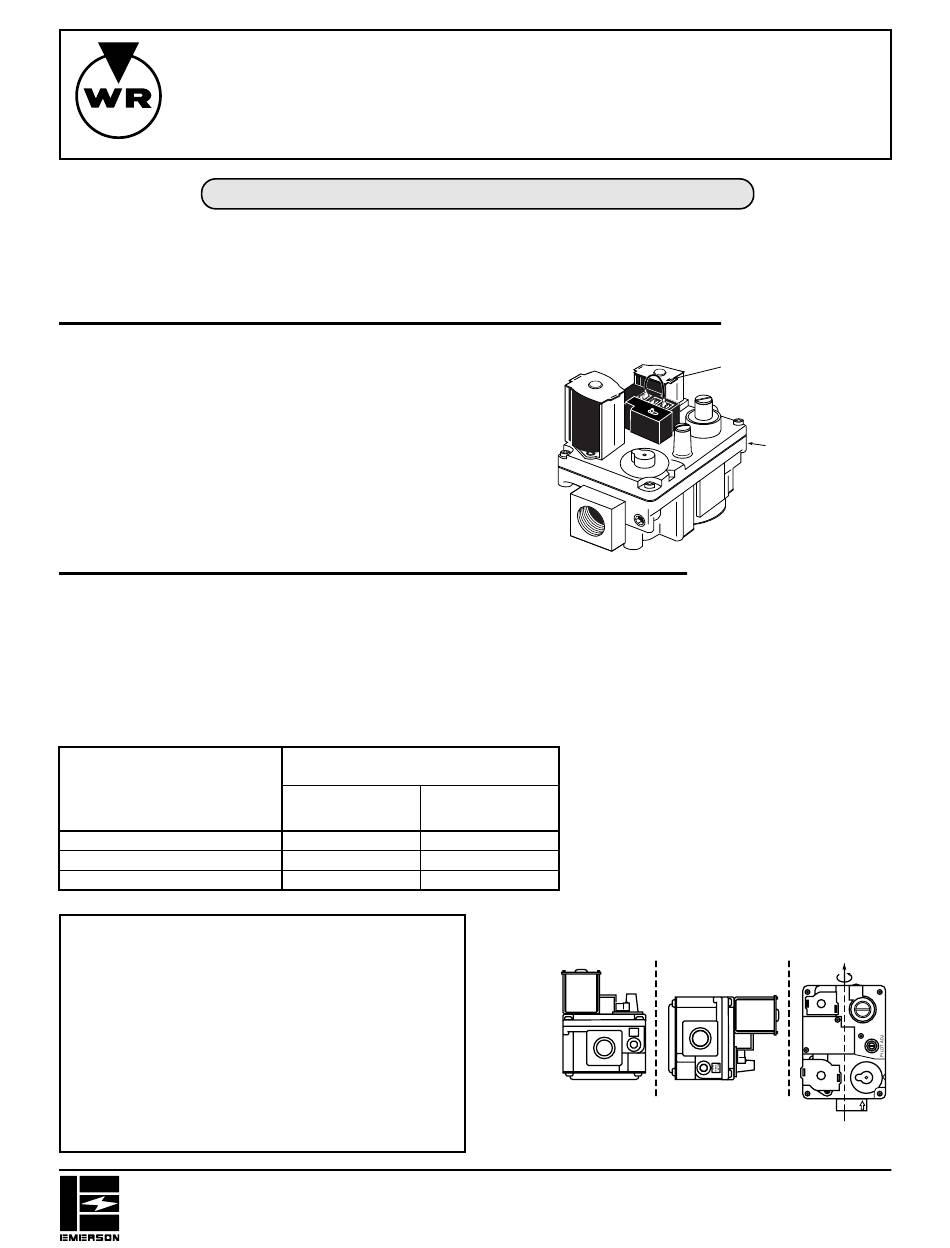

The 36E22-214 combination gas valve is designed for
direct spark ignition (DSI), hot surface ignition (HSI) and
proven pilot system applications. This valve is equipped
with redundant (pilot) and main solenoid valves that con-
trol gas flow to the main burners and/or pilot, a field-
adjustable outlet pressure regulator, and a two-position
on/off switch for electrical shut-off.
Type of Gas: Natural gas
LP gas (use conversion kit)
Pressure Regulator Setting:
Nat. Gas - 2.5 to 5.0" W.C.
LP Gas - 7.0 to 12.0" W.C.
PIPE SIZES/CAPACITIES
Pipe Sizes Available
(inches)
3 3
⁄ " x ⁄ " NPT straight through
8 8
1 3
⁄ " x ⁄ " NPT straight through
2 8
1 1
⁄ " x ⁄ " NPT straight through
2 2
CONTENTS
Description ......................................................... 1
Specifications ..................................................... 1
Precautions ........................................................ 2
Installation .......................................................... 2
Pilot Gas Connection
Regulator Vent Connection
System Wiring
Adjustment ......................................................... 4
Pressure Regulator Adjustment
Pilot Gas Adjustment
Lighting Instructions ........................................... 5
WHITE-RODGERS DIVISION
EMERSON ELECTRIC CO.
9797 REAVIS ROAD
ST. LOUIS, MISSOURI 63123-5398
Capacity (BTU/hr) at
1" pressure drop across valve
AGA Std. Nat. Gas LP Gas
(1,000 BTU/cu. ft.) (2,500 BTU/cu. ft.)
75,000 121,500
100,000 162,000
140,000 226,800
Printed in U.S.A.
36E22-214
DSI, HSI or Proven Pilot
Universal Fast-Opening
Combination Gas Valve
INSTALLATION INSTRUCTIONS
Ambient Temperature: -40° to 175°F
Pressure Rating:
Voltage:
Frequency:
MOUNTING POSITIONS:
Upright, or 0° to 90° from upright
UPRIGHT
INLET
PRESS
TAP
Figure 1. Gas valve mounting positions

DESCRIPTION

Jumper for
DSI/HSI
Applications
Only
Pilot Outlet
Plugged
for DSI/HSI
Applications
Only

SPECIFICATIONS

14" W.C. ( 1 ⁄ PSI) max.
2
24 VAC
50/60 Hz
INLET BOSS
UP OR DOWN
LEFT OR RIGHT
PART NO. 37-6107A
360°
9920
