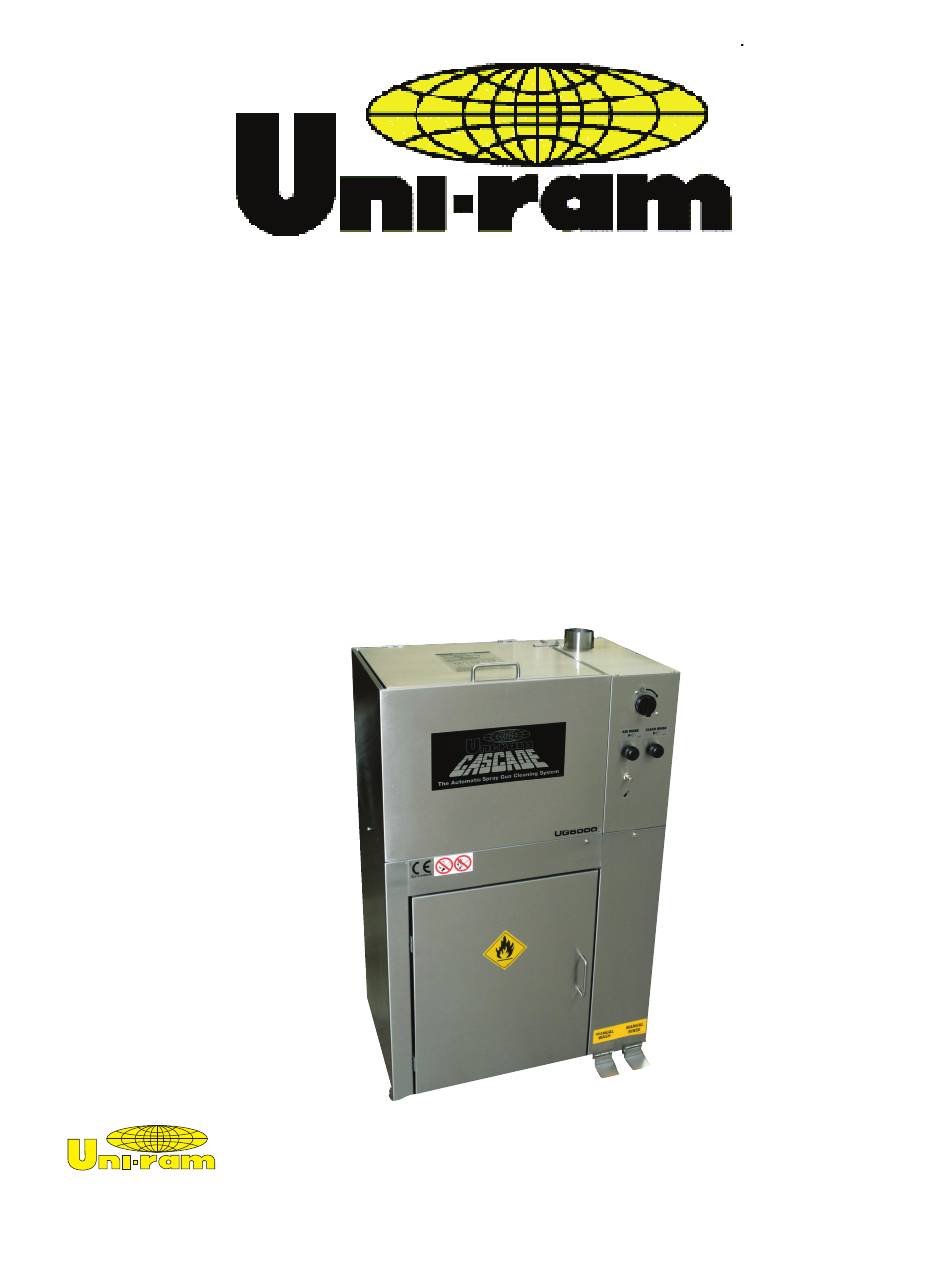

- Page 1 USER MANUAL UG6000D SERIES UG6000, UG6000D, UG6000E, UG6000EH AUTOMATIC SPRAY GUN CLEANERS •• 381 Bentley Street, Markham ON L3R 9T2 • Tel. 1-800-417-9133 CORPORATION WWW.UNIRAM.COM • sales@uniram.com REV 2019-02...
-
Page 2: Common Features
REVISED 2019-02 INTRODUCTION Uni-ram holds many patents on designs used in its innovative products. Every machine is tested for compliance with Quality Assurance standards. Follow the directions in this manual under Setup, Operation and Maintenance in order to operate this machine safely and effectively. Not following these instruction can lead to malfunction or damage to the machine. - Page 3 MANUAL - UG6000D SERIES SPRAY GUN CLEANERS REVISED 2019-02 UG6000D Cleaning Tank Vent Timer Air Rinse Clean Rinse Flow Control for Brush Wash Pail Foot pedal for wash by brush Foot pedal - rinse by spigot Note: The stainless steel inlet fi lter, located at the end of the suction hose, prevents debris from reaching the pump and wash tank.
-
Page 4: Air Supply
• Inspect the shipping carton for any sign of transport damage. Carefully remove the unit from the shipping carton and check the unit for damage. Report any transport damage immedi- ately to the carrier and to Uni-ram Corporation. Initiate a freight claim with the carrier. The manufacturer is not responsible for the freight damage. -
Page 5: Monthly Maintenance
MANUAL - UG6000D SERIES SPRAY GUN CLEANERS REVISED 2019-02 PAIL SETUP The pail setup for the UG6000D is described first, followed by the pail set up for the UG6000E. PAIL SETUP - UG6000D • Open the cabinet door. • The spray gun cleaner comes with one plastic pail. The black drain hose and suction hose are inserted into the plastic wash pail. - Page 6 • Combo Ready units (UG6000E and UG6500E) come with the pails already installed as shown. Transfer Hoses are provided with Uni-ram Solvent Recyclers designed for Combo operation. • Fill the Wash Pail with about 3 Gal (12 L) of clean solvent.
- Page 7 MANUAL - UG6000D SERIES SPRAY GUN CLEANERS REVISED 2019-02 PRE-CLEAN • Disconnect the spray gun from the air hose. The method for the disposable cup is described fi rst followed by the method for the conventional cup. PRE-CLEAN - DISPOSABLE CUP •...
- Page 8 MANUAL - UG6000D SERIES SPRAY GUN CLEANERS REVISED 2019-02 SPRAY GUN IN THE CLEANING TANK Brush Spigot Cap points to the corner jets Plastic Plug Location for Push On Location for Nozzle Extension for conventional cup second spray gun is in this...
- Page 9 MANUAL - UG6000D SERIES SPRAY GUN CLEANERS REVISED 2019-02 Mounting for different types of Spray Guns...
-
Page 10: Manual Wash
MANUAL - UG6000D SERIES SPRAY GUN CLEANERS REVISED 2019-02 PREVENT SOLVENT FROM ENTERING THE AIR PASSAGE OF SPRAY GUN: • Insert the plastic plug into the air fi tting as in the photo below. • Positive air will fl ow through the passage way during cleaning. - Page 11 MANUAL - UG6000D SERIES SPRAY GUN CLEANERS REVISED 2019-02 Spray Gun Flow-through Brush Flow-through Brush washing a spray gun MAINTENANCE • Clean the stainless steel inlet fi lter each month. Procedure: Follow step 1 and step 2 below under REPLACING SOLVENT.
-
Page 12: Troubleshooting
MANUAL - UG6000D SERIES SPRAY GUN CLEANERS REVISED 2019-02 TROUBLE SHOOTING PROBLEM REASON CORRECTIVE ACTION Open drain valve (put in vertical Drain valve closed position), if not already open Check wash liquid level. Add liquid if WASH PUMP MAKES Liquid level too low less than1/2 full. - Page 13 MANUAL - UG6000D SERIES SPRAY GUN CLEANERS REVISED 2019-02 Trouble shooting continued SYMPTOM REASON CORRECTIVE ACTION Replace solvent / water and AQUA- INSIDE WALL OF TANK IS KLEEN in pail. Consider a solvent COATED WITH PAINT EVEN that is formulated for type of paint...
- Page 14 MANUAL - UG6000D SERIES SPRAY GUN CLEANERS REVISED 2019-02 TROUBLESHOOTING PROCEDURES PROCEDURE 1 Blocked Fluid Passage In Diaphagm Pump If the pump sounds like it is working but liquid does not flow, clear the fluid passage as follows: • Remove suction tube from the pail and blow air at 85 PSI into the INLET Liquid Hose (see diagram).
- Page 15 MANUAL - UG6000D SERIES SPRAY GUN CLEANERS REVISED 2019-02...
- Page 16 MANUAL - UG6000D SERIES SPRAY GUN CLEANERS REVISED 2019-02...
-
Page 17: Replacement Parts
MANUAL - UG6000D SERIES SPRAY GUN CLEANERS REVISED 2019-02 REPLACEMENT PARTS Part No. Description 110-430 Nozzle Adapter, Push On, Conventional Systems Only 110-430PPS Nozzle Adapter, Push On, Disposable and Conventional Systems 780-3530 Nozzle Adapter, Disposable Cup Systems Only 100-413F Paint Cap Holder... - Page 18 "Conditions of Warranty" as consumables are not covered. Uni-ram reserves the right to direct the customer to ship the unit collect to the Uni-ram factory or to an approved Service Center for repair using the Uni-ram Return Goods Procedure or to repair the unit on- site.
