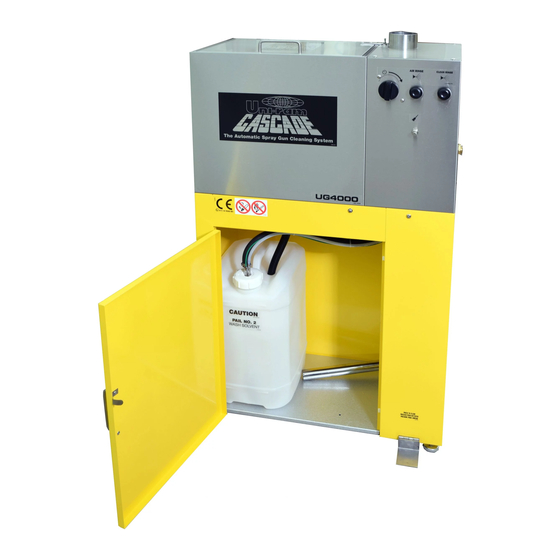

- Page 1 OPERATING MANUAL SPRAY GUN CLEANERS - UG4000 & UG6000 SERIES PRESSURE POT CLEANER - UPP6500E PAINT CAN CLEANER - UP6000 UNI-RAM CORPORATION • ONTARIO • CANADA REV 2014-09...
-
Page 2: Table Of Contents
MANUAL - UG4000-6000 SERIES + UPP6500E and UP6000 REVISION 2014-09 CONTENTS INTRODUCTION ............. . 3 CAUTIONS AND WARNINGS . -
Page 3: Introduction
REVISION 2014-09 INTRODUCTION Uni-ram holds many patents on designs used in its innovative products. Every machine is rigorously tested for compliance with stringent Quality Assurance standards. Follow the directions in this manual under Setup, Operation and Maintenance in order to operate this machine safely and effectively. Not following these instruction can lead to malfunction or damage to the machine. -
Page 4: Structure
MANUAL - UG4000-6000 SERIES + UPP6500E and UP6000 REVISION 2014-09 BRUSH FLOW CONTROL BRUSH ON / OFF UG4000FS UPP6500E TANK UG4500 MANUAL RINSE FOOT PEDAL UP6000 (UG4000DAM,UG4000DVT,UG4000 DVM,UG4000E) TANK MANUAL WASH FOOT PEDAL (UG6000 SERIES) BRUSH BRUSH CONTROL FLOW CONTROL VENT CONTROL BRUSH... -
Page 5: Setup
Inspect the shipping carton for signs of damage. It is your responsibility to report damage to the transport company. Uni-ram Corporation does not accept responsibility for shipping damage once the machine has left our warehouse. Keep the packaging materials until you are sure the machine has not been damaged during shipping. -
Page 6: Solvent Selection
MANUAL - UG4000-6000 SERIES + UPP6500E and UP6000 REVISION 2014-09 SOLVENT SELECTION The adhesion quality of automotive paint has dramatically improved in recent years. The choice of solvent is critical. Only use good quality solvent that is formulated for your paint and intended for use with automatic spray guns cleaners. -
Page 7: Solvent Pail Setup
MANUAL - UG4000-6000 SERIES + UPP6500E and UP6000 REVISION 2014-09 must be inserted through the lid of the left (wash) pail. Models with a Manual Rinse feature have another tube which needs to be inserted through the lid of the right (rinse) pail. •... -
Page 8: Pre - Clean
MANUAL - UG4000-6000 SERIES + UPP6500E and UP6000 REVISION 2014-09 CLEANING SPRAY GUNS AND CUPS • Loosen the air cap of the spray gun two full turns. • Lock the trigger in the open position with the Trigger Lock Spring. •... -
Page 9: Using The Manual Wash And Manual Rinse Features
MANUAL - UG4000-6000 SERIES + UPP6500E and UP6000 REVISION 2014-09 • Place the Solvent Pails inside the base cabinet and re-connect the Suction Pipe to the Drain Valve by pressing the button and pushing up. Turn the handle to the open position (vertical). •... -
Page 10: Hose Cleaning
MANUAL - UG4000-6000 SERIES + UPP6500E and UP6000 REVISION 2014-09 HOSE CLEANING • Models with this feature can be used to clean a paint feeder hose up to 100 feet (30 m) long. Connect the hose to the two fittings, one on the front and one on the right side. Rotate the "Mode Selector"... -
Page 11: Troubleshooting Chart
MANUAL - UG4000-6000 SERIES + UPP6500E and UP6000 REVISION 2014-09 TROUBLESHOOTING CHART SYMPTOM REASON CORRECTIVE ACTION WASH SOLVENT DOES After Each Step Below, Turn Timer. If solvent does not flow, WASH SOLVENT DOES carry out next step. • Drain valve closed •... - Page 12 MANUAL - UG4000-6000 SERIES + UPP6500E and UP6000 REVISION 2014-09 TROUBLESHOOTING CHART SYMPTOM REASON CORRECTIVE ACTION CLEANING PROBLEMS GUNS NOT CLEAN, After Each Step Below, Turn Timer. If guns are not clean, carry out next step. PUMP WORKING, SOLVENT FLOW •...
-
Page 13: Troubleshooting Procedures
MANUAL - UG4000-6000 SERIES + UPP6500E and UP6000 REVISION 2014-09 TROUBLESHOOTING PROCEDURES PROCEDURE 1 Blocked Fluid Passage In Diaphagm Pump If the pump sounds like it is working but liquid does not flow, clear fluid passage as follows: • Remove suction tube from the pail and blow air at 85 PSI into INLET Sovent Hose (see diagram). -
Page 14: Flow Diagrams
MANUAL - UG4000-6000 SERIES + UPP6500E and UP6000 REVISION 2014-09 FLOW DIAGRAMS Use the diagrams to trace the flow of compressed air and solvent. UG4000DVM / D / E (VENTED MODELS ONLY) - Page 15 MANUAL - UG4000-6000 SERIES + UPP6500E and UP6000 REVISION 2014-09 UG4500DV / UG6000EH / UPP6500E UG6000E...
-
Page 16: Replacement Parts
MANUAL - UG4000-6000 SERIES + UPP6500E and UP6000 REVISION 2014-09 REPLACEMENT PARTS 120-627S, LID CLOSING SPRING 100-810A, LID SWITCH PLATE 120-318, HANDLE FLOW-THROUGH BRUSH ASSY 144-390 140-320V, LID ASSY 114-800V, LID 140-270, MANUAL SWITCH AIR VALVE SYPHON ASSY 120-337S, LID 36-110J, AIR JET AND OPEN STOP ARM SUPPORT... -
Page 17: Accessories, Consumables And Optional Parts
An extended warranty may be purchased within 3 months from the date of purchase. There are two types of warranty: 1) parts 2) parts and labor The warranty period is 2, 3 or 4 years. If you would like to purchase an extended warranty call Uni-ram at: Canada 1-800-417-9133 1-800-735-4331... -
Page 18: Full Product Warranty
"Conditions of Warranty" as consumables are not covered. Uni-ram reserves the right to direct the customer to ship the unit collect to the Uni-ram factory or to an approved Service Center for repair using the Uni-ram Return Goods Procedure or to repair the unit on-site.
