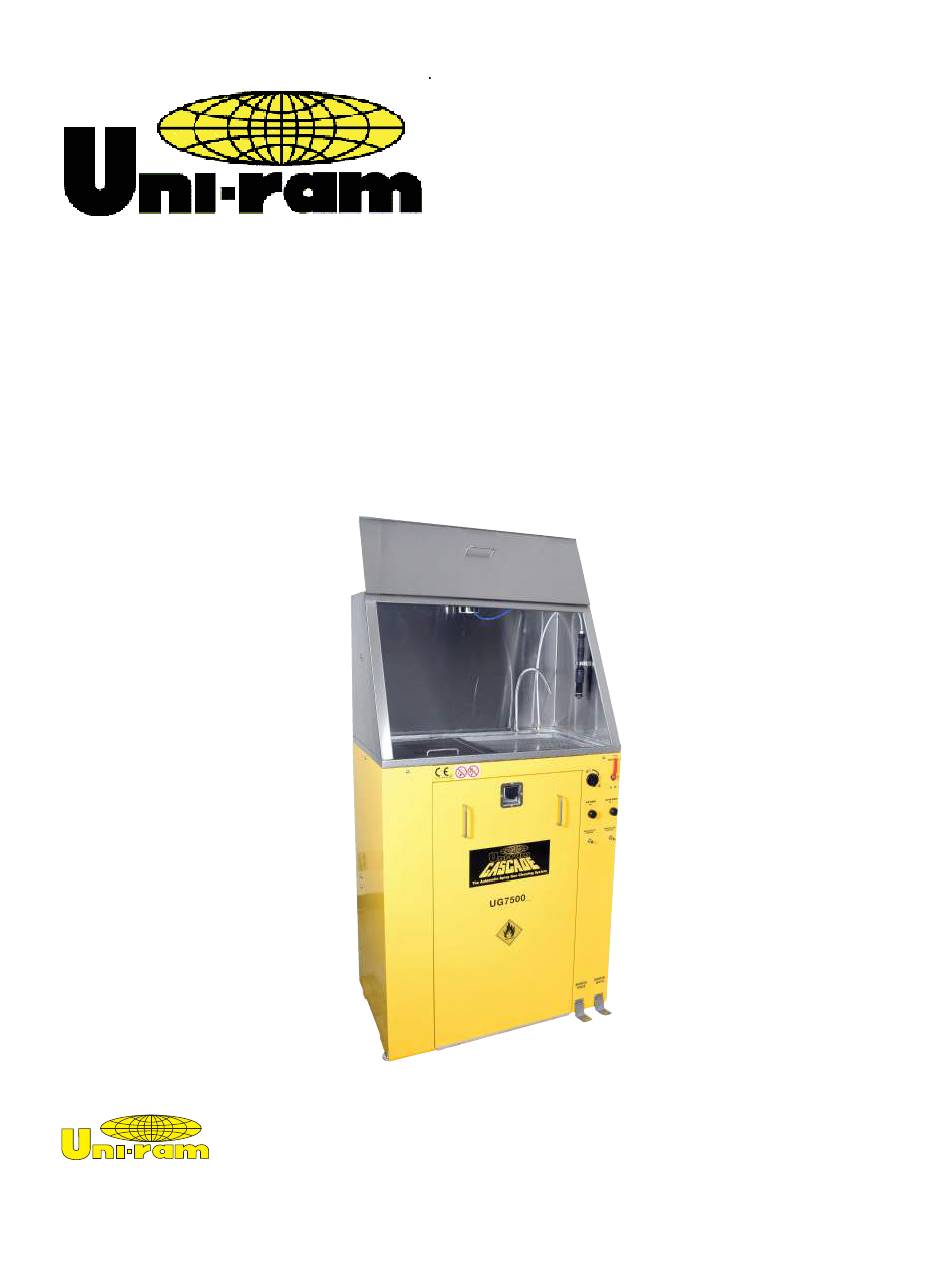

- Page 1 USER MANUAL 7500 SERIES: UG7500, UG7500E, UPP7500, UPP7500E, UG7500LE, UG7500HE AUTOMATIC SPRAY GUN CLEANERS •• 381 Bentley Street, Markham ON L3R 9T2 • Tel. 1-800-417-9133 CORPORATION WWW.UNIRAM.COM • sales@uniram.com REV 2019-02...
- Page 2 REVISED 2019-02 INTRODUCTION Uni-ram holds many patents on designs used in its innovative products. Every machine is tested for compliance with Quality Assurance standards. Follow the directions in this manual under Setup, Operation and Maintenance in order to operate this machine safely and effectively. Not following these instruction can lead to malfunction or damage to the machine.
- Page 3 MANUAL - UG7500 SERIES SPRAY GUN CLEANERS REVISED 2019-02 UG7500 Hood Spigot Brush Automatiic Tank Manual Tank Vent Control Timer Clean Rinse Air Rinse Spigot Flow control- Drain Valve (inside) Brush Flow control Drain Hose Hose for Rinse pump and hose for spigot Suction Hose and Brush hose for Wash tank...
- Page 4 Inspect the shipping carton for any sign of transport damage. Carefully remove the unit from the shipping carton and check the unit for damage. Report any transport damage immediately to the carrier and to Uni-ram Corpora- tion. Initiate a freight claim with the carrier. The manufacturer is not responsible for the freight damage.
- Page 5 MANUAL - UG7500 SERIES SPRAY GUN CLEANERS REVISED 2019-02 INSTALLATION OF VENT AND HOOD SUPPORT Vent Location • The vent kit is located in the accessory kit. Locate the hole for the vent on the underside of the top of the cabinet. See photo to the right and below, left.
- Page 6 MANUAL - UG7500 SERIES SPRAY GUN CLEANERS REVISED 2019-02 PAIL SETUP - UG7500 • Open the cabinet door. • The spray gun cleaner comes with one plastic pail. The black drain hose and suction hose are inserted into the plastic wash pail. See the photo of the unit below. The stainless steel inlet filter is located at the end of the suction hose and prevents debris from reaching the pump and wash tank.
- Page 7 PAIL SETUP - UG7500E • Combo Ready units (UG4000E and UG4500E) come with the pails already installed as shown. Transfer Hoses are provided with Uni-ram Solvent Recyclers designed for Combo operation. • Fill the Wash Pail with about 3 Gal (12 L) of clean solvent.
- Page 8 MANUAL - UG7500 SERIES SPRAY GUN CLEANERS REVISED 2019-02 PRE-CLEAN - DISPOSABLE CUP Disconnect the spray gun from the air hose. • Squirt solvent into the disposable cup adapter, shown in photo on far right. • Pull the gun’s trigger to ß ush the solvent through the ß uid channel and into the paint waste container (not supplied) for later disposal.
- Page 9 MANUAL - UG7500 SERIES SPRAY GUN CLEANERS REVISED 2019-02 SPRAY GUN INSTALLED IN TANK Cap points to the corner jets Air Plug Location for Push On Nozzle Extension for second spray gun INSTALLING SPRAY GUNS IN TANK • Place the spray gun on the nozzle with the cap facing the corner. See photo on right and photo above.
- Page 10 MANUAL - UG7500 SERIES SPRAY GUN CLEANERS REVISED 2019-02...
- Page 11 MANUAL - UG7500 SERIES SPRAY GUN CLEANERS REVISED 2019-02 PREVENT SOLVENT FROM ENTERING THE AIR PASSAGE OF SPRAY GUN: Insert the plastic plug into the air tting as in the photo below. • • Positive air will ow through the passage way during cleaning. Air Plug inserted into the Air Passage way of the spray gun •...
- Page 12 MANUAL - UG7500 SERIES SPRAY GUN CLEANERS REVISED 2019-02 Spray Gun Flow-through Brush Flow-through Brush washing a spray gun FOR UPP7500, UG7500LE AND UG7500HE USERS ONLY: FOR UPP7500 USERS ONLY: Pressure Pot and Spray Gun • The UPP7500 cleans the pressure pot in the cleaning tank and the cleans the pressure pot hose. Place the pressure pot on top of the the rotating jet stand in the middle of the cleaning tank.
- Page 13 MANUAL - UG7500 SERIES SPRAY GUN CLEANERS REVISED 2019-02 FOR UPP7500HE USERS ONLY: Spray Gun • The UG7500HE cleans the spray gun and the cleans the pressure pot hose. • Follow the procedure under UG7500 - SETUP to prepare and install the spray gun in the spray gun cleaner.
- Page 14 MANUAL - UG7500 SERIES SPRAY GUN CLEANERS REVISED 2019-02 MAINTENANCE • Clean the stainless steel inlet lter each month. Procedure: Follow step 1 and step 2 below under REPLACING SOLVENT. Lift the suction pipe from the wash pail, (see the left photo below) unscrew the stainless steel lter from the nut and clean it with clean solvent in a mixing cup.
- Page 15 MANUAL - UG7500 SERIES SPRAY GUN CLEANERS REVISED 2019-02 TROUBLE SHOOTING PROBLEM REASON CORRECTIVE ACTION Open drain valve (put in vertical Drain valve closed position), if not already open Check wash liquid level. Add liquid if WASH PUMP MAKES Liquid level too low less than1/2 full.
- Page 16 MANUAL - UG7500 SERIES SPRAY GUN CLEANERS REVISED 2019-02 PROBLEM REASON CORRECTIVE ACTION INSIDE WALL OF TANK IS Solventborne: Replace solvent and/ or COATED WITH PAINT EVEN Liquid lacks cleaning consider better quality solvent. THOUGH OPERATOR strength. Waterborne: replace water and AQUA- MAINTAINS TANK KLEEN mixture.
- Page 17 If this procedure does not work, the pump must be replaced. If you need to replace the pump log-on to Service Channel and Fixxbook or call the Uni-ram Service Engineer. The warranty on the diaphragm pump is two years from date of pur- chase.
- Page 18 MANUAL - UG7500 SERIES SPRAY GUN CLEANERS REVISED 2019-02...
- Page 19 MANUAL - UG7500 SERIES SPRAY GUN CLEANERS REVISED 2019-02...
- Page 20 MANUAL - UG7500 SERIES SPRAY GUN CLEANERS REVISED 2019-02...
- Page 21 MANUAL - UG7500 SERIES SPRAY GUN CLEANERS REVISED 2019-02...
- Page 22 MANUAL - UG7500 SERIES SPRAY GUN CLEANERS REVISED 2019-02...
- Page 23 MANUAL - UG7500 SERIES SPRAY GUN CLEANERS REVISED 2019-02 REPLACEMENT PARTS Part No. Description 110-430PPS Nozzle Adapter, Push On, Disposable and Conventional Systems 100-413F Paint Cap Holder 115-200/K Mechanical Timer Assembly, 5 minutes 140-230 Air Passage Plug 140-2340 Trigger Clamp & Plug Kit 144-399 Flow-Through Brush 144-390 Flow-Through Brush with Hose and Fittings 144-397 Hose for Flow-Through Brush...
- Page 24 Warranty" as consumables are not covered. Uni-ram reserves the right to direct the customer to ship the unit collect to the Uni-ram factory or to an approved Service Center for repair using the Uni-ram Return Goods Procedure or to repair the unit on-site. To prevent damage in transport, the purchaser must ship the unit in the original packaging or use alternate adequate packag- ing.
