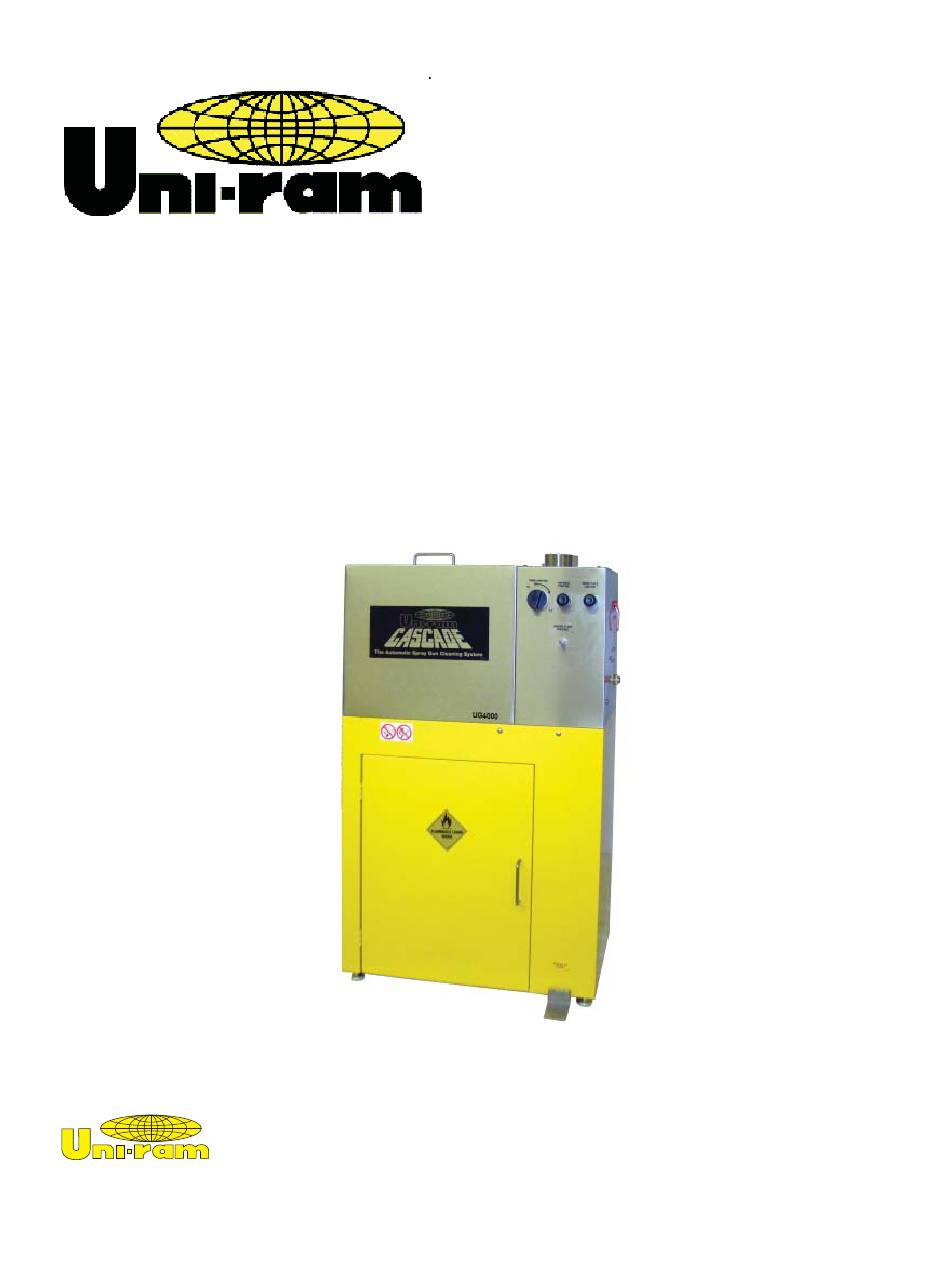

- Page 1 USER MANUAL UG4000 SERIES: UG4000D, UG4000E, UG4500E, UG4000FS AUTOMATIC SPRAY GUN CLEANERS •• 381 Bentley Street, Markham ON L3R 9T2 • Tel. 1-800-417-9133 CORPORATION WWW.UNIRAM.COM • sales@uniram.com REV 2019-02...
-
Page 2: Common Features
Ensure that the manual is readily available for the operator at all times. If you have any questions about the operation of this machine, call Uni-Ram Service Engineer at 1-800-417- 9133. - Page 3 MANUAL - UG4000 SERIES SPRAY GUN CLEANERS REVISED 2019-02 UG4000D Timer Air Rinse Clean Rinse Hose and airline for rinse pump Drain Hose Drain Valve (inside) (rear) Suction hose for Wash pail and brush. See Note 2 below. Wash Pail See Note 2 below.
- Page 4 Inspect the shipping carton for any sign of transport damage. Carefully remove the unit from the ship- ping carton and check the unit for damage. Report any transport damage immediately to the carrier and to Uni-ram Corporation. Initiate a freight claim with the carrier. The manufacturer is not respon- sible for the freight damage.
- Page 5 Use quality, compliant solvent such as Naked Gun Gold or equivalent solvent. PAIL SETUP The pail setup for the UG4000D and UG4500D is described first, followed by the pail set up for the UG4000E and UG4500E. PAIL SETUP - UG4000D and UG4500D •...
- Page 6 • Combo Ready units (UG4000E and UG4500E) come with the pails already installed as shown. Transfer Hoses are provided with Uni-ram Solvent Recyclers designed for Combo operation. • Fill the Wash Pail with about 3 Gal (12 L) of clean solvent.
- Page 7 MANUAL - UG4000 SERIES SPRAY GUN CLEANERS REVISED 2019-02 PRE-CLEAN - DISPOSABLE CUP Disconnect the spray gun from the air hose. • Squirt solvent into the disposable cup adapter, shown in photo on far right. • Pull the gun’s trigger to fl ush the solvent through the fl uid channel and into the paint waste container (not supplied) Pre clean Fluid for later disposal.
- Page 8 MANUAL - UG4000 SERIES SPRAY GUN CLEANERS REVISED 2019-02 SPRAY GUN INSTALLED IN TANK Brush Cap points to the corner jets Air Plug Location for Push On Nozzle Extension for second spray gun INSTALLING SPRAY GUNS IN TANK • Place the spray gun on the nozzle with the cap facing the corner. See photo on right and photo above.
- Page 9 MANUAL - UG4000 SERIES SPRAY GUN CLEANERS REVISED 2019-02...
- Page 10 MANUAL - UG4000 SERIES SPRAY GUN CLEANERS REVISED 2019-02 PREVENT SOLVENT FROM ENTERING THE AIR PASSAGE OF SPRAY GUN: • Insert the plastic plug into the air fi tting as in the photo below. • Positive air will fl ow through the passage way during cleaning. Air Plug inserted into the Air Passage way of the spray gun •...
- Page 11 MANUAL - UG4000 SERIES SPRAY GUN CLEANERS REVISED 2019-02 Spray Gun Flow-through Brush Flow-through Brush washing a spray gun MAINTENANCE • Clean the stainless steel inlet fi lter each month. Procedure: Follow step 1 and step 2 below under REPLACING SOLVENT. Lift the suction pipe from the wash pail, (see the left photo below) unscrew the stainless steel fi lter from the nut and clean it with clean solvent in a mixing cup.
-
Page 12: Troubleshooting
MANUAL - UG4000 SERIES SPRAY GUN CLEANERS REVISED 2019-02 TROUBLE SHOOTING PROBLEM REASON CORRECTIVE ACTION Open drain valve (put in vertical Drain valve closed position), if not already open Check wash liquid level. Add liquid if WASH PUMP MAKES Liquid level too low less than1/2 full. - Page 13 MANUAL - UG4000 SERIES SPRAY GUN CLEANERS REVISED 2019-02 Trouble shooting continued SYMPTOM REASON CORRECTIVE ACTION Replace solvent / water and AQUA- INSIDE WALL OF TANK IS KLEEN in pail. Consider a solvent COATED WITH PAINT EVEN that is formulated for type of paint THOUGH OPERATOR used and for use with automatic MAINTAINS TANK...
- Page 14 If you need to replace the pump log-on to Service Channel and Fixxbook or call the Uni-ram Service Engineer. The warranty on the diaphragm pump is two years from date of purchase.
- Page 15 MANUAL - UG4000 SERIES SPRAY GUN CLEANERS REVISED 2019-02...
- Page 16 MANUAL - UG4000 SERIES SPRAY GUN CLEANERS REVISED 2019-02...
- Page 17 MANUAL - UG4000 SERIES SPRAY GUN CLEANERS REVISED 2019-02...
- Page 18 MANUAL - UG4000 SERIES SPRAY GUN CLEANERS REVISED 2019-02...
- Page 19 MANUAL - UG4000 SERIES SPRAY GUN CLEANERS REVISED 2019-02...
- Page 20 MANUAL - UG4000 SERIES SPRAY GUN CLEANERS REVISED 2019-02...
- Page 21 MANUAL - UG4000 SERIES SPRAY GUN CLEANERS REVISED 2019-02...
-
Page 22: Replacement Parts
MANUAL - UG4000 SERIES SPRAY GUN CLEANERS REVISED 2019-02 REPLACEMENT PARTS Part No. Description 110-430PPS Nozzle Adapter, Push On, Disposable and Conventional Systems 100-413F Paint Cap Holder 115-200/K Mechanical Timer Assembly, 5 minutes 140-230 Air Passage Plug 140-2340 Trigger Clamp & Plug Kit 144-399 Flow-Through Brush 144-390... - Page 23 "Conditions of Warranty" as consumables are not covered. Uni-ram reserves the right to direct the customer to ship the unit collect to the Uni-ram factory or to an approved Service Center for repair using the Uni-ram Return Goods Procedure or to repair the unit on- site.
