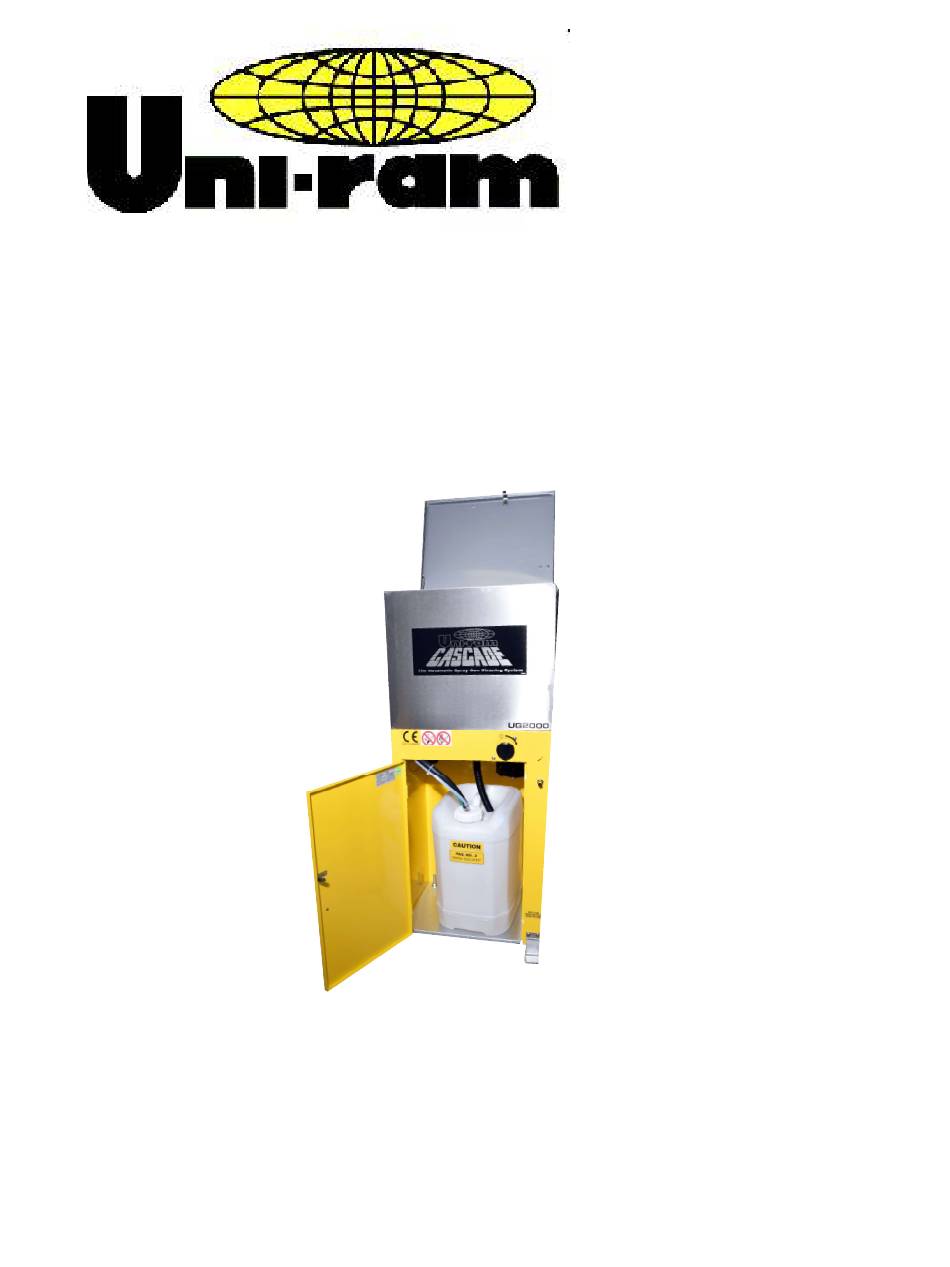

- Page 1 USER MANUAL UG2000DM AND UG2000DMV AUTOMATIC SPRAY GUN CLEANERS Uni-ram Corporation www.uniram.com 381 Bentley St. 905-477-5911 Markham On L3R 1P7 sales@uniram.com REV 2023-03...
-
Page 2: Common Features
Push on adapter for disposable cup (110-430PPS). • Tapered plug (kit-plug) (150-231) • Trigger lock spring and plug package (140-2340) (2 in a package). VENTING If you have the UG2000DMV connect the vent pipe to the ventilation system in the facility. - Page 3 MANUAL - UG2000DM SERIES SPRAY GUN CLEANERS REVISED 2023-03 UG2000DM FIGURE 1 Cleaning Tank (inside) Timer Drain Valve (inside) Drain Hose Suction hose for Wash pail and suction hose for brush Wash Pail Foot petal for brush...
- Page 4 UG2000DMV Vent pipe Air Rinse UG2000DMV has is the same features as the UG2000DM with the additional feature of Venting: Raising the lid initiates the venting system and removes fumes from the cleaning tank for the health of the operator. The vent pipe is to be connected to the venting system in the facility.
-
Page 5: Air Supply
MANUAL - UG2000DM SERIES SPRAY GUN CLEANERS REVISED 2023-03 LOCATION Position the unit in a well-ventilated area away from sparks, heat and open flames, at least 6 " from the back wall. AIR SUPPLY • Connect a male air supply adapter (not supplied) into the female Air Inlet on the unit. The male air supply adapter is 1/4"... - Page 6 MANUAL - UG2000DM SERIES SPRAY GUN CLEANERS REVISED 2023-03 PRE - CLEAN • Disconnect the spray gun from the air hose. • Remove disposable cup shown in A. • Squirt solvent into disposable cup adapter, shown in B photo. • Pull the gun’s trigger to fl ush the solvent through the fl uid channel. •...
- Page 7 MANUAL - UG2000DM SERIES SPRAY GUN CLEANERS REVISED 2023-03 SPRAY GUN INSTALLED IN TANK brush Caps points to the corner jets Air Purge Location for Push On Nozzle Extension INSTALLING SPRAY GUNS IN TANK • Place the spray gun on the nozzle with the cap facing the corner. •...
- Page 8 MANUAL - UG2000DM SERIES SPRAY GUN CLEANERS REVISED 2023-03...
- Page 9 MANUAL - UG2000DM SERIES SPRAY GUN CLEANERS REVISED 2023-03 Prevent Solvent From Entering the Air Passage of Spray Gun: insert the plastic plug into the air fi tting as in the photo below . Positive air will fl ow through the passage way to the cap during cleaning.
- Page 10 MANUAL - UG2000DM SERIES SPRAY GUN CLEANERS REVISED 2023-03 MAINTENANCE • A removable screen fi lter is installed at the end of the suction pipe, in the wash pail. See the photos below. • Once each week, remove the wash pail from the cabinet, remove the suction pipe with the pail, see photos below, unscrew the metal fi...
-
Page 11: Troubleshooting
MANUAL - UG2000DM SERIES SPRAY GUN CLEANERS REVISED 2023-03 TROUBLE SHOOTING... - Page 12 MANUAL - UG2000DM SERIES SPRAY GUN CLEANERS REVISED 2023-03...
- Page 13 This procedure may have to be repeated several times. If this procedure does not work, the pump must be replaced. If you need to replace the pump call the Uni-ram Service Engineer. The warranty on the diaphragm pump is two years from date of purchase.
- Page 14 MANUAL - UG2000DM SERIES SPRAY GUN CLEANERS REVISED 2023-03 UG2000DM FLOW DIAGRAM Use the diagram to trace the fl ow of compressed air and solvent.
- Page 15 MANUAL - UG2000DM SERIES SPRAY GUN CLEANERS REVISED 2023-03 UG200DMV FLOW DIAGRAM Use the diagram to trace the fl ow of compressed air and solvent.
-
Page 16: Replacement Parts
MANUAL - UG2000DM SERIES SPRAY GUN CLEANERS REVISED 2023-03 REPLACEMENT PARTS art No. Description 110-430 Nozzle Adapter, Push On, Conventional Systems Only 110-430PPS Nozzle Adapter, Push On, Disposable and Conventional Systems 780-3530 Nozzle Adapter, Disposable Cup Systems Only 100-413F Paint Cap Holder 115-200/K Mechanical Timer Assembly, 5 minutes 140-230... - Page 17 MANUAL - UG2000DM SERIES SPRAY GUN CLEANERS REVISED 2023-03...
- Page 18 MANUAL - UG2000DM SERIES SPRAY GUN CLEANERS REVISED 2023-03 SERVICE PARTS UG2000DM ITEM PartNo DESCRIPTION 110-531L5 ADJUSTABLE FOOT 100-350N SPRAY JET ASSY.BRASS 100-370 SPRAY JET + EXTENSION 100-350L SPARY JET ASSY, 110-353 FITTING SET, INCLUDE 100-457& 110-356 780-3530 NOZZLE SUB ASSEMBLY, 3M PPS ADAPTOR 140-480 DRAIN VALVE WITH FITTINGS AND HOSE 100-332N...
- Page 19 MANUAL - UG2000DM SERIES SPRAY GUN CLEANERS REVISED 2023-03...
- Page 20 "Conditions of Warranty" as consumables are not covered. Uni-ram reserves the right to direct the customer to ship the unit collect to the Uni-ram factory or to an approved Service Center for repair using the Uni-ram Return Goods Procedure or to repair the unit on- site.
