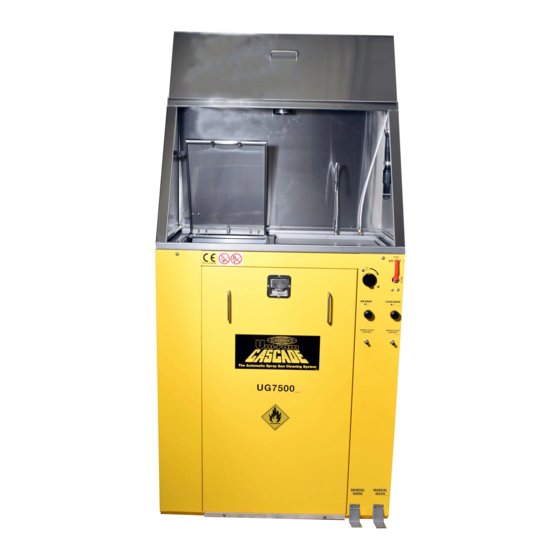

- Page 1 AUTOMATIC SPRAY GUN CLEANERS UG7500 SERIES PATENTS U.S.A. 4,785,836 CANADA 1293909 U.S.A. 5,213,117 ENGLAND EP 0300248 (UK) EUROPE 0300248 ITALY 69760/BE/92 SWEDEN 0300248 GERMANY DE 38 75 412 FRANCE 8110528.0 JAPAN 1-302098 UNI-RAM CORPORATION • ONTARIO • CANADA REV 2018-01...
-
Page 2: Table Of Contents
MANUAL - SPRAY GUN CLEANERS - UG7500 SERIES REVISION 2011-05 CONTENTS INTRODUCTION ............. . 3 CAUTIONS AND WARNINGS . -
Page 3: Introduction
REVISION 2011-05 INTRODUCTION Uni-ram holds many patents on designs used in its innovative products. Every machine is rigorously tested for compliance with stringent Quality Assurance standards. Follow the directions in this manual under Setup, Operation and Maintenance in order to operate this machine safely and effectively. Not following these instruction can lead to malfunction or damage to the machine. - Page 4 MANUAL - SPRAY GUN CLEANERS - UG7500 SERIES REVISION 2011-05 STRUCTURE AND KEY COMPONENTS (For “NG” model, see page 16) HOOD DOOR FLOW-THROUGH TANK LID BRUSH FOR (except “NG” model MANUAL WASH SPIGOT FOR WASH SINK WITH MANUAL WASH WASH SCREEN...
-
Page 5: Setup
Inspect the shipping carton for signs of damage. It is your responsibility to report damage to the transport company. Uni-ram Corporation does not accept responsibility for shipping damage once the machine has left our warehouse. Keep the packaging materials until you are sure the machine has not been damaged during shipping. - Page 6 MANUAL - SPRAY GUN CLEANERS - UG7500 SERIES REVISION 2011-05 • Inside the cabinet you will see two pipes strapped together, the Suction Pipe and the Rinse Pump. Cut the strap holding them together. Do not cut the other straps holding the black and blue tubes.
-
Page 7: Solvent Selection
MANUAL - SPRAY GUN CLEANERS - UG7500 SERIES REVISION 2011-05 SOLVENT SELECTION The adhesion quality of automotive paint has dramatically improved in recent years. The choice of sol- vent is critical. Use only good quality solvent that is formulated for your paint and intended for use with automatic spray guns cleaners. -
Page 8: Cleaning Spray Guns And Cups
MANUAL - SPRAY GUN CLEANERS - UG7500 SERIES REVISION 2011-05 • Rinse cup with solvent and pour into the same 5 gallon pail for later disposal or recycling. CLEANING SPRAY GUNS AND CUPS • Loosen the air cap of the spray gun two full turns. -
Page 9: Hose Cleaning (Factory Option)
MANUAL - SPRAY GUN CLEANERS - UG7500 SERIES REVISION 2011-05 HOSE CLEANING - FACTORY OPTION (except “NG” model)) • This feature can be used to clean a paint feeder hose up to 100 feet (30 m) long. Connect the hose to the two fittings, one on the lid and one on the right side. Rotate the "Mode Selector" han- dle to the horizontal position and turn the Timer knob clockwise to start the automatic cleaning cycle. -
Page 10: Troubleshooting Chart
MANUAL - SPRAY GUN CLEANERS - UG7500 SERIES REVISION 2011-05 TROUBLESHOOTING CHART - UG7500 SERIES SYMPTOM REASON CORRECTIVE ACTION Open drain valve (put in verticle position), if not already open • Drain valve closed • Check wash solvent level. Add WASH SOLVENT DOES NOT solvent if less than 1/2 full. - Page 11 MANUAL - SPRAY GUN CLEANERS - UG7500 SERIES REVISION 2011-05 TROUBLESHOOTING CHART - UG7500 SERIES … continued SYMPTOM REASON CORRECTIVE ACTION After Each Step Below, start the Timer. If solvent does not flow, carry out the next step. CLEANING PROBLEMS...
-
Page 12: Troubleshooting Procedures
MANUAL - SPRAY GUN CLEANERS - UG7500 SERIES REVISION 2011-05 TROUBLESHOOTING PROCEDURES PROCEDURE 1 Blocked Fluid Passage In Diaphagm Pump If the pump sounds like it is working but liquid does not flow, clear fluid passage as follows: • Remove suction tube from the pail and blow air at 85 PSI into INLET Sovent Hose (see diagram). -
Page 13: Flow Diagrams
MANUAL - SPRAY GUN CLEANERS - UG7500 SERIES REVISION 2011-05 FLOW DIAGRAM(S) Use the diagram(s) to trace the flow of compressed air and solvent (see page 17 for the “NG” model). -
Page 14: Replacement Parts
MANUAL - SPRAY GUN CLEANERS - UG7500 SERIES REVISION 2011-05 REPLACEMENT PARTS UG7500 SERIES (see page 16 for the “NG” model) 36-110J, Air Jet (not shown) 780-520, Vent Tube Hood Hood Door 144-390, Flow- Through Brush Wash Sink KIT-SRP, Spigot Kit... - Page 15 MANUAL - SPRAY GUN CLEANERS - UG7500 SERIES REVISION 2011-05 REPLACEMENT PARTS UG7500NG 144-390, Flow- Through Brush KIT-SRP, Spigot Kit Wash Sink with Screen Only (no Cleaning tank)
- Page 16 MANUAL - SPRAY GUN CLEANERS - UG7500 SERIES REVISION 2011-05 FLOW DIAGRAM - UG7500NG ONLY...
-
Page 17: Accessories, Options And Consumables
An extended warranty may be purchased within 3 months from the date of purchase. There are two types of warranty: 1) parts 2) parts and labour The warranty period is 2, 3 or 4 years. If you would like to purchase an extended warranty call Uni-ram at: Canada 1-800-417-9133 1-800-735-4331... -
Page 18: Full Product Warranty
"Conditions of Warranty" as consumables are not covered. Uni-ram reserves the right to direct the customer to ship the unit collect to the Uni-ram factory or to an approved Service Center for repair using the Uni-ram Return Goods Procedure or to repair the unit on-site.
