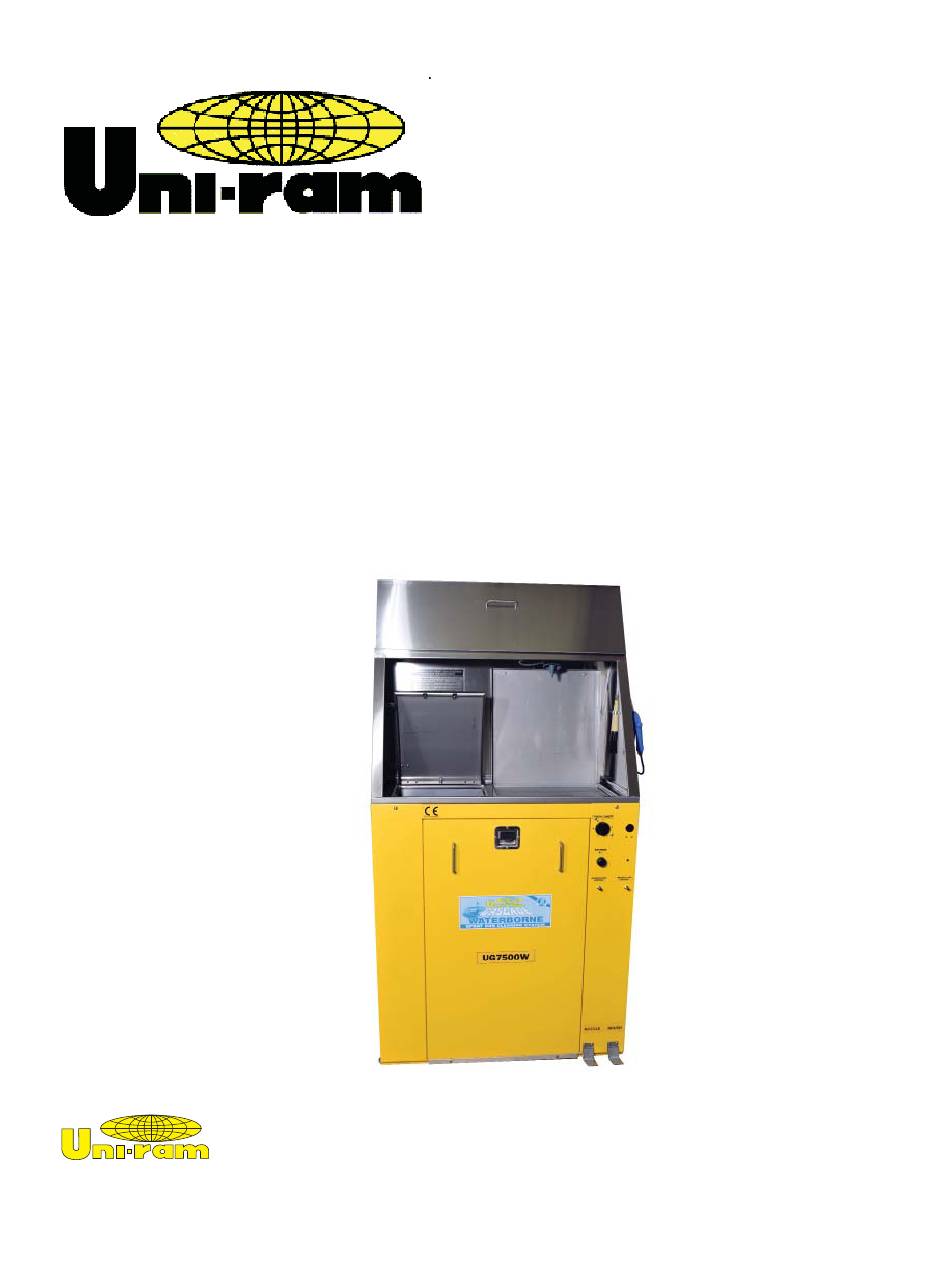

- Page 1 USER MANUAL UG7500W AUTOMATIC SPRAY GUN CLEANERS •• 381 Bentley Street, Markham ON L3R 9T2 • Tel. 1-800-417-9133 CORPORATION WWW.UNIRAM.COM • sales@uniram.com REV 2020- 10...
-
Page 2: Common Features

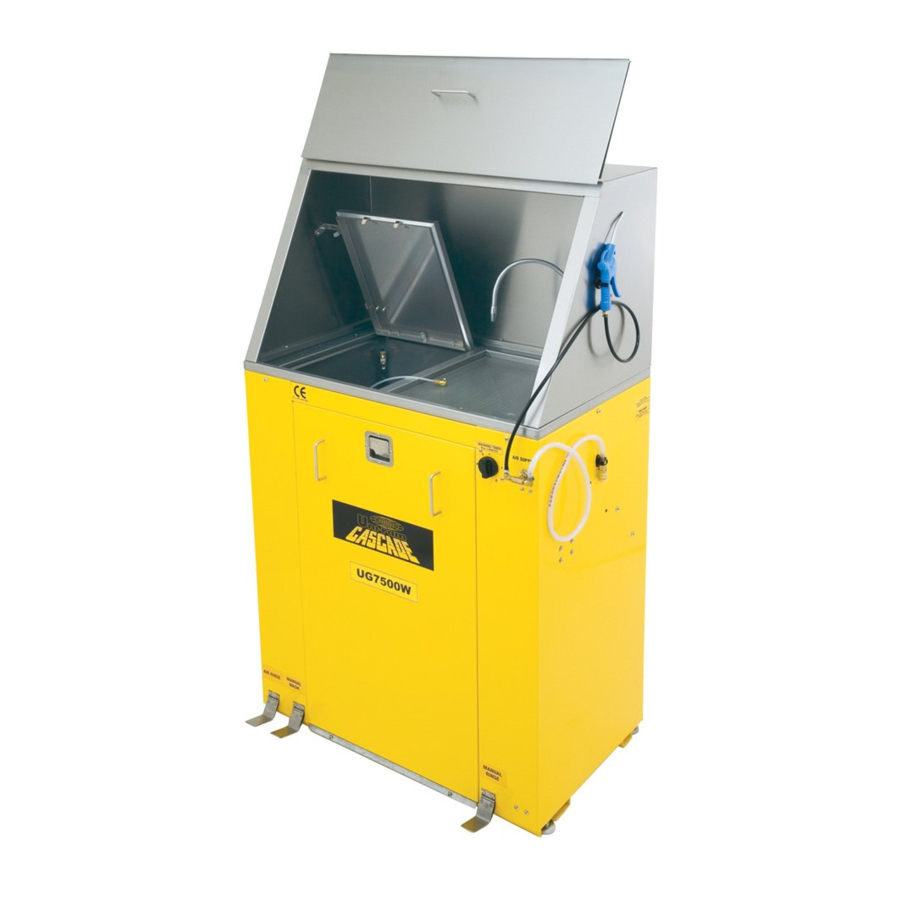

Inspect the shipping carton for any sign of transport damage. Carefully remove the unit from the shipping carton and check the unit for damage. Report any transport damage immediately to the carrier and to Uni-ram Corpora- tion. Initiate a freight claim with the carrier. The manufacturer is not responsible for the freight damage. - Page 3 MANUAL - UG7500W SERIES SPRAY GUN CLEANERS REVISED 2020-10 UG7500W Install hood stand here Spigot Blow gun (not shown) Brush Automatiic Tank Manual Tank Timer Clean Rinse Air Rinse Spigot Flow control- Drain Valve (inside) Brush Flow control Drain Hose...
-
Page 4: Air Supply
MANUAL - UG7500W SERIES SPRAY GUN CLEANERS REVISED 2020-10 • Manual • Push on nozzle extension for disposable cup system or conventional cup system(110-430PPS). • Push on nozzle extension for conventional cup system(110-430). • Kit-Plug, Trigger Lock Spring, 2 in a package (140-2340). - Page 5 MANUAL - UG7500W SERIES SPRAY GUN CLEANERS REVISED 2020-10 Drain Valve • Check to ensure the Drain Valve is in the open position (handle in vertical position) and drain hose is in the (left) pail. cabinet Drain Valve Drain Valve...
- Page 6 MANUAL - UG7500W SERIES SPRAY GUN CLEANERS REVISED 2020-10 PRE-CLEAN - DISPOSABLE CUP Disconnect the spray gun from the air hose. • Squirt water into the disposable cup adapter, shown in photo on far right. • Pull the gun’s trigger to fl ush the water through the fl uid channel and into the paint waste container (not supplied) for later disposal.
- Page 7 MANUAL - UG7500W SERIES SPRAY GUN CLEANERS REVISED 2020-10 SPRAY GUN INSTALLED IN TANK Cap points to the corner jets Air Plug Location for Push On Nozzle Extension for second spray gun INSTALLING SPRAY GUNS IN TANK • Place the spray gun on the nozzle with the cap facing the corner.
- Page 8 MANUAL - UG7500W SERIES SPRAY GUN CLEANERS REVISED 2020-10...
-
Page 9: Cleaning Cycle
MANUAL - UG7500W SERIES SPRAY GUN CLEANERS REVISED 2020-10 PREVENT Water FROM ENTERING THE AIR PASSAGE OF SPRAY GUN: Insert the plastic plug into the air fi tting as in the photo below. • Positive air will fl ow through the passage way during cleaning. -
Page 10: Manual Wash
MANUAL - UG7500W SERIES SPRAY GUN CLEANERS REVISED 2020-10 Spray Gun Flow-through Brush Flow-through Brush washing a spray gun MANUAL WASH • Open the lid and remove the brush from its holder on the back wall of the wash tank. -
Page 11: Maintenance
MANUAL - UG7500W SERIES SPRAY GUN CLEANERS REVISED 2020-10 MAINTENANCE • Clean the stainless steel inlet fi lter each month. Procedure: Follow step 1 and step 2 below under REPLACING SOLVENT. Lift the suction pipe from the wash pail, (see the left photo below) unscrew the stainless steel fi lter from the nut and clean it with clean water in a mixing cup. -
Page 12: Troubleshooting
MANUAL - UG7500W SERIES SPRAY GUN CLEANERS REVISED 2020-10 TROUBLE SHOOTING PROBLEM REASON CORRECTIVE ACTION Open drain valve (put in vertical Drain valve closed position), if not already open Check wash liquid level. Add liquid if WASH PUMP MAKES Liquid level too low less than1/2 full. - Page 13 MANUAL - UG7500W SERIES SPRAY GUN CLEANERS REVISED 2020-10 PROBLEM REASON CORRECTIVE ACTION INSIDE WALL OF TANK IS Solventborne: Replace solvent and/ or COATED WITH PAINT EVEN Liquid lacks cleaning consider better quality solvent. THOUGH OPERATOR strength. Waterborne: replace water and AQUA- MAINTAINS TANK KLEEN mixture.
- Page 14 MANUAL - UG7500W SERIES SPRAY GUN CLEANERS REVISED 2020-10 TROUBLESHOOTING PROCEDURES PROCEDURE 1 Blocked Fluid Passage In Diaphagm Pump If the pump sounds like it is working but liquid does not flow, clear the fluid passage as follows: • Remove suction tube from the pail and blow air at 85 PSI into the INLET Liquid Hose (see diagram).
- Page 15 MANUAL - UG7500W SERIES SPRAY GUN CLEANERS REVISED 2020-10...
-
Page 16: Replacement Parts
MANUAL - UG7500W SERIES SPRAY GUN CLEANERS REVISED 2020-10 REPLACEMENT PARTS Part No. Description 110-430PPS Nozzle Adapter, Push On, Disposable and Conventional Systems 100-413F Paint Cap Holder 115-200/K Mechanical Timer Assembly, 5 minutes 140-230 Air Passage Plug 140-2340 Trigger Clamp & Plug Kit... - Page 17 Warranty" as consumables are not covered. Uni-ram reserves the right to direct the customer to ship the unit collect to the Uni-ram factory or to an approved Service Center for repair using the Uni-ram Return Goods Procedure or to repair the unit on-site. To prevent damage in transport, the purchaser must ship the unit in the original packaging or use alternate adequate packag- ing.
