PIR Adjustment
• The unit must be installed in a vertical position, and
fitted between 1.8m and 2.5m above the ground.
• The PIR sensor can be adjusted, allowing the detection
distance to be altered to suit the location. The detection
angle is set at 180 degrees. The duration that the lamp
stays on can be altered from 10±5 seconds to 4±1
Adjustable up to 12 metres
Detection range can be adjusted
by turning 'SENS' screw
Fitting/replacing bulbs
• This system contains non-replaceable parts and cannot be serviced. If damage occurs the part should
be scrapped.
We recommend cleaning with a soft dry cloth.
Do not use solvents or abrasive cleaners as these could damage the finish.
Recycling advice
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for recycling advice.
Safety information
For your safety, always switch off the supply before cleaning.
www.saxbylighting.com
minutes. The detection distance "SENS" can be
adjusted up to 12m. Use a small screwdriver to adjust
the 'TIME' and 'SENS' screws. When adjusting the
sensitivity (detection distance) in daylight it will be
necessary to cover the sensor to simulate night time.
Base of product
Duration the bulb stays on is
adjustable by turning 'TIME' screw
The sensor trigger point is adjust-
able by turning the 'LUX' screw.
Iss.1 21062018
Saxby Lighting Ltd. BH23 3PE
Instruction leaflet

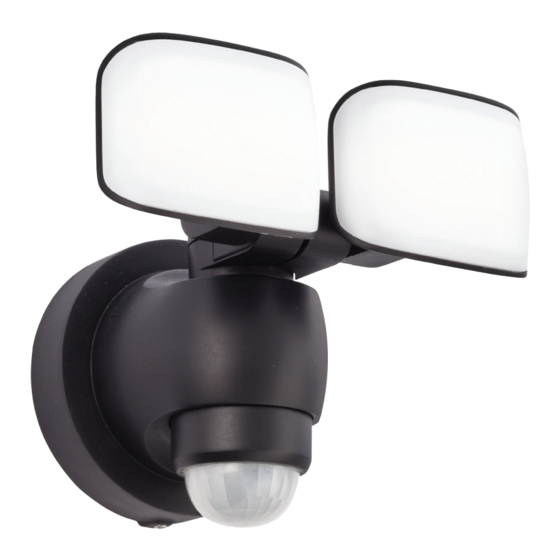

Sentinel PIR Wall Light
75272
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Saxby Lighting 75272
Summary of Contents for Saxby Lighting 75272
- Page 1 • The PIR sensor can be adjusted, allowing the detection sensitivity (detection distance) in daylight it will be distance to be altered to suit the location. The detection necessary to cover the sensor to simulate night time. angle is set at 180 degrees. The duration that the lamp stays on can be altered from 10±5 seconds to 4±1 75272 Adjustable up to 12 metres Base of product Duration the bulb stays on is adjustable by turning 'TIME' screw Detection range can be adjusted The sensor trigger point is adjust- by turning 'SENS' screw able by turning the ‘LUX’...
- Page 2 Installation Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. Please retain these instructions for future reference. • Decide on the optimum location for the product. Ensure the wall is capable of holding the weight of the product. • Place the product in an upright position. Warning • Detach the wall back by removing the screw from the bottom of the product. Set screw aside for refitting later (Fig. 1). This light fitting is Class 1 and must be connected to If replacing an existing fitting, make a careful note of •. Push button on top of product and remove wall back (Fig. 1). an Earth circuit the connections. •. Using the wall back as a template, mark and drill the position of the fixing holes. Please read these instructions carefully before This system contains non-replaceable parts and commencing any work. cannot be serviced. If damage occurs the part should •. Pull the cable through the rubber grommet in the back plate. be scrapped. This unit must be fitted by a competent and qualified • Fix the wall back to the wall using the screws and wall plugs. Take care to avoid damaging any concealed electrician. Waste electrical products should not be disposed of wiring and pipes. The correct fixings should be used for brick or cavity walls.
