Summary of Contents for Proline FIRE GAS MB-9877AF

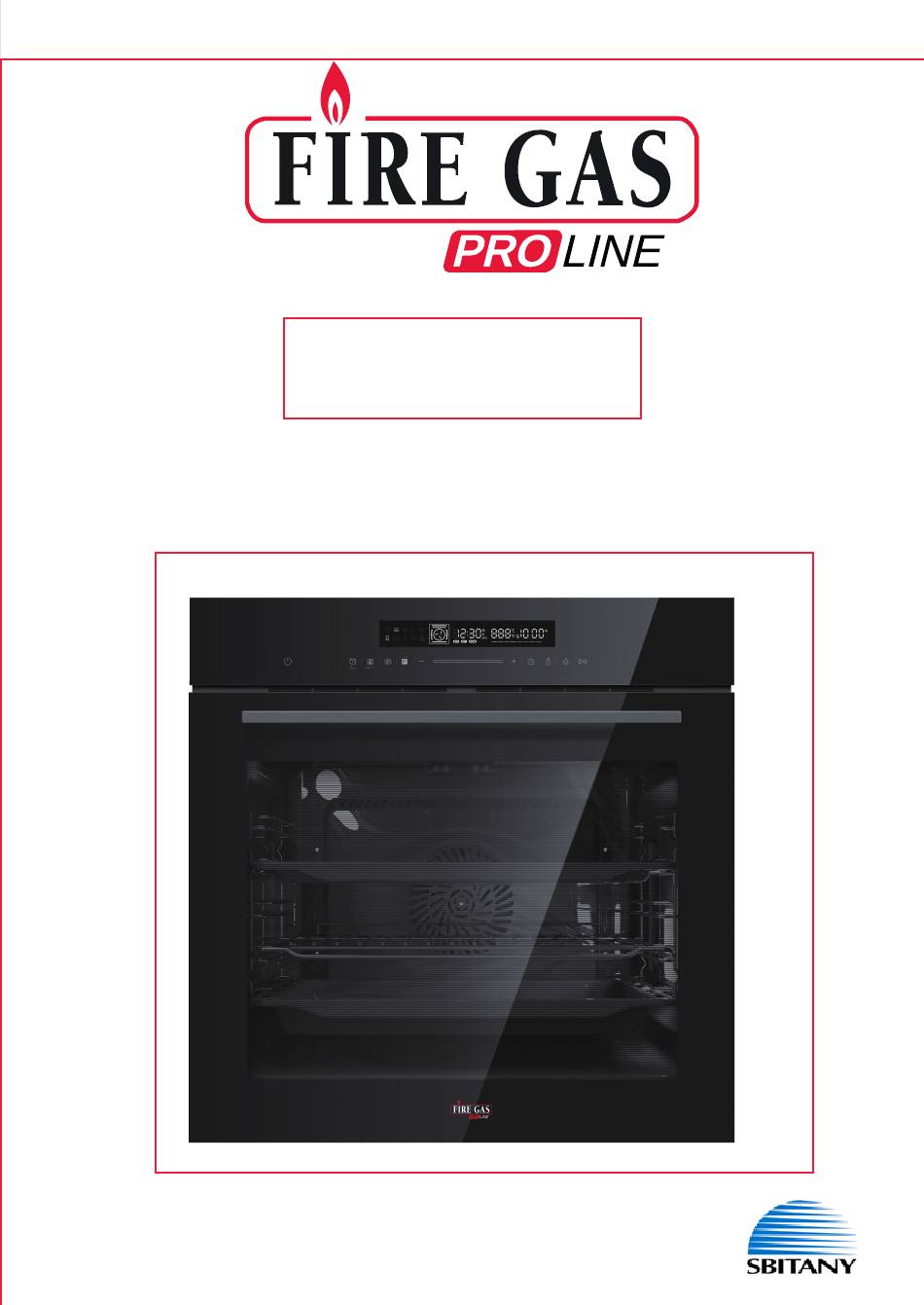

- Page 1 MB-9877AF Built-in Electric Oven User Manual AKRAM SBITANY & SONS LTD. Tel: 1700 550 110 | www.sbitany.com...
-
Page 2: Table Of Contents
THANK YOU LETTER Thank you for choosing Before using your new product, please read this manual thoroughly to ensure that you know how to operate the features and CONTENTS THANK YOU LETTER SAFETY INSTRUCTIONS SPECIFICATIONS PRODUCT OVERVIEW QUICK START GUIDE PRODUCT INSTALLATION OPERATION INSTRUCTIONS CLEANING AND MAINTENANCE... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Intended use The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. - Page 4 WARNING The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capa- bilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appli-ance in...
- Page 5 CAUTION Please use the product under an open environment. During use, the appliance becomes very hot. Care should be taken to avoid touching heating elements inside the oven. Ensure that the appliance is switched o before replacing the oven lamp to avoid the possibility of electric shock. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring specifications.
- Page 6 ATTENTION When the oven is first switched on, it may give o an unpleasant smell. This is due to the bonding agent used for the insulating panels within the oven. Please run the new empty product with the conventional cooking function, 250°C, 30 minutes to clean oil impurities inside the cavity.
-
Page 7: Specifications 0
SPECIFICATIONS Product Model MB-9877AF Power Supply 220-240V~ , 50Hz-60Hz Electric Power 2.9kW Lamp Power 25*2W Product Size AKRAM SBITANY & SONS LTD. Tel: 1700 550 110 | www.sbitany.com EN-6... -
Page 8: Product Overview
PRODUCT OVERVIEW Oven When taking out food, please wear heat-insulating gloves to prevent burns! Pay attention to the hot air when opening the oven door. Control panel Ventilating openings Mounting fixing hole Mounting fixing hole Oven door Handle Accessories Grill rack x1 Grill tray x1 Grill food or place heat-resistant Cooking food or receiving food scraps... - Page 9 Accessories Use For the oven to work properly, the grill rack and grill tray should only be placed between the first and fifth levels. When used together, place the grill tray under the grill rack. AKRAM SBITANY & SONS LTD. Tel: 1700 550 110 | www.sbitany.com EN-8...
-
Page 10: Quick Start Guide
QUICK START GUIDE Oven Control Panel AIRFRY icon Introduction Cancel the current setting and return to the standby state. Press briefly to enter the reminder function setting. Press and hold for 3 seconds to enter or exit the child lock state. Provide fast and even heat distribution, the hot air also takes away the moisture on the surface of the food, generating crunchy and crispy frying. -
Page 11: Product Installation
PRODUCT INSTALLATION Cupboard Diagram (Standing Cupboard) Air vents 6 0 0 5 6 0 M i n . 5 0 Ｇ Minimum bottom ventilation area: 250 mm 2 Native appliance Ｇ Reserve 5 mm for the door panel at the top and bottom respectively. - Page 12 Cupboard Diagram (Ground Cupboard) Air vents . 5 0 M i n 5 6 0 Minimum bottom ventilation area: 250 mm Ｇ Native appliance Reserve 5 mm for the door panel at the top and bottom respectively. Ｇ Reserve 20 mm for the door panel on the left and right respectively.
- Page 13 Installation Important Instructions Content that means [mandatory] The safe operation of this appliance can only be guaranteed if it has been installed to a professional standard in accordance with these installation instructions. The installer shall be liable for any damage resulting from incorrect installation. The entire installation process requires two professional installers.
- Page 14 Installation steps Please customize the cupboard according to the "Cupboard Diagram". Before installation, please check for normal power socket and appropriate grounding, and check whether the cupboard dimension meets the installation requirements. Place the appliance in designated locations in the kitchen, install it in a vertical cupboard, and connect the power supply.
- Page 15 Accessory installation (Only for some models) 90・ AKRAM SBITANY & SONS LTD. Tel: 1700 550 110 | www.sbitany.com EN-14...
-
Page 16: Operation Instructions
OPERATION INSTRUCTIONS First Use Before using it for the first time, please clean the oven and accessories to a certain extent. Remove the oven packaging shipping protection parts. Remove all acces- sories (eg: baking trays, grills, foam, etc.) from the cavity. Thoroughly clean the attachment with soapy water and a rag or soft brush. - Page 17 Baking function In standby or reminder state, press " " key to select the function. Press the " +/- " key or slide the " " left and right to adjust the temperature. Press " " to enter the time setting. Press the "...
- Page 18 baking function table Number Icon Function Time Temperature Preheat Conventional 0-9 hour 30-250℃ Optional Convection 0-9 hour 50-250℃ Optional Conventional+fan 0-9 hour 50-250℃ Single grill 0-9 hour 150-250℃ Optional Double grill+fan 0-9 hour Optional 50-250℃ 0-9 hour 150-250℃ Optional Double grill Pizza 0-9 hour 50-250℃...
- Page 19 Air fry function In standby or reminder state, press " " key. Press the " +/- " key or slide the " " left and right to adjust the temperature (150-250 ℃ Press " " to enter the time setting. Press the "...
- Page 20 Automatic menu In standby state, press and hold the " " key for 3 seconds to enter the automatic menu setting. Press the " +/- " key to select the menu. Start cooking: For the menu with preheating function, when the preheating temperature is reached, the buzzer will give a reminder and display the time.
- Page 21 Code Menu name Weight Mode Time Temperature Preheat Ar01 French Fries 350g 19min 200℃ Ar02 French Fries 750g 23min 230℃ Ar03 Chicken drumsticks 500g 20+10min 250℃ Ar04 Chicken drumsticks 1000g 20+12min 250℃ Ar05 Chicken Nugget 200g 17min 250℃ Ar06 11.5min 250℃...
- Page 22 Demo mode Demonstration mode, with power-o saving data function. Power o saving function: for example, when the demo mode is set to on, power o and then on is still on. After the demonstration mode is turned on, the heating pipe does not work. In standby mode, press and hold the "...
-
Page 23: Cleaning And Maintenance
CLEANING AND MAINTENANCE Cleaning Disconnect the power supply before cleaning and maintenance. In order to ensure the life of the oven, it should be thoroughly cleaned frequently. Cleaning steps are as follows: After cooking, wait for the oven to cool completely. Remove oven accessories, rinse with warm water and dry. -
Page 24: Troubleshooting
TROUBLESHOOTING If the problem cannot be solved or other problems occur, please contact the after- sales service. Problem Possible reason Solution Power is not connected connect power supply The main power switch is Turn on the power switch Unable to start not turned on Oven door not closed Close the oven door...
