Installation for
IBM PC Users
PC to TV Converter - Multi Vision
The
The only thing required to get the image of computer on TV is to make the proper
connection. Please read the following sections carefully for the installation of the
hardware. Please refer to Fig.2 for the installation for IBM PC Users.
1.
Make sure your computer's (laptop, notebook or desktop PC) power is
turned OFF.
2.
Connect the Y Cable for IBM PC among computer's VGA output,
converter's VGA IN and VGA monitor. Please connect the Y Cable mark "PC" to
your computer's VGA output, connect the Y Cable mark with red color "SCAN
PC to TV Converter - Multi Vision's
CNVTR" to
connect the Y Cable mark with "MONITOR" to VGA monitor.
is a "Plug and Display" video converter.

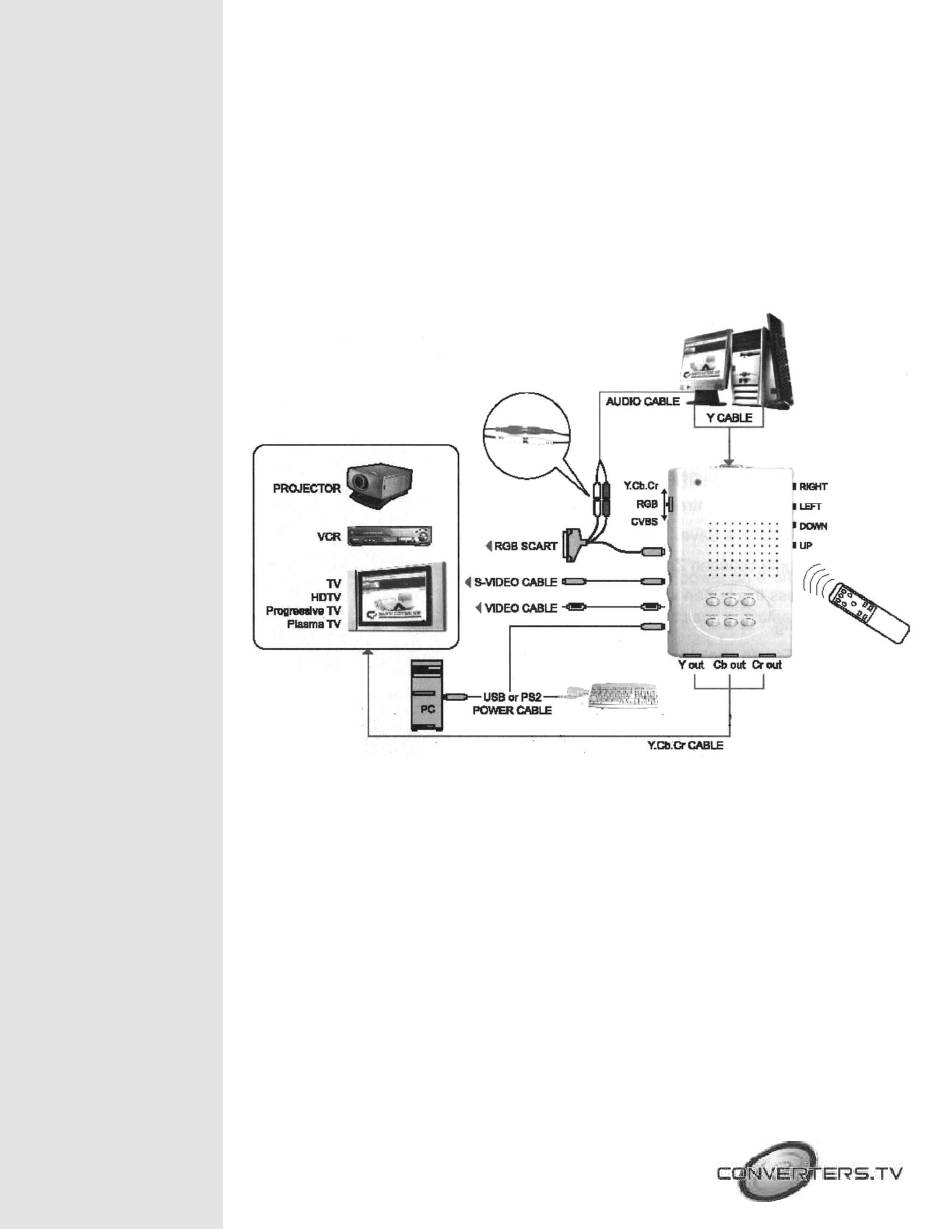

FIG. 2
SCAN CNVTR and
