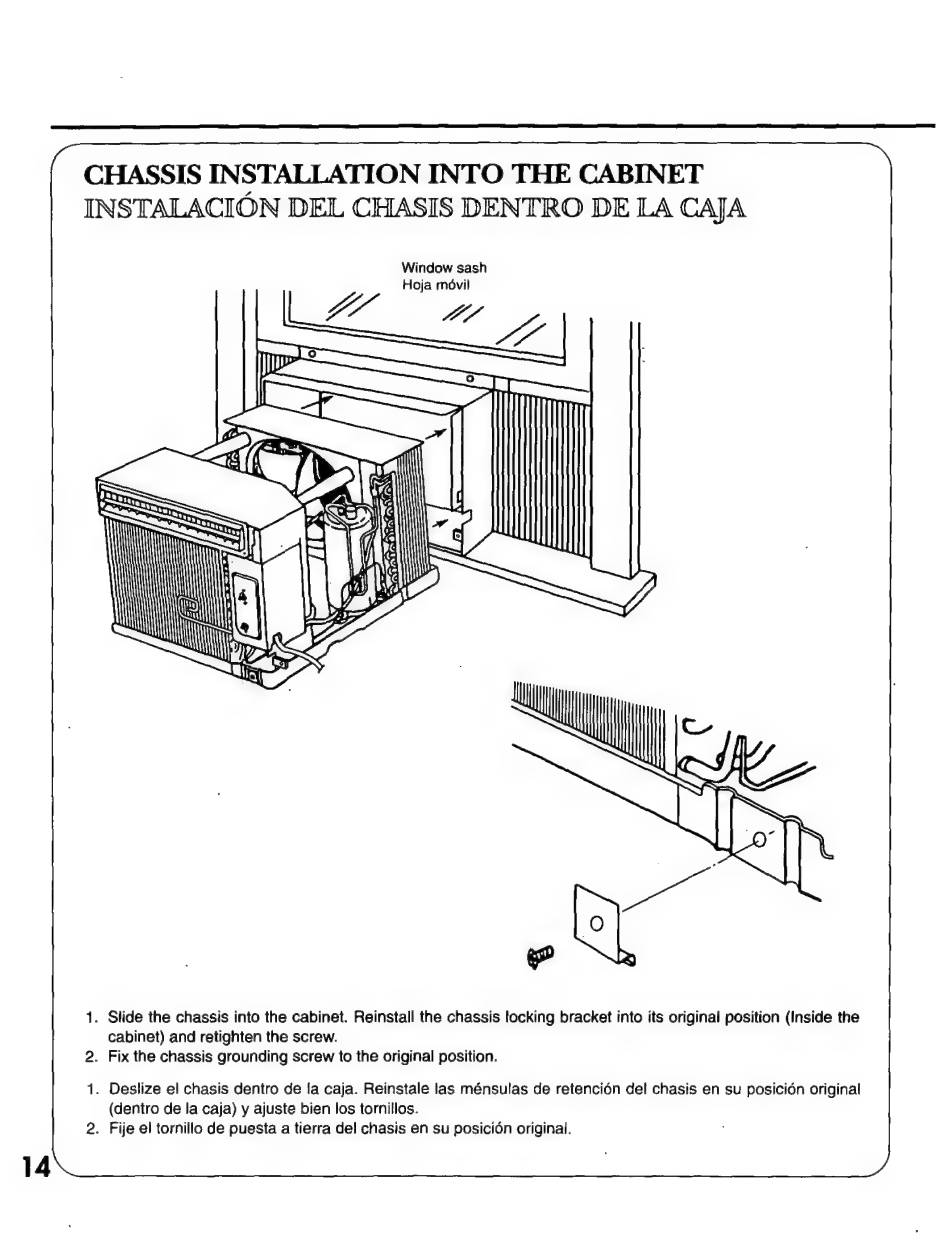

CHASSIS INSTALLATION INTO THE CABINET
INSTALACION DEL CHASIS DENTRO DE LA CAJA
Window sash
Hoja móvil
AW
lini
. Slide the chassis into the cabinet. Reinstall the chassis locking bracket into its originai position (Inside the
cabinet) and retighten the screw.
. Fix the chassis grounding screw to the original position.
. Deslize el chasis dentro de la caja. Reinstale las ménsulas de retención del chasis en su posición original
(dentro de la caja) y ajuste bien los tornillos.
. Fije el tornillo de puesta a tierra del chasis en su posición original.
