Summary of Contents for Fronius TransTig 1750 Puls

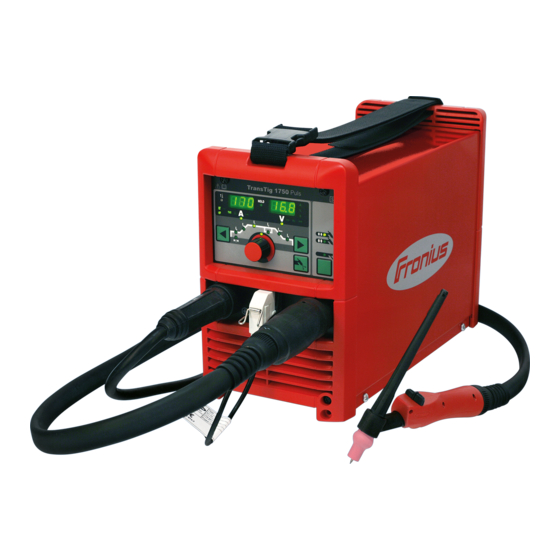

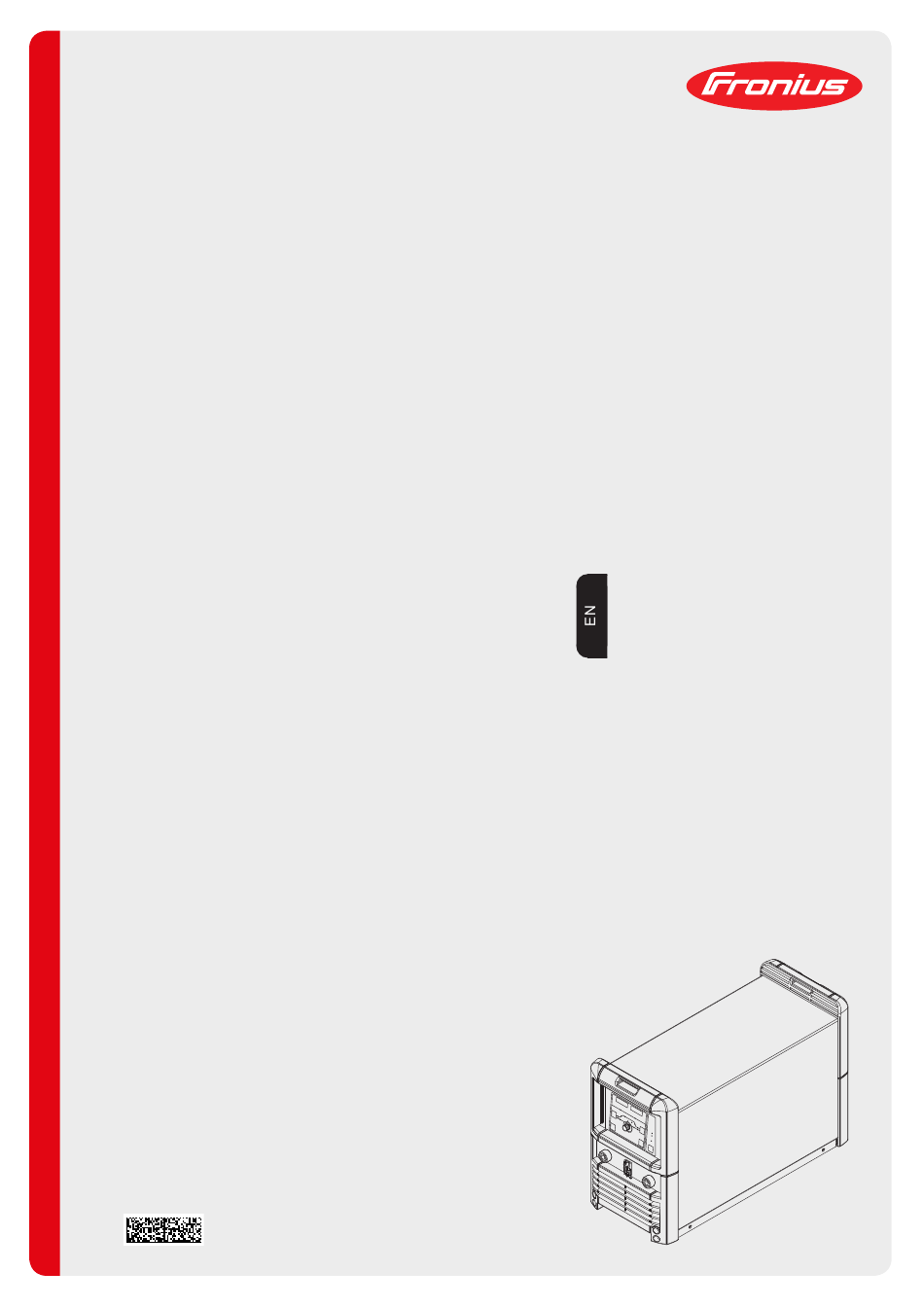

- Page 1 Perfect Welding / Perfect Charging / / Solar Energy Operating Instructions TransTig 1750 Puls TIG Power source 42,0426,0095,EN 012-11052020 Fronius prints on elemental chlorine free paper (ECF) sourced from certified sustainable forests (FSC).
- Page 3 Thank you for the trust you have placed in our company and congratulations on buying this high-quality Fronius product. These instructions will help you familiarise yourself with the product. Reading the instructions carefully will enable you to learn about the many different features it has to offer.
-
Page 5: Table Of Contents
Contents Safety rules ..............................Explanation of safety notices ........................ General ..............................Proper use ............................Environmental conditions........................Obligations of the operator........................Obligations of personnel ........................Mains connection ..........................Protecting yourself and others ......................Danger from toxic gases and vapours ....................Danger from flying sparks ........................Risks from mains current and welding current.................. - Page 6 Generator-powered operation....................... Start-up ..............................Safety..............................General ..............................Connecting the gas cylinder........................Establishing a ground (earth) connection to the workpiece ..............Connecting the welding torch........................ Welding TIG modes ..............................Safety..............................Symbols and their explanaitions ......................2-step mode ............................Spot welding ............................4-step mode ............................
- Page 7 Safety..............................Displayed service codes ........................Power source ............................Care, maintenance and disposal ....................... General ..............................Safety..............................At every start-up............................ Every 2 months ............................. Alle 6 Monate ............................Disposal ..............................Appendix Technical data............................Special voltages............................ TransTig 1750 Puls..........................Circuit diagram............................................................
-
Page 9: Safety Rules
Safety rules Explanation of DANGER! safety notices Indicates immediate danger. ► If not avoided, death or serious injury will result. WARNING! Indicates a potentially hazardous situation. ► If not avoided, death or serious injury may result. CAUTION! Indicates a situation where damage or injury could occur. ►... -
Page 10: Environmental Conditions
The device is intended solely for the welding processes specified on the rating plate. Any use above and beyond this purpose is deemed improper. The manufacturer shall not be held liable for any damage arising from such usage. Proper use includes: carefully reading and following all the instructions given in the operating instructions studying and obeying all safety and danger notices carefully performing all stipulated inspection and maintenance work. -
Page 11: Protecting Yourself And Others
This may affect a number device types in terms of: Connection restrictions Criteria with regard to the maximum permissible mains impedance Criteria with regard to the minimum short-circuit power requirement at the interface with the public grid see "Technical data" In this case, the plant operator or the person using the device should check whether the device may be connected, where appropriate by discussing the matter with the power sup- ply company. -
Page 12: Danger From Flying Sparks
Fumes and hazardous gases must not be breathed in must be extracted from the working area using appropriate methods. Ensure an adequate supply of fresh air. Ensure that there is a ventilation rate of at least 20 m³ per hour at all times. Otherwise, a welding helmet with an air supply must be worn. -
Page 13: Meandering Welding Currents
Make sure that you and others are protected with an adequately insulated, dry base or cov- er for the earth or ground potential. This base or cover must extend over the entire area between the body and the earth or ground potential. All cables and leads must be secured, undamaged, insulated and adequately dimen- sioned. -
Page 14: Emc Device Classifications
Position the device with sufficient insulation against electrically conductive environments, e.g. Insulation against conductive floor or insulation to conductive racks. If distribution boards, twin-head mounts, etc., are being used, note the following: The elec- trode of the welding torch / electrode holder that is not used is also live. Make sure that the welding torch / electrode holder that is not used is kept sufficiently insulated. -
Page 15: Emf Measures
EMF measures Electromagnetic fields may pose as yet unknown risks to health: effects on the health of others in the vicinity, e.g. wearers of pacemakers and hearing aids wearers of pacemakers must seek advice from their doctor before approaching the de- vice or any welding that is in progress for safety reasons, keep distances between the welding cables and the welder's head/ torso as large as possible... -
Page 16: Factors Affecting Welding Results
If the wire-feed unit is attached to a crane holder during welding, always use a suitable, insulated wirefeeder hoisting attachment (MIG/MAG and TIG devices). If the device has a carrying strap or handle, this is intended solely for carrying by hand. The carrying strap is not to be used if transporting with a crane, counterbalanced lift truck or other mechanical hoist. -
Page 17: Danger From Escaping Shielding Gas
Danger from es- Risk of suffocation from the uncontrolled escape of shielding gas caping shielding Shielding gas is colourless and odourless and, in the event of a leak, can displace the ox- ygen in the ambient air. Ensure an adequate supply of fresh air with a ventilation rate of at least 20 m³/hour. Observe safety and maintenance instructions on the shielding gas cylinder or the main gas supply. -
Page 18: Commissioning, Maintenance And Repair
Always fasten the shielding gas cylinder securely and remove it beforehand if the device is to be transported by crane. Only the manufacturer's original coolant is suitable for use with our devices due to its prop- erties (electrical conductibility, anti-freeze agent, material compatibility, flammability, etc.). Only use suitable original coolant from the manufacturer. -
Page 19: Disposal
(e.g. relevant product standards of the EN 60 974 se- ries). Fronius International GmbH hereby declares that the device is compliant with Directive 2014/53/EU. The full text on the EU Declaration of Conformity can be found at the following address: http://www.fronius.com... -
Page 21: General Information
General information... -
Page 23: General
Application areas The power source is used for repair and maintenance tasks in production and manufactur- ing environments. Remote Control The power source TransTig 1750 Puls can be operated with the following remote controls: Operation TR 1200 TR 2000 TR 1300... -
Page 25: Control Elements And Connections
Control elements and connections... -
Page 27: Description Of The Control Panel
Description of the control panel General The key feature of the control panel is the logical way in which the controls are arranged. All the main parameters needed for day-to-day working can easily be: selected using the buttons altered with the adjusting dial shown during welding on the digital display Safety WARNING! - Page 28 Item Designation Overtemperature indicator lights up if the power source overheats (e.g. because the duty cycle has been ex- ceeded). See the "Troubleshooting" section for more information. Special indicators Pulse indicator lights up when the F-P setup parameter has been set to a pulse frequen- Spot welding indicator lights up when the SPt setup parameter has been set to a spot welding time...
- Page 29 Item Designation kHz indicator lights up when the F-P setup parameter is selected if the value entered for the pulse frequency >= 1000 Hz Hz indicator lights up when: the F-P setup parameter is selected if the value entered for the pulse frequency <...
- Page 30 Item Designation (11) Welding parameters overview The welding parameters overview contains the most important welding parame- ters to be used when welding. The sequence of welding parameters follows a clothesline structure. Use the left and right Parameter Selection buttons to navi- gate within the welding parameters overview.
- Page 31 Item Designation (13) Welding current indicator to indicate the welding current for the parameters Starting current I Welding current I Reduced current I End current I Before welding commences, the left-hand digital display shows the set value. For and I , the right-hand digital display also shows the respective percentage of the welding current I After the start of welding, the welding parameter I...
-
Page 32: Key Combinations - Special Functions
Key combinations - special functions General The following functions can be executed by pressing buttons simultaneously or repeatedly. Displaying the Display software version: software version while pressing and holding the Mode button, press the left Parameter and operating Selection button. time The software version is now shown on the digital displays. -
Page 33: Connections, Switches And Mechanical Components
Connections, switches and mechanical components Connections, switches and me- chanical compo- nents TransTig 1750 Puls - front TransTig 1750 Puls - rear Item Designation (+) current socket with bayonet latch for connecting the grounding (earthing) cable when TIG welding the electrode cable or grounding (earthing) cable in MMA welding (depend-... -
Page 35: Installation And Commissioning
Installation and commissioning... -
Page 37: Minimum Equipment Needed For Welding Task
Minimum equipment needed for welding task General Depending on which welding process you intend to use, a certain minimum equipment lev- el will be needed in order to work with the power source. The welding processes and the minimum equipment levels required for the welding task are then described. -
Page 38: Before Installation And Commissioning
Before installation and commissioning Safety WARNING! Danger from incorrect operation. Possible serious injury and damage to property. ► Do not use the functions described here until you have read and completely under- stood these Operating Instructions. ► Do not use the functions described here until you have fully read and understood all of the Operating Instructions for the system components, in particular the safety rules! Utilisation for in- The power source is intended exclusively for TIG and MMA welding. -
Page 39: Generator-Powered Operation
Generator-pow- The power source is generator-compatible, provided that the maximum apparent power ered operation delivered by the generator is at least 10 kVA. NOTE! The voltage delivered by the generator must never exceed the upper or lower limits of the mains voltage tolerance range. Details of the mains voltage tolerance are given in the "Technical data"... -
Page 40: Start-Up
Start-up Safety WARNING! An electric shock can be fatal. If the device is plugged into the mains during installation, there is a high risk of very serious injury and damage. ► Only carry out work on the device if the mains switch is in the "O" position. ►... -
Page 41: Establishing A Ground (Earth) Connection To The Workpiece
Establishing a Move the mains switch to the "O" position ground (earth) Plug the grounding (earthing) cable into the (+) current socket and latch it in place connection to the Use the other end of the grounding (earthing) cable to establish a connection to the workpiece workpiece Connecting the... -
Page 43: Welding
Welding... -
Page 45: Tig Modes
TIG modes Safety WARNING! Danger from incorrect operation. Possible serious injury and damage to property. ► Do not use the functions described here until you have read and completely under- stood these Operating Instructions. ► Do not use the functions described here until you have fully read and understood all of the Operating Instructions for the system components, in particular the safety rules! See the "The Setup menu"... -
Page 46: 2-Step Mode
Starting current phase: the temperature is raised gently, at low welding current, so that the filler metal can be positioned correctly Starting current time Upslope phase: the starting current is continuously increased until it reaches the main current (welding current) I Main current phase (welding current phase): uniform thermal input into the base material, whose temperature is raised by the advancing heat Reduced current phase: intermediate lowering of the welding current in order to... -
Page 47: Spot Welding
Spot welding If a value has been set for the SPt setup parameter, 2-step mode will have the function of spot welding mode. The special spot welding indicator on the control panel lights up. Welding: briefly pull back the torch trigger The welding time corresponds to the value set for the SPt setup parameter. -
Page 48: Special 4-Step: Variant 1
Intermediate lowering during the main current phase causes the welding current to be re- duced to the specified reduced current I To activate intermediate lowering, push forward and hold the torch trigger To revert to the main current, release the torch trigger Special 4-step: Variant 1 of the special 4-step mode is activated when the SFS setup parameter is set to variant 1... -
Page 49: Overloading Of The Tungsten Electrode
Overloading of the tungsten electrode Overloading of If the tungsten electrode is overloaded, the "Electrode overload" indicator on the the tungsten elec- control panel lights up. trode Possible causes of tungsten electrode overload: tungsten electrode diameter is too small main current value I set too high Remedy: use a tungsten electrode with a larger diameter... -
Page 50: Tig Welding
TIG welding Safety WARNING! Danger from incorrect operation. Possible serious injury and damage to property. ► Do not use the functions described here until you have read and completely under- stood these Operating Instructions. ► Do not use the functions described here until you have fully read and understood all of the Operating Instructions for the system components, in particular the safety rules! WARNING! An electric shock can be fatal. -
Page 51: Preparations
Downslope t down Unit Setting range 0.01 - 9.9 Factory settings IMPORTANT! The downslope t is saved separately for 2-step and 4-step modes. down End current I Unit % (of main current I Setting range 0 - 100 Factory settings Electrode diameter Unit Setting range... - Page 52 Set the shielding gas flow rate: Press the Gas test button The test gas flow lasts for a maximum of 30 seconds. Press the button again to stop the gas flow prematurely. Turn the adjusting screw on the underside of the pressure regulator until the pres- sure gauge shows the desired gas flow rate.
-
Page 53: Igniting The Arc
Risk of injury due to shock caused by electric shock (HF ignition) Although Fronius devices comply with all relevant standards, high-frequency ignition can transmit a harmless but noticeable electric shock under certain circumstances. ► Use prescribed protective clothing, especially gloves! ►... -
Page 54: Touchdown Ignition
Tilt the torch back into the normal posi- tion Carry out welding Touchdown igni- If the HFt setup parameter is set to OFF, HF ignition is deactivated. The welding arc is ig- tion nited by touching the workpiece with the tungsten electrode. Procedure for igniting the arc using touchdown ignition: Place the gas nozzle down on the igni- tion location so that there is a gap of... -
Page 55: End Of Welding
Raise the welding torch and move it into its normal position The arc ignites. Carry out welding End of welding Depending on the set mode, finish welding by releasing the torch trigger Wait for the set gas post-flow and hold welding torch in position over the end of the weld seam... -
Page 56: Special Functions And Options
Special functions and options Arc break watch- If the arc breaks and no current starts to flow again within a time specified in the Setup dog function menu, the power source cuts out automatically. The service code "no | Arc" appears on the control panel. -
Page 57: Tacking Function
1/F-P down TIG pulsing - welding current curve Legend: Starting current Pulse frequency *) End current Duty cycle Upslope Ground current Downslope Main current Down *) (1/F-P = time interval between two pulses) Tacking function The power source has a tacking function. When a time period is specified for the tAC (tacking) setup parameter, the tacking function is assigned to the 2-step mode and 4-step mode. - Page 58 Starting current End current Upslope Downslope Down Main current IMPORTANT! The following points apply to the pulsed welding current: The power source automatically regulates the pulsing parameters as a function of the specified main current I There is no need to set any pulsing parameters The pulsed welding current begins: After the end of the starting current phase I With the upslope phase t...
-
Page 59: Mma Welding
MMA welding Safety WARNING! Danger from incorrect operation. Possible serious injury and damage to property. ► Do not use the functions described here until you have read and completely under- stood these Operating Instructions. ► Do not use the functions described here until you have fully read and understood all of the Operating Instructions for the system components, in particular the safety rules! WARNING! An electric shock can be fatal. -
Page 60: Hotstart Function
MMA welding mode IMPORTANT! If the MMA welding mode is selected, the welding voltage will only be avail- able after a 3-second time lag. Use the adjusting dial to set the desired welding current. The welding current value is shown in the left-hand digital display. All the parameter set values that have been set using the adjusting dial are saved until the next time they are changed. -
Page 61: Anti-Stick Function
HCU = 200 The HotStart current is adequate twice the actually set welding current I The HotStart function is activated, the HotStart current is at its maximum. HCU = 2 x I Anti-stick func- As the arc becomes shorter, the welding voltage may drop so far that the rod electrode will tion tend to stick. -
Page 63: Setup Settings
Setup settings... -
Page 65: The Setup Menu
The Setup menu General The Setup menu provides easy access to expert knowledge in the power source and to additional functions. The Setup menu can be used to make simple adjustments of the weld- ing parameters to suit the various job settings. The following can be found in the Setup menu: Setup parameters that have an immediate effect on the welding process Setup parameters needed for making the preliminary settings on the welding system... -
Page 66: Shielding Gas Setup Menu
Shielding gas setup menu General The Shielding gas setup menu provides easy access to the shielding gas settings. Accessing the Shielding gas set- Press and hold the Mode button up menu Press the Gas test button The power source is now in the Shielding gas setup menu. The last welding parameter selected is displayed. - Page 67 The value set for G-H only applies if the maximum welding current really has been set. The actual value is derived from the present welding current. For a medium welding cur- rent, for example, the actual value will be half of the value set for G-H. IMPORTANT! The values set for the G-L and G-H setup parameters are added together.
-
Page 68: Tig Setup Menu
TIG setup menu Accessing the Press the Mode button to select 2-step mode or 4-step mode TIG setup menu Press and hold the Mode button Press the Parameter Selection button (right) The power source is now in the TIG setup menu. The last welding pa- rameter selected is displayed. - Page 69 Factory settings "ON" The pulsed welding current continues until the end of the tack- ing operation 0.1 - 9.9 s The set time begins with the upslope phase. After the end of the set time, welding continues at a constant current; any pulsing parameters that have been set are available.
- Page 70 Time starting - starting current time Unit Setting range OFF/0.01 - 9.9 Factory settings The starting current time t-S specifies the duration of the starting current phase Is. IMPORTANT! The t-S setup parameter only applies to 2-step mode. In 4-step mode, the duration of the starting current phase Is is controlled using the torch trigger.
-
Page 71: Tig Setup Menu: Level 2
TIG setup menu: level 2 Accessing the Accessing the TIG setup menu TIG setup menu: level 2 Select "2nd" welding parameter Press and hold the Mode button Press the Parameter Selection button (right) The power source is now in TIG set-up menu - level 2. The last welding parameter selected is displayed. - Page 72 HFt parameter to a maximum of 0.4 s. CAUTION! Risk of injury due to shock caused by electric shock Although Fronius devices comply with all relevant standards, high-frequency ignition can transmit a harmless but noticeable electric shock under certain circumstances. ► Use prescribed protective clothing, especially gloves! ►...
- Page 73 Factory settings The parameter I1 (main current) will automatically be selected after welding has started. The main current I1 can be set immediately. The last selected parameter remains set during welding. The last selected parameter can be set immediately. Parameter I1 is not selected automatically.
-
Page 74: Rod Electrode Setup Menu
Rod electrode setup menu Accessing the Press the Mode button to select the MMA welding mode Rod electrode setup menu Press and hold the Mode button Press the Parameter Selection button (right) The power source is now in the Rod electrode setup menu. The last welding parameter selected is displayed. - Page 75 dYn - dynamic correction Unit Setting range 0 - 100 Factory settings soft, low-spatter arc harder, more stable arc To obtain optimum welding results, it will sometimes be necessary to adjust the arc-force dynamic. Functional principle: at the instant of droplet transfer or when a short circuit occurs, there is a momentary rise in amperage.
-
Page 76: Rod Electrode Setup Menu: Level 2
Rod electrode setup menu: level 2 Accessing the Accessing the Rod electrode setup menu Rod electrode setup menu level Select "2nd" welding parameter Press and hold the Mode button Press the Parameter Selection button (right) The power source is now in the Rod electrode setup menu: level 2. The last parameter selected is displayed. - Page 77 Unit Setting range OFF/5 - 90 Factory settings The arc length depends on the welding voltage. To end the welding process, it is usually necessary to significantly lift the rod electrode away from the workpiece. With the "Uco" parameter, the welding voltage can be limited to a value that makes it possible to end the welding process simply by lifting the rod electrode slightly.
-
Page 79: Troubleshooting And Maintenance
Troubleshooting and maintenance... -
Page 81: Troubleshooting
Troubleshooting General The power source is fitted with an intelligent safety system that allows fuses to be dis- pensed with entirely. After a possible malfunction or error has been remedied, the power source can be put back into normal operation again without any fuses having to be re- placed. -
Page 82: Power Source
Cause: Arc break Remedy: Press the torch trigger repeatedly; clean the surface of the workpiece Err | IP Cause: Primary overcurrent Remedy: Contact After-Sales Service Power source Power source has no function Mains switch is on, but indicators are not lit up Cause: There is a break in the mains lead;... - Page 83 Remedy: Replace the welding torch No shielding gas all other functions are OK Cause: The gas cylinder is empty Remedy: Change the gas cylinder Cause: Gas pressure regulator is faulty Remedy: Change the gas pressure regulator Cause: The gas hose is not fitted or is damaged Remedy: Fit/change the gas hose Cause:...
-
Page 84: Care, Maintenance And Disposal
Care, maintenance and disposal General Under normal operating conditions, the power source requires only a minimum of care and maintenance. However, it is vital to observe some important points to ensure it remains in a usable condition for many years. Safety WARNING! An electric shock can be fatal. -
Page 85: Disposal
Disposal Dispose of in accordance with the applicable national and local regulations. -
Page 87: Appendix
Appendix... -
Page 89: Technical Data
Technical data Special voltages The technical data on the rating plate applies to devices designed for special voltages. TransTig 1750 Mains voltage 1 x 230 V Puls Mains voltage tolerance -20 %/+15 % Mains frequency 50 / 60 Hz Mains fuse protection 16 A slow-blow Mains connection restrictions possible... -
Page 90: Circuit Diagram
Circuit diagram 230 V 50Hz +A4 FP22JOB +A1 NF +A4-X1 +A3-X13 +A3-X2 +A3-X19 - VALVE + VALVE +A3-X16 +A2 BPS1750 - FAN COMMON + FAN MAIN CURRENT PRIM / SEK CRATFILL CUR TORCH IDENTIF DOWN PRIM / SEK +A3-X8 +A3-X5 +A3-X12 +24 V TX L REMOTE... - Page 92 FRONIUS INTERNATIONAL GMBH Froniusstraße 1 A-4643 Pettenbach AUSTRIA contact@fronius.com www.fronius.com Under www.fronius.com/contact you will find the addresses of all Fronius Sales & Service Partners and locations.
