10-Sound Track High-Sound-Quality Audio
For iPhone users, please search "Alpine Music" in APP Store to
download and install it; for Android users, please scan the QR code
on the right to download and install it directly.
Or you may use a wired controller sold separately for easy control of
the device.

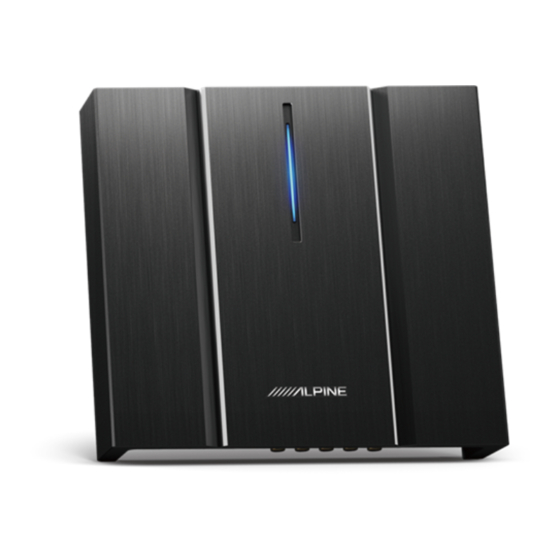

PXE-R100-8
Processing Amplifier
Alpine Music
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alpine PXE-R100-8
Summary of Contents for Alpine PXE-R100-8

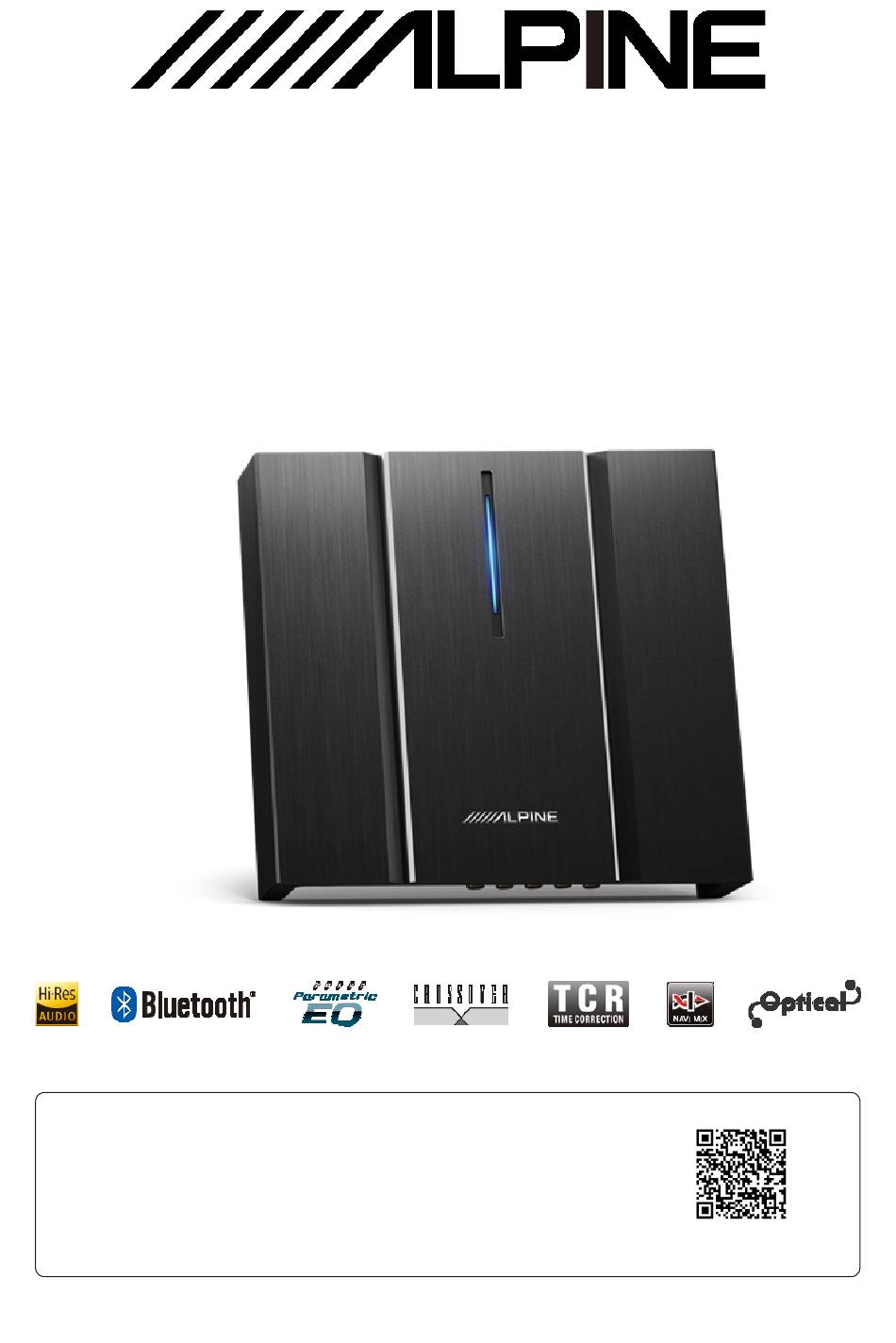

- Page 1 10-Sound Track High-Sound-Quality Audio Processing Amplifier For iPhone users, please search "Alpine Music" in APP Store to download and install it; for Android users, please scan the QR code on the right to download and install it directly. ...
-
Page 3: Table Of Contents
Table of Contents Operating Instructions Description of mobile APP - Homepage (full sound Type of precautions ..........1 field) ..............9 Description of mobile APP - Homepage (sound Copyright notice zone) ..............10 Copyright notice ............ 3 Description of mobile APP - EQ ......11 Description of mobile APP - Channel .... -
Page 4: Operating Instructions
Please contact the dealer System matching from whom you bought the product to install it for When PXE-R100-8 is used with active division mode safety. to assign signals for speakers, please ensure that the Please do not disassemble or refit. -
Page 5: Copyright Notice
Copyright notice The text mark and logo of Bluetooth® are the registered trademarks that Bluetooth SIG, Inc. Alpine Electronics has been authorized to use these text marks and logos. Other trademarks and names all belong to their holders. Products with a High-Resolution mark conform to the standards defined by the Acoustical Society of Japan. Alpine Electronics has been authorized by the Acoustical Society of Japan to use the High-Resolution mark. -
Page 6: Tools That May Be Required (Depending On The Vehicle)
Tools that may be required (depending on the vehicle) Panel removing tool Socket Electric drill Torx screwdriver Phillips screwdriver Sleeve wrench Wrench Wire cutter Wire crimper Wire stripper Spectrum analyzer Oscilloscope Accessory list 2×10P Input line 2×8P Input line Bluetooth USB 2.0 cable Machine tooth screw ×... -
Page 7: Diagram Of Device Interfaces
Diagram of device interfaces Vehicle audio player (sold separately) External Bluetooth Wired controller or Alpine media wired controller (sold separately) Vehicle audio player (sold separately) External power amplifier (sold separately) -
Page 8: Description Of Device Interfaces And Their Functions
Description of device interfaces and their functions Select HD Bluetooth as the input signal, or connect to the PXE-R100- External Bluetooth input 8 mobile tuning APP. After the APP is successfully connected, the interface Bluetooth icon is constant on. A USB2.0 cable can be used to connect the computer and perform tone USB 2.0 interface tuning and setting in detail. -
Page 9: Wire Pin Arrangement
Wire pin arrangement Orange/Black 20AWG... High-voltage-level input channel H6- Orange 20AWG ..... High-voltage-level input channel H6+ Pink/Black 20AWG ....High-voltage-level input channel H5- Pink 20AWG ......High-voltage-level input channel H5+ Purple/Black 20AWG .... High-voltage-level input channel H4- Purple 20AWG ...... High-voltage-level input channel H4+ Green/Black 20AWG .... -
Page 10: Description Of Mobile App - Start Page
Description of mobile APP - Start page Encryption DSP treble protection Master volume Built-in power amplifier Share sound effect Save sound effect Local sound effect Online sound effects Shutdown delay X-Over divider data Reset device parameters Not connected EQ gain step size Channel gain step size Homepage Device temperature... -
Page 11: Field)
Description of mobile APP - Homepage (full sound field) Homepage Sound zone switch Master audio source Optical Coaxial Blue High tooth voltage voltage level level Master audio source attenuation Auxiliary audio source Bluetooth Optical Coaxial High voltage voltage level level Pre-set sound effects Pre-set Pre-set... -
Page 12: Zone)
Description of mobile APP - Homepage (sound zone) Homepage Sound zone Volume switch Sound Zone I Master audio source Optical Coaxial Bluetoo High voltage voltage level level Master audio source Volume attenuation Auxiliary audio source Optical Coaxial Bluetooth High Master audio source voltage voltage level... -
Page 13: Description Of Mobile App - Eq
Description of mobile APP - EQ Graphic EQ Parametric EQ Band Gain Direct Frequency Q value Reset EQ Restore EQ Slide left and right to select the output channel for EQ adjustment. There are 10 1 Output channel channels to choose from. Parametric EQ, Switch between Parametric EQ mode and Graphic EQ mode. -
Page 14: Description Of Mobile App - Channel
Description of mobile APP - Channel Channel Mute control One-key mute Reset prompt After system reset, the output mode of the power Unmute amplifier will change. Please confirm that the channels Mute control Reset channel type of the high pitch speakers after system reset are the same with those of the current system, then increase the volume and listen, so as to prevent the speakers from Cancel... -
Page 15: Description Of Mobile App - Delay
Description of mobile APP - Delay Delay Delay setting (CH-5) Cancel Delay group Front left Normal Reverse phase phase high frequency Front right Normal Reverse phase phase high frequency Front left Normal Reverse phase phase medium frequency Front right Normal Reverse phase phase... -
Page 16: Combination
Description of mobile APP - Frequency combination Frequency combination Switch prompt If you switch mode, the set data will be Active Passive cleared. Are you sure to continue? input input Cancel High voltage level 1 High voltage level 2 High voltage level 3 High... -
Page 17: Description Of Pc Software
Description of PC software - Homepage (full sound field) Clipping distortion indicator File Options Encryption Temperature Device Master Homepage Delay Frequency combination voltage volume Master audio source selection Master audio source attenuation Coaxial Bluetooth High voltage Low voltage Optical level level Auxiliary audio source selection Optical... -
Page 18: Description Of Pc Software - Homepage
Description of PC software - Homepage (sound zone) File Options Encryption Clipping distortion indicator Master TREBLE PROTECTION Delay Temperature Homepage Frequency combination volume Firmware update Sound Zone I Sound Zone I volume Noise threshold Master audio source selection Built-in power amplifier Master audio source attenuation X-Over divider data Sound zone switch... -
Page 19: Description Of Pc Software - Eq
Description of PC software - EQ File Encryption Clipping distortion indicator Options Device Master Frequency Temperature Homepage Delay combination voltage volume EQ gain step size Curve switch Front left high frequency Front right high frequency Front left medium frequency Front right medium frequency Front left low frequency... - Page 20 Description of PC software - EQ Push the fader left and right to adjust the channel gain, that it, to adjust the volume of 10 Channel gain the output channel; the adjustable range is: -60dB ~ +6dB. 11 Reset channel type You can set the current channel type as Factory setting.
-
Page 21: Description Of Pc Software - Delay
Description of PC software - Delay File Options Encryption Clipping distortion indicator Frequency Temperature Device Master Homepage Delay combination voltage volume Front right high frequency Front left high frequency Delay Delay group group Normal Normal phase phase Front left medium frequency Front right medium frequency Delay Delay group... -
Page 22: Description Of Pc Software - Frequency
Description software Frequency combination File Options Encryption Clipping distortion indicator Device voltage Master volume Frequency Homepage Delay Temperature combination Passive input Active input High voltage level 1 High voltage level 2 High voltage level 3 High voltage level 4 High voltage level 5 High... -
Page 23: Technical Parameters Specifications
Specification parameters Dynamic range ≥100dB SNR (RCA) ≥100dB Background noise High-voltage-level: 95uVrms; RCA: 15uVrms Channel resolution ≥80dB ≤0.01% Input voltage High-voltage-level: 28Vpp; RCA: 6Vpp Output voltage RCA: 6Vpp Rated power 8CH×35W (4Ω, 14.4V, 1kHz, 10%THD) Maximum power 8CH×70W (4Ω, 14.4V, 1kHz, 10%THD) Input / output sensitivity (RCA) 1:1 (no power amplification) Frequency response... -
Page 24: Functional Parameters
Functional parameters 6 channels of high voltage level, 2 channels of RCA audio, high resolution Input signals Bluetooth, optical/coaxial Output signals 8 channels of high voltage level, 10 channels of RCA audio Signal gain of output channel Range: mute, -60.0dB ~ +6.0dB Type: parametric EQ, graphic EQ Frequency: 20Hz ~ 40kHz;...
