8-Sound Track High-Sound-Quality Audio
For iPhone users, please search "Alpine Music" in APP Store to download
and install it; for Android users, please scan the QR code on the right to
download and install it directly.
Or you may use a wired controller sold separately for easy control of the
device.

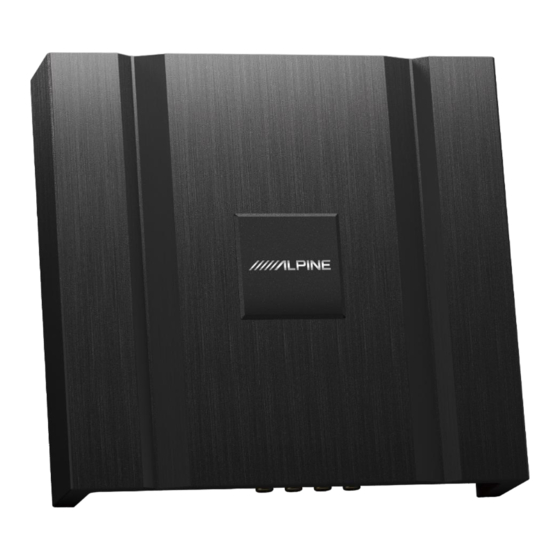

PXE-R80-8
Processing Amplifier
Alpine Music
Advertisement
Table of Contents
Related Manuals for Alpine PXE-R80-8
Summary of Contents for Alpine PXE-R80-8
- Page 1 8-Sound Track High-Sound-Quality Audio Processing Amplifier For iPhone users, please search "Alpine Music" in APP Store to download and install it; for Android users, please scan the QR code on the right to download and install it directly. ...
-
Page 3: Table Of Contents
Table of Contents Operating Instructions Description of mobile APP - Homepage ..9 Type of precautions ........1 Description of mobile APP - EQ ....10 Description of mobile APP - Channel ...11 Copyright notice Description of mobile APP - Delay ....12 Copyright notice .......... -
Page 4: Operating Instructions
Please contact the dealer System matching from whom you bought the product to install it for When PXE-R80-8 is used with active division mode safety. to assign signals for speakers, please ensure that the Please do not disassemble or refit. -
Page 5: Copyright Notice
Copyright notice The text mark and logo of Bluetooth® are the registered trademarks that Bluetooth SIG, Inc. Alpine Electronics has been authorized to use these text marks and logos. Other trademarks and names all belong to their holders. * Electronic products should be discarded via an appropriate recycling channel to reduce electronic waste pollution. -
Page 6: Tools That May Be Required
Tools that may be required (depending on the vehicle) Panel removing tool Socket Electric drill Torx screwdriver Phillips screwdriver Sleeve wrench Wrench Wire cutter Wire crimper Wire stripper Spectrum analyzer Oscilloscope Accessory list 2×10P Input line 2×8P Input line Bluetooth USB 2.0 cable Machine tooth screw ×... -
Page 7: Diagram Of Device Interfaces
Diagram of device interfaces External Bluetooth Wired controller or Alpine media wired controller (sold Vehicle audio player (sold separately) separately) External power amplifier (sold separately) -
Page 8: Description Of Device Interfaces And Their
Description of device interfaces and their functions Select HD Bluetooth as the input signal, or connect to the PXE-R80-8 External Bluetooth input mobile tuning APP. After the APP is successfully connected, the interface Bluetooth icon is constant on. A USB2.0 cable can be used to connect the computer and perform USB 2.0 interface... -
Page 9: Wire Pin Arrangement
Wire pin arrangement Orange/Black 20AWG ... High-voltage-level input channel H6- Orange 20AWG ..... High-voltage-level input channel H6+ Pink/Black 20AWG ....High-voltage-level input channel H5- Pink 20AWG ......High-voltage-level input channel H5+ Purple/Black 20AWG .... High-voltage-level input channel H4- Purple 20AWG ...... High-voltage-level input channel H4+ Green/Black 20AWG ..... -
Page 10: Description Of Mobile App - Start Page
Description of mobile APP - Start page Encryp tion DSP treble protection Master volume Built-in power amplifier Share sound effect Save sound effect Local sound effect Online sound effects Shutdown delay X-Over divider data Reset device parameters Not connected EQ gain step size Channel gain step size Homepage Device temperature... -
Page 11: Description Of Mobile App - Homepage
Description of mobile APP - Homepage Homepage Master audio source Bluetooth Low voltage level High voltage level Master audio source attenuation Auxiliary audio source Bluetooth High voltage level Low voltage level Pre-set sound effects Pre-set 1 Pre-set 2 Pre-set 3 Pre-set 4 Pre-set 5 Pre-set 6... -
Page 12: Description Of Mobile App - Eq
Description of mobile APP - EQ Graphic EQ Parametric EQ Band Gain Direct Frequency Q value Reset EQ Restore EQ Slide left and right to select the output channel for EQ adjustment. There are 8 channels 1 Output channel to choose from. Parametric EQ, Switch between Parametric EQ mode and Graphic EQ mode. -
Page 13: Description Of Mobile App - Channel
Description of mobile APP - Channel Channel Reset prompt After system reset, the output mode of the power amplifier will change. Please confirm that the channels of the high pitch speakers after system reset are the same with those of the current system, then increase the Mute control volume and listen, so as to prevent the speakers from burning out! -
Page 14: Description Of Mobile App - Delay
Description of mobile APP - Delay Delay Cancel Delay group Normal Reverse Front left full phase phase frequency Normal Reverse Front right full phase phase Delay setting (CH-5) frequency Normal Reverse Rear left full phase phase frequency Normal Reverse Rear right full phase phase frequency... -
Page 15: Description Of Mobile App - Frequency
Description of mobile APP - Frequency combination Frequency combination Switch prompt If you switch mode, the set data will be Active Passive cleared. Are you sure to continue? input input Cancel High voltage level 1 High voltage level 2 High voltage level 3 High... -
Page 16: Description Of Pc Software - Homepage
Description of PC software - Homepage Clipping distortion indicator File Options Encryption Device voltage Master volume Frequency Homepage Delay Temperature combination Master audio source selection Master audio source attenuation High voltage Low voltage Bluetooth level level Auxiliary audio source selection High voltage Low voltage Bluetooth... -
Page 17: Description Of Pc Software - Eq
Description of PC software - EQ File Options Encryption Clipping distortion indicator Device Master Homepage Frequency Temperature Delay combination voltage volume EQ gain step Curve switch size Front left full frequency Front right full frequency Rear left full frequency Rear right full frequency Band Frequency... - Page 18 Description of PC software - EQ Push the fader left and right to adjust the channel gain, that it, to adjust the volume of 10 Channel gain the output channel; the adjustable range is: -60dB ~ +6dB. Select “Copy channel EQ / volume from left to right” or “Copy channel EQ / volume 11 Debugging from right to left”.
-
Page 19: Description Of Pc Software - Delay
Description of PC software - Delay File Options Encryption Clipping distortion indicator Frequency Device voltage Master volume Homepage Delay Temperature combination Front left full frequency Front right full frequency Delay group Delay group Normal phase Normal phase Rear right full frequency Rear left full frequency Delay Delay group... -
Page 20: Description Of Pc Software - Frequency
Description of PC software - Frequency combination File Options Encryption Clipping distortion indicator Device voltage Frequency Temperature Master volume Homepage Delay combinationㄌ Passive input Active input High voltage level 1 High voltage level 2 High voltage level 3 High voltage level 4 High voltage level 5... -
Page 21: Specifications
Specification parameters ≥100dB Dynamic range ≥100dB SNR (RCA) Background noise High-voltage-level: 95uVrms; RCA: 15uVrms ≥80dB Channel resolution ≤0.01% Input voltage High-voltage-level: 28Vpp; RCA: 6Vpp Output voltage RCA: 6Vpp 8CH×35W (4Ω, 14.4V, 1kHz, 10%THD) Rated power 8CH×70W (4Ω, 14.4V, 1kHz, 10%THD) Maximum power Input / output sensitivity (RCA) 1:1 (no power amplification) -
Page 22: Functional Parameters
Functional parameters 6 channels of high-voltage-level, 2 channels of RCA audio and high resolution Input signals Bluetooth Output signals 8 channels of high voltage level, and 8 channels of RCA audio Signal gain of output channel Range: mute, -60.0dB ~ +6.0dB Type: parametric EQ, graphic EQ Frequency: 20Hz ~ 20kHz;...
