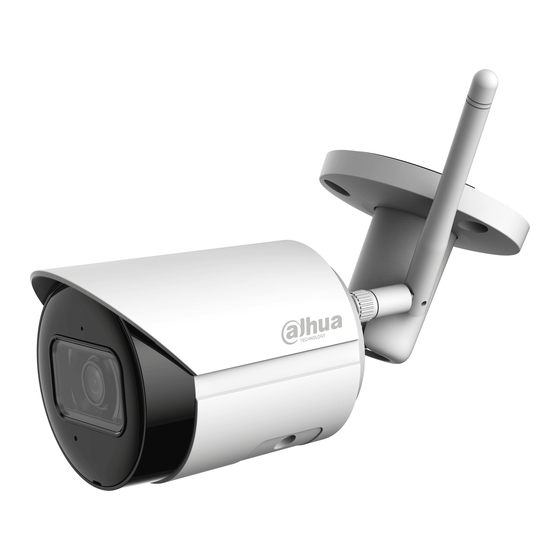

- Page 1 Bullet Network Camera Quick Start Guide ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.0...
-
Page 2: Foreword
Quick Start Guide Foreword General This manual introduces the installation and operations of the network camera. Read carefully before using the device, and keep the manual safe for future reference. Safety Instructions The following signal words might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided,... - Page 3 Quick Start Guide ● Upgrade the reader software or try other mainstream reader software if the manual (in PDF format) cannot be opened. ● All trademarks, registered trademarks and the company names in the manual are the properties of their respective owners. ●...
-
Page 4: Important Safeguards And Warnings
Quick Start Guide Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, comply with the guidelines when using it. Transportation Requirements ●... - Page 5 Quick Start Guide against lightning. For outdoor scenarios, strictly comply with the lightning protection regulations. ● Ground the function earthing portion of the device to improve its reliability (certain models are not equipped with earthing holes). The device is a class I electrical appliance. Make sure that the power supply of the device is connected to a power socket with protective earthing.
- Page 6 Quick Start Guide ● Use the accessories suggested by the manufacturer. Installation and maintenance must be performed by qualified professionals. ● Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on the lens.
-
Page 7: Table Of Contents
Quick Start Guide Table of Contents Foreword ........................................I Important Safeguards and Warnings ............................III 1 Introduction ......................................1 1.1 Cable ........................................ 1 1.2 LED Status ...................................... 1 2 Network Configuration ..................................2 2.1 Initializing Device ..................................2 2.2 Changing Device IP Address ..............................4 2.3 Logging in to Web Page ................................. -
Page 8: Introduction
Quick Start Guide 1 Introduction 1.1 Cable Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit and water damage. For the detailed operation, see FAQ manual. Figure 1-1 Cables Table 1-1 Cable information Port Name Description Connects to network with network cable. -
Page 9: Network Configuration
Quick Start Guide 2 Network Configuration Device initialization and IP setting can be finished with the ConfigTool or on web page. For more information, see web operation manual. ● Device initialization is available on select models, and it is required at first-time use and after device is being reset. - Page 10 Quick Start Guide ● If you select the Current Segment Search checkbox and the Other Segment Search checkbox together, the system searches for devices under both conditions. ● Enter username and the password when you want to change IP, configure the system, update the device, restart the device, and more.
-
Page 11: Changing Device Ip Address
Quick Start Guide Figure 2-3 Device initialization Step 9 Select Easy4ip or select Auto-check for updates according to the actual needs. If neither, leave them unselected. Step 10 Click OK to initialize the device. Click the success icon ( ) or the failure icon ( ) for the details. -
Page 12: Logging In To Web Page
Quick Start Guide Figure 2-4 Change IP address Step 3 Select Static mode, and then enter start IP, subnet mask, and gateway. ● IP addresses of multiple devices will be set to the same if you select the Same IP checkbox. -
Page 13: Operating With Dmss
Quick Start Guide 3 Operating with DMSS Make sure that there are no obstacles and electromagnetic interference between the device and the router for best possible wireless performance. Step 1 Add the device. 1) Tap + button on the upper-right corner of the DMSS home page to scan the QR code on the camera. - Page 14 Quick Start Guide Figure 3-2 Configure the device hotspot Step 3 Configure the Wi-Fi. Select your Wi-Fi network from SSID list and then enter the password. Step 4 Configure the device information. 1) Create the device name and password. 2) Set the time zone and then click Done. Figure 3-3 Configure the device information...
-
Page 15: Installation
Quick Start Guide 4 Installation 4.1 Packing List ● The tool required for the installation such as electric drill is not provided in the package. ● The operation manual and related tool information are contained in the disk or the QR code. Figure 4-1 Packing list 4.2 Dimensions Figure 4-2 Dimensions (mm [inch]) -
Page 16: Installing Camera
Quick Start Guide 4.3 Installing Camera 4.3.1 Installation Methods Figure 4-3 Installation methods 4.3.2 Installing SD Card ● SD card slot is available on select models. ● Disconnect the power before installing or removing the SD card. Press the reset button for 10 seconds to reset the device. Figure 4-4 Install SD card 4.3.3 Attaching Camera ●... - Page 17 Quick Start Guide Figure 4-5 Cable going through the side cable tray Figure 4-6 Cable going through the mounting surface...
-
Page 18: Optional) Installing Waterproof Connector
Quick Start Guide 4.3.4 (Optional) Installing Waterproof Connector This part is needed only when a waterproof connector comes with the camera and the camera is used outdoors. Figure 4-7 Install waterproof connector 4.3.5 Adjusting Lens Angle Figure 4-8 Adjust lens angle... - Page 19 Quick Start Guide...
