Dahua Technology Ultra IPC-HFW7442H-Z Quick Start Manual

Dahua Technology Ultra IPC-HFW7442H-Z Quick Start Manual

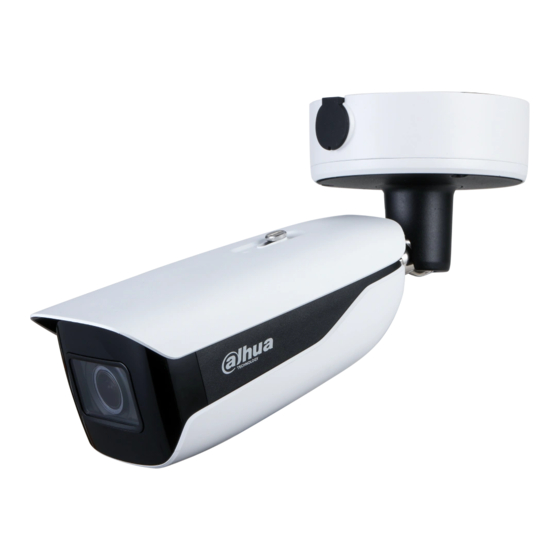

H ir bullet network camera

Advertisement

Quick Links

Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
Dahua Ultra IPC-
HFW7442H-Z
o cerca il tuo prodotto tra le
migliori offerte di Videosorveglianza
Model H IR Bullet
Network Camera
Quick Start Guide
V1.0.1
ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD

Advertisement

Table of Contents
loading

Summary of Contents for Dahua Technology Ultra IPC-HFW7442H-Z

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Dahua Ultra IPC- HFW7442H-Z o cerca il tuo prodotto tra le migliori offerte di Videosorveglianza Model H IR Bullet Network Camera Quick Start Guide V1.0.1 ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD...
  • Page 2: Foreword

    Foreword General This manual introduces the functions, installation, and operations of the camera. Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided, WARNING could result in slight or moderate injury.
  • Page 3  We are not liable for any loss caused by the operations that do not comply with the manual.  The manual would be updated according to the latest laws and regulations of related regions. For detailed information, see the paper manual, CD-ROM, QR code or our official website.
  • Page 4: Important Safeguards And Warnings

    Important Safeguards and Warnings Electrical Safety  All installation and operation should conform to your local electrical safety codes.  The power source shall conform to the Safety Extra Low Voltage (SELV) standard, and supply power with rated voltage which conforms to Limited power Source requirement according to IEC60950-1.
  • Page 5  It is recommended to use the device together with lightning arrester to improve lightning protection effect.  It is recommended to ground the device to enhance reliability.  Do not touch the image sensor directly (CMOS). Dust and dirt could be removed with air blower, or you can wipe the lens gently with soft cloth that moistened with alcohol.
  • Page 6: Regulatory Information

    Regulatory Information The regulatory information herein might vary according to the model you purchased. Some information is only applicable for the country or region where the product is sold. FCC Information Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 7: Table Of Contents

    Table of Contents Foreword ..............................I Important Safeguards and Warnings ....................III Regulatory Information ..........................V 1 Introduction ............................1 Device Ports ..........................1 Connecting Alarm Input/output ..................... 2 2 Network Configuration.......................... 4 Initializing Device .......................... 4 Modifying Device IP Address ......................5 Logging in Web Interface ......................
  • Page 8: Introduction

    Introduction Device Ports  Device ports might vary with different models, and the actual product shall prevail.  Do waterproof to all the cable joints with insulating tape and waterproof tape to avoid short circuit and water damage. For the detailed operation, see the FAQ Manual. Figure 1-1 Device ports For more information about device ports, see Table 1-1.
  • Page 9: Connecting Alarm Input/Output

    Port Name Function Inputs 12V DC or 24V AC power. Please be sure to supply power as instructed in the Guide. DC 12V or AC Device abnormity or damage could occur if power is not supplied correctly. VIDEO Outputs analog video signal. Connecting Alarm Input/output Alarm input/output is available on select models.
  • Page 10 input signal is logic "0" and to "NC" if the alarm input signal is logic "1".  The alarm output in the web interface is corresponding to the alarm output end of the device, which is also alarm output end of the I/O port. Introduction 3...
  • Page 11: Network Configuration

    Network Configuration Device initialization and IP address setting can be finished with the "ConfigTool" or in web interface. For more information, see the WEB operation manual. Device initialization is available on select models, and it is required at first use or after the ...
  • Page 12: Modifying Device Ip Address

    The Device initialization interface is displayed. Step 6 Select the devices that need initialization, and then click Initialize. The password setting interface is displayed. See Figure 2-2. Figure 2-2 Password setting Step 7 Set and confirm the password of the devices, then enter a valid email address, and then click Next.
  • Page 13: Logging In Web Interface

    Figure 2-3 Modify IP Address Step 3 Select Static mode, and then enter start IP, subnet mask, and gateway. IP addresses of multiple devices will be set to the same if you select the Same IP  checkbox.  If DHCP server is available in the network, devices will automatically obtain IP addresses from DHCP server when you select DHCP.
  • Page 14: Installation

    Installation Packing List  The tool required for the installation such as electric drill is not provided in the packing.  The operation manual and related tool are contained in the disk or the QR code, and the actual packing shall prevail. Dimension Following figures are for reference only, and the actual product shall prevail.
  • Page 15: Installing Device

    Installing Device 3.3.1 Installation Type 3.3.2 Installing SD Card (Optional) Pull the power plug off before installing or removing the SD card.  Press and hold the button for 10 s to reset the camera.  3.3.3 Threading Cable Installation 8...
  • Page 16: Attaching Device

    This section takes threading network cable for example. 3.3.4 Attaching Device Make sure the mounting surface is strong enough to hold at least three times of the weight of the device and bracket. Installation 9...
  • Page 17 Cable going through the mounting surface Installation 10...
  • Page 18: Wrapping Waterproof Tape (Optional)

    Cable going through the side cable tray 3.3.5 Wrapping Waterproof Tape (Optional) This part is needed when the cable connector is out of the junction box. Installation 11...
  • Page 19: Adjusting Sunshade Cap

    3.3.6 Adjusting Sunshade Cap Installation 12...
  • Page 20: Adjusting Lens Angle

    3.3.7 Adjusting Lens Angle Installation 13...
  • Page 21 ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Postcode: 310053 Tel: +86-571-87688883 Fax: +86-571-87688815 Email: overseas@dahuatech.com Website: www.dahuasecurity.com...
