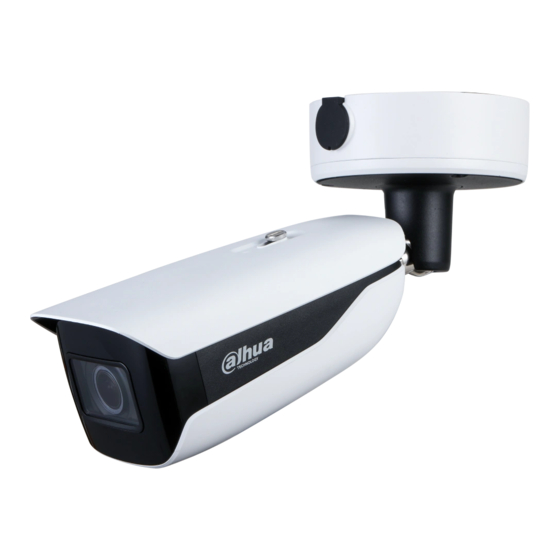

- Page 1 Bullet Network Camera Quick Start Guide ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.1...
-
Page 2: Foreword
Quick Start Guide Foreword General This manual introduces the installation and operations of network camera. Read carefully before using the device, and keep the manual safe for future reference. Safety Instructions The following signal words might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided, could... - Page 3 Quick Start Guide ● Upgrade the reader software or try other mainstream reader software if the manual (in PDF format) cannot be opened. ● All trademarks, registered trademarks and the company names in the manual are the properties of their respective owners. ●...
-
Page 4: Important Safeguards And Warnings
Quick Start Guide Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, comply with the guidelines when using it. Transportation Requirements ●... - Page 5 Quick Start Guide against lightning. For outdoor scenarios, strictly comply with the lightning protection regulations. ● Ground the function earthing portion of the device to improve its reliability (certain models are not equipped with earthing holes). The device is a class I electrical appliance. Make sure that the power supply of the device is connected to a power socket with protective earthing.
- Page 6 Quick Start Guide ● Use the accessories suggested by the manufacturer. Installation and maintenance must be performed by qualified professionals. ● Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on the lens.
-
Page 7: Table Of Contents
Quick Start Guide Table of Contents Foreword ........................................I Important Safeguards and Warnings ............................III 1 Introduction ......................................1 1.1 Cable ........................................ 1 1.2 Connecting Alarm Input/Output ............................2 2 Network Configuration ..................................4 2.1 Initializing the Camera ................................4 2.2 Changing the Device IP Address ............................5 2.3 Logging in to the Webpage .............................. -
Page 8: Introduction
Quick Start Guide 1 Introduction 1.1 Cable Waterproof all the cable joints with insulating tape and waterproof tape to avoid water damage and prevent short circuits from occurring. For details, see the FAQ manual. Figure 1-1 Cables Table 1-1 Cable information Port Name Description Connects to sound pickups to receive audio signals. -
Page 9: Connecting Alarm Input/Output
Quick Start Guide Port Name Description Connects to monitors to output analog video signals. Video output Video output is available on select models. Controls external devices, such as PTZ. RS-485 RS-485 is available on select models. Supplies 12 VDC power for external devices. Power output Power output is available on select models. - Page 10 Quick Start Guide Figure 1-2 Alarm input Step 2 Connect the alarm output device to the alarm output end of the I/O port. The alarm output is a relay switch output, which can only connect to OUT_GND alarm devices. ALARM_OUT(ALARM_COM) and ALARM_OUT_GND(ALARM_NO) constitute a switch that provides the alarm output.
-
Page 11: Network Configuration
Quick Start Guide 2 Network Configuration Device initialization and IP configurations can all be managed with the ConfigTool or through the webpage. For more information, see the web operation manual. ● Device initialization is available on select models, and is required at first-time use and after the device is reset. -
Page 12: Changing The Device Ip Address
Quick Start Guide Step 3 Select Auto-check for updates as needed, and then click OK to initialize the device. If initialization failed, click to see more information. Click Finish. Step 4 2.2 Changing the Device IP Address Background Information ● You can change the IP address of one or more devices at a time. This section is based on changing IP addresses in batches. - Page 13 Quick Start Guide The home page opens when the installation is completed.
-
Page 14: Installation
Quick Start Guide 3 Installation 3.1 Packing List ● Tools required for installation, such as the electric drill, are not included in the package. ● The operation manual and information on the tools are on the disk or the QR code. Figure 3-1 Packing list 3.2 Dimensions Figure 3-2 Dimensions (mm [inch]) -
Page 15: Installing The Camera
Quick Start Guide 3.3 Installing the Camera 3.3.1 Installation Methods Figure 3-3 Installation methods 3.3.2 (Optional) Installing the SD Card ● SD card slot is available on select models. ● Disconnect the power before installing or removing the SD card. Press the reset button for 10 seconds to reset the device. -
Page 16: Attaching The Camera
Quick Start Guide 3.3.3 Attaching the Camera Make sure that the mounting surface is strong enough to hold at least three times the weight of the camera and bracket. Figure 3-5 Cable going through the side cable tray... -
Page 17: Optional) Installing The Waterproof Connector
Quick Start Guide Figure 3-6 Cable going through the mounting surface 3.3.4 (Optional) Installing the Waterproof Connector This section is only necessary if a waterproof connector is included in your package, and the device is being installed outdoors. Figure 3-7 Install the waterproof connector... -
Page 18: Adjusting The Lens Angle
Quick Start Guide 3.3.5 Adjusting the Lens Angle When loosing the bracket, pay attention that: ● If the screw is blocked by the anti-dropping structure part, please turn the screw in the opposite direction for two circles. ● Do not exceed the recommended value of torque shows below. Figure 3-8 Adjust the lens angle... - Page 19 Quick Start Guide...
