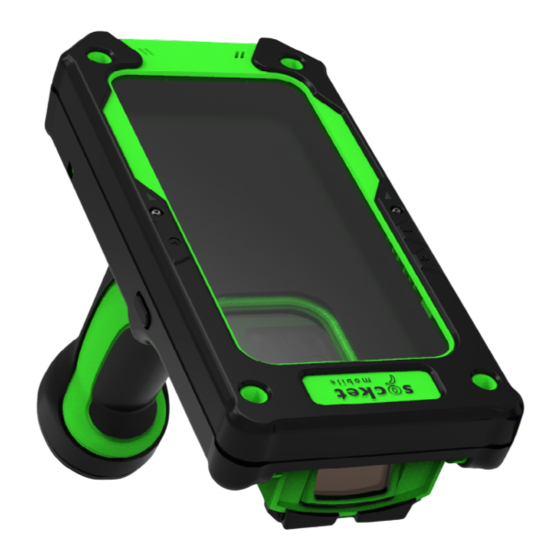

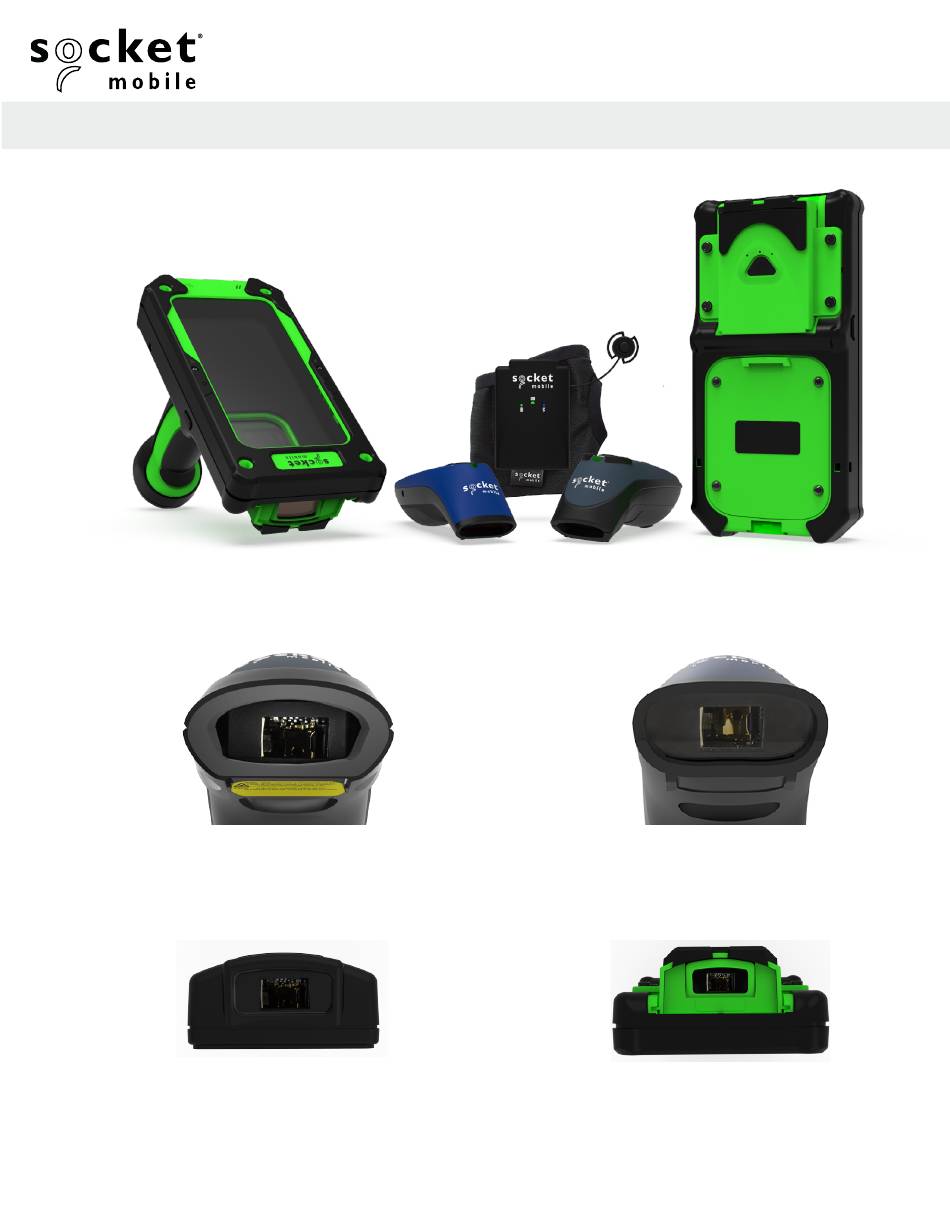

- Page 1 Programming Guide 1D LASER- D730, DW930, S730, XS930, XG930 Model: D730 Model: S730 Model: XG930/XS930 Model: DW930 Compatible with CHS 7Mi/7Pi.
-
Page 2: Table Of Contents
Table of Contents Companion App Resets Bluetooth Connection Mode Prefix/Suffix Vibrate/Beep Modes Active Modes HID Keyboard Language Settings 9-10 Automatic Reconnection Bluetooth Connection Roles Data Mode-For SPP Mode Only Programming Symbologies Bookland EAN Bookland ISBN Codabar CLSI NOTIS Code 11 Code 32 Code 39 Code 39... -
Page 3: Companion App
Companion App Download the Socket Mobile Companion app to set-up your barcode scanner. Available for Scan QR Code with your device to visit the Companion app download page, or go to socketmobile.com/support/companion... -
Page 4: Resets
Resets Make sure the scanner is not connected to a host computer or device before scanning a command barcode. Factory Reset Configures the scanner to factory defaults. The scanner powers off after scanning this barcode. Pairing Reset If the scanner is paired with a device, unpair it before trying to connect to a different device. Step 1: Scan barcode (for serial number that begins 1931 and above only). -
Page 5: Bluetooth Connection Mode
Scan command barcode(s) to configure the scanner. iOS Application Mode for Apple Devices (default) *Required for Apple iOS applications developed with Socket Mobile SDK. Application Mode (Auto Connect-SPP) for Windows or Android 8.0 and later *Configures the scanner to Serial Port Profile. -
Page 6: Prefix/Suffix
Prefix/Suffix You can configure the scanner to automatically add a prefix and/or suffix to each scan of data. Scanner is allowed 1 prefix and 2 suffixes. For custom prefix and suffix, contact support@socketmobile.com. Note: Scanning multiple commands in a single instance will overwrite (not append) the previous command. -
Page 7: Vibrate/Beep Modes
Vibrate/Beep Modes Make sure the scanner is not connected to a host computer or device before scanning a command barcode. Vibrate “On” (default) Enable the scanner to vibrate to indicate a successful scan. Vibrate “Off” Disable the scanner from vibrating to indicate a successful scan. Beep “On”... -
Page 8: Active Modes
Active Modes Scan one of the barcodes to reconfigure the scanner to remain powered on for a longer time. These settings drain the battery faster. Please ensure the scanner is charged daily. 2 hours (default) Scanner powers off in 2 hours when idle/inactive while connected and 5 minutes when disconnected. Continuous Power for 4 hours Configures the scanner to remain on for 4 hours after the last scan is performed. -
Page 9: Hid Keyboard Language Settings
HID Keyboard Language Settings Scan only when the scanner is in Basic Mode (HID profile). These barcodes are to configure the scanner for different languages using Microsoft Windows keyboard layout. English (Default) English UK French German Italian... - Page 10 HID Keyboard Language Settings Japanese Polish Spanish Swedish ANSI Emulation ANSI Emulation can be slower on Windows systems.
-
Page 11: Automatic Reconnection
Automatic Reconnection All Bluetooth Connection Modes are OK. Important! After scanning this command barcode, power off and power on the scanner to make sure it is configured properly. Enable Automatic Reconnection from scanner (default) Configure the scanner to automatically initiate a connection to the last paired computer/device after the scanner is powered on. -
Page 12: Bluetooth Connection Roles
Bluetooth Connection Roles Advanced users only. Basic Mode (HID) Keyboard Changes a scanner in HID-Peripheral mode to HID-Keyboard mode. For Mac OS, Apple iOS, and other smart devices. Basic Mode (HID) Peripheral Changes a scanner in HID-Keyboard mode to HID-Peripheral mode. For some MS Windows or Android mobile devices. -
Page 13: Data Mode-For Spp Mode Only
Data Mode-For SPP Mode Only Advanced users only. Packet Mode (default) Configures the scanner to transmit decoded data in packet format. Raw Mode - Android and Windows only Configures the scanner to transmit decoded data in raw (unpacketed) format. -
Page 14: Programming
Programming What is a 1D barcode? Linear, 1 dimensional barcodes are a row of parallel lines of varying thickness. The information is stored in the widths of the bars and spaces. 1D barcodes are used in retail products. What is a 2D barcode? 2D barcodes are a pattern of black and white blocks arranged in a square or rectangles. -
Page 15: Bookland Ean
Bookland EAN To enable or disable EAN Bookland, scan the appropriate barcode below. Enable Bookland EAN Disable Bookland EAN (default) Note: If you enable Bookland EAN, select a Bookland ISBN Format on page 49. Also select either Decode UPC/EAN Supplementals, Autodiscriminate UPC/EAN Supplementals, or Enable 978/979 Supplemental Mode in Decode UPC/EAN Supplementals on page (insert page number) -
Page 16: Bookland Isbn
Bookland ISBN Bookland ISBN Format If Bookland EAN is enabled, select one of the following formats for Bookland data: • Bookland ISBN-10 - The digital scanner reports Bookland data starting with 978 in traditional 10-digit format with the special Bookland check digit for backward-compatibility. Data starting with 979 is not considered Bookland in this mode. -
Page 17: Codabar
Codabar To enable or disable Codabar, scan the appropriate barcode below. Enable Codabar (default) Disable Codabar Set Lengths for Codabar The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. Lengths for Codabar may be set for any length, one or two discrete lengths, or lengths within a specific range. -
Page 18: Clsi
CLSI CLSI Editing When enabled, this parameter strips the start and stop characters and inserts a space after the first, fifth, and tenth characters of a 14-character Codabar symbol. Note: Symbol length does not include start and stop characters. Enable CLSI Editing Disable CLSI Editing (default) -
Page 19: Notis
NOTIS NOTIS Editing When enabled, this parameter strips the start(A) and stop (A or B) characters from decoded Codabar symbol. Enable NOTIS Editing Disable NOTIS Editing (default) -
Page 20: Code 11
Code 11 To enable or disable Code 11, scan the appropriate barcode below. Enable Code 11 (default) Disable Code 11 Code 11- Any Length • Any Length - Scan this option to decode Code 11 symbols containing any number of characters. Code 11 Check Digit Scan this symbol to enable/disable the check digit. - Page 21 Code 32 Enable this parameter to add the prefix character “A” to all Code 32 barcodes. Convert Code 39 to Code 32 (Italian Pharma Code) must be enabled for this parameter to function. Enable Code 32 Prefix Disable Code 32 Prefix (default)
-
Page 22: Code 39
Code 39 To enable or disable Code 39, scan the appropriate barcode below. Enable Code 39 (default) Disable Code 39 Set Lengths for Code 39 The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. -
Page 23: Code 39
Code 39 Code 39 Check Digit Scan this symbol to enable/disable the check digit. Transmit Code 39 Check Digit Do Not Transmit Code 39 Check Digit (default) Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate barcode below to enable or disable converting Code 39 to Code 32. -
Page 24: Code 39 Full Ascii
Code 39 Full ASCII Code 39 Full ASCII is a variant of Code 39 which pairs characters to encode the full ASCII character set. To enable or disable Code 39 Full ASCII, scan the appropriate barcode below. Enable Code 39 Full ASCII Disable Code 39 Full ASCII (default) -
Page 25: Code 93
Code 93 To enable or disable Code 93, scan the appropriate barcode below. Enable Code 93 (default) Disable Code 93 Set Lengths for Code 93 The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. -
Page 26: Code 128
Code 128 To enable or disable Code 128, scan the appropriate barcode below. Enable Code 128 (default) Disable Code 128... -
Page 27: Discrete 2 Of 5
Discrete 2 of 5 To enable or disable Discrete 2 of 5, scan the appropriate barcode below. Enable Discrete 2 of 5 (default) Disable Discrete 2 of 5 Any length Discrete 2 of 5... - Page 28 EAN-8 To enable or disable EAN-8, scan the appropriate barcode below. Enable EAN-8 (default) Disable EAN-8 EAN-13 To enable or disable EAN-13, scan the appropriate barcode below. Enable EAN-13 (default) Disable EAN-13...
-
Page 29: Ean Zero Extend
EAN Zero Extend EAN Zero Extend When enabled, this parameter adds five leading zeros to decoded EAN-8 symbols to make them compatible in format to EAN-13 symbols and code type would be changed to EAN-13. Disable this parameter to transmit EAN-8 symbols as is. Enable EAN Zero Extend Disable EAN Zero Extend (default) -
Page 30: Gs1-128
GS1-128 To enable or disable GS1-128 (formerly UCC/EAN-128), scan the appropriate barcode below. Enable GS1-128 (default) Disable GS1-128 GS1 DataBar Expanded To enable or disable GS1 DataBar Expanded, scan the appropriate barcode below. Enable GS1 DataBar Expanded (default) Disable GS1 DataBar Expanded... -
Page 31: Gs1 Databar Limited
GS1 DataBar Limited To enable or disable GS1 DataBar Limited, scan the appropriate barcode below. Enable GS1 DataBar Limited (default) Disable GS1 DataBar Limited GS1 DataBar-Omnidirectional To enable or disable GS1 DataBar-14, scan the appropriate barcode below. Enable GS1 DataBar-Omnidirectional (default) Disable GS1 DataBar-Omnidirectional... -
Page 32: Code
Interleaved 2 of 5 To enable or disable Interleaved 2 of 5, scan the appropriate barcode below. Enable Interleaved 2 of 5 (default) Disable Interleaved 2 of 5 Set Lengths for Interleaved 2 of 5 The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. -
Page 33: Msi
MSI Check Digits These check digits at the end of the bar code verify the integrity of the data. At least one check digit is always required. Check digits are not automatically transmitted with the data. One MSI Check Digit (default) Two MSI Check Digit Scan this symbol to transmit the check digit with the data. - Page 34 To enable or disable MSI, scan the appropriate barcode below. Enable MSI Disable MSI (default) Set Lengths for MSI The length of a code refers to the number of characters (i.e., human readable characters) the code contains, and includes check digits. Lengths for MSI can be set for any length, one or two discrete lengths, or lengths within a specific range.
-
Page 35: Upc-A
UPC-A To enable or disable UPC-A, scan the appropriate barcode below. Enable UPC-A (default) Disable UPC-A Scan the appropriate barcode below to transmit the symbol with or without the UPC-A check digit. Transmit UPC-A Check Digit (default) Do Not Transmit UPC-A Check Digit... - Page 36 UPC-A UPC-A Preamble Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-A symbol. Select one of the following options for transmitting UPC-A preamble to the host device: transmit system character only, transmit system character and country code (“0” for USA), or transmit no preamble.
-
Page 37: Upc-E
UPC-E To enable or disable UPC-E, scan the appropriate barcode below. Enable UPC-E (default) Disable UPC-E Scan the appropriate barcode below to transmit the symbol with or without the UPC-E check digit. Transmit UPC-E Check Digit (default) Do Not Transmit UPC-E Check Digit... - Page 38 UPC-E UPC-E Preamble Preamble character (System Character) can be transmitted as part of a UPC-E symbol. Select one of the following options for transmitting UPC-E preamble to the host device: transmit system character or transmit no preamble. No Preamble System Character (default) System Character &...
-
Page 39: Upc-E1
UPC-E1 Note: UPC-E1 is not a UCC (Uniform Code Council) approved symbology. Enable UPC-E1 Disable UPC-E1 (default) Scan the appropriate barcode below to transmit the symbol with or without the UPC-E1 check digit. Transmit UPC-E1 Check Digit (default) Do Not Transmit UPC-E1 Check Digit UPC-E1 Preamble Preamble character (System Character) can be transmitted as part of a UPC-E1 symbol. - Page 40 UPC-E1 System Character (default) System Character & Country Code Convert UPC-E1 to UPC-A Enable this parameter to convert UPC-E1 (zero suppressed) decoded data to UPC-A format before transmission. After conversion, data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit). Scan DO NOT CONVERT UPC-E TO UPC-A to transmit UPC-E1 (zero suppressed) decoded data.
-
Page 41: Upc/Ean
UPC/EAN Decode UPC/EAN Supplementals Supplementals are appended characters (2 or 5) according to specific code format conventions (e.g., UPC A+2, UPC E+2). Several options are available: • If Decode UPC/EAN with Supplemental characters is selected, the scan engine does not decode UPC/EAN symbols without supplemental characters. -
Page 42: Sample Barcodes
Sample Barcodes Linear 1D and 2D For testing only. Code 39 Interleaved 2 of 5 UPC-A Code 93 Code 128 UPC-E Codabar EAN 8/JAN EAN 13/JAN GS1 Databar GS1-128 (UCC/EAN-128) GS1 Databar Stacked GS1-128 Composite Matrix 2 of 5... -
