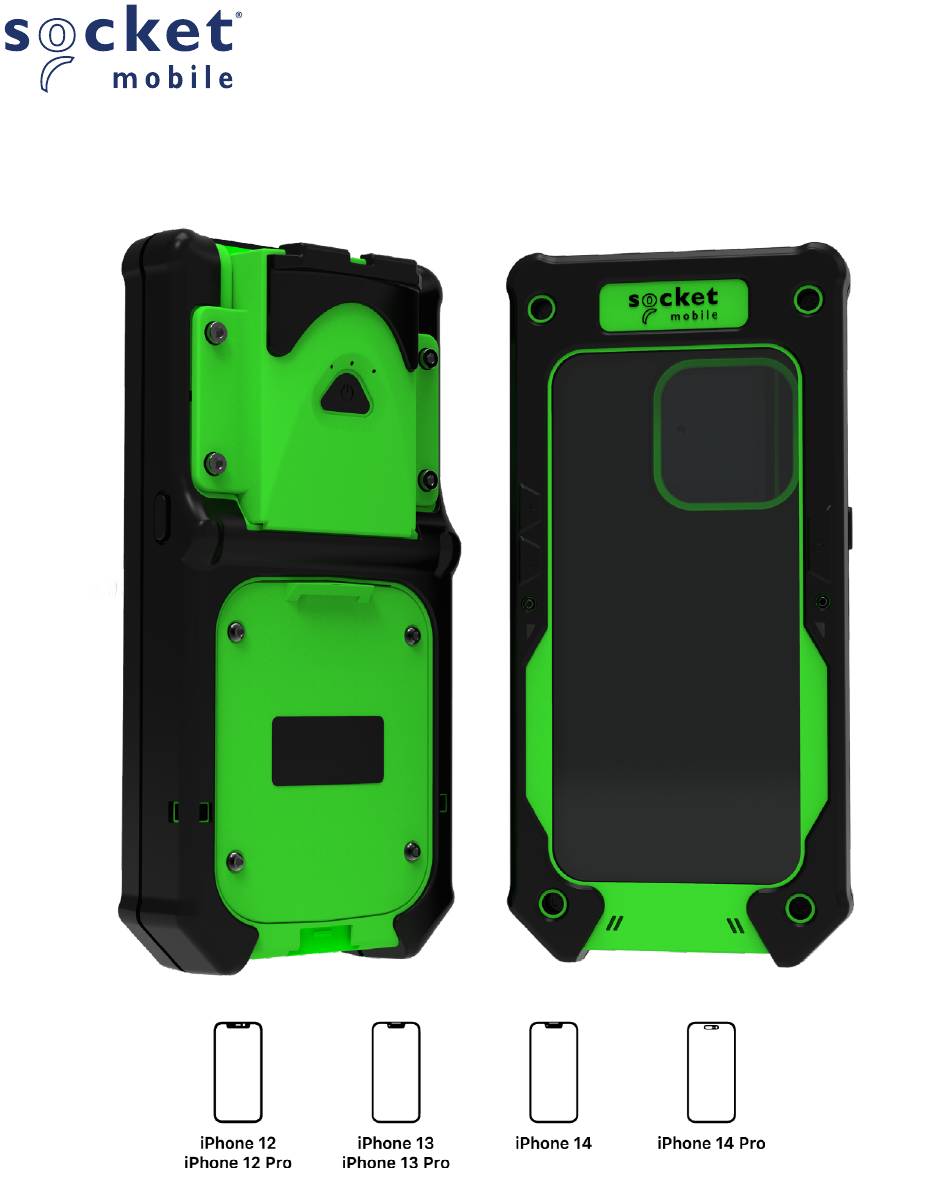

- Page 1 XS930, XS940 900 S treme erieS Uide...
- Page 2 able of onTenTs Package Contents Optional Charging Accessories Product Information Attach Wrist Strap Charge the Battery Power Adapter Powering On/Off Scanning Barcodes Bluetooth Connection Modes 11-12 Bluetooth Connection Roles Data Mode-For SPP Mode Only Bluetooth ReConnection How to setup your scanner: Download our Companion App 16-18 Setup using Application Mode...
- Page 3 able of onTenTs AA Lithium-Ion Battery Replacement 27-28 Quick Programming 29-34 Status Indicators 35-38 Helpful Resources Battery Warning, Safety, Bluetooth, Compliance & Warranty 40-51...
- Page 4 Apple, Inc., registered in the U.S. and other countries. The Bluetooth® Technology word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Socket Mobile, Inc. is...
- Page 5 ptiOnal harging CCessOries Available separately For all optional accessories visit our online store. Charging Dock AC Power Supply International Adapters available...
- Page 6 Scan buttons Wrist strap eyelet Power Connector Socket Mobile’s barcode readers can be wiped clean with a cloth dampened with isopropyl alcohol or water. Or, the barcode readers can be wiped clean with a Sani- Cloth. Warning: DO NOT IMMERSE IN WATER (barcode reader’s mechanics could be damaged) DO NOT USE BLEACH FOR CLEANING (barcode reader’s material property may be...
- Page 7 How to insert iPhone Step 1: Unscrew the case with an Allen wrench (included in the package). Counter clockwise Step 2: Place the phone inside the case.
- Page 8 Step 3: Before reassembly, connect the charging cable to the case and verify it charges. Step 4: Screw the top case down, being careful not to overtighten. Clockwise...
- Page 9 harge the attery harGinG eqUirementS • M 5.0 VDC, 1 AMP • M 5.5 VDC, 3 AMP ower daPter Note: The reader comes with a pre-installed rechargeable Lithium Ion battery, the initial full charging of the battery can take up to 8 hours. Plug in the power adapter and the barcode reader will beep twice.
- Page 10 owering Scanner Power button iPhone Power button Powering On: Powering Off/ Disconnecting: Press and hold down the small power Press and hold down the small button until the Battery light turns on and power button until the barcode reader the barcode reader beeps twice (low- beeps twice (high-low) and all lights turn high).
- Page 11 canning arcodeS 1D Barcode Aim at the center of the barcode 123456789 Scan button Scan button Scanning Barcodes 1. 2 to 25 away from the barcode when using (X)930 scanner for 100% UPC Barcodes Note: Distance between the reader and barcode depend on the reader model and size of the barcode.
- Page 12 luetooth onneCtion odes Operating System Connection Options Bluetooth Operating Bluetooth Apple Bluetooth HID Systems Devices Serial Support (OS) Support Specific (MFi Mode) Android 4.0.3 & Android later iPod, iPhone, & Apple iOS iPad Windows Windows 10 & later Mac OS X, Mac OS Mac Books, Mac Mini, &...
- Page 13 1. Use with an App developed for iOS devices 2. Software installation is required Use this mode with an 3. Mode to use for iOS applications that support Apple app designed for Socket Mobile readers Socket Mobile barcode readers. Android/Windows Application Mode 1.
- Page 14 luetooth onneCtion oles Advanced users only. Note: For the laser barcode reader. Print the barcode to scan. Basic Mode (HID) Keyboard Changes a barcode reader in HID-Peripheral mode to HID-Keyboard mode. For Mac OS, Apple iOS, and other smart devices. Basic Keyboard Mode (HID) Changes a barcode reader in HID-Keyboard mode to HID-Peripheral mode.
- Page 15 SPP M Advanced users only. Note: For the laser barcode reader. Print the barcode to scan. Packet Mode (default) Configures the barcode reader to transmit decoded data in packet format. Raw Mode - Android and Windows only Configures the barcode reader to transmit decoded data in raw (unpacketed) format.
- Page 16 luetooth onneCtion For all Bluetooth Connection Modes. Note: For the laser barcode reader. Print the barcode to scan. Important! After scanning this command barcode, power off and power on the barcode reader to make sure it is configured properly. Enable Automatic Reconnection from barcode reader (default) Configure the barcode reader to automatically initiate a connection to the last paired computer/device after the barcode reader is powered on.
- Page 17 App Mode, so it can be controlled by other apps, such as Shopify and Square, to name a couple of the 1000+ apps available. The Socket Mobile Companion app is designed to ensure you get the maximum utility benefits from your Socket Mobile devices.
- Page 18 3. Turn on Bluetooth on the Apple device. Go to Settings > Bluetooth. A Bluetooth devices search will begin. 4. Tap Socket M9xx[xxxxxx] in the list of other devices found. After a few seconds the status will change to “Connected” and the barcode reader blue LED will stop blinking and turn solid blue.
- Page 19 OS A etup pple i pplicAtiOn once indicating that it is connected to the appropriate application. Now you are ready to scan barcodes! Please check with your barcode reader application vendor or visit www.socketmobile.com/appstore to confirm your barcode reader-enabled application supports the barcode reader.
- Page 20 - iOS B etup aSic eyBOard In this mode the barcode reader functions and communicates similar to a keyboard. Therefore, barcode reader will work with Safari, Notes, and any other applications that support an active cursor. 1. Power on the barcode reader. Make sure the barcode reader is discoverable (unpaired).
- Page 21 airing eset This procedure will put the barcode reader in discoverable mode. If the barcode reader is paired with a device, unpair it before trying to connect to a different device. Step 1: Remove or forget the barcode reader from the Bluetooth list on the host device.
- Page 22 actory eset Configures the barcode reader to factory defaults. The barcode reader powers off after scanning this barcode.
- Page 23 estoRe ethod NOTE: If your barcode reader remains in an unresponsive state after following the Factory Reset, use the Restore Method. The Restore Method should be the last attempt used to revive an unresponsive barcode reader. It will reinitialize the core hardware. 1.
- Page 24 attery eplacement Step 1: Remove Battery Door Use screw driver to loosen screw and remove battery door. Step 2: Remove Battery Use a flat head screw driver and place in the top right corner to gently push the batteries out. Step 3: Insert New Battery Use only Lithium-Ion Rechargable batteries.
- Page 25 uick rogramming Scan command barcode(s) to quickly configure the barcode reader. Important! Make sure the barcode reader is not connected to a host computer or device before scanning a command barcode! For custom prefix and suffix, contact dataediting@socketmobile.com (Note: For the laser barcode reader. Print the barcode to scan). Prefix/Suffix Suffix- Carriage Return Configures the barcode...
- Page 26 uick rogramming can one of the barcodeS to enable diSable beeP SettinGS or the laser barcode reader riNt the barcode to scaN Beep Modes Beep ON (default) Enables barcode reader to beep to indicate successful scans. Beep OFF Disables barcode reader from beeping to indicate successful scans.
- Page 27 uick rogramming can one of the barcodeS to reconfiGUre the barcode reader to remain Powered on for a lonGer time or the laser barcode reader riNt the barcode to scaN Active Modes 2 Hours (default) Barcode reader powers off in 2 hours when idle/ inactive while connected and 5 minutes when disconnected...
- Page 28 uick rogramming Scan one of the barcodes to configure the barcode reader to automatically scan barcodes. Command barcode is for model XS940/XG940 only. Presentation modes Mobile Mode (default) Reverts back to manual scan mode. #FNB 41FBA50000# Auto Mode (recommended) Configures the sccanner to switch to presentation mode when power is detected on the charging pins.
- Page 29 uick rogramming These barcodes are to configure the barcode reader for different languages using Microsoft Windows keyboard layout. Scan only when the barcode reader is in Basic Keyboard Mode (HID profile). (Note: For the laser barcode reader. Print the barcode to scan). HID Keyboard Language Settings English (default) English UK...
- Page 30 uick rogramming (Note: For the laser barcode reader. Print the barcode to scan). HID Keyboard Language Settings Japanese Polish Spanish Swedish ANSI Emulation *Can be slower on Windows System...
- Page 31 tatuS ndIcatorS Battery Charging when plugged LED Activity Meaning into Power Supply Blinking Yellow Charging the battery Solid Green Battery is 100% full Battery Status When not LED Activity Meaning connected to power supply Solid Green Battery capacity from 100% to 25% Solid Yellow Battery capacity from 25% to 10% Warning...
- Page 32 tatuS ndIcatorS Bluetooth LED Activity Meaning Quick Blinking Blue Discoverable - waiting for a host (2 blinks every Bluetooth connection. second) Barcode reader is attempting Bluetooth to connect to the last known Slow Blinking Blue host device. After 1 minute of (1 blink every second) blinking, barcode reader will stop searching.
- Page 33 tatuS ndIcatorS Beep Pattern Sound Meaning Low-High Tone Power On High-Low Tone Power Off High-High Tone Power Supply detected and barcode reader started charging 1 Low Beep Barcode reader has toggled on-screen keyboard or keyboard toggle feature is enabled (iOS devices only) 1 Beep Barcode reader connected to device and is ready...
- Page 34 tatuS ndIcatorS Command Barcodes are available on page to modify beep settings. If you are using a barcode reader-enabled application, typically the application provides settings for beep settings. Configuration Settings Time after powering on Barcode Bluetooth mode reader 0-5 minutes Discoverable and connectable 5 minutes If connection is not made, barcode reader...
- Page 35 Product specifications, user’s guide (full installation and usage instructions) and command barcodes (Advanced Scanner Configurations) can be download https://sckt.tech/downloads Technical Support & Product Registration: https://sckt.tech/support • US Toll Free: +1-800-552-3300 • Worldwide: +1-510-933-3000 Warranty Checker: https://sckt.tech/socketcare Socket Mobile Developer Program: https://sckt.tech/capturesdk...
- Page 36 45° degrees C or 113° degrees F. Pacemaker Disclaimer: For now, we do not have specific information on the effect(s) of vibration or Bluetooth devices on pacemakers. Socket Mobile cannot provide any specific guidance. Individuals who are concerned with using the barcode reader should immediately turn the device off.
- Page 37 luetooth evice niteD tateS FCC ID: LUBMA41-X Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 38 luetooth evice niteD tateS FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 1.5 centimeters (15mm) between the radiator and your body. Radio Frequency Interference Notices This device complies with Part 15 of the FCC Rules.
- Page 39 luetooth evice anaDa IC ID: 2529A-MA41X This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
- Page 40 luetooth evice urope CE Marking & European Union Compliance Products intended for sale within the European Union are marked with a CE Mark, which indicates compliance to applicable Directives and European Normes (EN), as follows. Amendments to these Directives or ENs are included: Normes (EN), as follows: Applicable Directives: •...
- Page 41 JAPAN luetooth evice Telec Marking Compliance RXXX-XXXX Products intended for sale within the country of Japan are marked with a Telec mark, which indicates compliance to applicable Radio Laws, Articles and Amendments.
- Page 42 attery arning tatementS This device contains rechargeable Lithium-Ion replaceable batteries. Stop charging SocketScan barcode readers if charging is not completed within 24 hours. (Look into replacing the battery). Stop charging the battery if the SocketScan barcode reader case becomes abnormally hot, or shows signs of odor, discoloration, deformation, or abnormal conditions is detected during use, charge, or storage.
- Page 43 attery arning tatementS CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. • Dispose of used batteries in accordance with the prevailing community regulations that apply to the disposal of batteries. •...
- Page 44 Caution: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous laser beam exposure. Complies with Laser Notice 50, dated June 24, 2007 Complies with IEC/EN 60825-1:2007, IEC/EN60825-1:2014 Manufacturer Name: Socket Mobile, Inc. MANUFACTURER ADDRESS: 39700 Eureka Drive, Newark, CA 94560, USA...
- Page 45 egulatoRy omplianCe CE MARKING AND EUROPEAN UNION COMPLIANCE Testing for compliance to CE requirements was performed by an independent laboratory. The unit under test was found compliant with all the applicable Directives. WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT The WEEE directive places an obligation on all EU-based manufacturers and importers to take-back electronic products at the end of their useful life.
- Page 46 Socket Mobile Incorporated (Socket) warrants this product against defects in material and workmanship, under normal use and service, for one (1) year from the date of purchase. Product must be purchased new from a Socket Authorized Distributor or Reseller. Used products and products purchased through non-authorized channels are not eligible for this warranty support.
- Page 47 xtEndEd arranty SocketCare SocketCare Extended Warranty Coverage Purchase SocketCare within 60 days from the date of purchase of the reader. Product Warranty: The barcode reader’s warranty period is one year from the date of purchase. Consumables such as batteries and charging cables have a limited war- ranty of 90 days.
