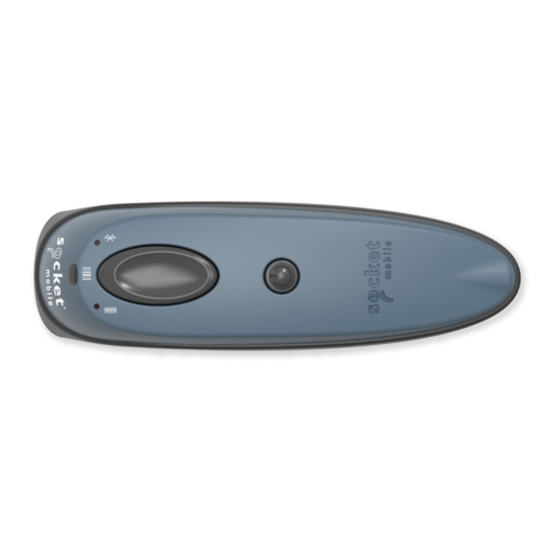

Socket DuraScan D730 User Manual

Bluetooth barcode laser scanner
Hide thumbs Also See for DuraScan D730:
Table of Contents

Advertisement

Quick Links

SERIES 700
DURASCAN
TM
Bluetooth Barcode Laser Scanner
Model D730
www.socketmobile.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DuraScan D730 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Socket DuraScan D730

Summary of Contents for Socket DuraScan D730

  • Page 1 SERIES 700 DURASCAN Bluetooth Barcode Laser Scanner Model D730 www.socketmobile.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Package Contents Product Information Scanner Setup Charge the Battery Optional Charging Accessories Powering Scanner On/Off Scanning Barcodes Bluetooth Connection Modes Setup without software application (Basic Mode): • Android • Apple® • Windows PC®...
  • Page 3 TABLE OF CONTENTS Setup using software (Application Mode): • Android • Apple® iOS • Windows PC Unpairing Bluetooth Connection Bluetooth Reconnection of Scanner Scanner Status Indicators Scanner Specifications Helpful Resources Safety, Compliance & Warranty 31-40 Battery Warning 36-37 Advanced Scanner Settings (Command Barcodes) Language Settings (Command Barcodes)

  • Page 4: Package Contents

    SocketScan are registered trademarks or trademarks of Socket Mobile, Inc. The Bluetooth word mark and logo are registered trademarks of the Bluetooth SIG, Inc. USA, and any use by Socket Mobile, Inc. is under license. All other trademarks and trade names contained herein may be those of their respective owners.

  • Page 5: Product Information

    PRODUCT INFORMATION Scanner Head Scan Indicator Light Product Label (Green/Red) Bluetooth Light (Blue) Battery Light (Green/Yellow/Red) Trigger Button Power Button* Power Connector Stand Attachment Lanyard Eyelet Charging Pins The D730 has a protection rating of IP54 for dust and water resistance. It is also made with antimicrobial additives to help provide protection against bacteria.

  • Page 6: Scanner Setup

    SCANNER SETUP Attach the Lanyard (optional) 1. Detach the string loop of the tether from the lanyard. 2. Feed the string loop through the eyelet. 3. Pull the tether through the string loop. 4. Pull tight so the string loop is secure. 5.

  • Page 7: Charge The Battery

    CHARGE THE BATTERY Power Adapter Rubber Flap To open The scanner must be fully charged before first use. Please allow 6 hours uninterrupted charging for the initial battery charge. Lift the rubber flap to access the power connector. • Blinking Yellow Light = Charging •...

  • Page 8: Optional Charging Accessories

    OPTIONAL CHARGING ACCESSORIES Available separately. Charging Cradle Charging Stand AC Power Supply International Adapters available *Recommended power supply (1000 mAh - 5.0 volts) For all optional accessories visit our Socket Store.

  • Page 9: Powering Scanner On/Off

    POWERING ON/OFF Power button Powering On: Powering Off / Disconnecting: Press and hold down the small Press and hold down the small power button until the Battery power button until the scanner light turns on and the scanner beeps twice (high-low) and all beeps twice (low-high).

  • Page 10: Scanning Barcodes

    SCANNING BARCODES 1D Laser Barcode Scanner Aim the scan beam across the entire barcode Trigger button Scanning Barcodes 1. Hold the scanner a few inches from the barcode. 2. Aim, press and hold the trigger button. By default, the scanner will beep, vibrate, and the scan indicator will flash green to confirm a successful scan.

  • Page 11: Bluetooth Connection Modes

    (SPP) 2. More efficient and reliable data communications for barcodes containing lots of data Serial Port Profile 3. If you have an application that supports Socket Mobile Scanners, this is the recommended mode For iOS Devices Application Mode 1. Must use with an App developed to work with...

  • Page 12: Android

    BLUETOOTH CONNECTION MODES OS Connection Options Bluetooth Operating Bluetooth Bluetooth Apple Systems Devices Serial (OS) Support Support Specific (MFi Mode) Android 4.0.3 & Android later iPod, iPhone, & Apple iOS iPad Windows PC Windows 7, 8, 10 Mac OS X 10.4 to 10.X Mac OS Mac Books, Mac...
  • Page 13 BASIC MODE Android: Connect Android Device in Basic Mode In this mode the scanner functions and communicates similar to a key- board. Therefore, scanner will work with Notes, and any other application that supports an active cursor. 1. Power on the scanner. Make sure the scanner is discoverable (unpaired) and the blue light blinks fast.
  • Page 14 BASIC MODE Apple: Connect Apple iOS Device or Mac OS Device in Basic Mode In this mode the scanner functions and communicates similar to a key- board. Therefore, scanner will work with Safari, Notes, and any other application that support an active cursor. 1.
  • Page 15 2. Use your computer’s Bluetooth Settings to connect to the scanner. 3. Select “Add a device”. 4. In the device list, select Socket D700[xxxxxx]. Click Next. 5. If a passkey is requested, enter 0000 (four zeroes). Click OK. 6. Follow the remaining screens to complete the wizard.
  • Page 16 2. Turn your device’s Bluetooth on. Go to Settings > Bluetooth. A Bluetooth Devices search will begin. 3. Select Socket D700[xxxxxx] in the list of Devices found. 4. When prompted, tap “Pair”. After a few seconds the “Not Paired” sta- tus will change to “Paired”.
  • Page 17 9. After the scanner connects and is ready for scanning, it will beep once. The scanner’s blue light will stop blinking and turn solid blue. Note: Socket Mobile highly recommends that all customers register their products for future updates. But, registration is optional.
  • Page 18 APPLICATION MODE Connect to Apple iOS device in Application Mode Please check with your scanner application vendor or visit www.socketmobile.com/appstore to confirm your scanner-enabled application supports the scanner. If you are using the scanner with an Apple iOS device and a scanner-enabled Application that does not provide instructions how to connect your scanner, please use the following steps.
  • Page 19 APPLICATION MODE Connect to Apple iOS device in Application Mode CONTINUED 4. Tap Socket D700[xxxxxx] in the list of other devices found. After a few seconds the “Not Paired” status will change to “Connected” and the scanner blue LED will stop blinking and turn solid blue.
  • Page 20 Connect Windows PC in Application Mode Note: Make sure you have administrative privileges. Turn on the Bluetooth Radio on your PC. Download the latest SocketScan 10 software from Socket Mobile’s support web page. Follow the on-screen instructions to install the software.
  • Page 21 “connected” icon will appear in the system tray. 11. Click X to close Socket EZ Pair. If you are connecting a scanner which is not registered, a scanner registration icon will appear. But, registration is optional.
  • Page 22 BLUETOOTH UNPAIRING Note: This procedure will put the scanner in discoverable mode. Step 1: Unpairing the scanner: Delete the Bluetooth Pairing If the scanner is paired with a device, unpair it before trying to connect to a different device. a. Power on the scanner. b.

  • Page 23: Bluetooth Reconnection Of Scanner

    BLUETOOTH RECONNECTION Automatic Reconnections Each time you power on the scanner, it will automatically try to connect to the last device it was connected to. • Make sure the device is in range with Bluetooth turned on. • If using Application Mode, make sure the Scanner-enabled application is launched or running.

  • Page 24: Status Indicators

    STATUS INDICATORS Battery Charging when plugged LED Activity Meaning into Power Supply Blinking Yellow Charging the battery Solid Green Battery is fully charged Battery Status When not LED Activity Meaning connected to power supply Solid Green Battery level: 100% to 25% Solid Yellow Battery level: 25% to 10% Warning...
  • Page 25 STATUS INDICATORS (CONTINUED) Bluetooth LED Activity Meaning Fast Blinking Blue Discoverable - waiting for a (2 blinks every host Bluetooth connection. second) Attempting to connect to a host device. Searching for Bluetooth Slow Blinking Blue the last known device. (1 blink every second) Note: Will STOP attempt- ing after approximately 1 minute.
  • Page 26 STATUS INDICATORS (CONTINUED) Sound Pattern Sound Meaning Low-High Tone Power On High-Low Tone Power Off High-High Tone Scanner detects adequate power supply 1 Low Beep (When the power button is double tapped) Scanner has toggled on-screen keyboard or keyboard toggle feature is enabled.
  • Page 27 STATUS INDICATORS (CONTINUED) Vibrate Meaning Vibrate Data successfully scanned Command Barcodes are available on pages 43-46 to modify the LED, beep, and vibrate settings. If you are using a scanner-enabled application, typically the application provides settings for LED, beep, and vibrate notifica- tions.

  • Page 28: Product Specifications

    PRODUCT SPECIFICATIONS Specifications D730 Dimensions (L x W x H) 5.2” x 1.5” x 1.6” (132.2 x 37.1 x 40.1 mm) Total Mass 3.8 oz (108 g) Antimicrobial Antimicrobial additive in external surfaces Battery 1400 mAh Lithium - Ion Battery Charge Time Approximately 6 Hours Battery Operation...
  • Page 29 PRODUCT SPECIFICATIONS Specifications D730 Bookland EAN (ISBN / EAN-13), Chinese 2 of 5, Codabar, Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5, GS1 DataBar (RSS), GS1-128 Symbologies (UCC-128/EAN-128), Interleaved 2 of 5 (ITF-14), MSI, Plessey, UPC/EAN, Matrix 2 of 5, Korean 2 of 5 Supported Language Settings...

  • Page 30: Helpful Resources

    Technical Support & Product Registration: https://support.socketmobile.com Phone: 800-279-1390 +1-510-933-3020 (worldwide) Warranty Checker: https://www.socketmobile.com/support/warranty-checker Socket Mobile Developer Program: Learn more at: http://www.socketmobile.com/developers The User’s Guide (full installation and usage instructions) and Command Barcodes (Advanced Scanner Configurations) can be download at: https://www.socketmobile.com/support/downloads...
  • Page 31 Changes or modifications of this product, not expressly approved by Socket Mobile may void the user’s authority to use the equipment. Do not charge the DuraScan barcode scanner using an AC adapter when operating the unit outdoors, or in the rain.
  • Page 32 BLUETOOTH DEVICE UNITED STATES FCC ID: T9J-RN41-3 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 33 BLUETOOTH DEVICE UNITED STATES FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radia- tor and your body.
  • Page 34 BLUETOOTH DEVICE CANADA IC ID: 6514A-RN413 This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 35 BLUETOOTH DEVICE EUROPE CE Marking & European Union Compliance Products intended for sale within the European Union are marked with a CE Mark, which indicates compliance to applicable Directives and Europe- an Normes (EN), as follows. Amendments to these Directivces or ENs are included: Normes (EN), as follows: Applicable Directives: •...

  • Page 36: Battery Warning

    BATTERY WARNING STATEMENTS This device contains a rechargeable Lithium-Ion battery. Stop charging DuraScan barcode scanners if charging is not complet- ed within 24 hours. (Look into replacing the battery). Stop charging the battery if the DuraScan barcode scanner case becomes abnormally hot, or shows signs of odor, discoloration, deformation, or abnormal conditions is detected during use, charge, or storage.
  • Page 37 BATTERY WARNING STATEMENTS • Dispose of used batteries in accordance with the prevailing community regulations that apply to the disposal of batteries. • Never expose this product or the battery to any liquids. • Do not shock the battery by dropping it or throwing it. If this unit shows any type of damage, such as bulging, swelling or disfigurement, discontinue use and promptly dispose.

  • Page 38: Laser Device

    Caution: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous laser beam exposure. Complies with Laser Notice 50, dated June 24, 2007 Complies with IEC 60825-1:2007 Manufacturer Name: Socket Mobile, Inc. MANUFACTURER ADDRESS: 39700 Eureka Drive, Newark, CA 94560, USA...

  • Page 39: Regulatory Compliance

    REGULATORY COMPLIANCE CE MARKING AND EUROPEAN UNION COMPLIANCE Testing for compliance to CE requirements was performed by an independent laboratory. The unit under test was found compliant with all the applicable Directives, 2004/108/EC and 2006/95/EC. WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT The WEEE directive places an obligation on all EU-based manufacturers and importers to take-back electronic products at the end of their useful life.

  • Page 40: Limited Warranty

    (1) year from the date of purchase. Product must be purchased new from a Socket Authorized Distributor or Reseller. Used products and products purchased through non-authorized channels are not eligible for this warranty support.
  • Page 41 COMMAND BARCODES Scan command barcode(s) to quickly configure the Scanner. Make sure the scanner is not connected to a device before scanning a command barcode! For a complete set of command barcodes, download the Command Barcodes Sheet: https://www.socketmobile.com/support/download...
  • Page 42 COMMAND BARCODES (CONTINUED) Important! Make sure the scanner is not connected to a host computer or device before scanning a command barcode! Bluetooth Connection Modes Basic Mode (HID) (default) Configures the Scanner to Human Interface Device (HID) mode as a Keyboard class device #FNB00F40001# Application Mode (SPP)
  • Page 43 COMMAND BARCODES (CONTINUED) Important! Make sure the Scanner is not connected to a host computer or device before scanning a command barcode! Beep Settings Beep after scanner Decodes Data ON (default) Enables scanner to beep to indicate successful scans. #FNB0119E00010003 0078004B# Beep after scanner Decodes Data OFF...
  • Page 44 COMMAND BARCODES (CONTINUED) Vibrate Settings Vibrate ON (default) Enables scanner to vibrate to indicate successful scans. #FNB01310001000100FA0000# Vibrate OFF Disables scanner from vibrating to indicate successful scans. #FNB013100010000# Factory Default Factory Reset Revert all settings to factory defaults. The scanner will power off after scanning this barcode.
  • Page 45 COMMAND BARCODES (CONTINUED) HID Keyboard Language Settings Scan to enable language English (Default) #FNB01430001# French #FNB01430002# German #FNB01430003# Spanish #FNB01430004# For more command codes go to: https://www.socketmobile.com/support/download...
  • Page 46 Extend Your Warranty... Receive Priority Service and Personal Care. You have 60 Days from purchase date to enroll in a SocketCare Service Program! For detailed information visit: https://www.socketmobile.com/socketcare 2016...
