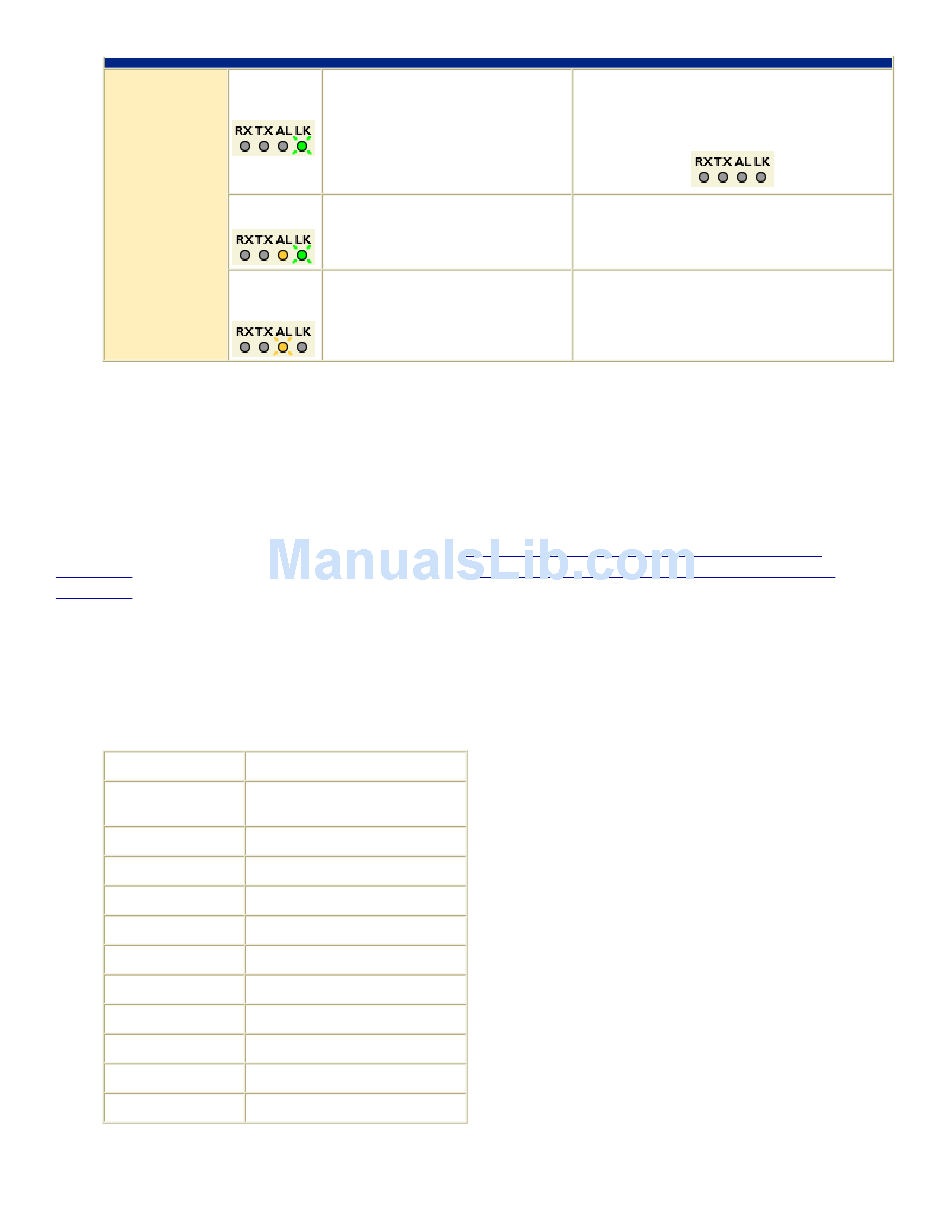

AL (Alarm) no
illumination
solid amber
pulsing
amber
(A pulsing LED blinks steadily at a rate of once per second. A flashing LED blinks at a more rapid, less constant rate.)

2.0 E1 PARAMETERS

Parameters common to all of Net to Net's interface modules are defined in Net to Net's management user
guides; refer to the NMS Management User Guide (
0000048 ) and/or the CLI Management User Guide (
0000052 ). Parameters specific to the EIM2000 are outlined below.

2.1 Parameter Defaults

No configuration is necessary for the EIM2000 to operate at default settings.
Parameter

Clock Source

Flood
Frame Type
IP Range 1
IP Range 2
Line Code
Priority
Protocol
Speed (Single Line)
VLAN
VLAN Back-bone
210-0000054 rev02
E1 is operational
Remote Alarm Indication (RAI)
An outgoing connection has been
lost; the remote E1 modem is not
receiving any data from the E1 port.
Alarm Indication Signal (AIS)
An indirect connection has been lost;
the E1 port may no longer be
receiving data from the remote E1
modem.
Default
Local - provider mode
Loop - subscriber mode
Uplink
Cyclic Redundancy Check (CRC)
0.0.0.0 - 255.255.255.255
0.0.0.0 - 0.0.0.0
High Density Binary 3 (HDB3)
0
ALL
1,984 kbps
0 - 0
0
EIM2000 User Guide
An established E1 link has no alarm indications
and is operational UNLESS the LK LED remains
unlit as well, in which case the E1 port has
LOS.
The remote E1 modem has lost its incoming
connection and has LOS.
The remote E1 modem has lost a connection
with an intermediate device and has LOS or
RAI.
