1.4.1.2 Detach the Velcro Strap and Position the E1 Cable RJ21 Connector(s)
1.4.1.3 Secure the Connector(s)
210-0000054 rev02
1.4.1.2.1 IPD12000 and IPD12000E

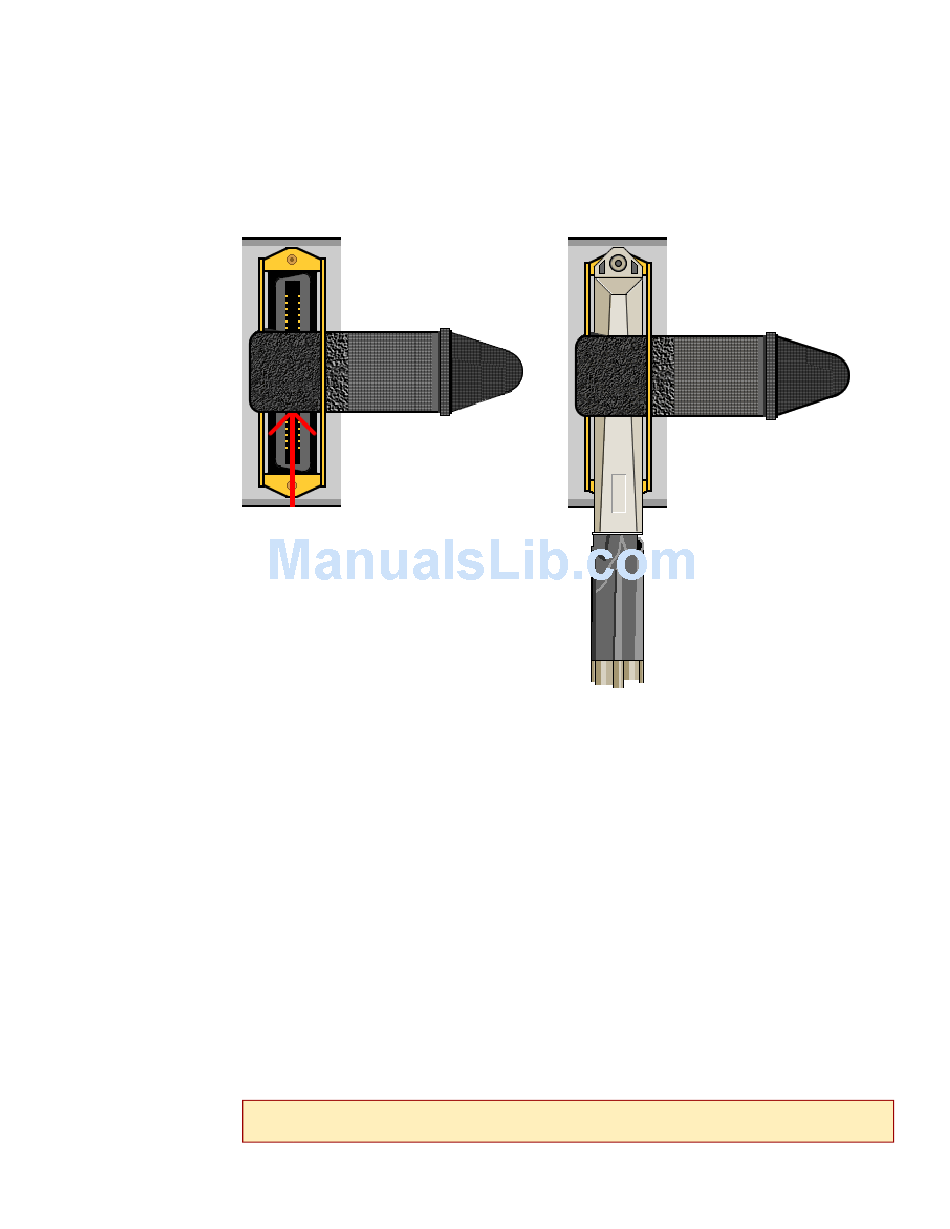

Detach the Velcro strap and pull it open to the right, leaving it looped under the
connector frame on the right side. Slide the RJ21 connector of your E1 cable
underneath the Velcro and press it firmly into the RJ21 connector on the chassis.
1.4.1.2.2 IPD4000 and IPD4000E
On the IPD4000 and IPD4000E the RJ21 connectors attach horizontally with the
E1 cable trailing off to the left. Detach the Velcro strap and pull it open and
downward, leaving it looped under the bottom edge of the connector frame. Slide
the RJ21 connector of your E1 cable underneath the Velcro, from the left, and
press it firmly into the RJ21 connector on the chassis.
1.4.1.3.1 IPD12000 and IPD12000E
Screw the top of the T1 cable connector into the jack screw at the top of the RJ21
connector frame on the chassis. If you are using a 120° or 180° cable, both the
top and the bottom of the cable connector should be secured to the RJ21
connector frame on the chassis.
N The RJ21 connector cannot be screwed into the connector frame on the IPD12000. An E1
OTE
connection on the IPD12000 can only be secured via the Velcro strap.
