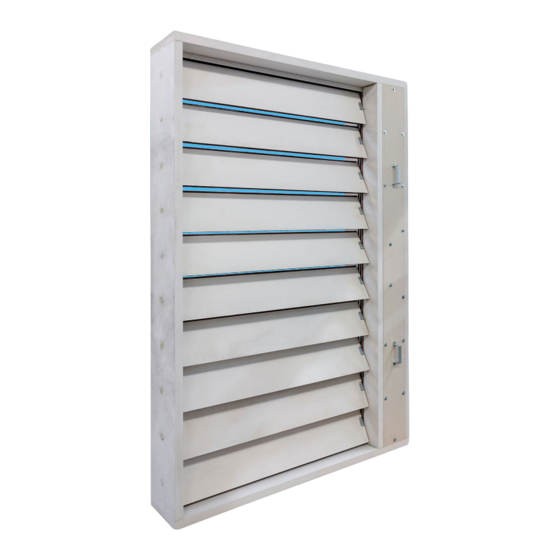

Lindab Smoke Control Damper
SDJR-M
Technical manual

Advertisement

Table of Contents
loading

Related Manuals for Lindab SDJR-M

Summary of Contents for Lindab SDJR-M

  • Page 1 | for a bette r c li mate Lindab Smoke Control Damper SDJR-M Technical manual...

  • Page 2: Table Of Contents

    Product information 20. Data label 59 © 10.2023 Lindab Ventilation. All forms of reproduction without written permission are forbidden. is the registered trademark of Lindab AB. Lindab’s products, systems, product and product group designations are protected by intellectual property rights (IPR).

  • Page 3: General Information

    In normal operation, the SDJR-M dampers remain closed. Smoke and heat control dampers - multi are closures in If necessary, in the event of a fire, the SDJR-M dampers the ductwork of smoke extraction devices. In the event in the affected fire section will open completely so that of a fire, the smoke and heat removal system open the the smoke can be removed.
  • Page 4 - i↔o)S 1000 C HOT400/30 MA Multi wall construction, th. 100 mm In solid ceiling construction, th. 150 mm EI120 (H - i↔o)S 1000 C HOT400/30 MA Multi Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...

  • Page 5: Design

    2. Blades 3. Silicone blade seal 4. Internal silicone seal 5. Fire-fighting foam tape 6. Stop blades 7. Actuator housing 8. Actuator housing cover 9. Actuator Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 6 Cable 1m, 6x0,75mm Cable 1m, 6x0,75mm Cable 1m, 6x0,75mm (BEN 24-ST) with plug connectors Fig. 3 Actuator BELIMO BEN 24(-ST) Fig. 4 Actuator BELIMO BEN 24-SR Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 7 Cable 1m, 3x0,75mm - auxiliary switch Cable 1m, 6x0,75mm Cable 1m, 6x0,75mm Cable 1m, 6x0,75mm (BEE 24-ST) with plug connectors Fig. 6 Actuator BELIMO BEE 24(-ST) Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 8 | fo r a bet te r c l i mate Smoke Control Damper SDJR-M Fig. 7 Actuator BELIMO BEE 24-SR Fig. 8 Actuator BELIMO BEE 230 Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 9 Cable 1m, 3x0,75mm - auxiliary switch Cable 1m, 6x0,75mm (BE 24-ST) with plug connectors Fig. 9 Actuator BELIMO BE 24-12(-ST) Fig. 10 Actuator BELIMO BE 230-12 Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 10 10. Communication and power supply device BKNE 230-24 * * communication and power supply device BKNE 230-24 can be placed in the space for the actuator with mechanics up to the size B≥830. Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 11 + green dark network outage Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...

  • Page 12: Communication And Control Devices

    AUTO END OF SMOKING AC 24V ∽ a1...a6 delay 0s (fan) delay 60s (fan) a1...a6 OPEN CLOSED * Error *reverse output: fault = contact open Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...

  • Page 13: Dimensions, Weights And Effective Area

    | for a b ette r cli m ate Smoke Control Damper SDJR-M 4. Dimensions, weights and effective area 4.1. Dimensions Fig. 14 Without flanges Fig. 15 With flanges Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 14 | fo r a bet te r c l i mate Smoke Control Damper SDJR-M Fig. 16 With flange and cover grille over damper Fig. 17 Flange (2 types) Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 15 | for a b ette r cli m ate Smoke Control Damper SDJR-M Fig. 18 Covering grille Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 16 77,0 0,3758 79,0 0,3983 81,1 0,4208 83,5 1000 0,4433 86,7 1050 0,4658 88,7 1100 0,4883 90,8 BEE (25 Nm) 1150 0,5108 92,8 1200 0,5333 94,9 Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 17 111,1 0,6430 113,9 0,6815 116,6 0,7200 120,0 1000 0,7585 122,7 1050 0,7970 125,5 1100 0,8355 128,2 BE (40 Nm) 1150 0,8740 131,0 1200 0,9125 133,8 Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 18 142,3 0,9102 145,8 0,9647 149,2 1,0192 153,3 BE (40 Nm) 1000 1,0737 156,7 1050 1,1282 160,2 1100 1,1827 163,7 1150 1,2372 167,1 1200 1,2917 170,6 Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 19 BE (40 Nm) 1,1069 174,6 1,1774 178,8 1,2479 182,9 1,3184 187,9 1000 1,3889 192,1 1050 1,4594 196,2 1100 1,5299 200,4 1150 1,6004 204,5 1200 1,6709 208,7 Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 20 1050 1,6250 213,4 1100 1,7035 217,9 1150 1,7820 222,4 10,0 1200 1,8605 226,9 10,3 4.3. Damper flanges are provided with buttonholesin the corners Damper flanges Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...

  • Page 21: Placement And Assembly

    SDJR-M 5 Placement and Assembly 5.1. Multi-blade smoke and heat dampers - multi SDJR-M • They're designed for installation in smoke and heat removal duct according to EN1366-8. • They're suitable for installation in a vertical position, with the blade axis horizontal.
  • Page 22 4. Place the damper in the installation hole. Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 23 | for a b ette r cli m ate Smoke Control Damper SDJR-M 5. After installing the damper and possibly hardening the plaster/mortar, remove the transport struts and corners. Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 24 | fo r a bet te r c l i mate Smoke Control Damper SDJR-M 6. Ways of placing the flange on the damper (2 types of flanges) Position: 1. SDJR-M 2. Flange Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 25 Position: 1. SDJR-M 2. Flange 3. Blades 4. Universal screw 4x30 (holes around the perimeter of the flange) 8. Mounting the flange on the damper Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 26 4. Spacer ring 5. Retaining ring 6. River nuts 10. Mounting the handrail on the damper Position: 1. SDJR-M 2. Pre-drilled holes 3. Handrail 4. Screw 5x50 Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 27 • Distance 75 mm between the damper and the structure (wall/ceiling). • When installing SDJR-M (smaller dimensions), which is not equipped with transport spacers and corners, the sheets must be in the “CLOSED” position. The damper body must not be deformed during installation.
  • Page 28 | fo r a bet te r c l i mate Smoke Control Damper SDJR-M Fig. 22 Recommended construction openings Construction opening - mortar or gypsum Construction opening - Weichschott / Ablative Coated Batt system Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...

  • Page 29: Statement Of Installation

    Weichschott / Ablative Coated Batt EIS 120 Gypsum wall / shaft Weichschott / Ablative Coated Batt EIS 120 construction Solid ceiling construction Mortar or gypsum EIS 120 Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 30 Fig. 23 Solid wall / shaft construction - mortar or gypsum Position: 1. SDJR-M 2. Solid wall / shaft construction 3. Mortar or gypsum 4. Flange 5. Grille Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 31 Fig. 24 Solid wall / shaft construction - Weichschott / Ablative Coated Batt Position: 1. SDJR-M 2. Solid wall / shaft construction 3. Fire board 4. Fire coating th, 1mm 5. Flange 6. Grille Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 32 3. Mineral wool (type depending on the type of construc- tion) 4. Steel profile for plasterboard constructions 5. Fire board 6. Fire coating th. 1mm 7. Flange 8. Grille Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 33 6. Spacing strip 7. M8 bolt assemply (bolt, 2 pcs large washer, nut)* Connecting straps, spacer straps, screws and screw connections are not included in the delivery! Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 34 7. M8 bolt assemply (bolt, 2 pcs large washer, nut), span 200 to 300mm Connecting straps, spacer straps, screws and screw connections are not included in the delivery! Lindab reserves the right to make changes without prior notice Rev: 2023-10-23...
  • Page 35 8. M8 bolt assemply (bolt, 2 pcs large washer, nut) span 200 to 300mm Connecting straps, spacer straps, screws and screw connections are not included in the delivery! Lindab reserves the right to make changes without prior notice Rev: 2023-10-23...
  • Page 36 7. M8 bolt assemply (bolt, 2 pcs large washer, nut)* 8. Screw 6x80 with large washer * Connecting straps, spacer straps, screws and screw connections are not included in the delivery! Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 37 7. M8 bolt assemply (bolt, 2 pcs large washer, nut)*, span 200 to 300 mm Connecting straps, spacer straps, screws and screw connections are not included in the delivery! Lindab reserves the right to make changes without prior notice Rev: 2023-10-23...
  • Page 38 | fo r a bet te r c l i mate Smoke Control Damper SDJR-M 6.4 Installation in solid ceiling construction Fig. 31 Solid ceiling - mortar or gypsum Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...

  • Page 39: Suspension System

    5. Anchor 6. Hinge plate - min. thickness 10mm 7. Concrete screw tested for fire resistance R30-R90, max. Tension up to 0.75 KN (length 35mm) Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 40 | fo r a bet te r c l i mate Smoke Control Damper SDJR-M 7.2. Fixing SDJR-M to the solid wall construction with Weichschott / Ablative Coated Batt system Fig. 32 Fixing SDJR-M to the solid wall construction with Weichschott / Ablative Coated Batt system Position: 1.
  • Page 41 | for a b ette r cli m ate Smoke Control Damper SDJR-M 7.3. Fixing SDJR-M to the gypsum wall construction with Weichschott / Ablative Coated Batt system Fig. 33 Fixing SDJR-M to the gypsum wall construction with Weichschott / Ablative Coated Batt system Position: 1.
  • Page 42 ≤ 300 mm. (Note! Be careful not to cross the screws) 7. Suspension (1x mounting beam, 1x threaded rod, 2x nut, 2x washer, 1x U-washer). Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 43 4. Connecting strap 5. Stone wool, min. density 66 kg/m3 – fill the gap around the flange 5. Mineral wool 6. Mortar or gypsum 7. Flange Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...

  • Page 44: Technical Data

    (see chapter 9) Determination of pressure loss by using diagram ρ = 1,2 kg.m 8.2. Diagram 8.2.1. Pressure losses for air density ρ = 1,2 kg.m Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...

  • Page 45: Coefficient Of Local Pressure Loss Ξ

    0,460 0,453 0,447 0,443 0,440 1150 0,578 0,515 0,487 0,470 0,460 0,452 0,447 0,443 0,439 1200 0,577 0,515 0,486 0,470 0,459 0,452 0,446 0,442 0,439 Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 46 0,875 0,860 0,850 0,842 0,836 1150 1,098 0,979 0,924 0,893 0,873 0,859 0,849 0,841 0,835 1200 1,097 0,978 0,923 0,893 0,872 0,858 0,848 0,840 0,834 Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 47 1,975 1,960 1,950 1,942 1,936 1150 2,198 2,079 2,024 1,993 1,973 1,959 1,949 1,941 1,935 1200 2,197 2,078 2,023 1,993 1,972 1,958 1,948 1,940 1,934 Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 48 0,805 0,793 0,783 0,776 0,770 1150 1,011 0,901 0,851 0,823 0,805 0,792 0,782 0,775 0,769 1200 1,010 0,900 0,851 0,822 0,804 0,791 0,781 0,774 0,768 Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 49 1,905 1,893 1,883 1,876 1,870 1150 2,111 2,001 1,951 1,923 1,905 1,892 1,882 1,875 1,869 1200 2,110 2,000 1,951 1,922 1,904 1,891 1,881 1,874 1,868 Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 50 3,125 3,093 3,069 3,050 3,036 1150 3,642 3,366 3,241 3,169 3,123 3,090 3,066 3,048 3,033 1200 3,640 3,364 3,239 3,167 3,121 3,088 3,064 3,046 3,031 Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 51 4,025 3,993 3,969 3,950 3,936 1150 4,542 4,266 4,141 4,069 4,023 3,990 3,966 3,948 3,933 1200 4,540 4,264 4,139 4,067 4,021 3,988 3,964 3,946 3,931 Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...

  • Page 52: Noise Data

    1050 1100 1150 1200 Tab. 10.1.2. Air velocity 3m/s Level of acoustic output [dB] 1030 1230 1430 1630 1830 2030 1000 1050 1100 1150 1200 Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 53 1050 1100 1150 1200 Tab. 10.1.4. Air velocity 5m/s Level of acoustic output [dB] 1030 1230 1430 1630 1830 2030 1000 1050 1100 1150 1200 Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 54 1050 1100 1150 1200 Tab. 10.1.6. Air velocity 8m/s Level of acoustic output [dB] 1030 1230 1430 1630 1830 2030 1000 1050 1100 1150 1200 Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 55 1050 1100 1150 1200 Tab. 10.1.8. Air velocity 12m/s Level of acoustic output [dB] 1030 1230 1430 1630 1830 2030 1000 1050 1100 1150 1200 Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...

  • Page 56: Material, Surface Treatment

    Promat SR chemicals. Other design requirements are taken as atypical and will be solved individually, according to customer require- ments. Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...

  • Page 57: Warranty

    In a simple sary to draft a report with the courier upon acceptance for way, the damper's function can be tested. the possibility of a later complaint. Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...

  • Page 58: Entry Into Service And Revisions

    Lindab reserves the right to make changes without prior notice Rev: 2023-10-23...

  • Page 59: Spare Parts

    Flanges/grilles - Side 1/Side 2 Example: SDJR-M-200-430-250-230V-BKN-P1/M1 Product information 20. Data label 20.1. The data label is attached on the damper body Fig. 37 Data label Lindab reserves the right to make changes without prior notice Rev: 2023-10-23 Last modified: 2021-03-26...
  • Page 60 Indoor climate is crucial to how we feel, how productive we are and if we stay healthy. We at Lindab have therefore made it our most important objective to contribute to an indoor climate that improves people’s lives. We do this by developing energy-efficient ventilation solutions and durable building products.
