l in dab | we s imp li f y co ns tru cti on

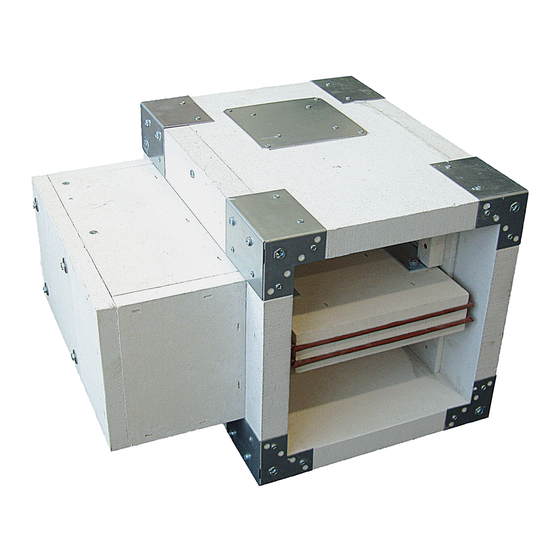

LindabSmokeControlDampers
SDR2-M
Technical information

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDR2-M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lindab SDR2-M

Summary of Contents for Lindab SDR2-M

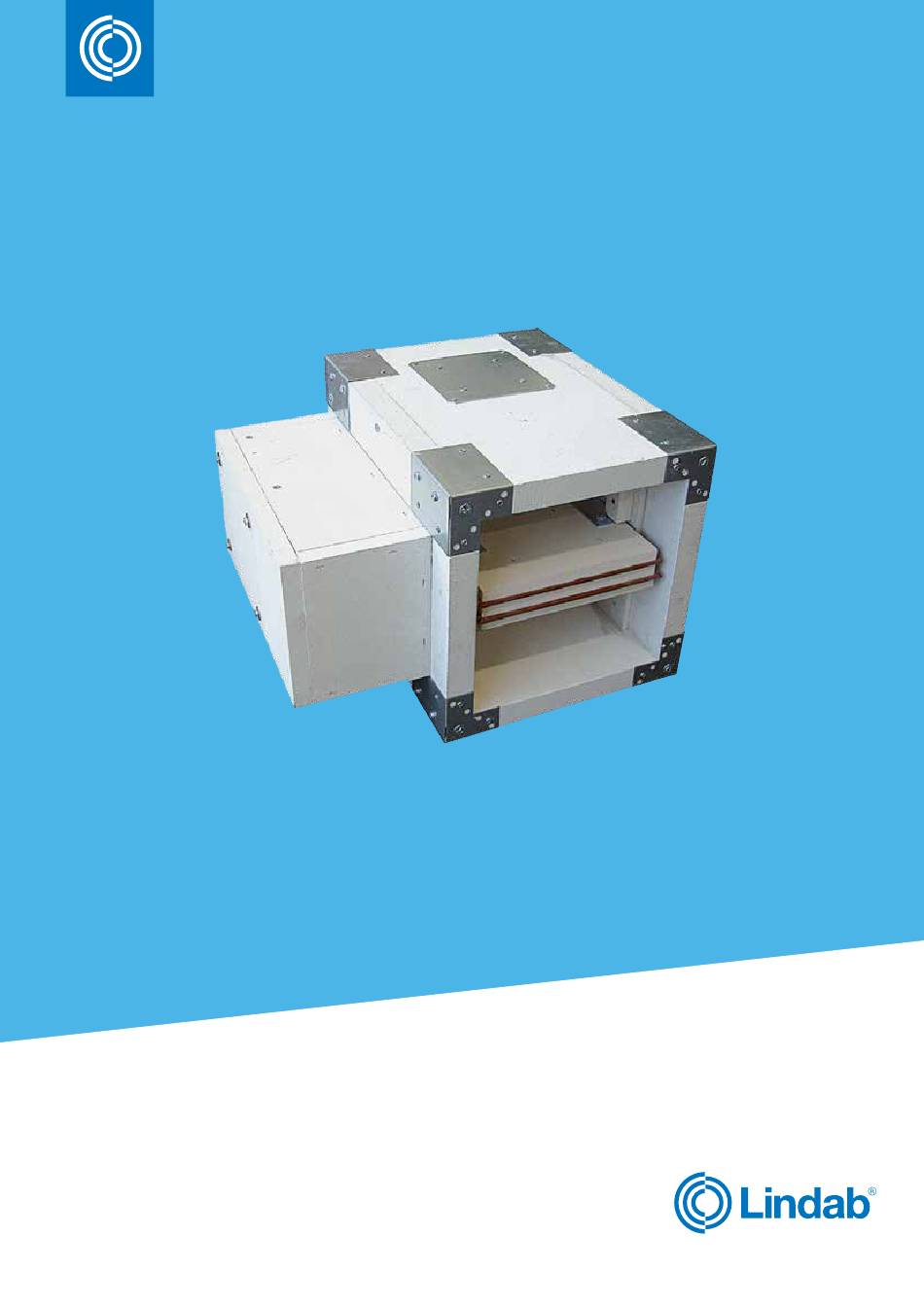

  • Page 1 | we s imp li f y co ns tru cti on LindabSmokeControlDampers SDR2-M Technical information...

  • Page 2: Table Of Contents

    17. Ordering example ......................60 © 10.2021 Lindab Ventilation. All forms of reproduction without written permission are forbidden. is the registered trademark of Lindab AB. Lindab’s products, systems, product and product group designations are protected by intellectual property rights (IPR).

  • Page 3: General Information

    EI 90 (h - i↔o) S1000C HOT 400/30 AA Multi* * In practice dampers are not in the open position at the beginning of smoke threat. Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...

  • Page 4: Design

    The cable entry must meet a minimum fire resistance of 30 minutes. Fig. 1 Dampers with actuating mechanism Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 5 Cable 1m, 6x0,75mm Cable 1m, 6x0,75mm Cable 1m, 6x0,75mm (BEN 24-ST) with plug connectors Fig. 2 Actuator BELIMO BEN 24(-ST) Fig. 3 Actuator BELIMO BEN 24-SR Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 6 Cable 1m, 3x0,75mm - auxiliary switch Cable 1m, 6x0,75mm Cable 1m, 6x0,75mm Cable 1m, 6x0,75mm (BEE 24-ST) with plug connectors Fig. 5 Actuator BELIMO BEE 24(-ST) Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 7 -30°C … +50°C Storage temperature -40°C … +80°C Connection - drive Cable 1m, 3x0,75mm - auxiliary switch Cable 1m, 6x0,75mm (BE 24-ST) with plug connectors Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 8 Running time for 95° < 60 s Ambient temperature range - 40°C … + 50°C Non-operating temperature - 40°C … + 70°C Connecting cable 1m, 0,5mm Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 9 BKSE 24-6. In addition, it controls the actuator current (actuator connection) and the power supply. Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 10 + green dark network outage Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 11 III (low voltage) Degree of protection IP 20 Ambient operation temperature 0 …+50°C Connection screw terminals for 2x1.5mm2 conductor Fig. 13 Communication and control devices BKSE 24-6 Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...

  • Page 12: Dimensions, Weights

    ** If it is necessary, arbitrary flange could be removed Position: 1. Damper body 4. Actuating mechansim 2. Inspection hole covering 5. Flange** 3. Damper blade Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 13 0,0585 BELIMO BEN (15Nm) x600 66,4 72,0 0,0637 BELIMO BEN (15Nm) x630 68,3 74,0 0,0676 BELIMO BEN (15Nm) x650 69,7 75,3 0,0702 BELIMO BEN (15Nm) Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 14 0,0792 BELIMO BEN (15Nm) x560 68,2 73,7 0,0810 BELIMO BEN (15Nm) x600 70,9 76,7 0,0882 BELIMO BEN (15Nm) x630 72,9 78,8 0,0936 BELIMO BEN (15Nm) Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 15 0,0897 BELIMO BEN (15Nm) x550 69,2 74,8 0,1012 BELIMO BEN (15Nm) x560 69,8 75,5 0,1035 BELIMO BEN (15Nm) x600 72,5 78,4 0,1127 BELIMO BEN (15Nm) Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 16 0,0969 BELIMO BEN (15Nm) x500 69,1 74,6 0,1112 BELIMO BEN (15Nm) x550 72,6 78,5 0,1254 BELIMO BEN (15Nm) x560 73,3 79,2 0,1283 BELIMO BEN (15Nm) Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 17 0,1102 BELIMO BEN (15Nm) x450 73,8 79,7 0,1292 BELIMO BEN (15Nm) x500 77,7 83,9 0,1482 BELIMO BEN (15Nm) x550 81,6 88,0 0,1672 BELIMO BEN (15Nm) Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 18 0,1176 BELIMO BEN (15Nm) x400 74,3 80,1 0,1392 BELIMO BEN (15Nm) x450 78,3 84,5 0,1632 BELIMO BEN (15Nm) x500 82,4 88,9 0,1872 BELIMO BEN (15Nm) Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 19 0,1087 BELIMO BEN (15Nm) x355 73,9 79,9 0,1299 BELIMO BEN (15Nm) x400 77,8 83,9 0,1537 BELIMO BEN (15Nm) x450 82,0 88,4 0,1802 BELIMO BEN (15Nm) Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 20 0,1102 BELIMO BEN (15Nm) x315 73,8 79,8 0,1189 BELIMO BEN (15Nm) x355 77,3 83,5 0,1421 BELIMO BEN (15Nm) x400 81,3 87,6 0,1682 BELIMO BEN (15Nm) Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 21 0,1088 BELIMO BEN (15Nm) x300 74,4 80,5 0,1216 BELIMO BEN (15Nm) x315 75,8 81,9 0,1312 BELIMO BEN (15Nm) x355 79,3 85,6 0,1568 BELIMO BEN (15Nm) Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 22 0,1022 BELIMO BEN (15Nm) x280 78,1 84,5 0,1241 BELIMO BEN (15Nm) x300 79,9 86,5 0,1387 BELIMO BEN (15Nm) x315 81,4 88,1 0,1497 BELIMO BEN (15Nm) Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 23 0,1070 BELIMO BEN (15Nm) x250 85,6 91,2 0,1302 BELIMO BEN (15Nm) x280 88,8 94,5 0,1581 BELIMO BEN (15Nm) x300 90,8 96,8 0,1767 BELIMO BEN (15Nm) Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 24 0,1062 BELIMO BEN (15Nm) x225 97,0 103,6 0,1357 BELIMO BEN (15Nm) x250 100,1 106,7 0,1652 BELIMO BEN (15Nm) x280 103,7 110,4 0,2006 BELIMO BEN (15Nm) Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 25 0,1001 BELIMO BEN (15Nm) x200 103,2 112,2 0,1287 BELIMO BEN (15Nm) x225 106,5 115,7 0,1645 BELIMO BEN (15Nm) x250 109,8 119,1 0,2002 BELIMO BEN (15Nm) Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 26 SCHISCHEK InMax50.75 (75Nm) x1000 228,0 241,4 1,3617 SCHISCHEK InMax50.75 (75Nm) If is used the communication and supply device BKNE230-24, the weight is higher by 0,68 kg. Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 27 Tab. 3.2.1. Values "a","c","e" and "f", has to be respected when pro- jecting related smoke exhaust ducts. Fig. 19 Values “e” a “f” Fig. 17 Flanges Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...

  • Page 28: Placement And Assembly

    HOT 400/30 AA Multi Horizontal duct EI120 (v - i↔o)S 1000C HOT 400/30 MA Multi installation EI120 (v - i↔o)S 1000C HOT 400/30 AA Multi Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 29 4. Fire protection mastic, thickness 1mm 5. Cement lime plate, thickness 15mm, density 870 kg/m3 6. Hinges Cover of actuating mechanism has to be removable after installation Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 30 Example of installation in solid wall construction of fire compartment - horizontal blade axis position. Cover of actuating mechanism has to be removable after installation Position: 1. Damper SDR2-M 2. Solid wall construction 3. Mortar or gypsum 4. Hinges Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 31 Position: 1. Damper SDR2-M 2. Solid wall construction 3. Fire resistant board 4. Fire stop coating thickness 1mm 5. Hinges Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 32 900 < A ≤ 1250 800 < B ≤ 1000 5. Cement lime plate, thickness 15mm, density 870 kg/m 1250 < A ≤ 1600 6. Hinges Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 33 560 < B ≤ 800 900 < A ≤ 1250 800 < B ≤ 1000 3. Mortar or gypsum 1250 < A ≤ 1600 4. Hinges Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 34 560 < B ≤ 800 4. Fire stop coating thickness 1mm 900 < A ≤ 1250 800 < B ≤ 1000 5. Hinges 1250 < A ≤ 1600 Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 35 Example of installation in gypsum wall construction of fire compartment. Cover of actuating mechanism has to be removable after installation Position: 1. Damper SDR2-M 2. Gypsum wall construction 3. Mortar or gypsum 4. Hinges Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 36 Position: 1. Damper SDR2-M 2. Gypsum wall construction 3. Fire resistant board 4. Fire stop coating thickness 1mm 5. Hinges Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 37 1250 < A ≤ 1600 Position: 1. Damper SDR2-M 2. Solid wall construction 3. Ceramic paper* 4. Hinges * Ceramic paper is placed between damper and solid wall construction Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 38 900 < A ≤ 1250 800 < B ≤ 1000 5. Holder L 1250 < A ≤ 1600 * Ceramic paper is placed between damper and solid wall construction Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 39 560 < A ≤ 900 560 < B ≤ 800 4. Holder L 900 < A ≤ 1250 800 < B ≤ 1000 1250 < A ≤ 1600 Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 40 560 < A ≤ 900 560 < B ≤ 800 900 < A ≤ 1250 800 < B ≤ 1000 1250 < A ≤ 1600 Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 41 6. Spacing strip (e.g. Promatect-H, th. 10mm, width 40 to 50mm) 7. M8 bolt assemply (bolt, 2 pcs large washer, nut)* Connecting straps, spacer straps, screws and screw connections are not included in the delivery! Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 42 6. Spacing strip (e.g. Promatect-H, th. 10mm, width 40 to 50mm) 7. M8 bolt assemply (bolt, 2 pcs large washer, nut)* Connecting straps, spacer straps, screws and screw connections are not included in the delivery! Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 43 8. M8 bolt assemply (bolt, 2 pcs large washer, nut), span 200 to 300mm Connecting straps, spacer straps, screws and screw connections are not included in the delivery! Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26...
  • Page 44 7. M8 bolt assemply (bolt, 2 pcs large washer, nut), span 200 to 300mm Connecting straps, spacer straps, screws and screw connections are not included in the delivery! Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26...

  • Page 45: Suspension Systems

    5. Anchor 6. Hinge plate - min. thickness 10mm 7. Concrete screw tested for fire resistance R30-R90, max. Tension up to 0.75 KN (length 35mm) Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 46 4. Fixing rail 41x41x2 5. Washer 6. Bolt 7. L-holder 8. Screw 9. Cantilever arm 10. Mounting angle Fig. 48 Examples of damper connection to the duct Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...

  • Page 47: Cover Grille

    • These grilles are available in all sizes of the smoke control dampers. Fig.49 Cover grille KMM SDR2-M with cover grille without flange SDR2-M with cover grille and with flange Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...

  • Page 48: Technical Data

    (see Tab. 8.1.1.) 7.2. Determination of pressure loss by using diagram ρ = 1,2 kg.m Diagram 7.2.1. Pressure losses for air density ρ = 1,2 kg.m Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...

  • Page 49: Coefficient Of Local Pressure Loss

    0,4080 1500 1,8139 1,4348 1,1611 0,9418 0,7684 0,6936 0,6477 0,5712 0,4998 0,4454 0,4046 1600 1,8054 1,4280 1,1169 0,9367 0,7667 0,6902 0,6443 0,5678 0,4981 0,4420 0,4029 Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 50 0,2669 1500 0,3791 0,3706 0,3485 0,3400 0,3298 0,3247 0,3162 0,3026 0,2958 0,2788 0,2652 1600 0,3774 0,3672 0,3451 0,3383 0,3264 0,3230 0,3145 0,2992 0,2941 0,2771 0,2635 Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...

  • Page 51: Noise Data

    Tab. 9.1.1. Level of acoustic output corrected with filter A Air velocity 4 m/s Level of acoustic output [dB] 450 500 550 560 630 650 1000 1000 1100 1250 1400 1500 1600 Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 52 Air velocity 5 m/s Level of acoustic output [dB] 450 500 550 560 630 650 1000 >55 >55 >55 >55 1000 1100 1250 1400 1500 1600 Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 53 >55 >55 >55 >55 >55 >55 >55 >55 >55 >55 >55 >55 >55 >55 >55 >55 >55 >55 >55 1000 1100 1250 1400 1500 1600 Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 54 >61 >61 >61 >61 >61 >61 >61 >61 >61 >61 >61 >61 >61 >61 >61 >61 >61 >61 >61 1000 1100 1250 1400 1500 1600 Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 55 >63 >63 >63 >63 >63 >63 >63 >63 >63 >63 >63 >63 >63 >63 >63 >63 >63 >63 >63 1000 1100 1250 1400 1500 1600 Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 56 >65 >65 >65 >65 >65 >65 >65 >65 >65 >65 >65 >65 >65 1000 >65 1100 >65 1250 >65 1400 >65 1500 >65 1600 >65 Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...

  • Page 57: Material, Finishing

    Any other requirements for the design shall be considered atypical and shall be addressed on an individual basis. Inspection, testing 11. Inspection, testing 11.1. The appliance is constructed and preset by the manufacturer, its operation is dependent on proper installation and adjustment. Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...

  • Page 58: Logistic Terms

    • seal up the space in the hall with fire resistant mastic or sealant • let the sealant harden Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...

  • Page 59: Entry Into Service And Revisions

    “OPEN” to position “CLOSED” and return displacement is checked 15. Spare parts 15.1. Spare parts are supplied only on basis of an order. Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...

  • Page 60: Product Data

    16.1. Nameplate is placed on the damper casing Fig. 52 Nameplate Ordering information 17. Ordering example SDR2-M 200 230V Yes Product Width Height Actuator BKN Module Flanges Example: SDR2-M-200-200-230V-BKN-Flanges Lindab reserves the right to make changes without prior notice Last modified: 2021-10-26 Rev: 2021-03-26...
  • Page 61 At Lindab, good thinking is a philosophy that gui- des us in everything we do. We have made it our mission to create a healthy indoor climate – and to simplify the construction of sustainable buil- dings. We do that by designing innovative pro- ducts and solutions that are easy to use, as well as offering efficient availability and logistics.
