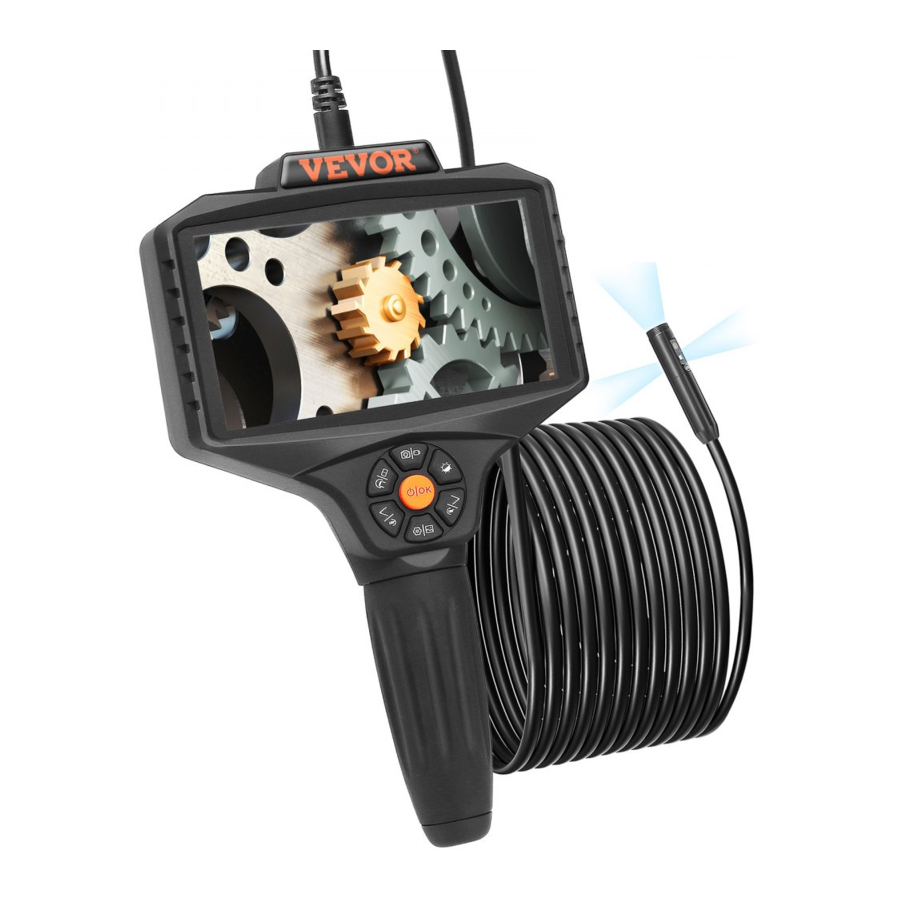

VEVOR SC8 Series SAS0049 - HAND HELD ENDOSCOPE Manual

INTRODUCTION

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

NOTICE

1. Before use, please use 5V1A charger to fully charge the device
2. Please use a high-quality TF (micro SD) card
3. Only in the effective focal length can the photos be reflected most clearly. Be sure to observe the target object within the effective focal length.

DETAILS

1. Photo/video key
2. Lens switch key
3. Lens light adjustment
4. Power on/off
5. Back key
6. Forward key
7. Setting menu key
8. Handle
9. Lens
10. Wire connection
11. LCD display
12. TF (micro sd) card slot
13. Reset key
14. DC 5V charging interface (type-c)

PRODUCT DESCRIPTION

1. It supports micro TF cards of up to 64GB, and only supports TF cards of class 10 or higher FAT32 format (including TF cards when shipping).
2. Charging interface; 5V 1A power supply.
3. Switch on/off key: long press for 2 seconds to start the machine, long press for 2.5 seconds to turn off the machine, short press the freeze frame screen to lock the screen, and short press to exit the freeze frame to enter the real screen.
4. OK key: In the menu page, press briefly to confirm.
5. Photo/video key: short press to take a picture; Long press Record, and then press again to stop recording.
6. Lens switch key: short press to switch to a single lens, A.B.C displays single lens picture, long press to switch to double lens (vertical line 2 of screen is split screen and double display), AB.AC lens picture.
7. Lens light adjustment key; Briefly press the adjusting camera lamp (3.2.1.0) to turn on the machine at the third gear.
8. Back key/180-degree flip key: short press to shrink X8. X6, X4. X2, X1 in the real-time screen, long press the left screen to continue to flip 180 degrees.
9. Forward key/180-degree flip key: short press to enlarge X1.X2, X4.X6, X8 on the real-time screen, long press the right key to continuously flip 180 degrees.
10. Menu key: press briefly to enter the menu page, (Date and time adjustment: short press to enter the menu page, first press the Back or Forward key, click the date/time, then press the OK key to confirm, short press to return to the menu page, such as selecting language setting, date label, screen saver, automatic shutdown, format, default setting, version, etc., first press the Back or Forward key, if you click to confirm language setting, press the Back or Forward key to select, press the OK key to adjust, then press the Back key or Press the forward key to select, then press the confirmation key to confirm, and press briefly to return to the previous level, or exit the menu page.
11. Browse key: long press to enter photo preview and video playback, (memory card must be inserted) long press to delete photos, videos, and short press to exit.
12. Charging prompt: when charging, the red light at the switch/0K key is on, and when fully charged, the red light is off.
13. The working temperature of this product is - 10℃-70 ℃.
14. The waterproof grade of this product is IP67
15. The light source of the detection line is LED lamp, which is 8 (front end)+1 (left side)+1 (right side)
16. The screen can only be rotated 180 degrees. Do not rotate too hard to avoid damaging the product.
17. Product content includes: Handheld Display x1, 5m Detection Line x1, Hook x1, Magnetic Hook x1, Aluminum Ring x1, Data Line x1, Instruction Manual x1

PROCEDURE

1. With reference to example 1, insert the TF card into the TF card slot as shown in the figure, and gently press until the card locks (Note: you must insert class 10 to take pictures and record videos)
2. Long press the power on key for 2 seconds, and the image appears after the screen loads the power on screen. At this time, the lens light is on; Short press the lens light adjustment key to adjust the lens
3. Short press to take a picture; Long press to record, short press again to stop recording
4. For others not mentioned, please describe the operation in combination

PRODUCT PARAMETERS

Lens diameter: 8.0mm
Lens pixel: 1 million
Angle of view: 70 degrees
Focus: front lens 3-8 cm, B lens 2-6 cm, C lens 1.5-3 cm
Display screen: 5.0 inch color display screen
Battery capacity: 5000 mA

TROUBLESHOOTING

Tips: Charge before use

OTHER INSTRUCTIONS

1. For other matters not covered, please contact the supplier!
2. This product has many models and slightly different colors and accessories, subject to the actual receipt!
3. This manual is subject to optimization without notice!
4. Keep away from the fire source and flammable and corrosive environment.
5. Please keep this product out of the reach of children.
6. Please put this product in a cool, dry and ventilated place.
7. At the end of its service life, please follow the local environmental protection policy!
