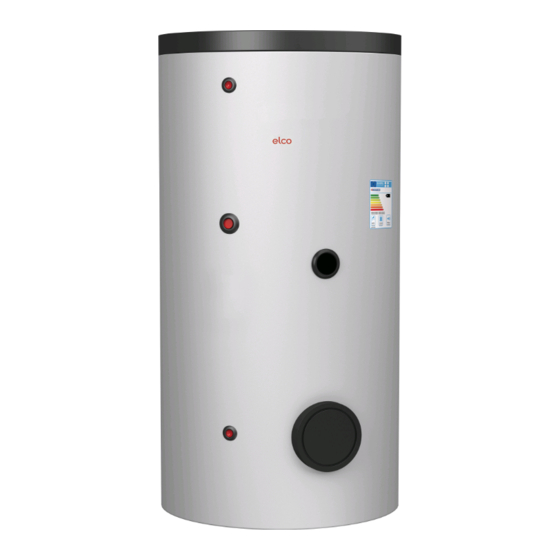

- Page 1 Inox-Maxi SSC Stainless Steel Indirect Hot Water Cylinders SSB Buffer Vessels Models SSC1 - 500, 800, 1000, 1300, 1500 & 2000 Models SSC2 - 500, 800, 1000, 1300, 1500 & 2000 Models SSB - 500, 800, 1000, 1300, 1500, 2000, 2500, &...
-
Page 2: Table Of Contents
Index Section Topic Page No Overview & Regulations ..…..…………………………………… Technical data & dimensions …………………………………… Installation ………………………………………………………… Connections ……………………………………………… Primary coils circulation …………………. …….. ……… Self cleaning flux ……………………………….……….. Installation of immersion heaters......... Hard water ……………………………………………….. Unvented systems ………………………………………. Expansion vessels pre-charge pressure …………….… Expansion vessel capacity …………………………….…... -
Page 3: Overview & Regulations
There are eight models of storage tanks with capacities from 500 - 3000 litres. Controls - external (non Elco supply) devices may be used to control the operation of the system or alternatively the Elco Easy Control panel is designed for simple timed... - Page 4 Electrical Standards:- BS 3456 Part 201, EN 60335 Part 1 CP 342-2 Code of practice for centralised hot water supply. Buildings other than individual dwellings. The Health and Safety Commission (HSC) approved code of practice and guidance document L8 - HSG274: Legionnaires disease. Technical Guidance. CIBSE Publications CIBSE Guide G Public Health Engineering ...
-
Page 5: Technical Data & Dimensions
Technical data & dimensions 2.1.1 Inox-Maxi SSC1 Indirect Cylinders ITEM DESCRIPTION (15) Drain Domestic cold water inlet H13 (13) H11(11) Primary circuit return H8(8) 1/2”BSP tapping for H7(7) H6(6) instrumentation Blind inspection flange Primary circuit flow H4(4) (5) 1/2”BSP tapping for H3(3) instrumentation H2(2) - Page 6 2.1.2 Dimensions 2.1.3 Performance data Page ! of !
- Page 7 2.2.1 Inox-Maxi SSC2 (twin coil) Indirect Cylinders ITEM DESCRIPTION Drain Domestic cold water inlet (15) Primary circuit return 1/2”BSP tapping for instrumentation Blind inspection flange H12 (12 ) H13 (13) Primary circuit flow H11 (11) 1/2”BSP tapping for instrumentation H10 (10 ) H9 (9) Connection for immersion heater H8 (8)
- Page 8 2.2.2 Dimensions These are supplied separately in the Unvented Kit - refer to Page ! of !
- Page 9 2.2.3 Performance data Page ! of !
- Page 10 2.3.1 Inox-Maxi SSB Buffer Vessels ITEM DESCRIPTION (14) Drain Domestic cold water inlet H17 (12) H17 (13) H17(11) Flow to external heat exchanger H16(10) H15 (9) Blind inspection flange 1/2”BSP tapping for instrumentation Re-circulation 1/2”BSP tapping for H7 (8) instrumentation H6(7) Connection for immersion H4(5)
- Page 11 2.3.2 Dimensions 2.3.3 Performance data 2.3.4. Unvented kits Page ! of !
-
Page 12: Installation
3 Installation 3.1 Handling Care should be taken when handling the Inox-Maxi cylinders to avoid damage to the outer insulation. Models 800 and larger, are supplied with lifting points on the top of the cylinder. 3.2 Position The position chosen for installation must be capable of supporting the unit when full of water and it is important to ensure that the unit is true and vertical to avoid the possibility of difficulties with air trapping and or locking in primary coils. -
Page 13: Hard Water
8 Hard Water In known hard water areas the use of scale prevention measures is recommended. Ensure compatibility with stainless steel material. No warranty is provided for components such as immersion heaters that are damaged through scale build up. In particular water quality must be considered so as to ensure reliable operation of the system - refer to ICOM Publication - Water quality consideration for non domestic hot water systems 9 Unvented Systems... -
Page 14: Safety Relief Valves Discharge Pipes
12 Safety Relief Valve Discharge Pipes It is a requirement of the Building Regulations that any discharge from an unvented system is conveyed safely to a point that is visible but will not constitute a hazard or danger to persons in or about the building. It is the responsibility of the installer to supply and install discharge pipes and suitable tundishes, in accordance with the requirements of the Building Regulations. - Page 15 Operation - Ensure that the element is immersed in the water as this includes a thermostat to sense the water temperature. In the event of a shutdown due to overheating, the main isolator must be switched off before checking the system, the water level should be checked and the system inspected.
-
Page 16: Typical Installation Schematics
16. Pressure relief valve 3. Strainer 17. Immersion heater 4. Pressure reducing valve 18. Two port motorised valve 5. Expansion vessel (not of Elco supply) 6. Non return valve 7. Expansion relief valve 8. Drain valve 9. Inox Maxi SSC1 10. Re-circulating pump 11. - Page 17 15. Primary heating circuit return 16. Pressure relief valve 17. Immersion heater 18. Two port motorised valve (not of Elco supply) 19. Inox Maxi SSC2 Figure 16.3 - Typical Open Vented Indirect Twin Coil Cylinder Schematic Legend 14. Primary heating circuit flow 1.
- Page 18 14. Primary heating circuit flow 15. Primary heating circuit return 16. Pressure relief valve 17. Immersion heater 18. Two port motorised valve (not of Elco supply) 19. Inox Maxi SSC2 20. Double regulating valve 21. Loading pump 22. Packaged plate heat exchanger set 23.
-
Page 19: Commissioning
17 Commissioning If the installation is unvented, before filling the system with water, check the air pressure in the potable water expansion vessel and adjust as necessary to a nominal 3.5bar. If the pressure regulating valve supplied with the unvented kit is an adjustable type, ensure that the setting is limited at a maximum of 3.5bar. -
Page 20: User Instructions
19 Regular Maintenance To ensure safe and continued performance of the water heater it is a requirement that the unit should be regularly maintained and only genuine spare parts from Elco Heating should be used. Maintenance should be carried out at intervals not exceeding 12 months by a competent installer In hard water areas, immersion heaters should be periodically de- scaled. -
Page 21: Easycontrol Panel
Easy Control Panel For more detailed information refer to the product instruction manual. The panel is suitable for remote mounting or mounting directly onto the cylinder. Description EASY CONTROL is a central controller for domestic hot water production systems. The EASY CONTROL panel makes it simple to programme the temperature of the domestic hot water as required at different times of the day, optimising the comfort of the user with the use of the system at the same time. - Page 22 Wiring Symbol Terminals Device Characteristics INPUTS External EXT line Mains Supply 230 Vac 50 Hz ± 10% FUSE 1 T 15 A cable INT line 1 – 2 Internal mains supply 230 Vac 50 Hz ± 10% FUSE 2 T 5 A Range of operation: -50°C ÷...
- Page 23 ELCO UK 3 Juniper West, Fenton Way, Southfields Business Park, Basildon, Essex SS15 6SJ Tel: 01268 546700 Fax: 01268 888250 www.elco.co.uk This publication is issued subject to alteration or withdrawal without notice. The illustrations and specifications are not binding in detail. All offers and sales are subject to the Company's current terms and conditions of sale.
