elco THISION L PLUS Operating Manual
  1. Manuals
  2. Brands
  3. elco Manuals
  4. Boiler
  5. THISION L PLUS
  6. Operating manual

elco THISION L PLUS Operating Manual

Gas boiler
Hide thumbs
Table of Contents

Advertisement

Quick Links

THISION L PLUS
Operating Manual
authorized technicians only
Betriebsanleitung
für die autorisierte Fachkraft
Istruzioni d'uso (Italian market)
solo per tecnici autorizzati
Istruzioni d'uso (Swiss market)
per il tecnico autorizzato
Notice d'exploitation
techniciens autorisés uniquement
Gebruiksaanwijzing (Belgium market)
voor de erkende vakman
Installationsvejledning
kun for autoriserede teknikere
www.elco.net
9G.51.28.00 / 07.20
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THISION L PLUS and is the answer not in the manual?

Questions and answers

Лариса
January 21, 2025

на стр35 в таблице непонятно: какая максимальная длина дымохода для модели 140кВт

-1
1 comments:
Mr. Anderson
May 14, 2025

For a power output of 140 kW, the maximum flue length depends on the type and diameter of the flue system used:

- For Ø130 mm parallel tubes: up to 16 m with no changes of direction.
- For Ø100/150 mm concentric tubes: up to 8 m with no changes of direction.

These values decrease with each change of direction in the flue layout.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for elco THISION L PLUS

Summary of Contents for elco THISION L PLUS

  • Page 1 THISION L PLUS Operating Manual authorized technicians only Betriebsanleitung für die autorisierte Fachkraft Istruzioni d’uso (Italian market) solo per tecnici autorizzati Istruzioni d’uso (Swiss market) per il tecnico autorizzato Notice d’exploitation techniciens autorisés uniquement Gebruiksaanwijzing (Belgium market) voor de erkende vakman...

  • Page 2: Table Of Contents

    Safety regulations General regulations ............ Intended use .............. Standards and regulations ......... Product description Functional description - THISION L PLUS ....Hydraulic circuit diagram ..........Technical data / ERP data .......... Dimensions ..............Delivery scope Standard version / Accessories ........

  • Page 3: Safety Regulations General Regulations

    SVGW Intended use EN 61000-3-2 (2013) Regulations of the cantonal authorities (eg fire brigade The THISION L PLUS is a condensing Electromagnetic compatibility and modulating gas boiler, which is (EMC) - Part 3-2: Framework regulations) suspended from walls and is delivered conditions - framework conditions Gebäude Klima Schweiz...

  • Page 4: Product Description Functional Description - Thision L Plus

    Product description THISION L PLUS...
  • Page 5 Product description reacts immediately and adjusts the heat exchanger 1 (see table) The THISION L PLUS is a condensing RPM of the fan, and with that the boiler heat exchanger 2 (see table) and modulating gas boiler with one or performance via the gas armature.

  • Page 6: Hydraulic Circuit Diagram

    Product description THISION L PLUS hydraulic circuit diagram Burner B Burner A Legend: T1 flow sensor 1 heat exchanger 1 = burner A 8 venturi T1a secondary flow sensor 2 heat exchanger 2 = burner B 9 automatic air vent 3 ignition 10 circulation pump...

  • Page 7: Technical Data / Erp Data

    Product description Technical data ErP data Type THISION L PLUS Permit CE0063CT3449 Category GB: II2H3P Heat exchanger type iConXL1 iConXL1 iConXL2 iConXL1 iConXL1 iConXL1 iConXL2 iConXL1 iConXL1 iConXL2 iConXL2 Output Full load 80/60°C 56,9 65,4 90,2 110,8 130,5 155,5 180,3 40/30°C...

  • Page 8: Dimensions

    Product description Dimensions of THISION L PLUS single engine C1 / C2 A A1 Type THISION L PLUS 60-70 Boiler connections Boiler height 1050 1050 Type THISION L PLUS 60-70 Boiler height with flue connection 1135 1135 Flue gas nozzle concentric 100* 100* Boiler width...
  • Page 9 Product description Dimensions of THISION L PLUS double engine C1 / C2 A A1 Type THISION L PLUS 120-140 170-200 Boiler connections Boiler height 1050 1050 Type THISION L PLUS 120-140 170-200 Boiler height with flue connection 1135 1135 Flue gas nozzle concentric 100*...

  • Page 10: Delivery Scope Standard Version / Accessories

    Completely assembled and tested boiler In cardboard box Mounting rail In boiler packaging Installation manual THISION L PLUS ERP label (only THISION L PLUS 60-70) In document bag in boiler packaging condense pipe In case of cascade configuration, Accessories The following accessories can be...

  • Page 11: Cascade

    Product description THISION L PLUS Cascade 2130 1430 Legend: Cascade possibilities 1. Air supply The ELCO THISION L PLUS cascade 2. Flue/Air supply can be mounted in 3 ways: 3. Cascade manager Wall-mounted in line Accessories: All boilers alongside one another 4.

  • Page 12: Cascade Exampless

    Product description THISION L PLUS Cascade examples wall-mounted THISION L PLUS 2 boilers wall-mounted in line THISION L PLUS 3 boilers wall-mounted in line 2130 1430 THISION L PLUS 5 boilers wall-mounted in line 3530 THISION L PLUS 8 boilers wall-mounted in line...
  • Page 13 Product description THISION L PLUS Cascade examples free-standing in line THISION L PLUS 2 boilers free-standing in line THISION L PLUS 3 boilers free-standing in line 2130 1430 THISION L PLUS 5 boilers free-standing in line 3530 THISION L PLUS 8 boilers free-standing in line...
  • Page 14 Product description THISION L PLUS Cascade examples free-standing back-to-back THISION L PLUS 3 boilers free-standing back-to-back THISION L PLUS 4 boilers free-standing back-to-back 1430 1430 1480 THISION L PLUS 6 boilers free-standing back-to-back 2130 2130 THISION L PLUS 8 boilers free-standing back-to-back...

  • Page 15: Cascade Accessories

    Product description THISION L PLUS Cascade accessories FG codes Description Single Boiler Cascade Cascade Power size in line 3905101 MIN. GAS PRESSURE SWITCH - BOILER 3905102 MIN. GAS PRESSURE SWITCH - CASCADE 0-1600 3905103 ROOM FAN + EXT. GAS VALVE...
  • Page 16 Product description THISION L PLUS Cascade accessories FG codes Description Single Boiler Cascade Cascade Power size in line 3905192 BOILER Connection kit Plate heat exch. 3905193 BOILER Expansion vessel kit 3905194 CASCADE Plate HEAT EXCH. dT10K 3905195 CASCADE Plate HEAT EXCH. dT15K 3905196 CASCADE Plate HEAT EXCH.
  • Page 17 Product description THISION L PLUS Cascade accessories FG codes Description Single Boiler Cascade Cascade Power size in line 3905252 FLUE SUPPORT ELBOW PP 90 DEGR CONC 100/150MM 3905253 FLUE T-PIECE PP CONC 100/150MM + COVER 3905254 FLUE SIPHON SET CONC 100/150MM...

  • Page 18: Installation Boiler Transport

    Installation Boiler transport The THISION L PLUS is a fully The boiler can be moved using a Lifting and carrying precautions: equipped compact heating system, fork-lift or pallet truck.Unpacking Wear protective clothing and gloves which has been pre-set and tested at instructions are printed on the to protect from any sharp edges.

  • Page 19: Installation Connections

    (refer to above) for commissioning the complete (filled) installation. and servicing and installing the flue system (refer to chapter 7). The ELCO THISION L PLUS cascade can be mounted in 3 ways: If you have opted to build the hydraulic Wall-mounted in line...

  • Page 20: Hydraulics Circulation Pumps

    Installation Hydraulics Circulation pumps Pump head diagram, boiler type 60 – 70 Pump head diagram, boiler type 120 – 140 Pump head diagram, boiler type 100 Pump head diagram, boiler type 170 – 200 Boiler type Pump type Circulating water volume Residual head /h - l/min) O - mbar - kPa)

  • Page 21: Cascade Wall Mounted In Line

    Installation Cascade wall mounted in line 1. Position the pipe work header 4. Place the gas line in its intended against the wall. When using recess. When using several pipe several pipe work headers: couple work headers: couple the gas lines the pipe work headers and supplied using the supplied DN65 gaskets, gaskets, M12 (DN65) or M16...

  • Page 22: Cascade Free-Standing In Line

    Installation Cascade free-standing in line 1. Position the pipe work header in 6. Hang the boilers on the back the required location. When using suspension Brackets. several pipe work headers: couple the pipe work headers using the For the lifting refer to “Lifting supplied gaskets, M12 (DN65) or and carrying precautions”...

  • Page 23: Cascade Free-Standing Back-To-Back

    Installation Cascade free-standing back-to-back 1. Position the pipe work header in 6. Hang the boilers on the back the required location. When using suspension Brackets. several pipe work headers: couple the pipe work headers with the For the lifting refer to “Lifting supplied gaskets, M12 (DN65) or and carrying precautions”...

  • Page 24: Connecting The Boiler

    Return: 2" flat coupling fitting cross union with fill/drain valve and isolation valve with blue handle. The boiler is supplied with a 3 and 6 bar safety valve. ELCO recommend fitting the 6 bar safety valve due to the control settings shutting the boiler off at 6 bar. Gas: 1¼" gas isolation valve. Polluted test water may be...

  • Page 25: Cascade Accessories

    For complete overview on boiler (MTS1-T10). The flow sensor available accessories please refer must be placed in the pocket of the low to paragraph “THISION L PLUS loss header. Cascade accessories “. Required components that are not supplied by ELCO: - The installation pump;...

  • Page 26: Connecting 1 Boiler

    Installation Cascade accessories Connecting 1 boiler 1x THISION L PLUS boiler 1741 G 3/8" 1741 G 1/2" (48) 2"outer thread 2"outer thread G 1/2" Necessary articles 1. Low loss header for 1 boiler Low loss header (included) fixation braket (included) air vent (included) 2"outer thread...

  • Page 27: Dimensions Headers, Low Loss Headers And Bends

    Installation Cascade accessories Dimensions headers, low loss headers and bends Dimensions low loss header DN65 until 452kW Dimensions main header G1/2” DN65 / DN100 G3/8” DN65 G1” DN65 DN65 L 2/4 places = 1398mm (DN65/DN100) L 3/6 places = 2098mm (DN65/DN100) DN65 Dimensions low loss header DN100 until 1000kW Dimensions bend DN65 and DN100...

  • Page 28: Dimensions Low Loss Header

    Installation Cascade accessories Dimensions low loss header Dimensions low loss header DN100 until 1600kW 349±6 350 x 8 DN150 DN100 DN100 DN100 DN100 DN150...

  • Page 29: Heating Water Quality

    In such a case, one should make quality does not conform to the ELCO sure to take the entire piping If the regulations with regard to plastic piping are not observed, then requirements (see Table 1).

  • Page 30: System Water Additives

    Installation System water additives The system water additives, which are In case of a wrong use, and if the listed in the table, have been released maximum concentration quantities are by the manufacturer and take into exceeded, then the guarantee for all consideration the indicated dosage components that come in contact with quantities.

  • Page 31: Dhw Quality

    When applying a DHW cylinder It is not necessary to install an connected directly to the boiler expansion vessel to each boiler. One (ELCO cylinder connection with use single, central installed expansion of 3-way valve) the circuit between vessel is sufficient. When using a the three-way valve and the separation...

  • Page 32: Gas Line

    Installation Gas line The gas line leading to the installation For correct functioning of the boilers, it has to be calculated to the maximum is necessary that the gas dynamic inlet capacity to determine the diameter of pressure must be at least 19 mbars. the supply pipe.

  • Page 33: Condensate Connection

    Installation Condensate connection For condensate drainage, only corrosion-resistant and certified HAZARD: Danger of death due to materials may be used. The drainage poisoning! If the siphon is must be carried out in a frost-free not filled with water, or if any space. The drainage pipe should have connections are open, then escaping a slope, so as to avoid a backwash of waste gas can pose a hazard of the condensate.

  • Page 34: Hot Water Supply

    Installation Hot water supply The hot water supply control can be connected to the Rendamax R0000. For connection and settings refer to the Boiler Control chapter. Expansion DHW cylinder circuit When connecting a DHW cylinder to the boiler before the low velocity header an Rendamax diverter valve is recommended.

  • Page 35: Air- / Flue Gas Ducts

    Walls that are sensitive to heat Flue gas connection documentation for planners) should be insulated. - Horizontal flue gas tubes must have We recommend the use of ELCO’s comprehensive range of flue gas Construct the flue system in such an inclination of at least 3° back components. towards the boiler.
  • Page 36 Installation Connections Air- / flue gas ducts for individual boilers Parallel boiler connection The THISION L PLUS-boilers can be The boiler comes as standard with a used both in an “open” and in “closed” parallel connection for the flue gas system. outlet and air supply system.
  • Page 37 Installation Connections Air- / flue gas ducts - installation variants for individual boilers Ambient combustion air Flue gas duct into the chimney, aspiration of air from the surroundings. End section of the waste gas duct above the roof. Flue gas duct into the chimney, aspiration of air from the surroundings. End section of the waste gas duct above the roof.

  • Page 38: Collective Flue Gas Outlet

    (`open - Collective flue gas outlet ELCO can supply a collective flue gas device` Boiler category B). under-pressure outlet system for the ELCO THISION L - Collective flue gas outlet If you install a common duct providing PLUS. Refer to the following chapters over-pressure combustion air to more than one...
  • Page 39 (calculated with thermal draft) under atmospheric circumstances. NOTE! 1. IPX0D at flue category B and B Dimensions cascade flue THISION L PLUS Open system, underpressure Output (80/60) d = minimum diameter Ø in mm [kW] h = 2 - 5...
  • Page 40 NOTE! 1. IPX0D at flue category B and B 2. Only with bus cable connected! 3. Adjust parameter 102 to 2 Dimensions cascade flue THISION L PLUS Open system, overpressure Output (80/60) d = minimum diameter Ø in mm [kW]...

  • Page 41: Electrical Connection

    Installation Electrical connection Electrical connections must be All cables are passed through the cable A deviation on the grid of 230V carried out by an authorized electrical guide at the top of the boiler, and are (+10% or -15%) and 50Hz technician, and in conformity with led to the electronics panel at the front valid national and local standards and...
  • Page 42 After removing the panels 230V Voltage free switches (230V relays) parts cab be reached. 3-4. Low voltage sensors and I/O Electrical connections are only to be carried out by qualified staff. Communication bus for cascaded THISION L PLUS boilers PWM 0-10V GND Signal Signal PWM 0-10V Signal...
  • Page 43 Installation Electrical connection PWM 0-10V GND Line (AC) Line (AC) MO1 (AC) VFR1 VFR2 3 WV/DHW pump (AC) VFR3 MO1 (0-10V output Input Output Output Output Output Output Output Output Output Output Contact Line Type Name Function Description Electrical Description Line The Main Power supply to Neutral...
  • Page 44 Installation Electrical connection 3 & 5 PWM 0-10V GND Signal Signal PWM 0-10V Signal Signal NTC 7 NTC 3 (DHW/ VFR1 VFR2 3 WV/DHW pump (AC) VFR3 MO1 (0-10V output) MTS1 (T10) MTS2 MTS3 eBus eBus MO2 (0-10V output) PFDIN 1 PADIN 1 (outd.

  • Page 45: Multi Function

    Installation Electrical connection Multi function MO1 OUTPUT (AC) ECU I/O Menu display parameter Multi Out HV 24.7.0 (Commercial Boiler); 26..32.7.0 (Commercial Boiler – Slave 1..7); Function Function value None System Pump HC1 Pump Circulating Pump DHW intermediate circuit pump BUF Filling pump Storage tank transfer pump Heat gen shutoff valve Heat request...
  • Page 46 Installation Electrical connection Multi function Function DGTO val None Heat gen shutoff valve Heat request Alarm output Flue gas damper Lpg/Room Supply Fan MO1 OUTPUT (0-10V) ECU I/O Menu display parameter MO1_LV Multi Out PWM 1 24.7.4 (Commercial Boiler); 26..32.7.4 (Commercial Boiler – Slave 1..7); Function Function value None...
  • Page 47 Installation Electrical connection Multi function MO2 OUTPUT (0-10V) ECU I/O Menu Evo Code MO2_LV Multi Out PWM 2 24.7.5 (Commercial Boiler); 26..32.7.5 (Commercial Boiler – Slave 1..7); Function Function value None System pump modulator DHW Pump modulator Circulating pump modulator BUF Filling pump modulator boiler power feedback PADIN 1-2-3-4...

  • Page 48: Temperature Sensors

    Installation Electrical connection Temperature sensors Common flow sensor When a Common flow sensor is used (for cascade mandatory) it should be addressed on MTS1. DHW Tank Setting There are several schemes for hot water preparations see pages 45 - 47. Flue gas Sensor -10V GND Signal Signal PWM 0-10V Sensors can also be used as flue gas...

  • Page 49: External Controls

    Installation Electrical connection External controls BMS Feedback For giving feedback to the BMS system this output gives a 0-10 Volt signal as indication of Load. Pump modulation This output can be set as a controller for several pump types. For types, see scheme on pages 45-47.

  • Page 50: Ebus2 Controls

    Installation Electrical connection eBus2 controls Cascade connection The connection between boilers in a cascade is done via the eBus2 in and output. Accessories To connect accessories like zone clip-in, solar manager, cube etc., use the eBus2 connection. Signal Signal PWM 0-10V Signal Signal Signal 24V...

  • Page 51: Wiring Diagram

    Installation Electrical connection Wiring diagram SWITCH POWER WV/DHW eBUS PFDIN1 PFDIN SUPPLY 1-2-3 1-2-3 1-2-3-4 PUMP M01-M02 MTS1-2-3 CN20 CN22 CN17 CN14 communication to slave PCB VFR1 CN21 CN11 VFR2 CN13 PC Service Tool VFR3 PUMP PFDIN1 CN11 CN17 PFDIN3 IGNITOR CN16 PFDIN2...
  • Page 52 Installation Electrical connection Wiring diagram Legend: Main switch 230V Electrical connections Human machine interface HMI Master printed circuit board Detection electrode Ignition electrode Flow sensor T1 Secondary flow sensor T1a Return sensor T2 Fan unit Gas valve Circulation pump Water pressure sensor P1 Air pressure switch APS HMI communication cable low voltage Slave printed circuit board...
  • Page 53 Installation Filling the system Filling the system When powering up the boiler an 25/03/19 09:00 –10 ° The central heating installation needs automatic air purge program will run 32 ° to be filled with potable water according to vent the boiler (‘Airpurge active’). to the requirements in chapter ‘Water This will last for approximately 7 1.5 bar quality’.

  • Page 54: Boiler Setting Boiler Setting

    Boiler setting First time startup a boiler When a boiler is activated there is a It’s needed to configure the device, press OK to proceed question as in the picture on the left. After pressing OK the next menu is shown.

  • Page 55: Operation Description Of Display

    Operation Description of display The boiler has a pilot-control. This control takes care of most of the manual settings but also provides numerous settings to adjust the control exactly to the installation and user requirements. 25/03/19 09:00 –10 ° Display 32 °...

  • Page 56: Description Of Display And Keyboard

    Operation Description of display and keyboard Boiler status Status description Boiler mode and power button color: C.Heating active Burner active for heating The Power Button has four colors: - White: b oiler is off Storage active Burner active for Storage Tank CH pump overrun Overrun time pump over CH (using power button).

  • Page 57: Structure Of The User Menu

    Operation Structure of the User Menu The device functions are divided into Home screen Basic settings menu three levels, depending on their This menu is used to display the In this menu, the main functions can importance and the frequency of their operating status of the system and to be accessed by selecting the manual use.

  • Page 58: Change The Settings (Expert Level)

    Operation Change the settings (expert level) The settings are accessable 25/03/19 09:00 –10 ° through a code. 32 ° 1.5 bar CH Pump Overrun 1 From the controller Home screen, press the ESC and OK buttons at the same time for 7 seconds. 2 Use “+”...

  • Page 59: Parameter Listing

    Operation Parameter listing Name Description Range NETWORK BUS Network Network Presence Indication of devices connected via BUS Boiler Remote Modem OpenTherm Gateway User interface Zone to be set by display 1 - 3 Backlight timing 1 min - 24 hours Time Program service type Select the time program service type 0 = Time programs...
  • Page 60 Operation Parameter listing Name Description Range 0.6LT Slope LT: From 0.2 - 1.0 1.3HT HT: From 1.0 - 3.5 Increase setting: °C Increases the flow temperature, especially at low outside temperatures. Reduce setting: Reduces the flow temperature, especially at low outside temperatures. -25 °C outdoor temperature Offset Offset heating line adjustable per °C LT: From -7°C to +7°C...
  • Page 61 Operation Parameter listing Name Description Range 24 Commercial Boiler 24. 0 General 24. 0. Maximum Water temp 20 - 95 °C 24. 0. Max CH Adjustable 0 - 100 % 24. 0. Fan inc percentage 4 - 400 % 24. 0. Altitude 0 - 3000 m Boiler tank solar integration...
  • Page 62 Operation Parameter listing Name Description Range Configurable Inputs-Outputs 24. 6 24. 6. Multi In Temp 1 0 = None 0 - 7 1 = Common flow sensor 2 = DHW storage tank bottom 3 = DHW circulation sensor 4 = DHW charging sensor 5 = Buffer storage tank top 6 = Buffer storage tank bottom 7 = Flue gas temp sensor 24.
  • Page 63 Operation Parameter listing Name Description Range 24. 6. Multi In AD 2 0 = None 0 - 8 1 = Room thermostat HC1 2 = Room thermostat HC2 3 = Room thermostat HC3 4 = 0-10V input request 5 = External operating mode changeover HCs+DHW 6 = Heat generation lock 7 = Flue gas damper feedback 8 = Pressure Switch...
  • Page 64 Operation Parameter listing Name Description Range 24. 7. Free Contact 1 0 = None 0 - 11 1 = System pump 2 = HC1 Pump 3 = Circulating pump 4 = DHW intermediate circuit pump 5 = BUF filling pump 6 = Storage tank transfer pump 7 = Heat gen shutoff valve 8 = Heat request 9 = Alarm output...
  • Page 65 Operation Parameter listing Name Description Range 24. 8. Boiler pump control 2nd Engine 0 = OFF 0 - 1 1 = ON 24. 8. Fan control 2nd Engine 0 = OFF 0 - 1 1 = ON 24. 8. Diverter valve control 0 = OFF 0 - 1 1 = ON...
  • Page 66 Operation Parameter listing Name Description Range 24. 11. 2 Ionization current 24. 11. 3 SAFETY Flame presence 24. 11. 4 CH Flow T °C 24. 11. 5 CH Flow2 T °C 24. 11. 6 CH Return T °C 24. 11. 7 Pump Flow Rate 24.
  • Page 67 Operation Parameter listing Name Description Range 24. 15. 2 Number of boiler circulator cycles (n x10) 24. 15. 3 Time of circulator on (h x 10) 24. 15. 4 Number of fan cycles (n x10) 24. 15. 5 Time of fan ON (h x 10) 24.
  • Page 68 Operation Parameter listing Name Description Range CH differential temperature 25. 0. 0 - 20°C 25. 0. CH/DHW shifting priority time 0 - 65535min. 25. 1 System Settings 25. 1. Thermoregulation 0 = OFF 0 - 1 1 = ON 25. 1. External temperature correction -3 - 3°C 25.
  • Page 69 Operation Parameter listing Name Description Range 25. 3 System Diagnostics 25. 3. CH Flow Set T °C 25. 3. System Flow T °C 25. 3. Outdoor T °C 25. 3. Storage Temperature - High °C 25. 3. Storage Temperature - Low °C 25.
  • Page 70 Operation Parameter listing Name Description Range 26..32. Commercial Boiler - Slave 1.. 26..32. 0 General 26..32. 0. Engines Number 26..32. 0. Maximum Water temp °C 26..32. 0. Max CH Adjustable 26..32. 0. Fan inc percentage 26..32. 0. Altitude 26..32. 0. Boiler tank solar integration 26..32.
  • Page 71 Operation Parameter listing Name Description Range 26..32. 5. System DHW Charging Priority 0 = Absolute 0 - 2 1 = Shifting 2 = None 26..32. 8 Boiler manual settings 26..32. 8. Manual mode activation 0 = OFF 0 - 1 1 = ON 26..32.
  • Page 72 Operation Parameter listing Name Description Range 26..32. 10. 2 Ionization current 26..32. 10. 3 SAFETY Flame presence 26..32. 10. 4 CH Flow T °C 26..32. 10. 5 CH Flow T 2A °C 26..32. 10. 6 CH Return T °C 26..32. 10. 7 Pump Flow Rate 26..32.
  • Page 73 Operation Parameter listing Name Description Range 26..32. 14 Engine 1 Statistics 26..32. 14. 0 Number Of Ignition Cycles (n x10) 26..32. 14. 1 Hours Burner On (h x10) h x10 26..32. 14. 2 Number of boiler circulator cycles (n x10) 26..32.
  • Page 74 Operation Parameter listing Name Description Range 26..32. 20 Other 26..32. 20. 0 DHW modulation setpoint °C Building Management System General BMS Control Mode Disabled Voltage Power Voltage Temp Current Power Current Temp External Controller Power External Controller Temp BMS Max Temp °C BMS Min Temp °C...

  • Page 75: Detail Parameter Description

    Operation Detail parameter description Date and time DHW preheating Date and time Time program Comfort function activated when DHW preheating is set The control unit is equipped with a to “TIME”. The programs control the Five different pre-defined time 365-day clock that displays day, month, DHW set point for the various switching year and time.

  • Page 76: Function Thermoregulation

    Operation Function Thermoregulation Room temperature day / night Function Thermoregulation see Complete Menu activation of automatic heating temperature control (AUTO function). This function allows the heating operation to be adapted to external environmental conditions and to the type of system in which it is installed.

  • Page 77: Time Programs Heating

    Operation Time programs Heating Heating curve Slope Heating curve Parallel shift Time programs Heating 0-24h Mo-So 00:00 – 24:00 The end user can choose from five pre-defined time programs for heating Mo-Do 06:00 – 22:00 Family program systems according to his wishes. If a Fr-Sa 06:00 – 23:00 time programme is activated, the boiler 07:00 –...

  • Page 78: Automatic Summer / Winter Changeover

    Operation Automatic summer / winter changeover Automatic summer / winter Summer/winter change-over changeover temperature If this function is activated, the boiler Criterion external temperature in order automatically changes from “winter” to be able to winter operation in mode ( ) to “summer” mode summer operation to change, factory ), based on outdoor temperature setting is 20°C.

  • Page 79: Commissioning Change The Language On The Screen

    Commissioning Change the language on the screen 25/03/19 09:00 –10 ° 32 ° 1.5 bar CH Pump Overrun 1 From the controller Home screen, press OK. 2 The “+” and “–” buttons are used to select the parameter set and make adjustments to individual parameter settings.

  • Page 80: Change The Time And Date

    Commissioning Change the time and date Attention: 25/03/19 09:00 –10 ° in case of the boiler is connected to 32 ° Wifi, the date and time are actualised automatically. 1.5 bar CH Pump Overrun 1 From the controller Home screen, press OK. 2 Use “+”...

  • Page 81: Parameter Adaption To The Heating System

    Commissioning Parameter adaption to the heating system The settings are accessable 25/03/19 09:00 through a code. –10 ° 32 ° 1.5 bar CH Pump Overrun 1 From the controller Home screen, press the ESC and OK buttons at the same time for 7 seconds.
  • Page 82 Commissioning Parameter adaption to the heating system Factory Name Description settings Zone1 Parameters Summer / Winter Changeover 4.1.0 S/W function activation 0 = OFF, 1 = ON 4.1.1 S/W temperature treshold 10 - 30°C 20°C Zone 1 Settings 4.2.0 Zone temperature range 0 = Low Temp (From 20°C to 45°C) 1 = High Temp (From 35°C to 85°C) 4.2.1...

  • Page 83: Weather Compensation

    Commissioning Weather compensation Select thermoregulation type To set the boiler to weather compensation, please set parameter 4.2.1 to 3 with an ON/OFF or eBus controller. 1 Use “+” to go down and “–” to go Menu up to highlight the Parameters Zone Network you want to set.

  • Page 84: Inspection

    Boiler (non-aggressive) cleaning agent. inspection is only to be carried out by qualified staff. When carrying out maintenance works, only original ELCO replacement parts Removal of frontal panelling may be used. The front panelling must first be removed, to be able to carry out Checks prior to commissioning maintenance on the boiler.

  • Page 85: Flue Gas Analysis

    Commissioning Flue gas analysis Full load (Step 1/3) 25/03/19 09:00 –10 ° 32 ° 1.5 bar CH Pump Overrun 5 sec. Legend 1. M easuring point for the flue gas probe. check consists of 2 steps or, if necessary, 3 steps: The O / CO Step 1: Check on full load The modulation rate can now be Set the load of complete boiler...

  • Page 86: Low Load (Step 2/3)

    The measuring procedure must be carried out, until a constant measuring result is achieved. Please contact ELCO, if the values should lie outside of the applicable tolerances. End of measuring: Press the back button for 5 seconds to exit chimney sweep mode.

  • Page 87: Adjustment On The Gas Valve (Step 3/3)

    Commissioning Flue gas analysis Adjustment on the gas valve (Step 3/3) Step 3: Adjustment on the gas valve Adjust the gas valve only in case the measured values lies out of range of the values mentioned in the table on previous page.

  • Page 88: Maintenance Decommissioning And Maintenance Works

    When replacing spare parts only During emptying of the boiler, it is No change should be made on the original ELCO Service parts are to possible that a part of the heating zero-point setting. The zero-point be used. For this purpose, please water stays behind.

  • Page 89: Maintenance Details

    Maintenance Maintenance details Maintenance interval Both the gas connection and the An inspection of the burner must pressure on the connection must be be carried out after max. 8,000 checked. operating hours, however at least within 2 years. (To verify with local Check at each maintenance intervention the flue gas system on service depending by installing...
  • Page 90 Maintenance Maintenance details CAUTION: remove the fast clip on the venturi Turn (A) clockwise the left (5) and Always interrupt the power supply, (1) and the gas valve (2) and anti-clockwise the right (6) clamp before carrying out maintenance or remove the gasline (3);...
  • Page 91 Maintenance Maintenance details Turn the unit up side down and Heat exchanger remove the burner cassette (8) from Check the heat exchanger for the ventilator unit; pollution. Clean it, if necessary, with Check the burner cassette for a soft brush and a vacuum cleaner. wear and tear, pollution and any Avoid any pollution falling down.
  • Page 92 Maintenance Maintenance details annually. The electrode must be consumable part and must be checked renewed, if damages or any wear and annually. The electrode must be tear is detected. The value of ignition renewed, if damages or any wear and electrode resistance can be detected tear is detected, but certainly every 4 through measurements.

  • Page 93: Counter Running Hours

    Maintenance Maintenance details Dirt collector In case of leakage you can remove Place a basin under the red dirt the drainage cup to remove eventual collector to collect the dirty water/condense from the boiler. and aggressive condensate water. Wear protective clothing like latex Take the device back into operation and conduct a flue gas analysis gloves and safety glasses.

  • Page 94: Inspection Overview

    Maintenance Inspection overview Pos. Nr.: Inspection check list - THISION L PLUS Remarks Switch off power supply to the boiler and close the gas valve! √ √ Air box/Boiler cover √ 1.0.1 Remove boiler cover √ 1.0.2 Check boiler cover/air box sealing on wear √...

  • Page 95: Maintenance Overview

    Maintenance Maintenance overview Pos. Nr.: Maintenance check list - THISION L PLUS Remarks Switch off power supply to the boiler and close the gas valve! √ √ Air box/Boiler cover √ 1.0.1 Check cover on impurence and damage √ 1.0.2 Necessary cleaning √...

  • Page 96: Errors Error Codes And Fault Finding

    Errors Error codes and fault finding Cascade Cascade master boiler The cascade master display shows all errors that are known on the bus, so also from all slave boilers as from zone clip-in, solar manager, etc. Cascade slave boiler Shows only an error that is active on the slave boiler itself.
  • Page 97 Errors Error codes and fault finding Fault Code Fault Code Message on display (no indication of BHE0 and BHE1 engine 2 engine 1 (if applicable) (Reserved) (Reserved) (Reserved) (Reserved) Flow Sensor Open Short Circuit 110 1 Flow Sensor Open Short Circuit 110 2 Return Sensor Open Short Circuit 112 1...
  • Page 98 Errors Error codes and fault finding Fault Code Fault Code Message on display (no indication of BHE0 and BHE1 engine 2 engine 1 (if applicable) No Flame 2 5P2 1 No Flame 2 5P2 2 Flame lift 1 5P3 1 Flame lift 1 5P3 2 Pump Feedback Failure...

  • Page 99: Reset A Fault Code

    Errors Reset a Fault code The settings are accessable through a code. 1 When an error occurs, the fault code and description appears on the screen. 2 To reset the fault code, press the RESET button. 3 The message on the screen left appears.

  • Page 100: View Error Code History

    Errors View Error code History 25/03/19 09:00 –10 ° 32 ° 1.5 bar CH Pump Overrun 1 From the controller Home screen, press the ESC and OK buttons at the same time for 7 seconds. 2 Use “+” to go down and “–” to go up to highlight 007 as the Technical Code.

  • Page 101: Disposal And Recycling

    Disposal and recycling Device decommissioning If the device has to be decommissioned please note the following points for dismantling and disposal: The decommissioning should only be performed by qualifi ed specialist personnel, since certain activities are required on electrical components and fuel carrying lines. - S witch off the main power supply to the device/ the device part and secure it against being switched back on.
  • Page 102 Appendix Sensor resistance Sensor resistance Heating flow sensor Outdoor temperature sensor In the adjacent table contains a list of Heating return sensor values for all boiler sensors, and for the DHW sensor optional sensors that are contained in Flue gas sensor the accessory kits. NTC10k (25°C) NTC1k (25°C) These tables show average values,...

  • Page 103: Standard Schemes

    Appendix Standard schemes Scheme Boiler group Distribution group Single boiler or cascade One direct zone Name and Description ECU I/O Note Boiler flow sensor NTC1 Boiler return sensor NTC2 Outdoor sensor NTC4 Boiler pump (230 V) Boiler pump (PWM) PWM_P1 Common flow sensor (T10) MTS1 HC1 pump MO1_HV Pumps managed in parallel...
  • Page 104 Appendix Standard schemes Scheme Boiler group Distribution group Single boiler or cascade Multiple direct zones Name and Description ECU I/O Note Outdoor sensor NTC4 Boiler pump (230 V) Boiler pump (PWM) PWM_P1 Boiler flow sensor NTC1 Boiler return sensor NTC2 MTS1 HC1 pump P_Z1 Controlled with HC2 pump...
  • Page 105 Appendix Standard schemes Scheme Boiler group Distribution group Single boiler or cascade One or multiple mixing zones Name and Description ECU I/O Note Outdoor sensor NTC4 Boiler pump (230 V) Boiler pump (PWM) PWM_P1 Boiler flow sensor NTC1 Boiler return sensor NTC2 MTS1 HC1 pump P_Z1...
  • Page 106 Appendix Standard schemes Scheme Boiler group Distribution group • DHW tank downstream Single boiler or cascade hydraulic separator • From 1 to 3 mixing zone Name and Description ECU I/O Note Outdoor sensor NTC4 Boiler pump (230 V) Boiler pump (PWM) PWM_P1 Boiler flow sensor NTC1...

  • Page 107: Declaration Of Conformity

    Declaration of Conformity Declaration of Conformity We, ELCO GmbH, Hohenzollernstrasse 31, D-72379 Hechingen declare under our responsibility that the product THISION L PLUS 60-70-100-120-140-170-200 is in conformity with the following standards: EU Gas Appliances Regulation 2016/426/EU EN 15502-2: 2012 EN 60335-1: 201...
  • Page 108 Service: ELCO GmbH Hohenzollernstraße 31 D - 72379 Hechingen www.elco.net...

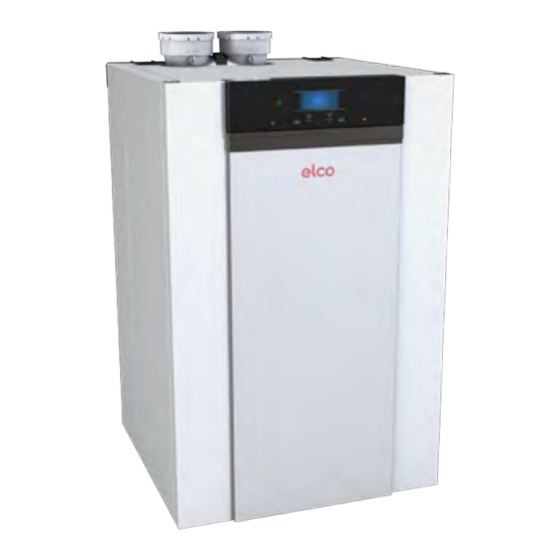

  • Page 109 THISION L PLUS Betriebsanleitung nur autorisierte Fachtechniker www.elco.net 9B.51.28.00 / 07.20...

Table of Contents

Save PDF
