Summary of Contents for TW Audio QBT20

  • Page 1 Assembly QBT20 Instructions...
  • Page 2 If you lend your product to another party, inform that party of the safety-related operating pro- cedures and hand over this assembly guide. If you require additional copies of this manual, you can obtain them free of charge from TW AUDiO or download them from www.twaudio.de Instructions in this user manual...
  • Page 3 Assembly Instructions QBT20 Notes on the products Before using the device, carefully read the assembly instructions and keep it with the Read manual QBT20 swivel bracket. before use! General information Assembly instructions: OM-QBT20 Version 2.1 en, 08/2023 © by TWAMBO 2023; all rights reserved.
  • Page 4: Table Of Contents

    Needed tools for setup ..................10 Wind load ......................10 Assembly QBT20 to loudspeaker ................11 Assembly QBT20 swivel bracket to trusses, ceiling or wall ........12 Assembly QBT20 swivel bracket on tripod ............. 13 5. Transport and storage ....................14 6.
  • Page 5: Safety | Intended Use

    Damage caused by improper use is not covered by TWAMBO. Before every operation, check the scope of delivery of the QBT20 swivel bracket for its com- pleteness and ensure that all parts are in perfect condition. The scope of delivery includes specified components. Only use the recommended and cer- WARNING tified components.
  • Page 6 Assembly Instructions QBT20 The payload of the QBT20 swivel bracket is designed of one T20 loudspeaker. Do not exceed this payload. WARNING Before mounting the QBT20 swivel bracket check that e.g. ceilings, trussus and tripods are capable to carrying the payload of the components.
  • Page 7: Overview

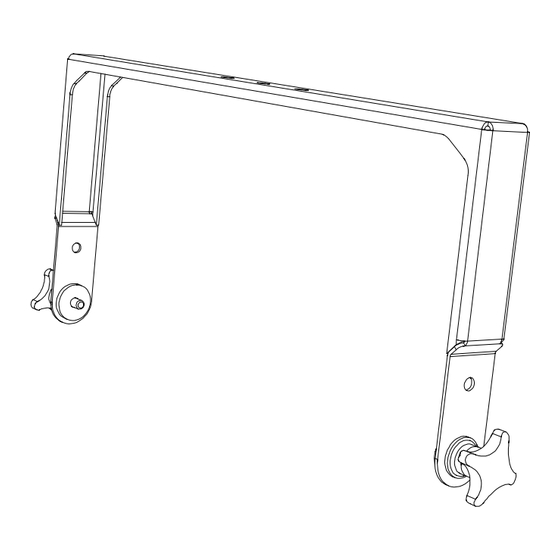

    Assembly Instructions QBT20 2. Overview Components Figure 2.1 - Overview Cross handle with thread M10 x 25 ..............2 pieces Washer (metal)....................2 pieces Rubber break washer ..................2 pieces Swivel bracket QBT20 ..................1 piece...
  • Page 8: Technical Data

    Assembly Instructions QBT20 3. Technical data Data sheet Maximum load capacity 1x T20 Dimensions (h x w x d) 295 x 642 x 50 mm [11.61 x 25.28 x 1,97 in] Weight 2,3 kg [5.1 lbs] Surface Powder-coated...
  • Page 9: Commissioning

    4. Commissioning Setup The QBT20 swivel bracket is designed for the hanging and stacking operation. TW AUDiO provides a wide range of accessories to securely attach the swivel bracket. Please note that setting up the system structures always requires two persons!
  • Page 10: Needed Tools For Setup

    Assembly Instructions QBT20 Needed tools for setup Have the following tools ready for each setup: • Cutter knife • Torque wrench • Bit insert for torque wrench: TX30 Wind load Before setting up the system outdoors, consider unexpected wind conditions at the opera-...
  • Page 11: Assembly Qbt20 To Loudspeaker

    Mount positions 1 to 3 (see figure 2.1) on both sides as shown in figure 4.3. Note that at pos.4 (see figure 2.1) one of the side holes is used. NOTE Pos.4 Pos.3 Pos.2 Pos.1 Figure 4.5 - Assembly QBT20 to T20 loudspeaker...
  • Page 12: Assembly Qbt20 Swivel Bracket To Trusses, Ceiling Or Wall

    Assembly QBT20 swivel bracket to trusses, ceiling or wall Attach the DHST Doughty Halfcoupler Slimline to the ø12.2mm hole located on the crossbar of the QBT20 swivel bracket when using the QBT20 swivel bracket on trusses. Make sure that the connections are set firmly and correctly!
  • Page 13: Assembly Qbt20 Swivel Bracket On Tripod

    Assembly Instructions QBT20 Assembly QBT20 swivel bracket on tripod Mount the T20 loudspeaker with QBT20 swivel bracket and the HSF pole mount flange on the tripod. Make sure that you use suitable fastening material and that the connections are set...
  • Page 14: Transport And Storage

    For this reason, the loudspeakers should be transported and stored in a safe, careful, dry and largely dust-free manner. The following accessory parts for the swivel bracket are available from TW AUDiO: • Cross handle with thread M10 x 25 •...
  • Page 15: Ce Conformity Declaration

    Assembly Instructions QBT20 6. CE Conformity Declaration Copy and translation of the original CE Conformity Declaration: We hereby declare that the below-referenced components by virtue of their design and con- struction, and in the configuration placed on the market by us, satisfy the safety and health requirements of the applicable EC directives.
  • Page 16 Assembly Instructions QBT20 TWAMBO GmbH Karl-Hofer-Str. 42 14163 Berlin Germany Phone: + 49 (0) 71 41-48 89 89 0 Fax: + 49 (0) 71 41-48 89 89 99 E-Mail: info@twaudio.de WWW: www.twaudio.de...
