Page 2
If you lend your product to another party, inform that party of the safety-related operating pro- cedures and hand over this assembly guide. If you require additional copies of this manual, you can obtain them free of charge from TW AUDiO or download them from www.twaudio.de Instructions in this setup manual...
Page 3
Assembly Instructions VERA GSK36 Notes on the products Before using the groundstack-kit, carefully read the assembly instructions and keep the inst- Read manual ructions in a safe place together with the VERA GSK36 groundstack-kit. before use! General Information Assembly Guide: OM -VERA GSK36 Version 2.0 d, 02/2023...
Page 4
Danger of tipping over ................... 10 System setup VERA RF900 with VERA GSK36 on the ground ........ 11 System setup VERA RF900 with VERA GSK36 on VERA S33 loudspeaker ..... 11 Groundstack VERA36 loudspeaker on VERA GSK36 ..........12 5. Transport and Storage ....................20 6.
Page 5
The VERA GSK36 groundstack-kit set may only be used by trained and qualified personnel. Personnel must check the VERA GSK36 for its full suitability before each use. WARNING When visible damage to any part of the VERA GSK36 groundstack-kit set is detected, it must be decommissioned immediately. WARNING...
Page 6

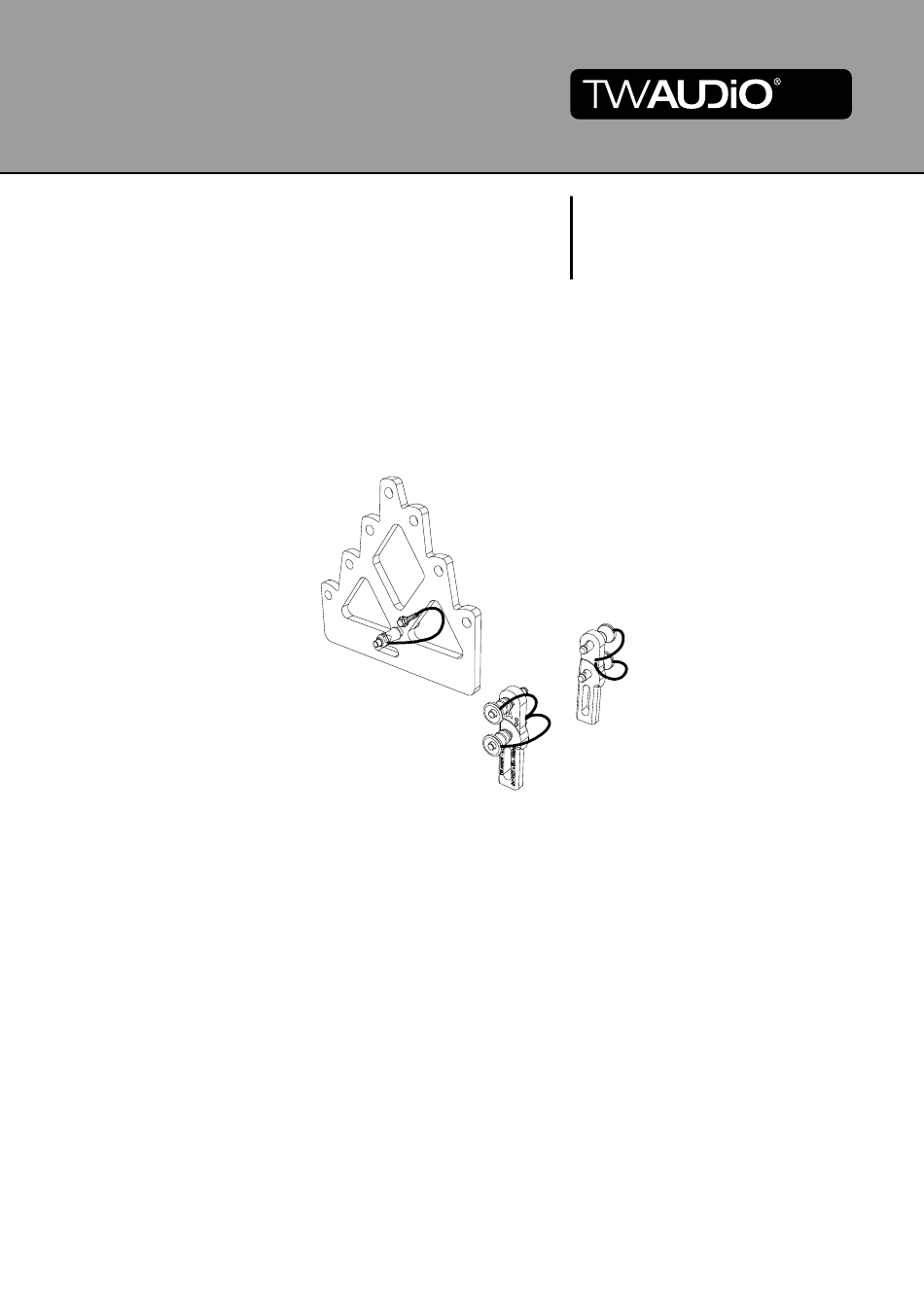

Assembly Instructions VERA GSK36 2. Overview Scope of delivery The VERA GSK36 consists of a rear-adapter with quick-locking pins as well as a boxlink connector A and a boxlink connector B with two quick-locking pins each. NOTE Figure 2.1 - Groundstack-kit VERA GSK36...
Page 7
Possible positions: boxlink connector A and B VERA GSK36 Possible position: rear-adapter VERA GSK36 For storage, first insert all quick-locking pins through the mounting holes of the VERA GSK36 groundstack-kit and then through the mounting holes on the VERA RF900 rig- ging frame. WARNING...
Page 8
Assembly Instructions VERA GSK36 3. Technical Data Data sheet maximum load capacity 12x VERA36 Weight 1.0 kg [2,20 lbs] Surface Powder coated...
Page 9
Make sure that all system structures are located on a firm, level surface and that the surface can bear the total weight! WARNING TW AUDiO recommends using only the accessories specified by TW AUDiO for securing and mounting the groundstack-kit. NOTE...
Page 10
Assembly Instructions VERA GSK36 Danger of tipping over The center of gravity of the configuration can be used as a guide to the stability of the groundstack system design. This can be determined by simulating the system structure in the EASE Focus simulation software. It should always be plumb above the VERA RF900 rig- ging frame.
Page 11
System setup VERA RF900 with VERA GSK36 on VERA S33 loudspeaker Prior to any system setup of the VERA RF900 rigging frame with the VERA GSK36 ground- stack-kit, note that the VERA RF900 rigging frame is attached to the VERA S33 loudspea- ker with the BLS boxlink connector set.
Page 12
Assembly Instructions VERA GSK36 Groundstack VERA36 loudspeaker on VERA GSK36 To set up the groundstack array with VERA36 loudspeakers on the VERA GSK36 ground- stack-kit, proceed as follows: 1. Loosen all quick-locking pins on both boxlink connectors A and B of the VERA GSK36 groundstack-kit.
Page 13
Assembly Instructions VERA GSK36 5. Plug the boxlink connector B into the VERA RF900 rigging frame at the front right. Pay attention to the alignment of the boxlink connector. Labeling B must be readable from outside. WARNING 6. Then insert the first quick-locking pin into the top hole on the VERA RF900 rigging frame to secure the boxlink connector B.
Page 14
Assembly Instructions VERA GSK36 9. Using two people, lift the prepared VERA36 loudspeaker onto the prepared VERA RF900 rigging frame. 10. Make sure that the boxlink connectors engage in the rigging tracks of the loudspeaker! WARNING Figure 4.7.5 - Set VERA36 loudspeaker on VERA RF900 rigging frame 11.
Page 15
Assembly Instructions VERA GSK36 13. Loosen the quick-locking pin on the VERA36 loudspeaker‘s rear rigging. NOTE Figure 4.7.7 - Loosen quick-locking pin at rear rigging...
Page 16
14. Use EASE Focus simulation software determine degrees VERA GSK36 rear-adapter as well as the number and degrees of the VERA36 loudspea- kers that match your application. NOTE 15. Select the level (number of degrees) that matches your system application. See Figures 4.7.8 to 4.7.14.
Page 18
VERA36 loudspeaker. Figure 4.7.15 - Set VERA GSK36 rear-adapter into the center brace of the VERA RF900 rigging frame 17. Then attach the VERA GSK36 rear-adapter to the rear rigging using the quick-locking pin provided on the VERA36 loudspeaker.
Page 19
Assembly Instructions VERA GSK36 19. After that attach the VERA GSK36 rear-adapter to the center brace of the VERA RF900 rig- ging frame using the quick-locking pin provided on the rear-adapter. 20. Check that the quick-locking pin is completely inserted! WARNING Figure 4.7.17 - Set quick-locking pin on the center brace of the VERA RF900 rigging frame.
Page 20
Assembly Instructions VERA GSK36 5. Transport and Storage Ensure that the surfaces of the groundstack-kit are not damaged during transport and sto- rage. Moisture may penetrate where steel surfaces are exposed by scratches and result in corrosion. NOTE This is why the product should be transported and stored in a safe, careful, dry and largely dust-free manner.
Page 21
Assembly Instructions VERA GSK36 6. CE Declaration of Conformity Copy and translation of the original CE Conformity Declaration: We hereby declare that the below-referenced components by virtue of their design and con- struction, and in the configuration placed on the market by us, satisfy the safety and health requirements of the applicable EC directives.
