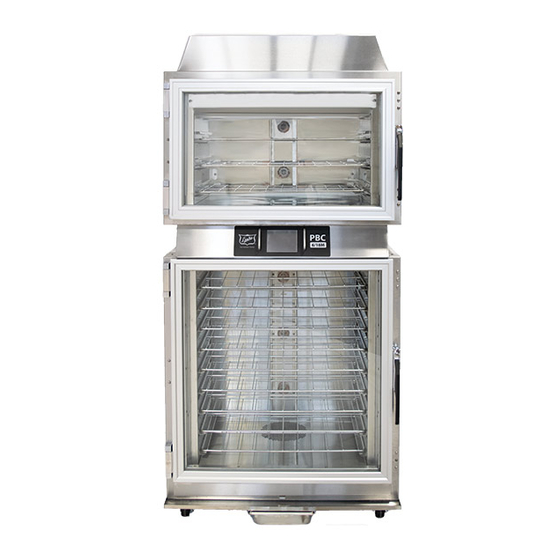

Proofer Baking Center
with Touch Screen Control
Models:
PBC-6/18M
CAUTION:
Please read this manual completely before attempting
to install, operate or service this equipment
WARNING: Cancer and Reproductive Harm -
www.p65warnings.ca.gov
This manual is Copyright © 2020 Duke Manufacturing Co. All rights reserved.
Reproduction without written permission is prohibited. Duke is a registered
trademark of the Duke Manufacturing Co.
Installation and
Operation Manual
P/N 529063
REV B 01/03/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PBC-6/18M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Duke PBC-6/18M

Summary of Contents for Duke PBC-6/18M

  • Page 1 WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov This manual is Copyright © 2020 Duke Manufacturing Co. All rights reserved. Reproduction without written permission is prohibited. Duke is a registered trademark of the Duke Manufacturing Co.

  • Page 2: Table Of Contents

    Installation and Operation of: PBC-6/18M TABLE OF CONTENTS Important safety instructions ..........................2 Introduction ................................4 Specifications ................................4 Main features ................................6 Installation ................................8 Control definitions ...............................12 Operating Instructions ............................13 Baking tips ................................16 Programming controls ............................18 Care and cleaning ..............................20 Wire Diagram .................................22...
  • Page 3 • This equipment should be serviced by qualified personnel only. Contact the nearest Duke authorized service facility for adjustment or repair. • Do not block or cover any openings on the unit.

  • Page 4: Introduction

    Installation and Operation of: PBC-6/18M INTRODUCTION The Duke PBC (Proofer Baking Center) with Touch Screen Control was developed in response to Customer’s need for uniform baking capabilities and to provide consistently high, quality just-baked product. The Duke Proofer Baking Center utilizes Duke’s unique directional convection airflow technology that provides even heat distribution and a uniform bake without the need for turning pans during the bake cycle.

  • Page 5: Specifications

    Compliance Declaration - PBC-M Proofer Oven with Touch Screen Control Standard: UL197 File: KNGT.E17421 Standard: CSA-C22.2 No. 109 File: KNGT7.E17421 Standard: ANSI / NSF 4 File: TSQT.E157479 Line Ratings - PBC-6/18M Proofer Oven with Touch Screen Control Line Supply Line Supply Line Phase Total Maximum Total Maximum Voltage (V)

  • Page 6: Main Features

    Installation and Operation of: PBC-6/18M MAIN FEATURES LOW VOLTAGE LIGHTING SYSTEM 12V HALOGEN LAMP 10WATT MAX CONVECTION OVEN 3 SHELVES DOORS AND HINGES COOL TOUCH AIR- ARE REVERSIBLE WASH DOOR TOUCH SCREEN CONTROL PANEL USB DRIVE HIGH LIMIT PROTECTOR POWER SWITCH...
  • Page 7 Installation and Operation of: PBC-6/18M FRONT VIEW - DEMINSIONS 945.4 37.222 1975.6 77.779 1826.4 71.906 1086.6 42.781...
  • Page 8 Installation and Operation of: PBC-6/18M SIDE VIEW - DEMINSIONS 770.5 30.335 665.1 26.186 159.8 6.292 Light Circuit High Limit Breaker Reset Button Side Panel 3.621...
  • Page 9 Installation and Operation of: PBC-6/18M BACK VIEW - DEMINSIONS NOTE: WATER SOURCE REQUIRED FOR PROOFER. 472.7 18.611 246.8 9.717 ELECTRICAL INLET WATER INLET 36.181 W/O OPTIONAL 1149.2 BACK FLOW VALVE 45.244 585.2 23.038 W/OPTIONAL BACK FLOW VALVE WATER OUTLET W/OPTIONAL BACK FLOW VALVE 700.6...

  • Page 10: Installation

    • Inspect unit for damage such as, broken glass, etc. Contact Duke for service of IVS (Integrated Ventilation System) HO5RN supply interconnection. • Report any dents or breakage to source of purchase immediately.
  • Page 11 APPLIANCE HAS BEEN RETURNED or available as a kit (P/N 600187). The backflow TO ITS NORMAL POSITION. prevention device used on Duke Proofer Baking 4. IMPORTANT: A minimum clearance of 6” Center protects water supply systems by preventing (152mm) from the top of unit to the ceiling must the reverse flow of non-potable water into the be provided.
  • Page 12 O rings are in place, then lift up into filter head and rotate The two main components of the Duke backflow cartridge 1/4 turn counter clockwise until it preventer system are: comes to a complete stop.
  • Page 13 5. Check the door seals and make sure both doors close completely. Wall 6. If the unit does not power up correctly or if the doors do not close and seal properly, call Duke for assistance. Wall Hole Drilled In Wall For...

  • Page 14: Control Definitions

    Installation and Operation of: PBC-6/18M CONTROL DEFINITIONS MAIN SCREEN * Screen Sleep Button only available when Oven and Proofer are off Main Tool Bar Info Button Oven Oven Information Bar Temp & Time Oven Oven Power Button Page Back Oven...

  • Page 15: Operating Instructions

    (If under temperature set point) least 30 minutes. An audible alarm will sound (3 short chirps) when the oven and/or proofer reach the ready state. Your Duke Proofer Oven is now ready to operate. NOTE: If there are any problems refer to the Trouble Shooting section of this manual.
  • Page 16 Installation and Operation of: PBC-6/18M OPERATING INSTRUCTIONS - continued 3. Once a Proofer recipe has been selected (i.e. Since the proofer can hold more pans than the ) and the display has changed to the oven can bake, an alarm beeps and LOAD NEXT...
  • Page 17 Installation and Operation of: PBC-6/18M OPERATING INSTRUCTIONS - continued 4. Load the oven with dough and touch the start OVEN OPERATING INSTRUCTIONS timer button. The remaining time will be displayed in the button area and the progress 1. Turn the oven ON by touching the bar will change to visually show elapsed and button or the desired RECIPE button.

  • Page 18: Baking Tips

    Installation and Operation of: PBC-6/18M BAKING TIPS • Always select the oven recipe and allow preheat time prior to loading product. Only load when the Oven Recipe Ready to Start Timers screen is displayed. Load the oven with six pans of dough and touch the start button.
  • Page 19 Installation and Operation of: PBC-6/18M BAKING TIPS RECIPE GUIDELINES "Duke recommends these recipes as starting points for your baking needs" Proofer Proofer Proofer Product Bake Temp Bake Time Temp Humidity Time (min) Dinner Rolls 30-60 10-15 min French Bread 30-45...

  • Page 20: Programming Controls

    Installation and Operation of: PBC-6/18M PROGRAMMING CONTROLS 3. To edit Time, Temperature or Humidity (Proofer To access the SPECIAL FUNCTIONS, touch button on Only), touch the button adjacent to the Main Tool Bar. the field you want to change. Touch the button to save the changes.
  • Page 21 Installation and Operation of: PBC-6/18M PROGRAMMING CONTROLS - continued 5. Touch the button to save the changes and FILES (FILE MANAGEMENT) return to the RECIPE EDIT Screen. If no changes are required touch the button to go back 1. Touch the button and then enter pin code 3 4 to the RECIPE EDIT Screen.

  • Page 22: Care And Cleaning

    Installation and Operation of: PBC-6/18M CARE AND CLEANING PROOFER OVEN INTERIOR AND RACKS ARE VERY HOT AND COOL SLOWLY. ALLOW TO COOL BEFORE HANDLING. ELECTRICAL SHOCK HAZARD: DO NOT WASH WITH WATER JET OR HOSE. RISK OF CUT FROM ROTATING FAN BLADE.
  • Page 23 Installation and Operation of: PBC-6/18M CARE AND CLEANING 3. The Cool-Touch door has two window panes. WEEKLY CLEANING INSTRUCTIONS The inner window can be easily separated from the outer window for cleaning. This is 1. Clean Proofer. Turn the proofer off and allow achieved by unlatching two clips and rotating elements to cool.

  • Page 24: Wire Diagram

    Installation and Operation of: PBC-6/18M WIRE DIAGRAM BLK 1 PBC–6/18M PBC - Baking Center WIRE DIAGRAM BLK 13 ORN 4 120087 Rev. B RED 1 BLK “C” HEAT OVEN RED 2 BLK “B” YEL 3 WHT 3 OPTION BLU 1...

  • Page 25: Troubleshooting

    Should the oven high limit trip, push OVER TEMP “TRIP” POSITION the RESET button. The high limit will reset with a "click" if an LOCATED ON RIGHT SIDE OF CONTROLS SECTION over temperature trip occurred. If condition persists, call Duke PUSH IN Service. “CLICK” RESET...

  • Page 26: Preventive Maintenance

    Installation and Operation of: PBC-6/18M PREVENTIVE MAINTENANCE MONTHLY CLEANING INSTRUCTIONS E. Install new filter by removing sanitary cap from top of cartridge, ensure two black 1. Check door handle screws for tightness. O rings are in place, then lift up into filter 2.
  • Page 27 Installation and Operation of: PBC-6/18M PREVENTIVE MAINTENANCE - continued Factory Installed or Kit Inlet Water Water Connection if 2. Clean Opti-Mist proofer nozzle screen. Backflow Preventer Connection Backflow Preventer is Inlet Water Connection Point Not Required A. Remove nozzle assembly by depressing latch on quick-connect fitting and pull nozzle out toward fan blade.
  • Page 28 If the door gasket is damaged or compressed permanently, it should be replaced. Call Duke Manufacturing Co. at 800-735-3853 to order a new gasket before making adjustments. 1. To check the adjustment, close the door with a currency bill between the gasket and front of the oven.
  • Page 29 Installation and Operation of: PBC-6/18M PREVENTIVE MAINTENANCE - continued 4. To check the adjustment, close the door with a 2. Clean the groove with a screwdriver or other currency bill between the gasket and front of flat-bladed tool to remove any dirt or gasket the oven.
  • Page 30 Installation and Operation of: PBC-6/18M NOTES...
  • Page 31 Installation and Operation of: PBC-6/18M PREVENTIVE MAINTENANCE COOL-TOUCH DOOR INFORMATION AND BULB MOUNTING DETAILS CLEANING INSTRUCTIONS The Cool-Touch door has two window panes. The inner window can be easily separated from the outer DO NOT TOUCH LIGHT BULBS WITH window for cleaning. This is achieved by unlatching...
  • Page 32 Installation and Operation of: PBC-6/18M Phone: 314-231-1130 Duke Manufacturing Co. Toll Free: 1-800-735-3853 2305 N. Broadway www.dukemfg.com Fax: 314-231-5074 St. Louis, MO 63102...
