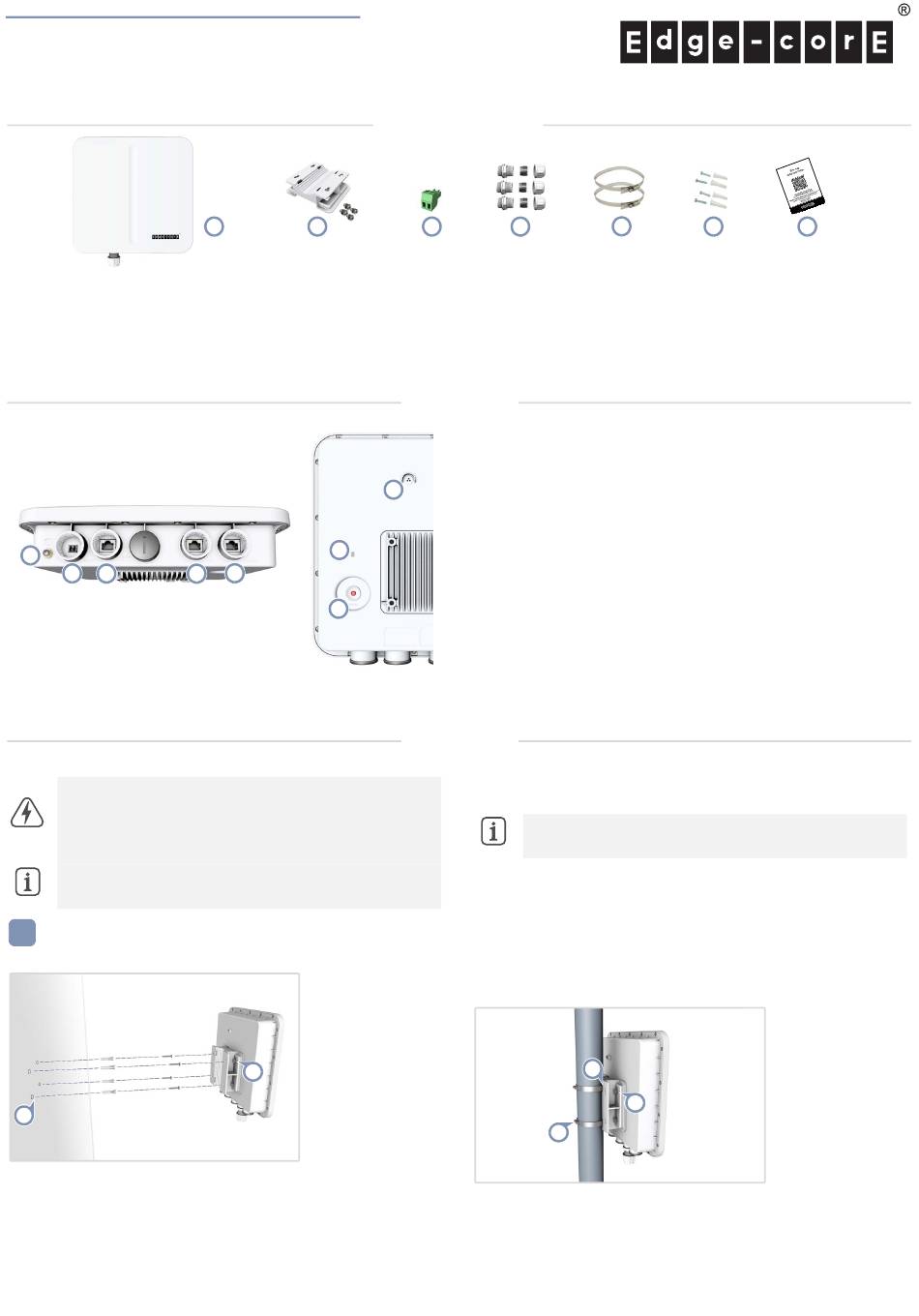

Quick Start Guide
Outdoor Access Point
OAP101 | OAP101-6E
1.

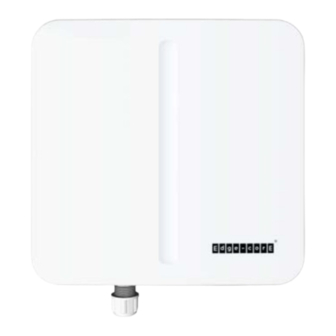

OAP101 or OAP101-6E access point
2.
Mounting bracket and 4 x M6 screws
3.
DC terminal plug
4. 3 x Cable glands
1
2 3
Warning:
For a safe and reliable installation, use only the
accessories and screws provided with the device. Use of other
accessories and screws could result in damage to the unit. Any
damages incurred by using unapproved accessories are not
covered by the warranty.
Note:
The drawings in this document are for illustration only
and may not match your particular model.
1

Mount the Device

a. Mounting on a Wall
1
1.
At the installation location on the wall, use the mounting bracket to
mark four holes for the wall plugs and screws. The bracket must be
installed with the marking "UP" at the top.

1 2
7
4 5
8
2

Package Contents

3 4
5.
2 x Steel-band clamps for pole mount (2.5 inch diameter max.)
6.
Screw kit—4 screws and 4 plugs
7.
QR code card

Overview

1.
Grounding point
2.
DC In port: 48 VDC
3. Uplink (PoE) port: RJ-45 2.5GBASE-T connection to 802.3at PoE
6
4.
LAN port: 1 Gbps LAN connection
5.
Console port
6.
Moisture protective vent
7.
Power/Status LED:
Yellow green: On (power OK), Blinking (boot up)

Blue: On (cloud managed)

Purple: Blinking (uplink activity in cloud managed mode)

Orange: Blinking (uplink activity in stand-alone mode)

8.
Restart/Reset button:
A quick press restarts the system.

Press and hold for 5 seconds resets to factory defaults.


Installation

Drill four holes for the wall plugs, and then insert the plugs and tap
them flush with the wall surface.
Note:
screws, or 4.5 mm (±0.2 mm) holes for nylon wall plugs.
2.
Use the included M6 screws to attach the mounting bracket to the
device.
3.
With its ports facing down, slide the device down onto the pre-
installed screws until it snaps into its secured position. Do not let go
of the device until you confirm that it is secure.
b. Mounting on a Pole
1.
Use the included M6 screws to attach the mounting bracket to the
device.
2. Feed the two steel-band clamps through the pole-mount bracket
mounting points.
– 1 –
5
6
Drill 2.5 mm (±0.2 mm) holes for M3 self-tapping
2
1
3
7
