Q u i c k St a r t G u i d e

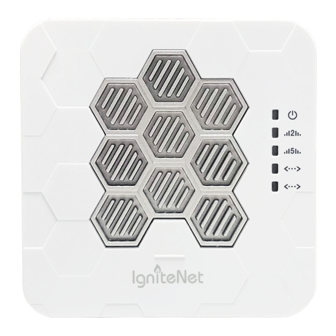

Cloud-Enabled Indoor Access Point
SP-W2M-AC1200-PoE
1. Unpack the AP
◆
Spark AC Wave2 Mini PoE,
SP-W2M-AC1200-PoE
◆
2 Command™ strips
◆
4 rubber feet
◆
Quick Start Guide (this document)

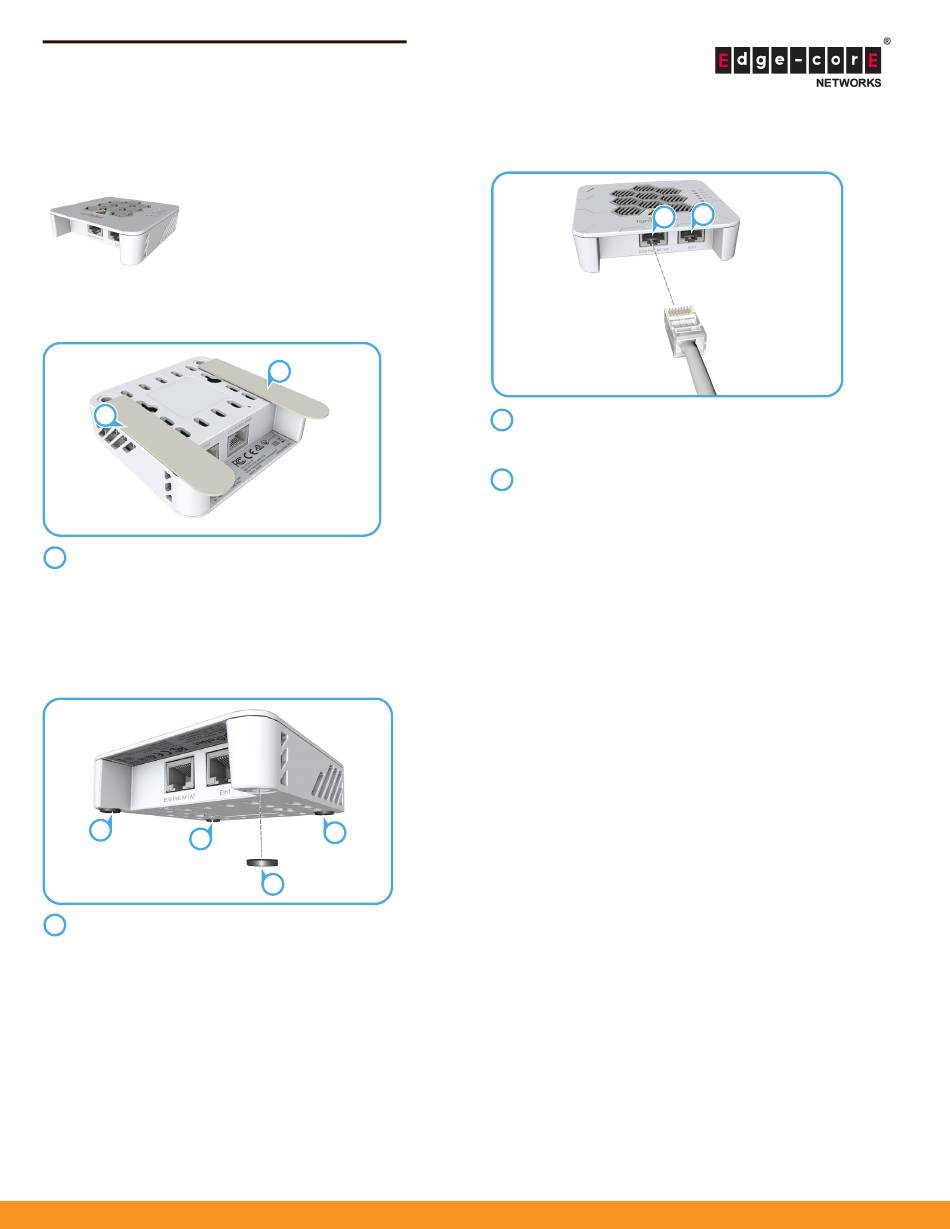

2. Mount the AP
a. Wall-Mounting Method
1
1 Position and stick the two supplied Command™ strips to the
base of the AP as shown.
Position the AP on the wall and press firmly for 30 seconds.
Remove the AP from the wall to separate the strips. Wait a
further hour before mounting the AP.
Mount the AP by pressing the strips together until they click.
b. Mounting the AP on a Desktop
1
1
1 Attach the included four rubber feet to the base of the AP.
Place the AP on the desktop.
wifi.edge-core.com
1
1
1
3. Connect Cables
1 Connect Category 5e or better cable to the 1000BASE-T
Eth0 PoE AF/AT RJ-45 port.
Connect the other end of this cable to a PoE LAN switch.
2 (Optional) Connect a local LAN device to the Eth1 RJ-45 port
on the AP using Category 5e or better cable.
This Eth1 RJ-45 port is a 1000BASE-T port.
– 1 –
2
1
