Summary of Contents for Edge-Core OAP100

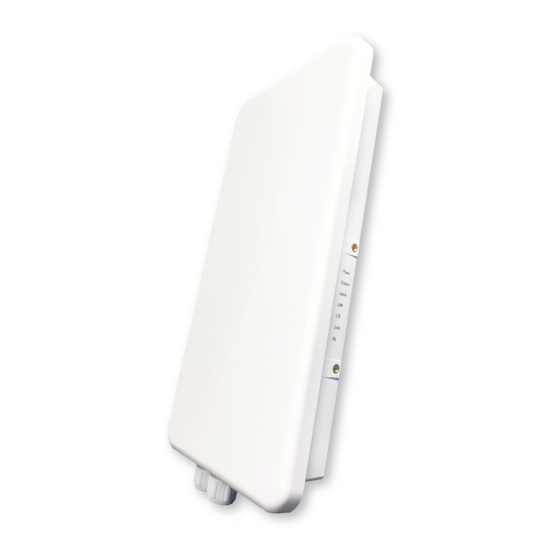

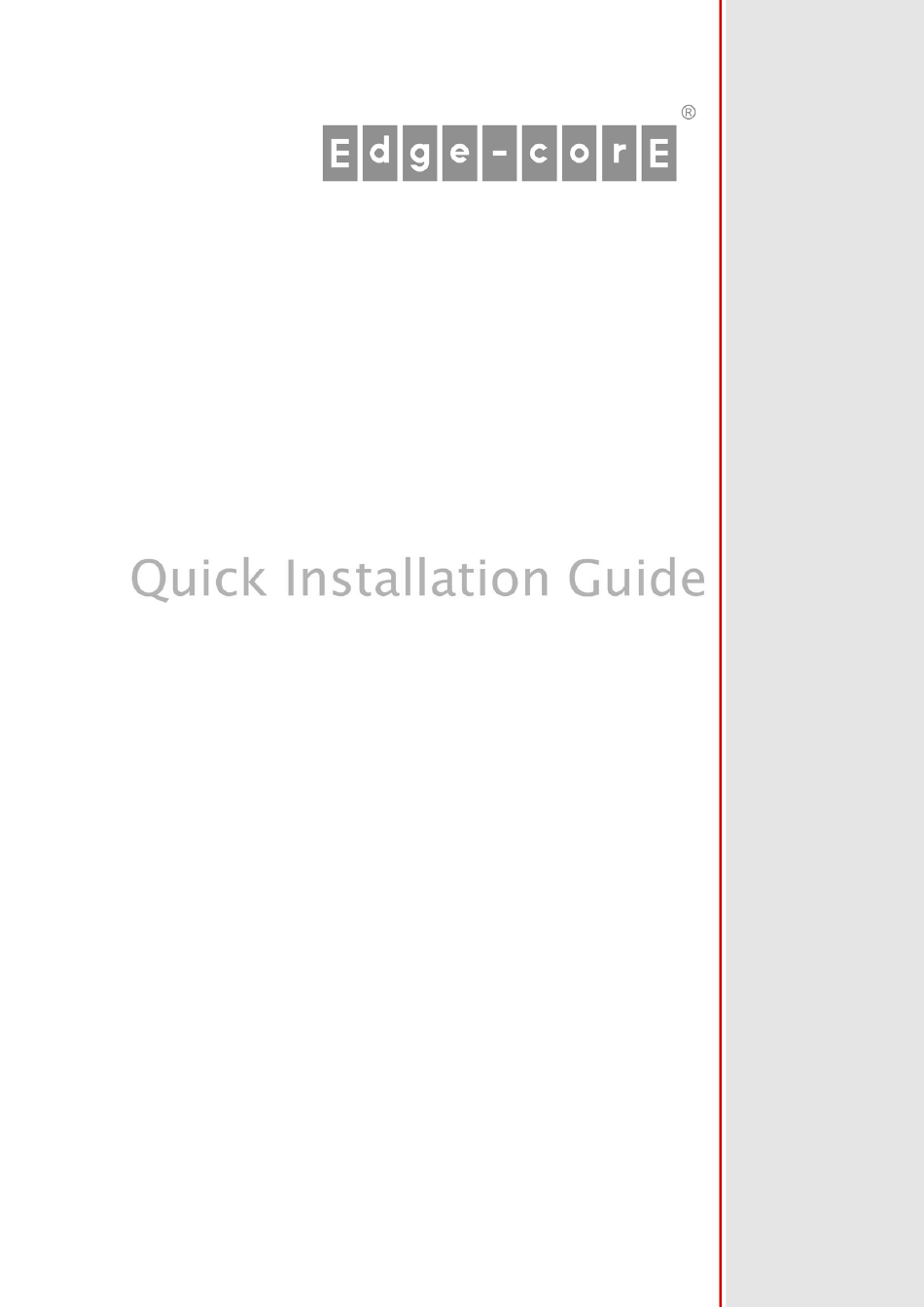

  • Page 1 OAP100 Access Point...

  • Page 2: Copyright Notice

    Quick Installation Guide OAP100 Access Point ENGLISH Copyright Notice This document is protected by USA copyright laws and other laws. Besides, the document is the property of Edgecore Networks Corporation. You may not copy, reproduce, distribute, publish, display, perform, or modify any part of this publication in any form or by any means without prior written permission from Edgecore Networks Corporation.

  • Page 3: Fcc Caution

    Quick Installation Guide OAP100 Access Point ENGLISH FCC CAUTION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4 Please carefully select the installation position and make sure that the final output power does not exceed the limit set force in relevant rules. The violation of the rule could lead to serious federal penalty. CE CAUTION Hereby, Edgecore Networks Corporation. declares that the radio equipment type OAP100 is in compliance with Directive 2014/53/EU.
  • Page 5 Quick Installation Guide OAP100 Access Point ENGLISH  Radio EN 300 328 V2.1.1 (2.4G/BT-LE) EN 301 893 V2.1.1 (5G) EN 301 908-1 V11.1.1 (LTE) EN 303 413 V1.1.1 (GPS) EN 50385 / EN 62311: 2017 (MPE)  EMC EN 301 489-1 V2.1.1 EN 301 489-17 V3.1.1...

  • Page 6: Package Contents

    APs; great for enterprise applications, such as separating traffic from different departments using different ESSIDs. As an Outdoor Access Point, OAP100 supports wall mounting and poll mounting for different deployment environments. Besides OAP100’s PoE uplink port is able to receive power from Power over Ethernet (PoE) sourcing devices, its LAN port also supports PoE with 802.11at standard which make network...

  • Page 7: System Overview

    Quick Installation Guide OAP100 Access Point ENGLISH System Overview OAP100 Front OAP100 Back LTE Module Case For inserting LTE Module. Reset Press once to restart the system; to reset the system to factory default settings, hold for more than 5 seconds (the System LED will blink fast).
  • Page 8 1Gbps. The green LED will light up when the link speed is 10/100Mbps. LTE LED The LTE LED will always on when OAP100’s network is from LTE. There is LTE traffic, the LTE LED will blink. 2.4G LED 2.4G Wi-Fi status.
  • Page 9 Quick Installation Guide OAP100 Access Point ENGLISH...
  • Page 10 LAN (PoE Out) Port Offering uplink connection. This port can be used to connect to a controller, Uplink (PoE In) Port gateway, or directly to the Internet. 802.3at PoE is also supported. DC input is supported on OAP100. DC 10~24V...

  • Page 11: Hardware Installation

    Please follow the steps mentioned below to install the hardware of OAP100: 1. Place the OAP100 at the best location. The best location for OAP100 is usually at the center of your intended wireless network. There are 3 types of bracket for different deployments:...
  • Page 12 Quick Installation Guide OAP100 Access Point ENGLISH Pole mount with bracket-1 and bracket-2 (optional) Pole mount with bracket-1 and bracket-3 (optional)
  • Page 13 2. Connect the OAP100 to your network device. Connect one end of the Ethernet cable to the LAN1 (PoE) port of OAP100 and the other end of the cable to a switch, a router, or a hub. OAP100 is then connected to your existing wired LAN network.

  • Page 14: Getting Started

    1. To access the web management interface, connect the administrator PC to the LAN port of OAP100 via an Ethernet cable. Then, set a static IP address on the same subnet mask as OAP100 in TCP/IP of your PC, such as the following example: IP Address: 192.168.1.100...
  • Page 15 OAP100 Access Point ENGLISH Administrator Login Page 4. After a successful login into OAP100’s Web user interface (Web UI), a System Overview page of web management interface will appear, as depicted below. The Web Management Interface - System Overview Page Congratulations! Now, Edgecore OAP100 is installed and configured successfully.
