Go Plus

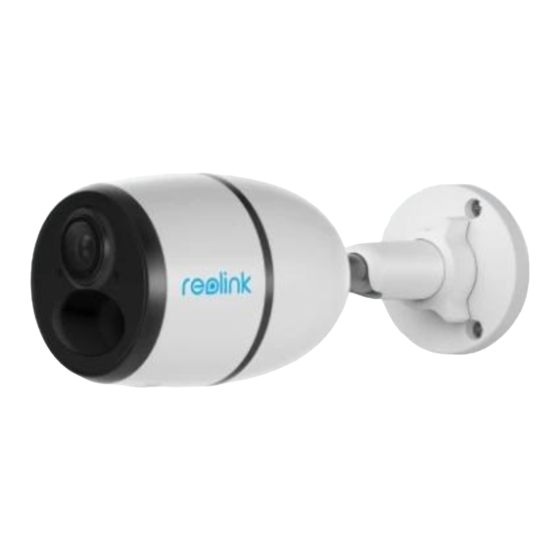

Reolink Go Plus, a 100% wire-free mobile HD security camera, operates on 4G-LTE
and 3G networks. An ideal video monitoring solution with no cords, no wiring
hassles, when in areas with limited or no WiFi access, no electrical power source!
1
6 IR LEDs
2
Built-in Mic
3
Status LED
4
Lens
5
Daylight Sensor
6
Built-in PIR Motion Sensor
7
Speaker
8
Micro USB Port
1. Specs
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Reolink Go Plus
Summary of Contents for Reolink Go Plus
- Page 1 Go Plus Reolink Go Plus, a 100% wire-free mobile HD security camera, operates on 4G-LTE and 3G networks. An ideal video monitoring solution with no cords, no wiring hassles, when in areas with limited or no WiFi access, no electrical power source! 1.
-
Page 2: Status Light
Micro SD Card Slot SIM Card Slot Reset Hole Battery Status LED Status Light Note: If the camera connects the network successfully,there will be no status LED light up during idle mode. Status Light Camera Status Camera cannot recognize the SIM Red LED solid light up then starts to card or there is PIN code of the SIM flash... -
Page 3: Setup And Install
Note: The package content may vary and update with different version and platforms, please take the below information only for a reference. And the actual package content are subject to the latest information on the product selling page. Go Plus Go Plus*1 USB Cable*1... - Page 4 Some SIM cards have a PIN code, please use your smartphone to disable the PIN first. Do not insert the IoT or M2M SIM card into your smartphone. Install the SIM Card 1. Remove the back cover by rotating counterclockwise and insert the SIM card into the slot.
- Page 5 3. A red LED will be on and solid for a couple of seconds, then it will go out. 4. “Network connection succeeded”. A blue LED will flash for a few seconds and then go solid before going out, which means the camera has been successfully connected to the network.
- Page 6 Set up the Camera on the App Please follow the steps below to do initial setup for the battery-powered cameras via Reolink App. Step 1. Tap the icon in the top right corner to add the camera.
- Page 7 Step 2. Scan the QR code on the back of the camera. If the phone doesn't respond, please tap Input UID/IP below the scan window, and then enter the 16-digit UID number under the QR code of the camera. Step 3. Create the login password and name your camera. Then tap Next.
- Page 8 Step 4. Select a scene according to the place where your camera will be installed. Then tap Next. Step 5. Read the note and then tap Finish to complete the initialization of your camera.
-
Page 9: Install The Camera
Now the initialization is finished and you can move it to the position you want. Here is an article to choose a good position for the camera. Install the Camera We offer you guides on different scenes in which the camera could be installed. Check out them respectively. - Page 10 2. Install the camera on the security mount. 3. To get the best field of view, loosen the adjustment knob on security mount and turn the camera. 4. Stiffen the adjustment knob to lock the camera.
- Page 11 Attach the Camera to a Tree 1. Thread the provided strap to the mounting plate. 2. Attach the plate to the security mount with the smaller screws. 3. Fasten the security mount to a tree.
- Page 12 4. Install the camera and adjust the camera angles as instructed in Step 2 & 4 in the previous installation guide.
