OPERATION INSTRUCTIONS

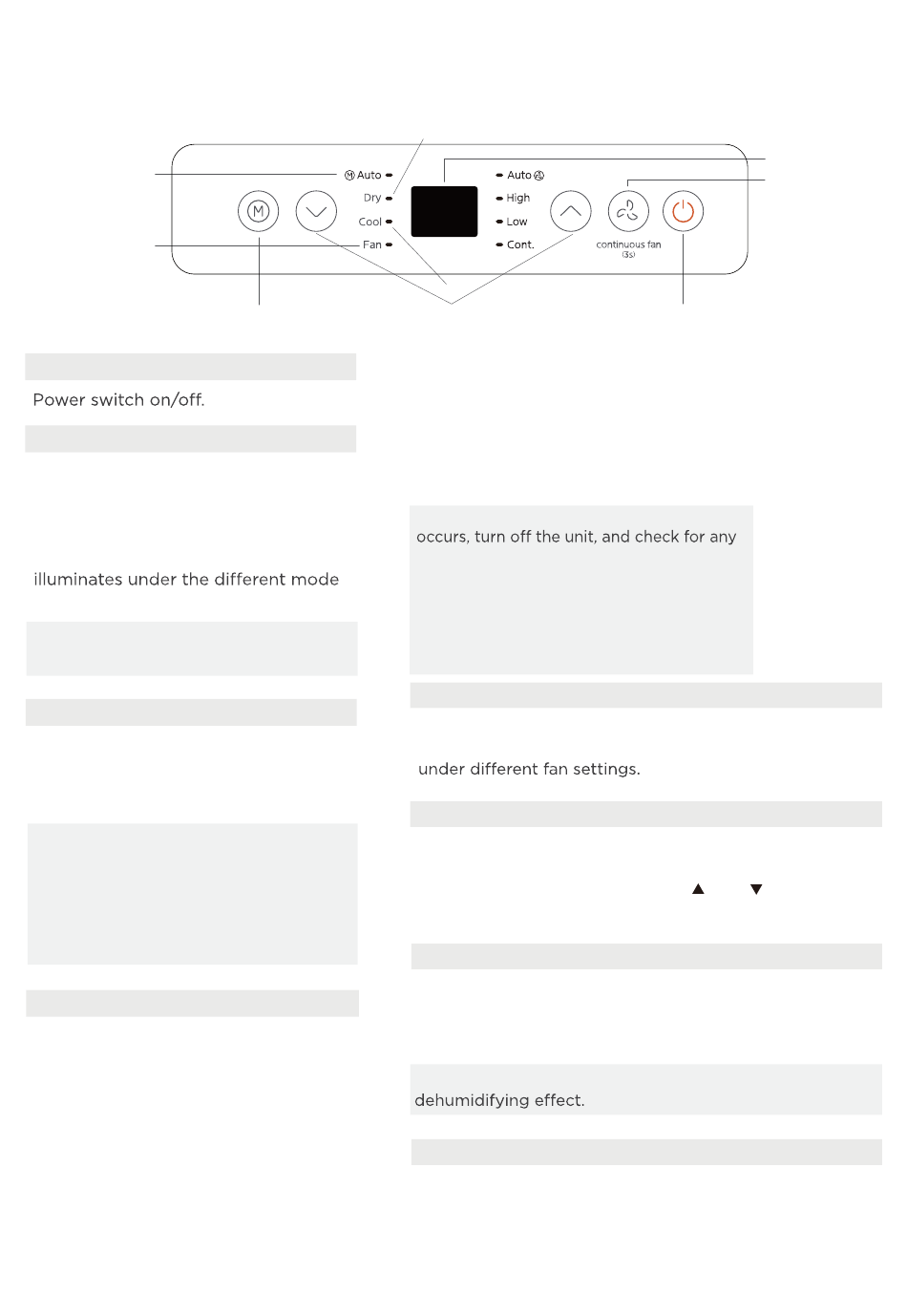

Electronic control operating instructions
8
5
1. POWER button
2. MODE function
Selects the appropriate operating
mode. Each time you press the button,
the mode is selected in a sequence
that goes from AUTO, DRY, COOL and
FAN. The mode indicator light
setting.
NOTE: In AUTO mode, the FAN
speed will be adjusted automatically.
3. UP and DOWN buttons
Used to adjust (increasing/decreasing)
temperature settings in
1°C/2°F (or 1°F) increments in a range
of 16°C/60°F to 30°C/88°F (or 86°F).
NOTE: The control is capable of
displaying temperature in degrees
Fahrenheit or degrees Celsius. To
convert from one to the other, press
and hold the Up and Down buttons at
the same time for 3 seconds.
4. Display
Shows the set temperature while on Cool
or Auto mode. It shows the room
temperature on DRY and FAN modes.
Shows Error codes:
EH00-EEPROM error.
EH60-Room temperature sensor error.
EH61-Evaporator temperature sensor error.
EC52-Condenser temperature sensor error
(on some models).
7
2
EH0b-Display panel communication error.
EC-Refrigerant leakage detection
malfunction(on some models).
Shows protection code:
P1-Bottom tray is full--Connect the drain
hose and drain the collected water away.
If protection repeats, call for service.
NOTE: When one of the above malfunctions
obstructions on any of the air inlet or outlet
vents. Restart the unit, if the malfunction is
still present, turn off the unit and unplug the
power cord. Contact the manufacturer, its
service agents or a similar qualified person
for service.
5.FAN function
Press to control the fan speed in four steps HIGH, LOW,
Cont and AUTO. The fan speed indicator light illuminates
6. COOL mode
To turn on cool mode, press the "MODE" button until the
"Cool" indicator light comes on.
Press the UP and DOWN buttons
temperature in COOL mode.
7. DRY mode
To turn on dry mode, press the "MODE" button until the
"Dry" indicator light comes on. In this mode, the fan speed
or the temperature cannot be adjusted. The fan motor
operates at Auto speed.
NOTE:Keep windows and doors closed for the best
8. AUTO mode
To turn on auto mode, press the "MODE" button until the
"Auto" indicator light comes on. In this mode, the fan
speed or the temperature will be adjusted automatically.
6
3
17
4
9
1
and to select your
