Hung Window Installation Sliding Window Installation

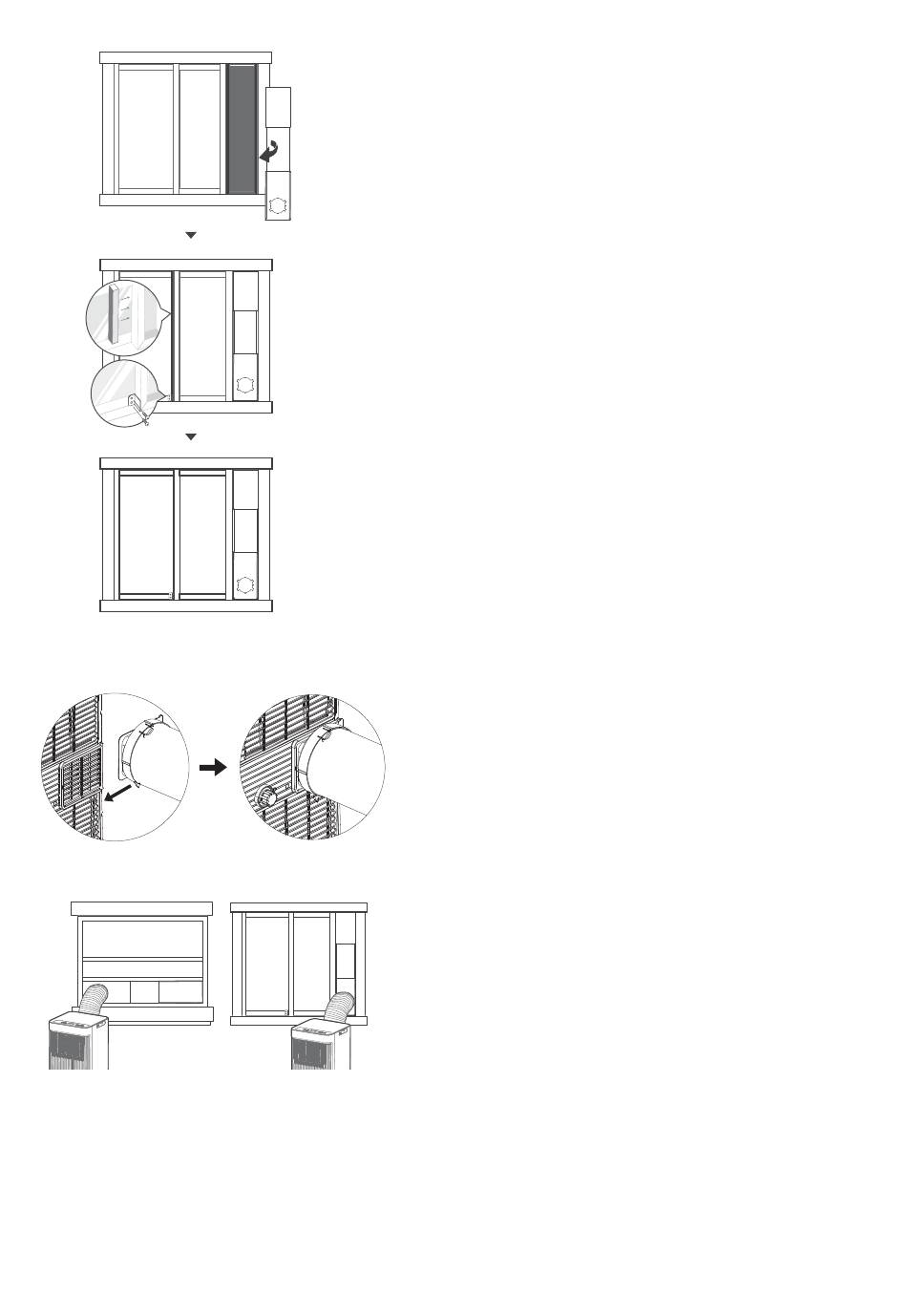

5. Sliding Window Installation
S e t p : 1
Insert the window slider assembly into the window
opening.
S e t p : 2
Cut the non-adhesive foam seal C strip to match the
height of the window. Insert the seal between the glass
and the window frame to prevent air and insects from
getting into the room.
Step 3:
If desired, install the security bracket with 2 screws as
shown.
6. Install the exhaust hose assembly to the unit
Push the exhaust hose into the air outlet opening
of the unit along the arrow direction.
7. Connect the adaptor to the unit and the window
Insert the window slider adapter into the hole of the
window slider.
