Revision date: 18.10.2023

How to replace the internal Wi-Fi module on the Aduro P5 series

Difficulty level: Intermediate

Time consumption: 20 minutes

Tools: TORX 20 screwdriver, 8 mm wrench, PH screwdriver

Components: Seluxit Wi-Fi module

NB: All changes and adjustments must be conducted when the stove is cold and disconnected from the

power supply.

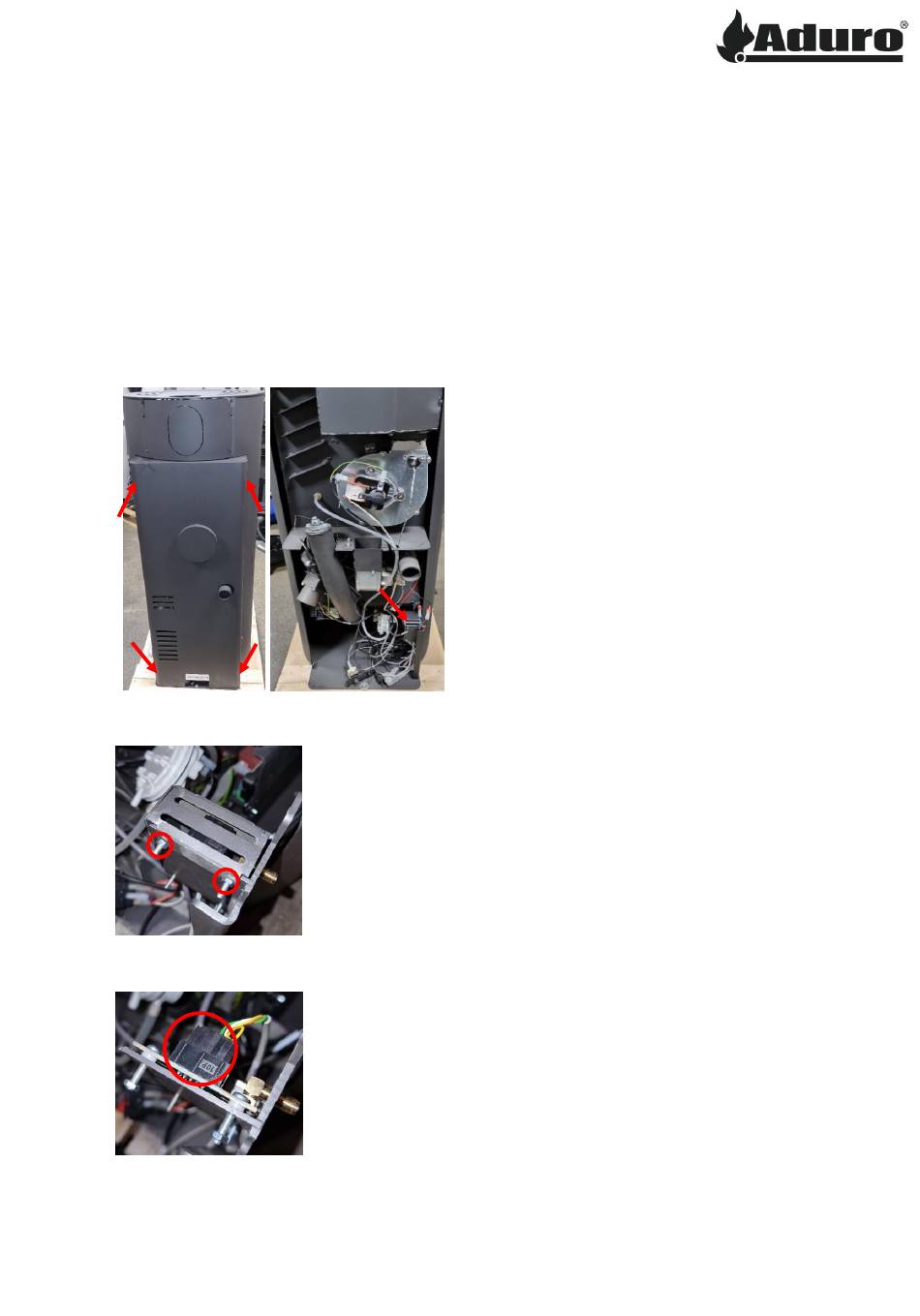

1. To access the Wi-Fi module, remove the stove's backplate by removing the 4 screws:

2. Remove the cover plate for the Wi-Fi module by unscrewing the 2 nuts. Then lift off the cover:

3. Remove the data cable by tugging on the connector:

Table of Contents

Need help?

Do you have a question about the P5 Series and is the answer not in the manual?

Page 1 Revision date: 18.10.2023 How to replace the internal Wi-Fi module on the Aduro P5 series Difficulty level: Intermediate Time consumption: 20 minutes Tools: TORX 20 screwdriver, 8 mm wrench, PH screwdriver Components: Seluxit Wi-Fi module NB: All changes and adjustments must be conducted when the stove is cold and disconnected from the power supply.
Page 2 5. Mount the new Wi-Fi module. Please make sure that there are plastic/rubber spacers on all screws so that the module doesn’t touch the metal surface. 6. Mount the data cable from the control board: 7. Perform a setup in the Aduro Pellet Stove App to test if the Wi-Fi module works (Setup guide). If it doesn’t work, see troubleshooting below.
Page 3 Revision date: 18.10.2023 Troubleshooting: The Wi-Fi module will not turn on: Check that the data cable is connected to both the Wi-Fi module and the control board. Check that the control board is connected to power. Check the data cable for damage, or chafing.
