ADURO P5 Series Replacement

Replacement of the smoke exhaust fan

Hide thumbs Also See for P5 Series:

Revision date: 22.09.2023

Replacement of the smoke exhaust fan on the Aduro P5 series

Difficulty level: Intermediate

Time consumption: 30 minutes

Tools: TORX 15 screwdriver, PH2 screwdriver, Allen key 4 mm

Components:

Smoke exhaust fan

(aduroshop.com), high temperature resistant silicone

NB: All changes and adjustments must be conducted when the stove is cold and disconnected from the

power supply.

Replacing the exhaust fan

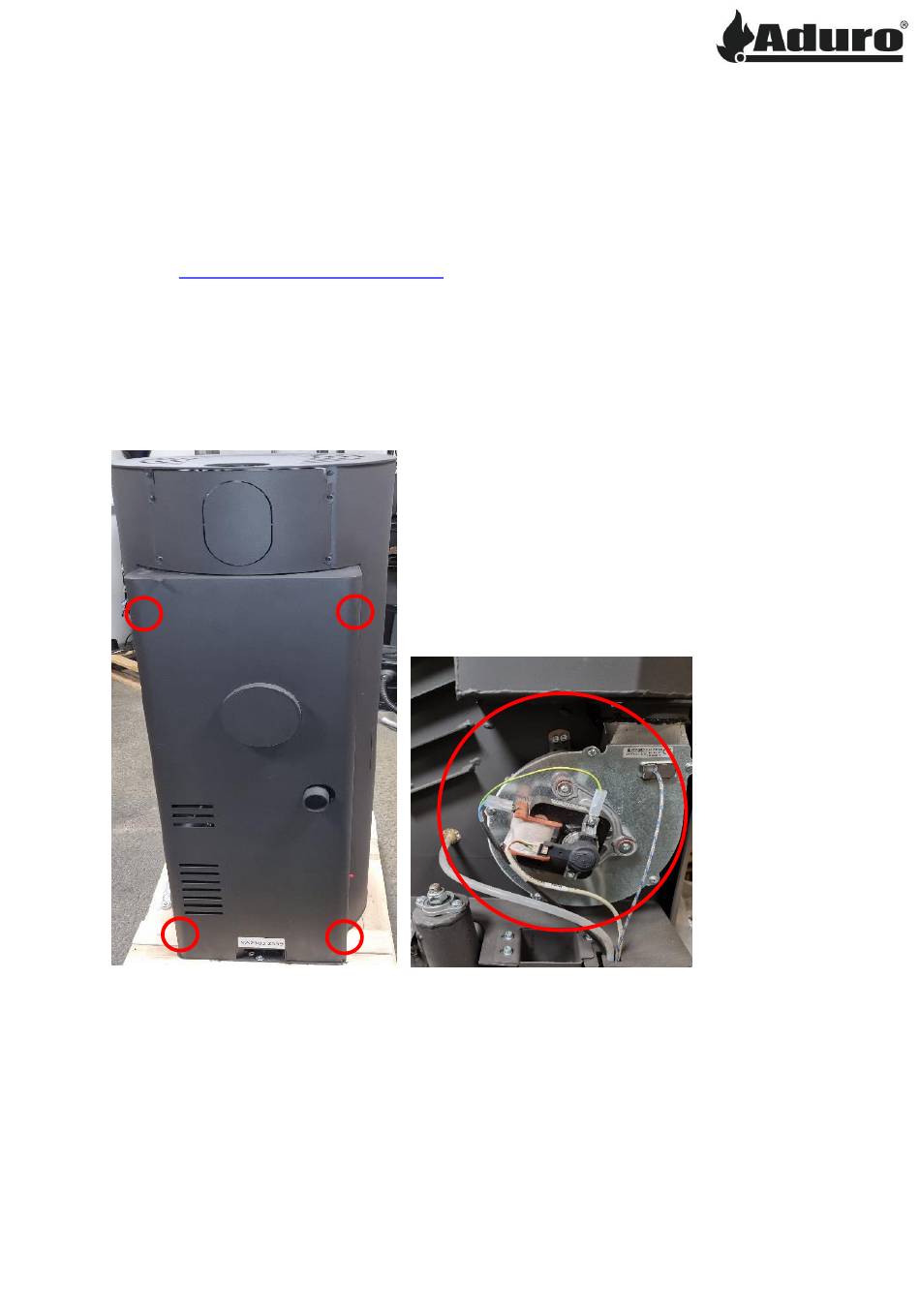

1. To access the smoke exhaust fan, remove the backplate of the stove by removing the 4 screws:

Table of Contents

Do you have a question about the P5 Series and is the answer not in the manual?

Page 1 Revision date: 22.09.2023 Replacement of the smoke exhaust fan on the Aduro P5 series Difficulty level: Intermediate Time consumption: 30 minutes Tools: TORX 15 screwdriver, PH2 screwdriver, Allen key 4 mm Components: Smoke exhaust fan (aduroshop.com), high temperature resistant silicone NB: All changes and adjustments must be conducted when the stove is cold and disconnected from the power supply.
Page 2 Revision date: 22.09.2023 2. Dismount the sensor from the smoke exhaust fan by opening the metal cover, then pull out the cable. Remove the felt, unscrew the PH screw and then remove the sensor and plate: 3. Unplug the three connectors from the smoke exhaust fan:...
Page 3 Revision date: 22.09.2023 4. Unscrew the 6 screws in the three brackets that attaches the smoke exhaust fan to the stove: 5. Remove the smoke exhaust fan by first cutting the silicone around the pipe, then pull the smoke exhaust fan down and pull it outwards:...
Page 4 Revision date: 22.09.2023 6. Before mounting the new smoke exhaust fan, be sure to apply a line of high temperature resistant silicone around the collar of the exhaust pipe on the smoke exhaust fan. Then reinsert the smoke exhaust fan: 7.
Page 5 Revision date: 22.09.2023 9. Before remounting the backplate, we recommend performing an ignition to test that the new smoke exhaust fan is working. If working, remount the backplate. Troubleshooting The smoke exhaust fan is not spinning/ Alarm 4 “Fan Failure”: ...
