Aduro P1 series – Cleaning

All cleaning must be carried out while the stove is turned off and cold!

The frequency for cleaning strongly depends on the quality of pellets and the combustion.

Recommended daily cleaning

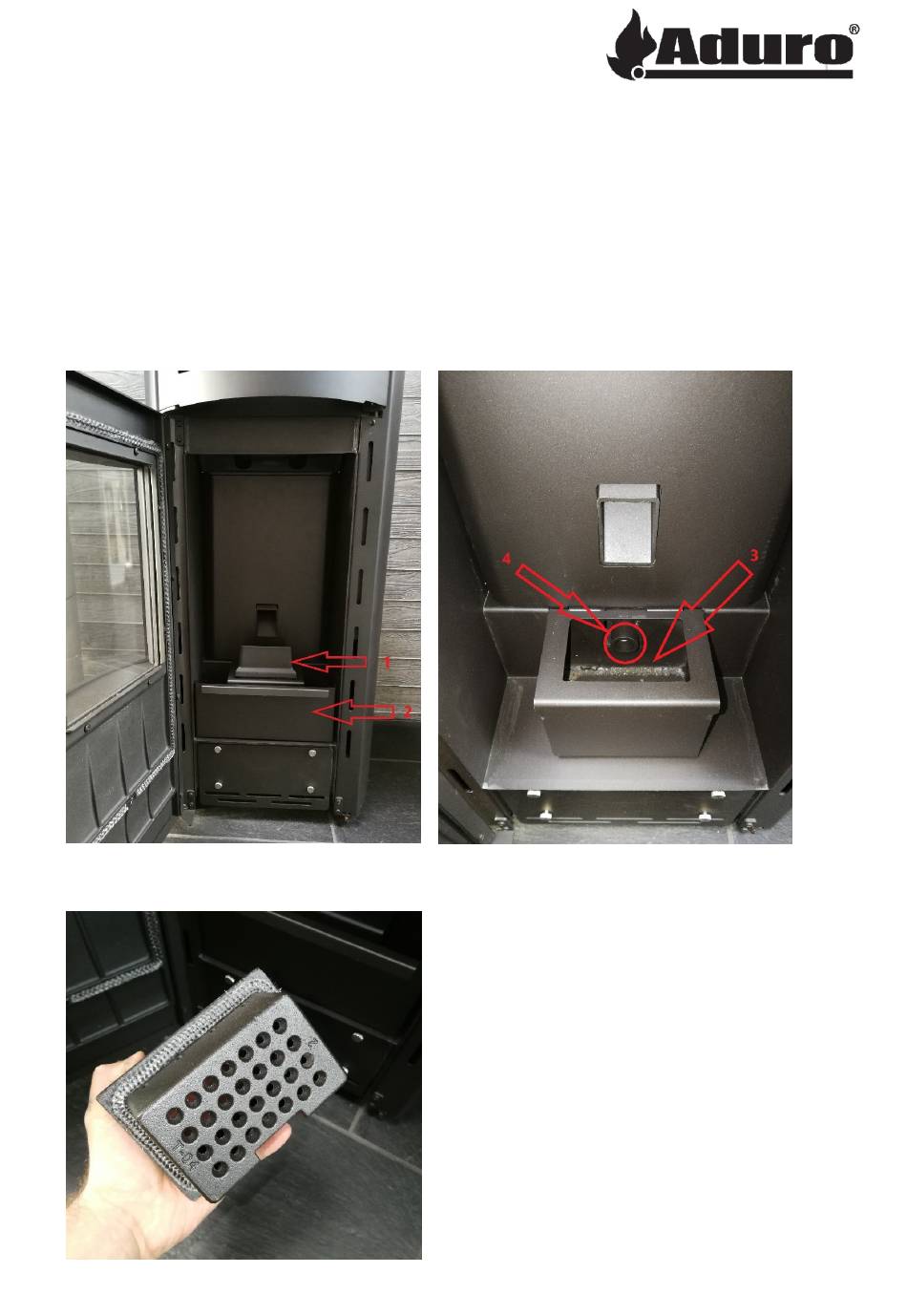

Depending on the usage, we recommend cleaning the brazier (1) and the ash tray (2) on a daily basis.

Lift the brazier and remove it in order to be able to clean it sufficiently. Remove ashes and unburnt pellets from

the chamber below the brazier (3) and the guide tube for the igniter (4).

The ash tray can be pulled out and emptied.

Furthermore, you should remove ashes around the door gasket and inside the combustion chamber using an

ash cleaner.

Upon every ignition, the brazier should be checked for ashes and unburnt pellets.

The holes in the bottom must be free in order to ensure sufficient combustion air.

FAQ: Aduro P1 Series - Cleaning

Table of Contents

Do you have a question about the P1 Series and is the answer not in the manual?

Page 1 Furthermore, you should remove ashes around the door gasket and inside the combustion chamber using an ash cleaner. Upon every ignition, the brazier should be checked for ashes and unburnt pellets. The holes in the bottom must be free in order to ensure sufficient combustion air. FAQ: Aduro P1 Series - Cleaning...
Page 2 At the same time, make sure to hold the back plate in position as it is held in place by the steel baffle plate. Second, remove the back plate by tipping it towards yourself (8). Lift it slightly to take it off. FAQ: Aduro P1 Series - Cleaning...
Page 3 Remove the baffle plate (11) by lifting it off the hooks (12). Use an ash cleaner to remove the ashes. All the above cleaning steps should be part of the annual maintenance. FAQ: Aduro P1 Series - Cleaning...
