ADURO P5 Series Replacement

Replacement of smoke temperature sensor

Hide thumbs Also See for P5 Series:

Revision date: 22.09.2023

Replacement of smoke temperature sensor on the Aduro P5 series

Difficulty level: Easy

Time consumption: 10 minutes

Tools: TORX 15 screwdriver, 5 mm flathead screwdriver

Components:

Smoke temperature sensor (aduroshop.com)

NB: All changes and adjustments must be conducted when the stove is cold and disconnected from the

power supply.

Replacing the smoke temperature sensor

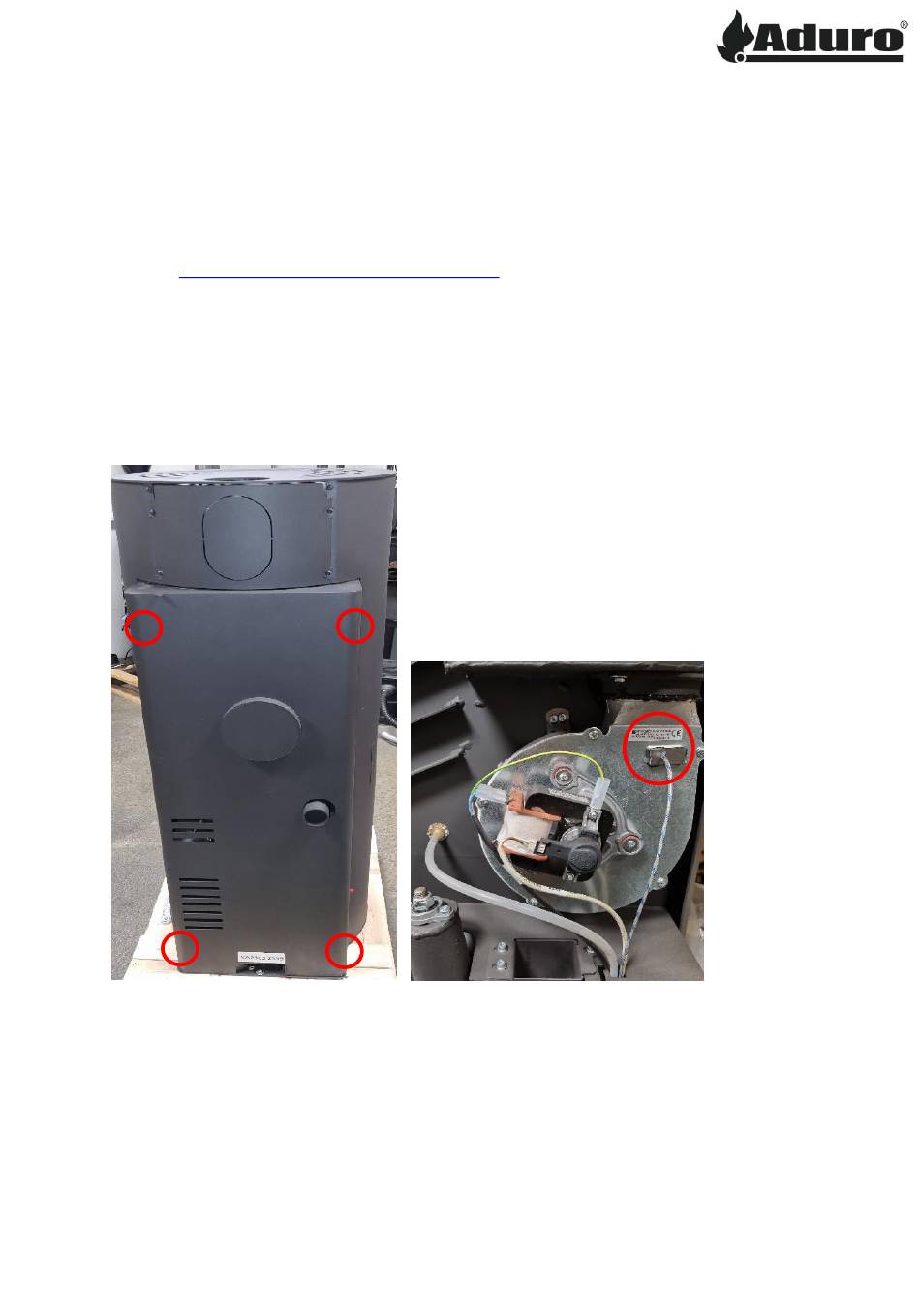

1. To access the smoke temperature sensor, remove the backplate of the stove by removing the 4

screws:

Table of Contents

Do you have a question about the P5 Series and is the answer not in the manual?

Page 1 Revision date: 22.09.2023 Replacement of smoke temperature sensor on the Aduro P5 series Difficulty level: Easy Time consumption: 10 minutes Tools: TORX 15 screwdriver, 5 mm flathead screwdriver Components: Smoke temperature sensor (aduroshop.com) NB: All changes and adjustments must be conducted when the stove is cold and disconnected from the power supply.
Page 2 Revision date: 22.09.2023 2. Dismount the sensor by opening the metal cover, then pull out the cable: 3. Before the new sensor is installed, the sensor wires need to be changed on the control board. The control board can be accessed from the front of the stove. Open the lower door of the stove and unscrew the two screws.
Page 3 Revision date: 22.09.2023 5. Insert the new sensor through the felt and press it in until the felt covers the sensor. Put the metal cover back in place. If zip ties have been cut, be sure to secure the cables with new ones. 6.
Page 4 Revision date: 22.09.2023 Make sure that the app is connected to the stove and that the stove is connected to the internet. Keywords: smoke, temperature, sensor, replace, P5, troubleshooting, troubleshoot...
