Summary of Contents for ADURO P1 series

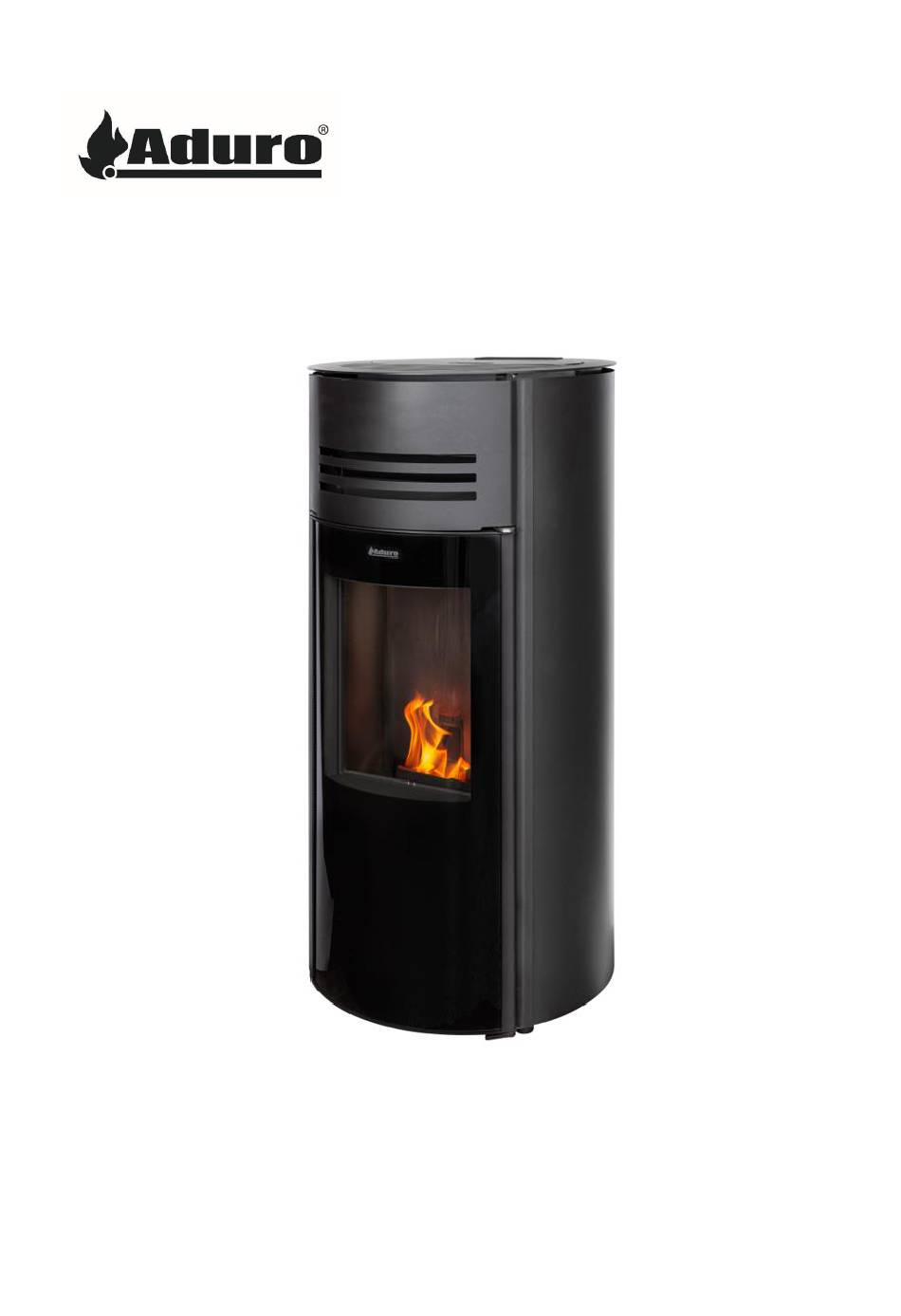

- Page 1 Aduro P1 series aduro.dk / aduro.no / adurofire.de / adurofire.com aduro.fr / aduro.es / aduro.it Version 1...
- Page 2 Congratulations on your new Aduro Stove! To get the best possible experience and benefit from your new Aduro Pellet Stove, it is important that you read the user manual thoroughly before you install the stove and start using it. Errors or incorrect settings can cause hazardous conditions and/or poor operation.
-
Page 3: Product Safety
The combustion of waste, especially of plastic materials, damages the stove and the flue pipe. Moreover, it is forbidden by the law against the emission of harmful substances. • Use only the fuel recommended by Aduro A/S. It is forbidden to use any liquid fuels and bioethanol fluids for lighting/rekindling pellets. •... -
Page 4: General Safety Precautions
1.3 General safety precautions • Use the stove only as described in this manual. Any other use not recommended by the manufacturer may cause fires or accidents to people. • Make sure that the electrical power available corresponds to the value indicated on the data plate (230V~/50Hz). -
Page 5: Technical Specifications
• Use only original spare parts provided by Aduro A/S. • Avoid any improper transfers or knocks that may damage the structure or the components. • The metal structure is coated using high temperature paints. When using the appliance for the first few times, unpleasant odours may be given off due to the paint of the metal parts that is drying: this is in no way dangerous and if it happens, simply ventilate the premises. - Page 6 2.1 Transportation When taking your stove home, please ensure that it travels in an upright position. The packaging must be disposed according to national rules regarding disposal of waste.

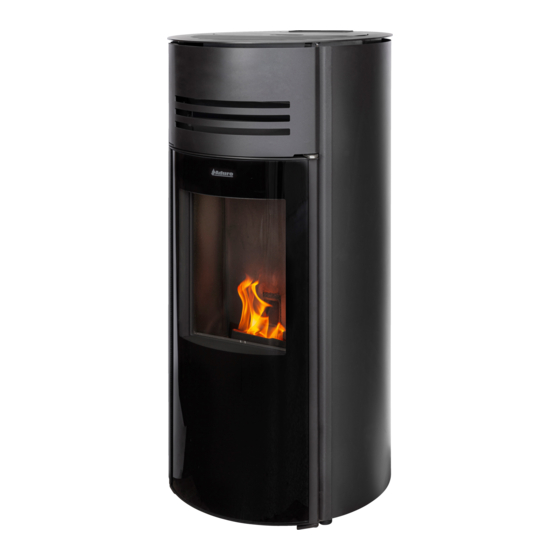

- Page 7 3. Basic features of the stove 1. Door 2. Door handle 3. Inside glass 4. Outside curved glass 5. Ashpan 6. Burning pot 7. Maintenance door 8. Side panel 9. Top plate 10. Pellet container 11. Pellet container door 12. Display with commands 13.
-
Page 8: Installation Of The Stove
4. Installation of the stove 4.1 Preliminary activities (For which the retailer/installer is responsible and liable for at the time of the inspection before definitive installation). The preliminary activities include: • verification of installation site suitability; • verification of external air inlet suitability; •... - Page 9 4.3 Position of the stove/distance requirements This stove must be installed in a suitable position. You need to be sure that the position complies with local regulations. Distance requirements will only apply if the stove is to be placed close to flammable materials: Distance to flammable material (see also illustration below) Behind the stove To the sides...
- Page 10 4.4 Flue pipe The flue pipe is one of the key features for guaranteeing the proper functioning of the stove. • The stove is fitted with a Ø80mm round flue outlet and a joint connection to be connected to the flue pipe.
-
Page 11: Display And Remote Control
The wind action varies depending on whether it is ascending, descending or horizontal. • Ascending wind always results in an increased negative pressure and draft. • Horizontal wind results in an increased negative pressure if the chimney cowl was installed properly. •... - Page 12 5.2. Display The display shows basic information about the stove’s operation and has 6 buttons for various settings (see the description below). 1. Temperature setting (buttons 1 and 2) 2. Enter/Set (button 3) 3. Indicators for single components 4. Clock display 5.
-
Page 13: Using The Stove
5.3 Symbols of the basic components of the stove A bar will appear next to the indicators for the components that are currently active. The bar next to the indicator for the pellet insertion engine will therefore appear periodically as pellets are released to the burning pot. -
Page 14: Temperature And Mode Settings
6.2 Temperature and mode settings The temperature can be set to anything between 7 and 40°C. Use the buttons 1 and 2 to increase or decrease the wanted room temperature. The mode can be set to anything between P1 and P5. Use the buttons 5 and 6 to increase or decrease the power mode. -
Page 15: Weekly Programming
7.2.1 How to turn on the timer Press button 3 to enter the menu, followed by button 5 in order to get to the timer setting menu (02 SET CHRONO) and confirm with button 3. Press button 3 one more time and then use button 1 to switch between ON and OFF in order to activate or deactivate the timer function. - Page 16 WEEKLY PROGRAMMING setting meaning available values menu level n2-3-01 CHRONO WEEK Enable weekly chrono ON/OFF n2-3-02 START PRG 1 Start time OFF-00:00-23:50 n2-3-03 STOP PRG 1 Stop time OFF-00:00-23:50 n2-3-04 MONDAY ON/OFF n2-3-05 TUESDAY ON/OFF n2-3-06 WEDNESDAY ON/OFF n2-3-07 THURSDAY ON/OFF n2-3-08 FRIDAY...
- Page 17 n2-3-37 SUNDAY ON/OFF 7.2.4 Weekend programming This program allows you to set two time periods which apply for both Saturday and Sunday. Enter menu 2, press button 5 (three times) and confirm with button 3 to enter menu 2-4, the weekend programming menu.
- Page 18 Whenever the pellet container runs empty during operation, ALARM 6 will appear on the display (see also Potential Errors). In this case, carry out the above described procedure as well. 7.7 Information on the operation of the stove Menu 07 allows you to get current information about the operating mode, the exhaust gas temperature, the fan speed, the remaining time until the next action etc.
-
Page 19: Technical Settings
This screen shows the time remaining in the current status before entering the next status. This screen can also be accessed by pressing and holding button 6 during normal operation. 7.8 Technical settings IMPORTANT! Menu 08 is reserved only for professionals trained to adjust the stove. Any change in the parameters that was made by unauthorized persons will result in the loss of warranty! 8. - Page 20 8.3 Error caused by defective exhaust gas temperature sensor You can access the exhaust gas temperature by pressing and holding button 2. If the exhaust gas temperature sensor is defective or not connected correctly, the display will show 373°C in the first line. If this error occurs, you must contact your dealer or the authorized service partner.
-
Page 21: Cleaning And Maintenance
Soot and dust can easily be removed using a damp cloth that you dip in cold ash and rub on the sooty glass. Special cleaning agents are also available to remove soot from the glass, e.g. the Aduro Easy Clean pad. -
Page 22: Surface Maintenance
9.3 Surface maintenance Aduro P1 The stove’s surface is treated with a heat-resistant paint, which will stay at its best just by being vacuumed with a small, soft mouthpiece or dusted with a soft, dry cloth. Do not use spirit or other solvents, as they will remove the paint. -
Page 23: Annual Maintenance
Repairing the surface Aduro P1 is painted with a heat-resistant paint that can withstand temperatures up to 500 degrees. If the surface of the stove gets scratched or wears down, it can easily be renewed using this type of paint. - Page 24 • Damages resulting from incorrect installation and use of the stove, overheating and wrong or missing maintenance of the stove etc. • Consumable service parts (glass, gaskets, firebricks, handles, painted surfaces, electrical igniter, sensors/switches, cast iron grate), which are subject to normal wear and tear. You can buy these parts in our webshop www.aduroshop.com.
