Revision date: 20.09.2023

How to replace the convection fan on the Aduro P5 series

Difficulty level: Easy

Time consumption: 15 minutes

Tools: Allen key 4 mm, TORX 20 screwdriver, PH 2 screwdriver

Convection fan (aduroshop.com)

NB: All changes and adjustments must be conducted when the stove is cold and disconnected from the

power supply.

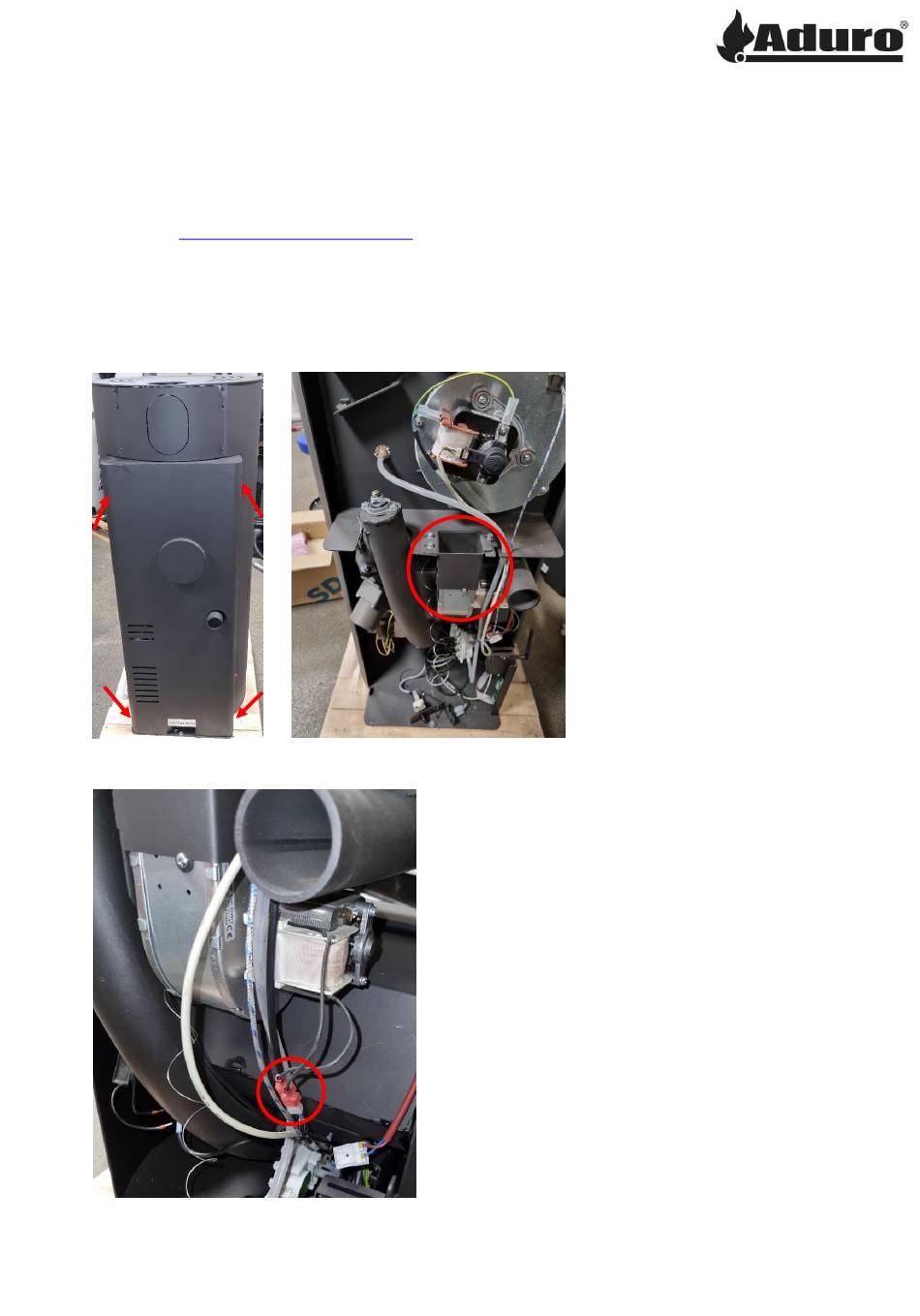

1. Unscrew the four screws on the stove's backplate with a TORX 20 screwdriver and remove the

backplate. Then locate the convection fan:

2. Disconnect the two cables to the fan:

Table of Contents

Need help?

Do you have a question about the P5 Series and is the answer not in the manual?

Page 1 Revision date: 20.09.2023 How to replace the convection fan on the Aduro P5 series Difficulty level: Easy Time consumption: 15 minutes Tools: Allen key 4 mm, TORX 20 screwdriver, PH 2 screwdriver Components: Convection fan (aduroshop.com) NB: All changes and adjustments must be conducted when the stove is cold and disconnected from the power supply.
Page 2 Revision date: 20.09.2023 3. Remove the three screws which holds the fan bracket in place, then remove the fan assembly: 4. Now remove the four screws which attaches the bracket to the fan: 5. Before mounting the bracket to the new fan, make sure that the holes in the fan’s air duct align with the holes in the fan’s cover plate.
Page 3 Revision date: 20.09.2023 6. Reattach the fan bracket to the fan, and screw in the screws as shown in point 4. 7. Remount the fan bracket with the new fan to the stove by screwing the three screws back in place as shown in point 3.
