H550 Surface Mount Bracket
Quick Setup Guide

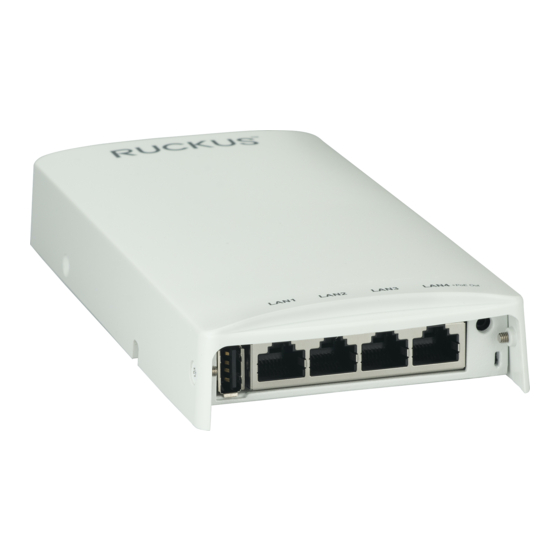

This Quick Setup Guide provides step-by-step instructions on how to install
the H550 access point (AP) using the optional surface mount bracket. The
H550 Surface Mount Bracket (Part # 902-0136-0000) is designed to mount
the H550 AP on a wall surface that does not have an in-wall cable routing
box.
Package Contents
Verify that all of the following items are included in the package. If any
item is damaged or missing, notify your authorized RUCKUS sales
representative.
• One H550 surface mount bracket
• Two torx mounting screws
• This Quick Setup Guide
Required Hardware and Tools
• One RUCKUS H550 wall switch AP
• A T8 Torx driver
• Customer-supplied mounting screws and plastic wall anchors
• An electric drill with drill bits
• A screwdriver with assorted bits
Mounting the AP with the Surface Mount Bracket
1. Use the surface mount bracket as a template to mark the locations for
drill holes (four mounting hole locations).
Copyright © 2024 CommScope, Inc. All rights reserved.
Published March 2024, Part Number 800-72521-001 Rev B

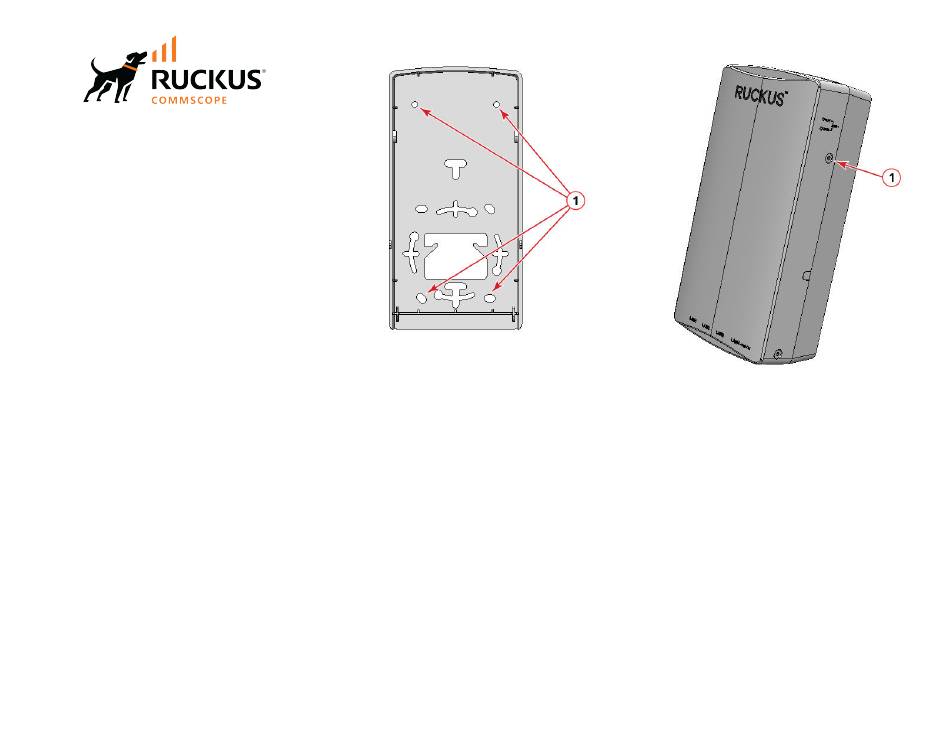

FIGURE 1 Surface Bracket Mounting Holes
1. Mounting holes
2. Drill holes of the appropriate size for the customer supplied mounting
screws and plastic wall anchors.
3. If you will be running the uplink Ethernet cable through the bottom of
the surface bracket, remove one of the punch-out tabs at the bottom
of the surface bracket.
4. Attach the bracket to the wall using the plastic wall anchors and
mounting screws.
5. Run the Ethernet uplink cable through the punch-out tab opening in
the bottom of the surface bracket (or through the large hole in the
center of the surface bracket).
6. Remove the two torx screws from the sides of the H550.
FIGURE 2 Removing Torx Screws from AP
1. Torx screws
7. Remove the flat mounting bracket from the back of the AP. This
bracket will not be used when using the surface mount bracket.
