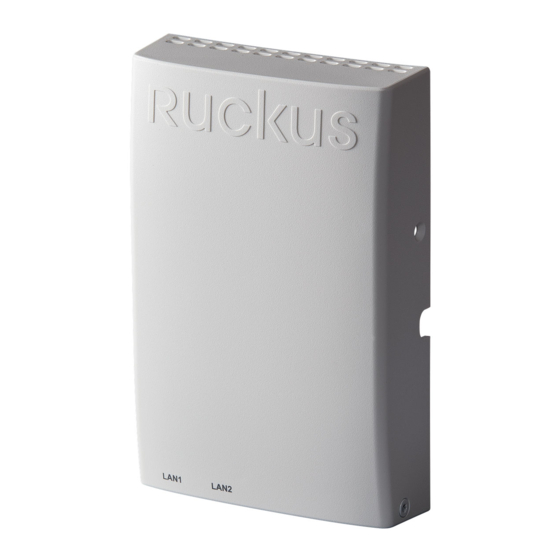

H320 Access Point

Quick Setup Guide

This Quick Setup Guide provides step-by-step instructions on how
to set up your Ruckus Wireless H320 Dual Band 802.11ac Wave 2
Wall Switch Access Point. After completing the steps described in
this guide, you will be able to access the Access Point (AP) and
begin providing wired and wireless network access to users.
The H320 has many options:
• It can be mounted on a standard USA- or EU-style single-
gang wall outlet box.
• Provides two stream, dual-band 11ac Wave 2 Wi-Fi (5 GHz -
2x2:2; 2.4 GHz - 1x1:1).
• Includes one 10/100/1000 uplink port and two 10/100 access
ports.
• It can be powered by a customer-supplied IEEE 802.3af- or
802.3at-compliant PoE switch or injector.
Note: The H320 does NOT support Mesh.
Note: The H320 requires Ruckus Wireless base image 106.1
firmware or later. Managed H320 deployments require
SmartZone 3.5.1 or later, or ZoneDirector (ZD) 10.0.x or later.
T G O L
HIS UIDE IN THER ANGUAGES
请从以下网站获得该指南的简体中文版
•
https://support.ruckuswireless.com
• Vous trouverez la version française de ce guide à l'adresse
suivante https://support.ruckuswireless.com
こ の ガ イ ド の⽇本語版は
• https://support.ruckuswireless.com
で ご 覧 く だ さ い
이 가이드의 한국어 버전은 웹 사이트
•
(https://support.ruckuswireless.com) 에서 확인하시기 바랍니
다
• Veja a versão em português (Brasil) deste guia em
https://support.ruckuswireless.com
• Puede ver la versión en español (América Latina) de esta guía
en https://support.ruckuswireless.com
Copyright © 2017 Ruckus Wireless, Inc.
Published June 2017, Part Number 800-71448-001 Rev B
B Y B
EFORE OU EGIN
Before deploying Ruckus Wireless products, please check for the
latest software and the release documentation.
• User Guides and Release Notes are available at
http://support.ruckuswireless.com/documents
• Software Upgrades are available at
http://support.ruckuswireless.com/software
• Open Source information is available at
http://opensource.ruckuswireless.com
• Software License and Limited Warranty are available at
http://support.ruckuswireless.com/warranty
P C
ACKAGE ONTENTS
• H320 Wall Switch Access Point
• Mounting bracket
• Two 6mm M3x0.5 thread Torx flat head machine screws
• Two 1" 6-32 thread Phillips pan head machine screws
• Product warranty statement
• Regulatory flyer
• Declaration of Conformity, if required
• This Quick Setup Guide
S 1: C T
TEP OLLECTING OOLS AND
R
EQUIREMENTS
• No. 2 Phillips screwdriver and T10 Torx driver for the mounting
bracket screws
• A standard USA- or EU-style single-gang wall outlet box
• One of the following:
• Customer-supplied IEEE 802.3af/at-compliant PoE switch
• Customer-supplied IEEE 802.3af/at-compliant PoE
injector
• An Ethernet cable (Cat5e, or better) supplying PoE power and
network connectivity run through the wall from your LAN to the
wall outlet box
• A computer with an Ethernet port and a Wi-Fi network adapter
S 2: C
TEP
H320

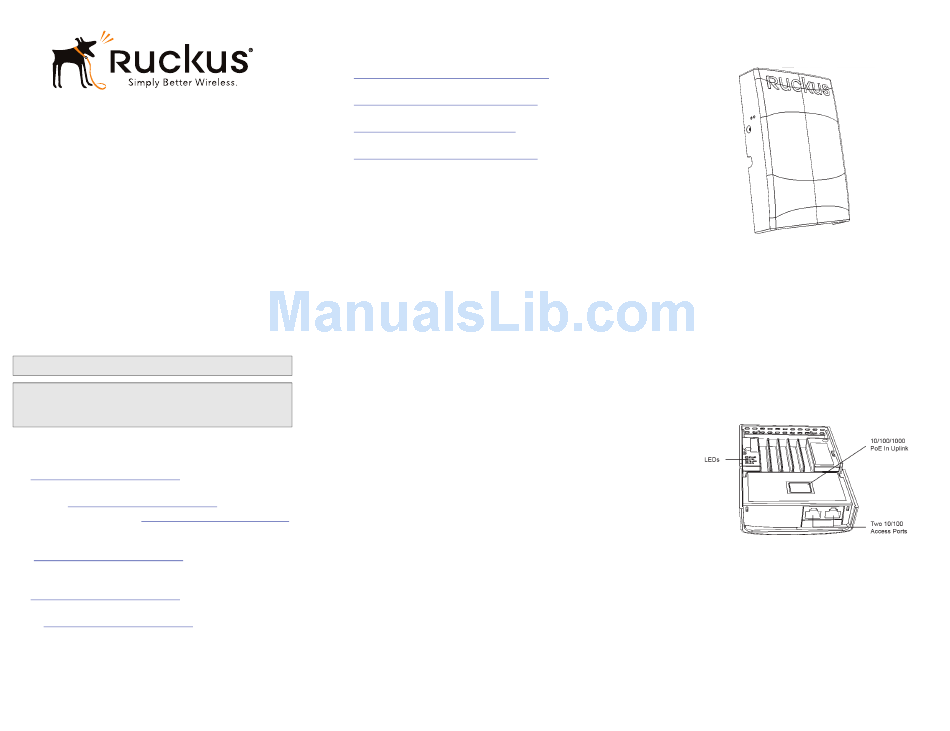

Figure 1: Front view
1
After removing your H320 from its package, place it next to
your computer.
2
Using an Ethernet cable, connect your computer's network
port to the PoE injector or PoE switch that will provide power
to the H320.
3
Using another Ethernet cable, connect the PoE In port on the
S
ETUP
H320 to a PoE injector or PoE switch.
4
Power on the PoE switch or PoE injector.
5 Verify that the PWR LED on the rear of the enclosure is a
steady green.
Figure 2: Rear and bottom view
C
ONNECTING THE OMPUTER TO THE
