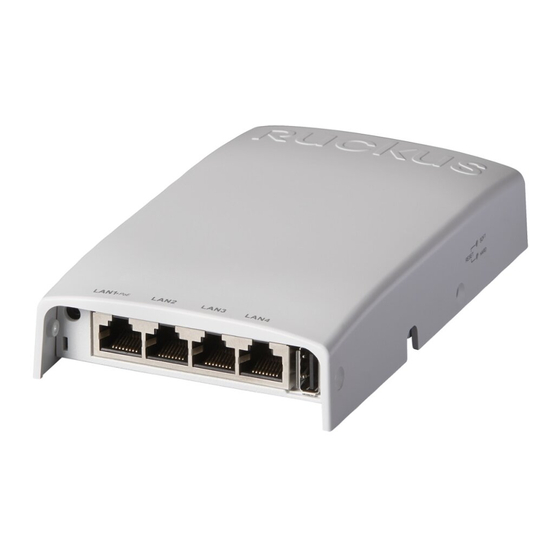

H510 Access Point

Quick Setup Guide

This Quick Setup Guide provides step-by-step instructions on how
to set up your Ruckus Wireless H510 Dual Band 802.11ac
Multimedia Wi-Fi Access Point Wall Switch. After completing the
steps described in this guide, you will be able to access the Wi-Fi
Wall Switch and begin providing wired and wireless network
access to users. The rest of this document refers to the H510
Access Point Wall Switch as the H510.
The H510 has many options:
It can be mounted on a standard USA- or EU-style single-
gang wall outlet box.
It can be powered by a customer-supplied IEEE 802.3af- or
802.3at-compliant PoE switch or injector, or can be powered
by an optional customer-ordered DC power adapter.
It has side cutouts for one or two bypass cables. The
mounting bracket has locating hooks to keep the bypass
cables aligned with the cutouts when attaching the H510 to
the mounting base.
It can have a low-power (0.5W or less) customer-supplied
USB device plugged in. The USB device is very difficult to
remove after the H510 is attached to the mounting base.
Note: The H510 requires Ruckus Wireless base image 104.0
firmware or later. Managed H510 deployments require
SmartZone 3.4 or later, or ZoneDirector 9.13.1 or later.
Copyright © 2017 Ruckus Wireless, Inc.
Published April 2017, Part Number 800-71206-001 Rev B
A
P
D
BOUT
ERIPHERAL
EVICES
The H510 can supply power to USB devices and PoE-powered
devices, and the power supplied depends on the PoE power
supplied to the H510.
The USB port is intended for low-power devices such as BLE
(Bluetooth low energy) beacons. The maximum power that the
USB port can supply is 0.5W.
The LAN1+PoE port is intended for PoE-powered peripheral
devices such as IP telephones.
H510 Power Options and Available Power Out for PoE Out
and USB
H510 Power Source
Power Available for PoE Out
and USB
802.3af PoE
5W total
802.3at PoE
12.95W PoE Out (802.3af
Class 3) and
0.5W USB
DC power adapter (sold
12.95W PoE Out (802.3af
separately)
Class 3) and
0.5W USB
T
G
O
L
HIS
UIDE IN
THER
ANGUAGES
请从以下网站获得该指南的简体中文版
https://support.ruckuswireless.com
Vous trouverez la version française de ce guide à l'adresse
suivante
https://support.ruckuswireless.com
こ の ガ イ ド の⽇本語版は
https://support.ruckuswireless.com
で ご 覧 く だ さ い
이 가이드의 한국어 버전은 웹 사이트
(https://support.ruckuswireless.com) 에서 확인하시기 바랍니
Veja a versão em português (Brasil) deste guia em
https://support.ruckuswireless.com
Puede ver la versión en español (América Latina) de esta guía
en
https://support.ruckuswireless.com
B
Y
B
EFORE
OU
EGIN
Before deploying Ruckus Wireless products, please check for the
latest software and the release documentation.
User Guides and Release Notes are available at
http://support.ruckuswireless.com/documents
Software Upgrades are available at
http://support.ruckuswireless.com/software
Open Source information is available at
http://opensource.ruckuswireless.com
Software License and Limited Warranty are available at
http://support.ruckuswireless.com/warranty
P
C
ACKAGE
ONTENTS
H510 Access Point Wall Switch
Mounting bracket
Two 6mm M3x0.5 thread Torx flat head machine screws
Two 1" 6-32 thread Phillips pan head machine screws
Product warranty statement
Regulatory flyer
Declaration of Conformity, if required
This Quick Setup Guide
