ADURO P4 Replacement

Replacement of the smoke exhaust fan

Hide thumbs Also See for P4:

Download this manual

Revision date: 10.07.2024

Replacement of the smoke exhaust fan on Aduro P4

Difficulty level: Difficult

Time consumption: 30 minutes

Tools: TORX 25 screwdriver, Allen key (ratchet key is recommended)

Components:

Smoke exhaust

NB: All changes and adjustments must be conducted when the stove is cold and disconnected from the

power supply.

Replacing the smoke exhaust fan

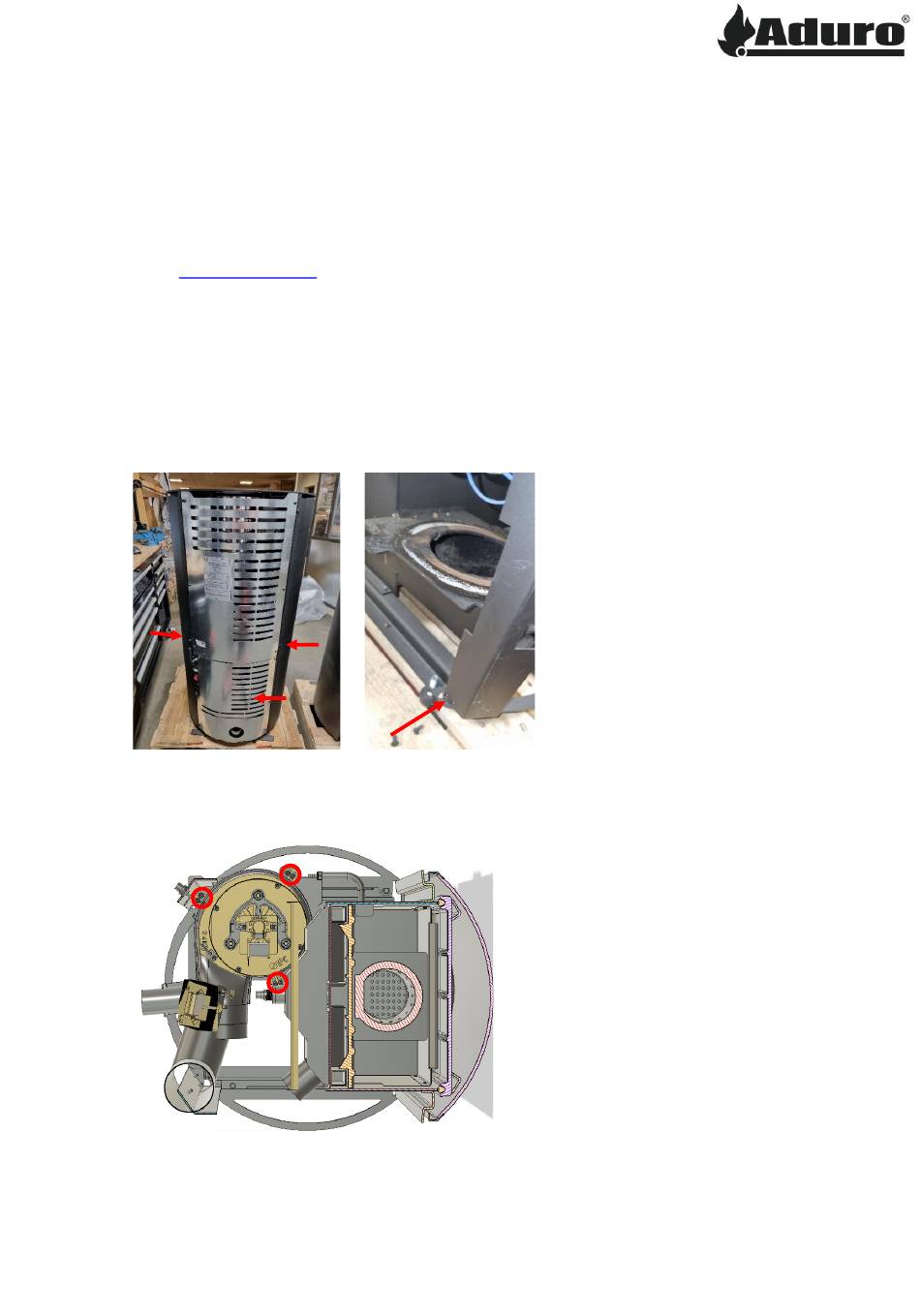

1. To access the smoke exhaust fan, remove the side panels and the lower back panel of the stove. It

is also recommended to loosen the support frame beam on the left side to allow better access to the

screws:

2. Unscrew the 6 screws in the three brackets that attach the smoke exhaust fan to the stove.

fan, high temperature resistant silicone

Need help?

Do you have a question about the P4 and is the answer not in the manual?

Page 1 Revision date: 10.07.2024 Replacement of the smoke exhaust fan on Aduro P4 Difficulty level: Difficult Time consumption: 30 minutes Tools: TORX 25 screwdriver, Allen key (ratchet key is recommended) Components: Smoke exhaust fan, high temperature resistant silicone NB: All changes and adjustments must be conducted when the stove is cold and disconnected from the power supply.
Page 2 Revision date: 10.07.2024 3. Dismount the temperature sensor from the smoke exhaust fan – sometimes the silicone might need to be loosened with a knife: 4. Unplug the 4 electrical connectors from the smoke exhaust fan. Remove the fan from the stove, by pulling and twisting the fan, separating it from the internal flue: 5.
Page 3 Revision date: 10.07.2024 7. Before remounting the temperature sensor, be sure to apply a new layer of high temperature resistant silicone to secure and seal the sensor: 8. Before remounting the panels, we recommend performing an ignition to test that the new smoke exhaust fan is working.
